A bridge can be installed quickly, but it cannot be designed casually. For highway agencies, contractors, mining operators, disaster-relief teams, and industrial developers, the HS20 load standard remains an important reference point when evaluating vehicle loading for steel bridge projects—especially for modular and prefabricated Bailey bridge solutions.
At Evercross Bridge, we have seen that the most expensive bridge problems often begin before fabrication. A project team may focus on span length, delivery time, or steel tonnage, yet overlook the actual vehicle spectrum, axle configuration, deck width, approach-road condition, bearing capacity, or local authority requirements. The result can be a bridge that is fast to install but poorly matched to its long-term duty.
For more than 30 years, Evercross Bridge has supplied prefabricated steel bridge solutions for customers in more than 50 countries. Our experience in government infrastructure, emergency crossings, rural access roads, industrial transport routes, and overseas logistics projects has reinforced one principle: a load standard is not merely a number—it is a design decision that affects safety, cost, service life, documentation, and public trust.
This guide explains what HS20 means, how it relates to H-20 and HL-93 loading, why it matters for Bailey bridges, and how project owners can make better decisions before production begins.
> Engineering note: This article provides general technical information, not project-specific structural design advice. The governing design code, local authority requirements, site conditions, and calculations prepared or reviewed by a qualified engineer must control every final bridge design.
The term HS20 comes from older AASHTO highway bridge loading terminology. It represents a design truck model historically used to account for heavy commercial traffic. In simple terms, it gives engineers a standardized vehicle loading condition that can be used to evaluate whether a bridge, roadway component, or related structure has sufficient capacity.
The "HS" designation historically refers to a truck-and-semitrailer configuration. The "20" indicates a loading level associated with a 20-ton design truck model. Under the classic HS20 truck model, the nominal axle arrangement includes:
HS20 Design Truck Component | Nominal Load |
Front axle | 8,000 lb |
First rear axle | 32,000 lb |
Second rear axle | 32,000 lb |
Total truck load | 72,000 lb |
The spacing between the rear axles may be varied within defined limits to produce the most critical structural effect. That detail is important. A bridge does not respond only to gross vehicle weight. It also responds to axle location, axle spacing, wheel paths, lane position, dynamic effects, and the structural form of the bridge.
For a modular steel bridge, the critical demand may occur at different locations depending on the span and configuration:
- Midspan bending may control a long, simply supported crossing.
- Shear may govern near supports.
- Deck panels may be affected by concentrated wheel loads.
- Bearings, foundations, and abutments may become the limiting elements even when the steel superstructure is adequate.
- Repetitive heavy traffic may introduce fatigue and maintenance concerns over the bridge's operating life.
This is why a statement such as "the bridge meets HS20" should never stand alone. A technically meaningful proposal should identify the bridge span, roadway width, configuration, deck system, material grade, corrosion protection, design assumptions, support conditions, and governing code.
A common source of confusion is the interchangeable use of HS20, H-20, and HL-93. They are related terms in North American bridge engineering practice, but they are not interchangeable in every design, procurement, inspection, or regulatory context.
Load Model | General Purpose | Main Loading Basis | Practical Consideration |
H-20 | Older truck loading reference | Two-axle truck model | Often appears in legacy documents and component specifications |
HS20 | Older truck-semitrailer loading reference | Three-axle truck model with variable rear spacing | Common shorthand in older bridge specifications and procurement discussions |
HL-93 | Modern AASHTO LRFD bridge design live-load model | Design truck or tandem combined with design lane load | Frequently required for new U.S. highway bridge design under AASHTO LRFD |
The most important practical distinction is that HL-93 is more comprehensive than the old HS20 truck model. It includes combinations of a design truck or design tandem with a distributed design lane load. The AASHTO LRFD design lane load is 0.64 klf, meaning 0.64 kips per linear foot distributed longitudinally over the design lane. This reflects the fact that real bridges can experience not only one isolated truck but also sustained traffic effects across a lane.
For new highway bridges subject to modern U.S. LRFD requirements, project teams should not assume that an HS20-based concept automatically satisfies an HL-93 design requirement. The correct approach is to ask:
1. Which code edition governs this project?
2. Does the owner require HS20, HS25, HL-93, a military load class, or a country-specific truck model?
3. Is the bridge temporary, emergency, semi-permanent, or permanent?
4. Will the bridge carry legal highway trucks, mine haul vehicles, cranes, fire apparatus, or abnormal loads?
5. Does the authority require a formal load rating after installation?
For international projects, the governing standard may instead come from local highway authorities, British Standards, Eurocodes, African regional specifications, national transport ministries, mining-company standards, or donor-funded procurement documents. Therefore, the purchase order must define the governing load model precisely, rather than relying on a generic phrase such as "heavy-duty bridge."

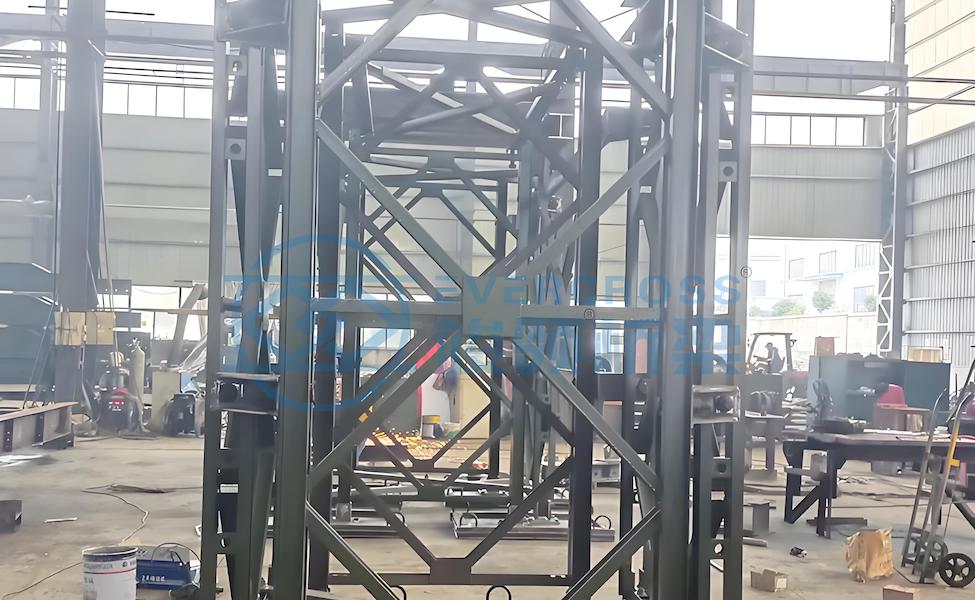

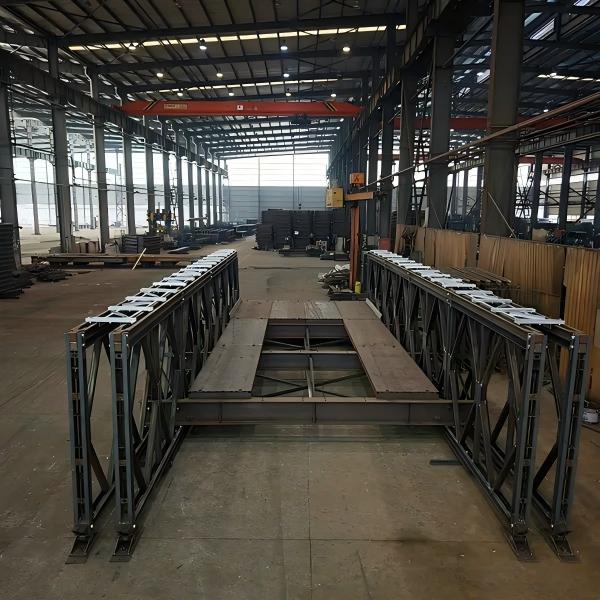

A Bailey bridge is valued because its modular steel truss system can be transported in components, assembled rapidly, and adapted to different spans and site constraints. These strengths make it highly useful for emergency access, detours, rural road connectivity, construction sites, resource projects, military logistics, and remote-area infrastructure.
However, the word "Bailey bridge" describes a bridge family and construction concept—not a single universal load capacity. A compact single-lane pedestrian bridge, a temporary site bridge, and a heavy-duty double-truss highway bridge may all be called Bailey bridges, but their capacities can differ significantly.
A properly engineered HS20 Bailey bridge requires coordinated design decisions across the complete bridge system:
- Truss configuration, including single, double, or multi-storey arrangements.
- Span length and support arrangement.
- Deck type and deck-panel stiffness.
- Lane width and vehicle clearance.
- Cross-beam spacing and wheel-load distribution.
- Steel grade, member connections, pins, bolts, and bracing.
- Camber, deflection limits, and vibration behavior.
- Wind, seismic, flood, debris, temperature, and corrosion exposure.
- Abutments, bearings, foundations, approach slabs, and drainage.
- Construction method, including launching, crane erection, or incremental assembly.
From an owner's perspective, the key benefit of specifying a recognized load standard is comparability. It helps the client evaluate supplier proposals on a more consistent basis. Instead of comparing only bridge weight or price, the project team can compare verified structural capacity, design assumptions, technical documents, and compliance evidence.
For a manufacturer, the load requirement should be translated into an auditable engineering package. At Evercross Bridge, this typically means aligning the bridge configuration and fabrication scope with the project's stated loading, span, terrain, transport route, environmental exposure, erection method, and authority approval pathway.
Before asking a Bailey bridge manufacturer for a quotation, prepare a technical brief. This saves time, reduces redesign risk, and creates a clearer basis for comparison.
Do not specify HS20 simply because it is familiar. Identify the vehicles that will cross the bridge.
Include:
- Maximum gross vehicle weight.
- Axle loads and axle spacing.
- Tire or wheel contact areas where relevant.
- Vehicle frequency per day.
- One-way or two-way traffic operation.
- Emergency vehicles, mobile cranes, concrete trucks, fuel trucks, or abnormal-load vehicles.
- Possible future traffic growth.
A bridge designed for occasional emergency access may require a different solution from a bridge carrying loaded commercial trucks every day.
The same truck load can produce different design challenges at different sites. The manufacturer or engineer should understand:
- Clear span and required freeboard.
- River flow, flood level, scour risk, and debris impact.
- Soil bearing capacity and abutment design conditions.
- Road alignment, approach gradient, and turning radius.
- Seismic zone and wind exposure.
- Coastal, tropical, desert, or industrial corrosion environment.
- Available erection space and equipment access.
State whether the contract requires:
- HS20 or a legacy load model.
- HL-93 under AASHTO LRFD.
- A local national bridge code.
- A client-specific industrial or mining load model.
- A designated vehicle loading schedule.
- A proof-load or acceptance-testing requirement.
This prevents an expensive mismatch between the owner's operational expectations and the supplier's engineering basis.
A reliable bridge proposal should provide appropriate project documents, which may include:
- General arrangement drawings.
- Design calculations or calculation summaries.
- Material specifications and mill certificates.
- Welding procedures and inspection records.
- Coating or galvanizing specifications.
- Factory quality-control documentation.
- Bill of materials and packing list.
- Installation manual and erection sequence.
- Maintenance recommendations.
- Load-rating or design-certification documentation when required.
Safe performance continues after handover. Establish who will inspect the bridge, control overweight vehicles, maintain deck drainage, repair coatings, inspect connections, and respond to flood or impact events.
The Federal Highway Administration emphasizes that bridge load rating and posting are central to public safety. A load rating determines safe regular-use capacity and maximum permissible loading; when capacity is insufficient, posting and enforcement can become necessary.
This distinction is often overlooked in commercial bridge discussions.
Design is the process of configuring a new bridge so that it meets the specified code and load requirements. It considers dead load, live load, dynamic effects, wind, seismic forces, hydraulic conditions, material resistance, connection behavior, and other applicable limit states.
Load rating is an evaluation of an existing bridge's ability to carry defined live loads. It may account for actual dimensions, material properties, deterioration, repairs, section loss, inspection data, and changes in use.
For public bridges in the United States, FHWA materials describe load-rating practices and the use of inventory and operating levels. The inventory level relates to safe regular operation, while the operating level represents the maximum permissible live-load condition under controlled circumstances. FHWA also maintains load-rating guidance and technical resources for bridge owners and engineers.
For Bailey bridge owners, this means that a bridge originally designed for a certain loading condition may need reassessment if:
- The bridge is relocated to a new site.
- The span is changed.
- The deck system is modified.
- Heavier vehicles are introduced.
- Members are damaged or corroded.
- The bridge's temporary use becomes long-term.
- The owner needs to meet a new regulatory requirement.
This is particularly relevant for emergency bridges. A rapid deployment bridge can restore access after a flood, landslide, or bridge failure. But if it remains in service for years, the owner should establish a formal inspection, maintenance, and load-control plan rather than treating it as a short-term structure indefinitely.
Prefabricated steel bridges offer an important advantage when time is critical. Components can be manufactured in a controlled factory environment, packed for container or bulk shipment, transported to remote locations, and assembled using a planned erection method. This can reduce onsite fabrication exposure and help restore transport links faster than conventional site-built solutions.
But speed should not eliminate due diligence.
In our experience, successful emergency and overseas infrastructure bridge projects are built around four parallel workstreams:
Workstream | Key Questions |
Engineering | What load, span, width, environment, and code govern the design? |
Manufacturing | How will materials, welding, dimensional control, coatings, and inspection be controlled? |
Logistics | Can bridge components reach the site through ports, roads, customs procedures, and last-mile access routes? |
Installation | What equipment, crew competence, launching method, safety plan, and inspection hold points are required? |
For international projects, this integrated approach is particularly valuable. The bridge itself may be only one part of a wider delivery challenge that includes export packing, sea freight, local transport restrictions, customs documentation, remote-site lifting equipment, language coordination, and client acceptance procedures.
Evercross Bridge supports complete prefabricated steel bridge delivery services covering design coordination, production, transport planning, and installation support. With annual steel bridge production capacity of up to 100,000 tons and delivery experience across Southeast Asia, Africa, and Latin America, our team understands that a technically sound bridge must also be practical to fabricate, ship, erect, inspect, and maintain.
The following errors can undermine an otherwise well-funded bridge project:
- Using "HS20" without a governing code edition. Clarify whether the project follows legacy AASHTO provisions, AASHTO LRFD HL-93, or another local design standard.
- Ignoring actual truck axle spacing. Gross weight alone is not enough to assess bridge demand.
- Selecting the truss before verifying the foundations. Weak abutments or poor soil can limit the entire crossing system.
- Treating a temporary bridge as maintenance-free. Bolts, pins, deck surfacing, drainage, coatings, and bearings require inspection.
- Assuming one test load proves every condition. Acceptance testing, proof testing, design verification, and long-term load rating serve different engineering purposes.
- Comparing suppliers only by price per ton. The lowest steel price may exclude crucial engineering, corrosion protection, documents, transport packaging, erection support, or quality assurance.
- Failing to control traffic after installation. A bridge's safe capacity can be compromised if overweight vehicles are not managed.
The best bridge solution is not simply the strongest truss or the lowest-cost quotation. It is the solution that aligns verified engineering capacity with your traffic, site, standard, schedule, logistics route, budget, and operating plan.
If you are planning an HS20 Bailey bridge, an emergency steel bridge, a temporary detour crossing, or a permanent prefabricated steel bridge, send Evercross Bridge your required span, roadway width, vehicle details, site photographs, local design standard, and project location.
Our engineering and project teams can help you develop a practical preliminary bridge solution—from structural configuration and manufacturing to transport packaging and installation support—so that your project can move from concept to safe operation with greater confidence.
Contact Evercross Bridge today to request a technical consultation and preliminary steel bridge proposal for your project.
HS20 is a historical AASHTO truck-semitrailer live-load model used as a reference for bridge design and evaluation. It includes an 8,000 lb front axle and two 32,000 lb rear axles, with variable rear-axle spacing used to produce critical effects in structural members. It remains common in legacy specifications, but new projects may instead require HL-93 or another governing design model.
No. H-20 and HS20 are related older AASHTO loading models, but they represent different vehicle configurations. H-20 refers to a simpler two-axle truck loading, while HS20 represents a truck-semitrailer configuration with three axles. Neither should automatically be considered equivalent to HL-93.
Not necessarily. HL-93 is a modern AASHTO LRFD live-load model that includes a design truck or tandem together with a design lane load. A bridge marketed as HS20-capable must be separately checked against HL-93 and all applicable code load combinations if HL-93 is required by the project.
Start with real operating data: maximum vehicle weight, axle loads, axle spacing, traffic volume, bridge width, span, site constraints, environmental exposure, and the governing authority's code. Then request a manufacturer's engineering proposal reviewed against those specific criteria. Do not select capacity based solely on a general "heavy-duty" label.
Yes, a modular steel Bailey bridge can serve as a long-term or permanent crossing when it is properly engineered for the intended loads and environment, installed on suitable foundations, protected against corrosion, and supported by an inspection and maintenance plan. The final classification and acceptance requirements depend on local regulations and the owner's specifications.
Load rating verifies how much live load an existing bridge can safely carry based on its actual condition and relevant evaluation method. It becomes especially important when traffic changes, a bridge is relocated, the structure deteriorates, or a temporary installation remains in service longer than originally planned. FHWA identifies bridge load rating and appropriate posting as key measures for managing safety.
Provide the clear span, deck width, required load standard, vehicle data, project location, site photographs, geological or foundation information if available, road approach details, environmental conditions, requested corrosion protection, delivery schedule, and installation constraints. More complete inputs lead to a more accurate and safer proposal.
