For overseas bridge owners, EPC contractors, and government infrastructure teams, sourcing an OEM steel box girder bridge is not simply a question of fabrication price. The real challenge is coordinating structural design, applicable codes, material traceability, corrosion protection, factory quality control, shipping constraints, and site installation into one dependable delivery process.
EVERCROSS Bridge is a China-based steel bridge manufacturer with more than 30 years of industry experience. Serving customers in more than 50 countries, the company provides prefabricated steel bridge solutions covering engineering coordination, production, export logistics, and installation support. With an annual production capacity of 100,000 tonnes and experience supporting more than 200 major government infrastructure projects across Southeast Asia, Africa, and Latin America, EVERCROSS is positioned to help global buyers turn complex bridge requirements into export-ready steel structures.
This guide explains how OEM steel box girder bridges are designed, manufactured, protected, inspected, and delivered—and what international buyers should verify before selecting a steel bridge supplier.
A steel box girder bridge, sometimes called a steel box beam bridge, uses a closed hollow steel section as its primary load-bearing member. The box is formed from top plates, bottom plates, web plates, diaphragms, and internal stiffeners that are welded or bolted into an integrated structural system.
Unlike an open I-girder, the closed geometry gives the structure strong resistance to bending and torsion. This is particularly valuable where the bridge deck is wide, curved, skewed, subject to eccentric loading, or exposed to wind and seismic effects.
In practical terms, a steel box girder bridge transfers:
- Vehicle and pedestrian loads
- Deck loads and surfacing loads
- Wind effects
- Seismic actions
- Temperature-related movement
- Fatigue stresses caused by repeated traffic loading
For export projects, the box girder format is especially attractive because much of the work can be completed in a controlled factory environment. Large segments can then be shipped to the project location for bolting, welding, lifting, launching, or other site-specific erection methods.
A closed steel cross-section typically provides high torsional stiffness compared with open girder arrangements. That characteristic makes steel box girders a practical option for:
- Highway flyovers and interchanges
- Curved ramps
- Coastal and cross-bay bridges
- Railway and heavy-transport crossings
- Industrial plant access bridges
- Port and terminal connections
- Urban viaducts with restricted construction space
- Architecturally sensitive bridge projects
The appropriate bridge type must always be determined by a qualified project engineer. Span, width, live load, seismic category, wind environment, clearance requirements, foundation conditions, erection access, and local code requirements can all materially affect the final structural solution.
A custom steel bridge should not be treated as a standard commodity product. Each project has its own geometry, loads, climate, transport route, inspection requirements, and construction sequence.
An experienced steel box girder bridge manufacturer can turn these variables into a coordinated OEM scope.
Buyer requirement | OEM steel box girder response | Practical project benefit |
Unusual span or alignment | Customized girder geometry, diaphragm layout, and segment dimensions | Better fit for curved, skewed, or constrained sites |
Heavy vehicle loading | Design coordination around specified live-load and fatigue criteria | Supports defined operational needs |
Marine or humid exposure | Project-specific surface preparation and coating system | Improves durability planning |
Limited site access | Factory-prefabricated modules sized around shipping and lifting limits | Reduces on-site fabrication workload |
Compressed schedule | Parallel factory fabrication and site preparation | Helps shorten the critical construction path |
Local-code compliance | Documentation aligned with the client's nominated standard | Makes consultant and owner review more efficient |
Remote installation | Marked components, assembly drawings, packing lists, and technical support | Reduces erection ambiguity |
The commercial value of OEM manufacturing comes from integration, not just steel processing. The supplier must understand the relationship between design intent, shop detailing, fabrication tolerances, welding sequence, coating requirements, packaging, export documentation, and construction-site realities.
Steel box girders are widely used where torsion matters. Curved ramps, asymmetrical loading, wide decks, and eccentric traffic lanes can create twisting effects that must be carefully controlled.
The closed box shape helps distribute those forces through the entire section. This does not eliminate the need for detailed analysis, but it provides a structurally efficient starting point for many complex bridge configurations.
Steel has a high strength-to-weight ratio. A lighter superstructure can reduce loads transferred to piers, bearings, and foundations.
This may be valuable when a project faces:
- Weak or variable ground conditions
- Difficult access for heavy foundation work
- Seismic design constraints
- Existing structures that must carry added loads
- Marine construction limitations
A lighter bridge does not automatically mean a lower overall project cost. Buyers should compare the full life-cycle scope, including foundations, erection equipment, transport, corrosion protection, inspection access, and future maintenance.
Prefabrication is one of the strongest advantages of a steel box girder bridge export solution. Factory production can proceed while the contractor prepares foundations, substructures, bearings, temporary works, and site access.
This approach can reduce exposure to:
- Weather disruption
- Urban traffic closures
- Difficult site welding conditions
- Long-duration work at height
- Inconsistent field fabrication quality
Steel box girders can support clean, shallow, and visually streamlined bridge profiles. The structure can be adapted to suit urban landscapes, tourism infrastructure, port developments, and signature public works projects.
Where aesthetics matter, the engineering team can coordinate girder depth, edge geometry, deck profile, lighting provisions, inspection access, and external surface finish early in the design process.
One of the most important lessons in steel bridge export is simple: do not assume one national standard automatically meets another country's project requirements.
The project owner, engineer of record, authority, or tender documents should identify the governing design standard and any required supplementary specifications. A qualified supplier then uses those requirements to prepare the engineering and fabrication scope.
For example, the AASHTO LRFD Bridge Design Specifications use a Load and Resistance Factor Design methodology and cover bridge design, evaluation, and rehabilitation. AASHTO's 10th edition includes updates across several sections, including steel structures and load provisions.
For European projects, EN 1993 Eurocode 3 addresses steel design for civil engineering works. Its scope includes resistance, serviceability, durability, fire resistance, welded and bolted joints, and steel bridges through EN 1993-2.
Standard or framework | Typical relevance for steel bridge exports | Buyer action |
AASHTO LRFD | Highway bridge projects influenced by U.S. practice | Confirm edition, project amendments, loading, and seismic criteria |
EN 1993 / Eurocode 3 | European steel structural and bridge design requirements | Confirm National Annex values and EN 1993-2 bridge provisions |
EN 1090-related execution requirements | Fabrication and execution requirements for steel structures | Clarify execution class, documentation, welding, and inspection obligations |
ISO 12944 | Corrosion-protection specification for steel structures | Specify exposure category, durability target, preparation, and coating system |
Local national bridge code | Country-specific public works, road authority, or railway requirements | Obtain the latest approved project specification before detailing |
Contract-specific requirements | Owner, consultant, lender, EPC, or inspection-agency requirements | Include these in the approved quality and inspection plan |
For protective coatings, ISO 12944 provides a useful framework. ISO 12944-8 covers the development of corrosion-protection specifications for steel structures under different environmental exposures, including open-air, immersion, and burial conditions. ISO 12944-3 also emphasizes design choices that help avoid premature corrosion and facilitate coating application, inspection, maintenance, handling, and transport.
"Compliant with international standards" should never be a vague marketing statement. Buyers should ask the supplier to define:
1. The exact governing standard and edition.
2. The project-specific load cases and design assumptions.
3. Material grades and mill certificate requirements.
4. Welding procedure qualification requirements.
5. Non-destructive testing scope and acceptance criteria.
6. Coating specification and inspection requirements.
7. Dimensional tolerance standards.
8. Hold points for client, engineer, or third-party inspection.
9. Documentation required at shipment and handover.
This creates a traceable path from contract requirements to final delivery.
EVERCROSS provides a full-process approach for buyers seeking a customized steel bridge for export. The goal is to reduce the risk that often occurs when design, fabrication, logistics, and installation are handled as disconnected packages.
Before fabrication begins, the project team should confirm the technical input package. This may include:
- General arrangement drawings
- Span arrangement and deck width
- Alignment, curvature, and crossfall
- Design loads and traffic classification
- Governing design standard
- Climate and corrosion environment
- Seismic and wind requirements
- Bearing and expansion-joint interfaces
- Transportation constraints
- Site lifting and erection method
- Required inspection and certification documents
For a professional OEM supplier, early technical clarification is not administrative work. It is risk control.
A bridge may be structurally sound on paper but difficult to fabricate, transport, or erect. This is why constructability review matters.
The manufacturing team should evaluate:
- Segment length and weight
- Container, breakbulk, or heavy-lift shipping feasibility
- Lifting-point design
- Match-marking strategy
- Field-bolt and field-weld locations
- Internal access for welding, coating, and inspection
- Drainage and ventilation details
- Maintenance access provisions
- Tolerance accumulation across segments
BIM and three-dimensional modeling can improve coordination by helping teams identify clashes, interfaces, fabrication sequences, and assembly challenges before steel is cut.

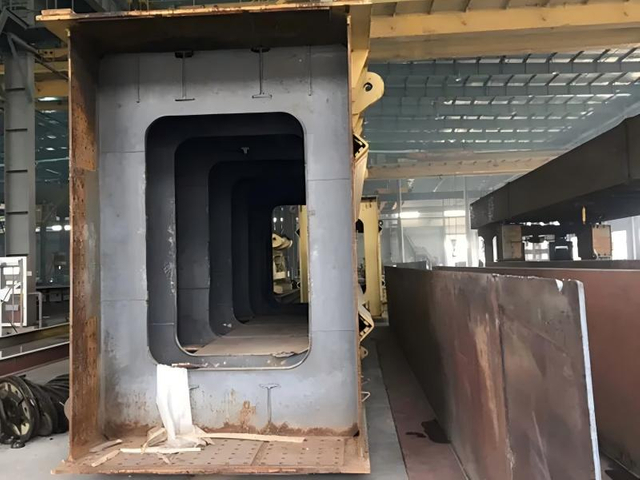

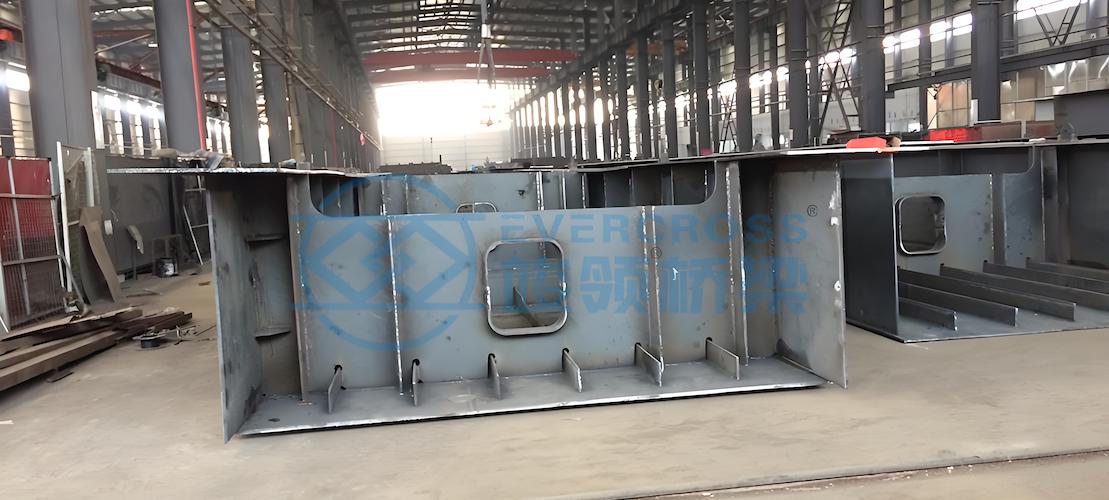

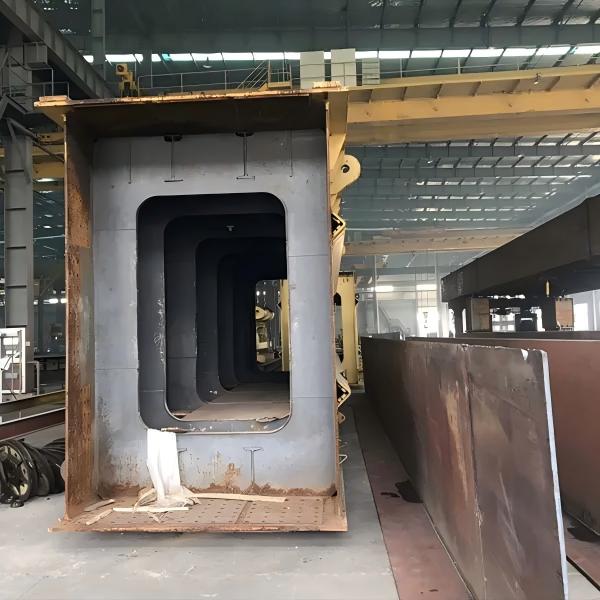

For a steel box girder bridge, consistency begins with incoming materials. A robust quality system should link each relevant steel plate, section, and consumable to the required material documentation.
The production sequence commonly includes:
1. Material receiving and verification.
2. Surface preparation and plate processing.
3. CNC cutting, beveling, and forming.
4. Subassembly of panels, diaphragms, and stiffeners.
5. Main girder assembly using approved fixtures and sequence controls.
6. Welding under qualified procedures.
7. Dimensional inspection and correction, where required.
8. Non-destructive testing according to the inspection plan.
9. Blast cleaning and coating application.
10. Final inspection, marking, packaging, and dispatch preparation.
Corrosion protection should be designed around the real exposure environment—not selected by habit.
For example, a dry inland location, a tropical industrial zone, and a high-salinity coastal project may require very different corrosion-protection strategies. Buyers should specify the expected exposure category, coating durability target, access constraints, expected maintenance intervals, and whether metal spraying, galvanizing, or multilayer liquid coatings are suitable.
A project-specific coating package may include:
- Abrasive blast cleaning to the required surface-preparation grade
- Zinc-rich primer or alternative approved primer
- High-build intermediate coating
- Durable topcoat suited to UV and weather exposure
- Stripe coats at edges, welds, corners, and difficult geometries
- Dry film thickness checks
- Adhesion, visual, and defect inspections
- Controlled touch-up procedures after transport and erection
The coating system must be selected and approved by the responsible project team. Performance depends on surface preparation, application conditions, inspection, design detailing, drainage, and future maintenance—not merely the paint brand or nominal number of layers.
The Taizhou Yuhuan Xuanmen Bay Steel Box Girder Bridge is a single-pylon, semi-floating cable-stayed bridge with a main span arrangement of (120+75) m. Its main beam adopts a steel-concrete composite steel box girder structure with an overall width of 39 m. Due to the high-salinity marine environment of Xuanmen Bay, the steel box girder was required to provide excellent torsional rigidity and corrosion resistance while complying with the Chinese national standard GB 50017-2017 as well as applicable international standards.
As the OEM manufacturer responsible for the steel box girder production for this project, EVERCROSS implemented strict technical and quality-control procedures throughout the entire manufacturing process to ensure full compliance with design specifications, standards, and customer requirements.
During the design stage, our engineering team worked closely with the customer and the project design institute to gain a thorough understanding of the structural requirements and design objectives. Based on GB 50017-2017 and relevant international standards, we optimized the steel box girder structure to improve its overall performance and manufacturability. BIM technology was also applied to create a three-dimensional model for simulation and structural analysis, helping verify that the strength, stiffness, and stability of the steel box girder met the required design criteria while accommodating the marine environment and seismic conditions at the project site.
For material selection, we strictly sourced high-quality steel that complied with the specified technical standards. All incoming materials underwent comprehensive inspection and testing, including chemical composition analysis and mechanical property testing, to confirm compliance with both design requirements and customer specifications. To enhance corrosion protection in the marine environment, the steel box girder was treated with a multi-layer protective coating system consisting of an epoxy zinc-rich primer, a high-build epoxy intermediate coating, and a fluorocarbon topcoat. This coating system significantly improves corrosion resistance and supports the bridge's required 100-year service life.
During manufacturing, advanced CNC cutting, welding, and assembly equipment was used in combination with standardized OEM production procedures. Steel plates were first subjected to shot-blasting pretreatment to achieve an Sa2.5 surface preparation grade, followed by CNC cutting and forming to ensure accurate component dimensions.
For welding, automatic submerged arc welding and CO₂ gas-shielded welding processes were adopted. Welding quality was strictly controlled in accordance with applicable international standards. All critical welds underwent 100% non-destructive testing, including ultrasonic testing and magnetic particle testing, to ensure a 100% weld acceptance rate. In addition, 12 key quality-control checkpoints were established throughout the manufacturing process to ensure that every production stage met the required technical and quality standards.
At the final inspection and delivery stage, the completed steel box girders underwent comprehensive quality verification covering dimensional accuracy, welding quality, corrosion protection, and other critical parameters. Detailed quality inspection reports were issued in accordance with relevant international standards, ensuring that all products fully satisfied the customer's technical requirements and applicable design specifications before shipment.
The successful completion of the Taizhou Yuhuan Xuanmen Bay Steel Box Girder Bridge project demonstrates EVERCROSS's strong OEM manufacturing capabilities, rigorous quality-control system, and ability to comply with demanding international engineering standards. It also provides a solid foundation for the continued expansion of EVERCROSS's steel box girder bridge business in international markets.
Use this checklist before issuing a purchase order or finalizing a technical agreement.
- Confirm the governing design code, edition, and project amendments.
- Identify all design loads, including vehicles, pedestrians, wind, seismic actions, temperature, and fatigue.
- Define the required service life and durability expectations.
- Clarify who is responsible for final design approval.
- Confirm whether independent checking or third-party review is required.
- Request a factory quality plan and inspection and test plan.
- Confirm steel grade, material certificates, and traceability process.
- Define welding procedures, welder qualifications, and NDT scope.
- Specify dimensional tolerances and final acceptance criteria.
- Identify client witness points and hold points before production begins.
- Define the corrosion environment and coating system.
- Confirm surface-preparation standards and dry-film thickness requirements.
- Require coating inspection records.
- Specify transport damage repair procedures.
- Confirm access for future inspection and maintenance.
- Confirm maximum shipping dimensions and weights.
- Decide whether modules will ship by container, flat rack, breakbulk, or heavy-lift vessel.
- Require packing lists, match marks, lifting instructions, and assembly drawings.
- Establish Incoterms, insurance responsibility, and port handling scope.
- Confirm whether on-site technical guidance is included.
Many bridge procurement problems occur at the interfaces between suppliers. A design consultant may not understand fabrication constraints. A fabricator may not know the port limitations. A logistics provider may not understand match-marking requirements. A site contractor may receive insufficient assembly information.
A full-process delivery model helps prevent these gaps.
For global customers, EVERCROSS can coordinate:
- Steel bridge design communication
- OEM fabrication
- Quality inspection documentation
- Surface treatment and packaging
- International shipping coordination
- Installation drawings and assembly support
- On-site technical guidance, where agreed
- After-sales communication for operation and maintenance needs
This approach is especially valuable for remote infrastructure, emergency access routes, developing transport corridors, port projects, and public works where schedule certainty matters.
> Need an OEM steel box girder bridge for an overseas project? Send Evercross Bridge your bridge drawings, span arrangement, loading requirements, destination port, design standard, and corrosion environment. The engineering team can evaluate manufacturability, modularization, quality requirements, export packaging, and installation support before quotation.
Yes. An OEM steel box girder bridge can be customized around the client's approved requirements, including span, width, load class, alignment, segment dimensions, material grade, coating system, and export packaging plan. The final design and fabrication scope should be confirmed against the project's governing code and engineering approval process.
The applicable standard depends on the project location and contract. Common frameworks may include AASHTO LRFD, EN 1993 Eurocode 3, local bridge codes, and project-specific requirements. Eurocode 3 includes steel bridge provisions through EN 1993-2, while AASHTO LRFD addresses bridge design through a load-and-resistance-factor methodology.
Lead time depends on steel tonnage, structural complexity, material availability, inspection requirements, coating system, approval speed, and shipping plan. The original EVERCROSS article gives a typical production range of approximately three to six months for OEM steel box girder bridge projects, although each order should be scheduled individually.
The appropriate protection system is selected according to the actual exposure conditions and project specification. Options may include blast cleaning, multilayer protective coatings, stripe coating of vulnerable details, and, where specified, thermal-sprayed metallic coatings. ISO 12944 provides a framework for choosing protective paint systems and preparing corrosion-protection specifications for steel structures.
It can. Factory-prefabricated segments allow fabrication to proceed while substructure work continues on site. Actual schedule savings depend on segment size, transport route, site access, lifting capacity, weather, foundation readiness, and erection method.
Typical documentation may include approved drawings, material certificates, welding records, NDT reports, dimensional-inspection reports, coating reports, packing lists, match-marking information, shipping documents, and installation guidance. The exact list should be included in the technical agreement and inspection plan.
It can be a strong option because the closed box cross-section provides useful torsional stiffness. However, suitability depends on the specific curvature, span arrangement, deck width, loading, bearings, support conditions, and local design code. A qualified bridge engineer should evaluate the final configuration.
1. American Association of State Highway and Transportation Officials. "[AASHTO Issues 10th Edition of LRFD Bridge Design Specifications]."
2. European Commission Joint Research Centre. "[Eurocode 3: Design of Steel Structures]."
3. International Organization for Standardization. "[ISO 12944-8: Paints and Varnishes—Corrosion Protection of Steel Structures by Protective Paint Systems—Part 8]."
4. International Organization for Standardization. "[ISO 12944-3: Design Considerations]."
5. International Organization for Standardization. "[ISO 12944-5: Paints and Varnishes—Corrosion Protection of Steel Structures by Protective Paint Systems]."
