Thermal expansion management in long-span prefabricated steel bridges is not a secondary detailing issue—it is a core structural, fabrication, installation, and lifecycle-performance requirement. For bridge owners, EPC contractors, and government infrastructure agencies, a well-designed thermal movement strategy protects the superstructure, bearings, expansion joints, abutments, deck system, and long-term riding quality.
At Evercross Bridge, we have more than 30 years of experience in steel bridge engineering and manufacturing. As a leading Chinese manufacturer of prefabricated steel bridges, emergency bridges, modular bridges, and customized steel bridge systems, we provide end-to-end services covering design support, manufacturing, transportation, site installation, and after-sales technical assistance. With annual production capacity of 100,000 tons and delivery experience across more than 50 countries, we understand that a long-span steel bridge must perform reliably across different climates—from tropical Southeast Asia to hot African corridors and high-temperature Latin American infrastructure projects.
This article explains how thermal expansion affects long-span prefabricated steel bridges, how engineers calculate thermal movement, and how bridge manufacturers, designers, and contractors can manage that movement through integrated design, bearings, expansion joints, fabrication tolerances, installation control, and inspection planning.
Steel expands when heated and contracts when cooled. In a short steel bridge, this movement may be relatively small. In a long-span prefabricated steel bridge, however, even a modest temperature change can create substantial longitudinal movement at bridge ends, piers, bearings, and joints.
If a bridge cannot move as intended, thermal forces may accumulate inside the structure. These forces can cause:
- Excessive stress in girders, truss chords, diaphragms, and cross-bracing
- Bearing displacement beyond the designed travel range
- Expansion-joint leakage, tearing, impact damage, or premature failure
- Deck cracking near joints or abutments
- Damage to anchor bolts, sole plates, and bearing pedestals
- Abutment pressure and approach-slab distress
- Reduced ride quality, increased traffic noise, and higher maintenance cost
- Difficulty during installation if the bridge is erected at temperatures different from the assumed design temperature
For prefabricated bridge projects, thermal expansion management is especially important because components are manufactured off-site, transported over long distances, and assembled under real field conditions. A bridge can be fabricated accurately in the factory yet still perform poorly if the thermal movement assumptions, bearing orientation, joint settings, or erection temperatures are not properly coordinated.
The Washington State Department of Transportation notes that bridge movement can result from thermal variation, concrete shrinkage, creep, wind, seismic events, traffic actions, and settlement. For steel bridge systems, temperature-related movement is often one of the most important design inputs for expansion joints and bearings.
The fundamental calculation for uniform thermal movement is:
ΔL=α×L×ΔT
Where:
ΔL= thermal movement of the bridge
α= coefficient of thermal expansion of steel
L= effective bridge length or tributary length
ΔT= expected temperature range
For steel bridge superstructures, a commonly used coefficient of thermal expansion is approximately:
α=6.5×10^(−6)per °F
This value is also cited in bridge-design guidance based on AASHTO practice.
Assume a prefabricated steel bridge has:
Design Input | Assumed Value |
Bridge length | 180 m |
Steel expansion coefficient | 11.7×10^(−6)per °C |
Temperature range | 55 °C |
Estimated thermal movement | Approximately 116 mm |
Using the formula:
ΔL=11.7×10^(−6)×180,000 mm×55
ΔL≈116 mm
A movement of roughly 116 mm cannot be ignored. It affects bearing travel, expansion-joint capacity, end-diaphragm details, deck transition design, and installation-gap settings.
However, the final engineering calculation must not rely on bridge length alone. Engineers should also consider:
- Fixed-point location
- Number and stiffness of piers
- Bearing type and restraint direction
- Bridge geometry and skew angle
- Curvature and radial movement
- Deck configuration
- Construction temperature
- Traffic loading and braking forces
- Seismic movement where applicable
- Long-term concrete shrinkage if a concrete deck is used with steel girders
Thermal expansion management is therefore a bridge-system problem, not simply an expansion-joint selection problem.
The longer the steel bridge, the greater the potential thermal movement. Yet engineers must calculate movement based on the effective length contributing to a specific bearing or expansion joint, rather than automatically applying total bridge length everywhere.
For example, a multi-span steel bridge may have fixed bearings near the central pier. In that case, the bridge can expand in both directions away from the fixed point. The movement demand at each abutment depends on the tributary bridge length between the fixed point and that bridge end.
A poorly located fixed point can create unnecessary movement demand at one end of the structure. It can also increase forces transferred into piers and foundations.
A bridge installed in a coastal tropical area may experience a narrower annual temperature range than a bridge located in a continental desert, highland, or cold inland region. However, direct solar radiation can raise steel temperatures above ambient air temperature, especially for exposed dark-colored steel components.
For global steel bridge procurement, the design team should request site-specific information such as:
- Historical minimum and maximum temperatures
- Daily temperature variation
- Solar radiation exposure
- Altitude
- Humidity and rainfall patterns
- Wind conditions
- Floodplain, coastal, or desert exposure
- Local bridge-code temperature requirements
Do not use the manufacturing location's climate as the design basis. Thermal movement must be calculated for the bridge's final installation environment.
Straight bridges usually experience primarily longitudinal movement. Skewed and curved bridges are more complex.
A skew bridge may experience "racking," meaning different parts of the expansion joint move differently. Alaska DOT guidance warns that thermal movement in skewed bridges can create asymmetric movement and recommends limiting racking to 20 percent of the rated movement of the joint. It also notes that curved steel-girder bridges may require refined analysis because even small curvature can generate meaningful radial movement.
This is highly relevant for highway interchanges, mining roads, port access routes, urban viaducts, and approach bridges where the alignment may not be straight.
A prefabricated steel bridge may use:
- Orthotropic steel deck panels
- Steel deck plates with asphalt surfacing
- Reinforced concrete deck slab
- Composite steel-concrete deck
- Modular deck panels
- Timber or anti-skid steel decking for temporary and emergency bridges
Steel responds quickly to temperature changes because many steel bridge members have relatively low thermal mass. When a concrete deck is added, the deck and steel girder system may develop temperature gradients and differential movement effects.
For composite bridges, designers should evaluate:
- Long-term concrete shrinkage
- Concrete creep
- Differential temperature between deck and steel girders
- Shear-connector behavior
- Deck cracking risk near movement joints
- Surfacing compatibility at expansion-joint locations
The most reliable approach is to design thermal movement as a coordinated system. This system normally includes a defined fixed point, bearings that permit controlled movement, expansion joints that bridge deck gaps, and substructure elements capable of receiving the associated loads.
A fixed bearing restrains movement in the intended direction and transfers longitudinal loads into the substructure. It establishes the bridge's point of fixity.
For a simple single-span bridge, one end may be fixed and the opposite end may use expansion bearings. For multi-span bridges, the optimal fixed-bearing location depends on pier stiffness, span arrangement, seismic requirements, skew angle, and overall structural behavior.
The goal is not merely to "stop" the bridge. The goal is to control where the bridge moves.
Expansion bearings accommodate movement while supporting vertical loads and allowing required rotation. Depending on bridge loads and movement demand, options may include:
Bearing Type | Typical Application | Thermal Movement Capability | Key Consideration |
Steel-reinforced elastomeric bearing | Small to moderate movements | Limited by shear deformation | Economical and low maintenance |
PTFE sliding bearing | Moderate to large movement | High translation capability | Requires protected sliding surfaces |
Pot bearing | High vertical load and rotation | Can be combined with sliding element | Requires detailed quality control |
Spherical bearing | Large rotation and high load | Suitable for large movement with slider | Often used for complex structures |
Guided bearing | Controlled movement in one direction | Directional translation | Useful in curved or skewed bridges |
Alaska DOT guidance identifies steel-reinforced elastomeric bearings as a common first option for new bridges. Where movement would require excessive elastomeric bearing thickness, the guidance recommends combining elastomeric rotation capacity with a stainless-steel and PTFE sliding surface for translation.
For long-span prefabricated steel bridges, PTFE sliding bearings, guided bearings, pot bearings, or spherical bearings may be appropriate when thermal movement is significant or when loads are high.
Expansion joints allow bridge-deck movement while providing a safe passage for vehicles, pedestrians, and maintenance equipment. They must also resist water intrusion, debris accumulation, repeated wheel impact, fatigue, UV exposure, and—where relevant—snowplow impact.
Common expansion-joint options include:
Joint System | Typical Movement Range | Best Use Case | Main Limitation |
Compression seal | Small movement | Smaller bridges or rehabilitation | Limited movement capacity |
Silicone sealant joint | Small movement | Local repairs and low-movement zones | Sensitive to substrate preparation |
Strip seal joint | Moderate movement | Many highway steel bridges | Requires correct installation gap |
Finger joint | Medium to large movement | Large movements and specialized geometry | Requires robust detailing |
Modular expansion joint | Large movement | Long-span or multi-span bridges | Higher cost and maintenance needs |
WSDOT categorizes movement ranges as small below 1.75 inches, medium from 1.75 to 5 inches, and large above 5 inches. Its guidance also stresses that bearings and expansion joints must be designed together because the restrictions imposed by bearings must match the movement permitted by adjacent joints.
A reliable design process begins with verified local climate data and applicable bridge standards. The project team should define:
1. Minimum design temperature
2. Maximum design temperature
3. Construction-temperature range
4. Solar radiation assumptions
5. Thermal gradient requirements
6. Local code requirements
7. Temperature-related load combinations
For international projects, Evercross Bridge recommends confirming the governing design standard at an early stage. Depending on the owner and project location, this may include AASHTO LRFD, Eurocodes, British Standards, Chinese highway bridge standards, or country-specific requirements.
Before issuing fabrication drawings, the design team should confirm:
- Fixed-bearing location
- Guided-bearing directions
- Sliding-bearing travel capacity
- Joint movement range
- Joint opening at installation temperature
- Bearing preset or offset requirements
- Girder splice sequence
- Erection temperature assumptions
- Deck-pour sequence for composite bridges
- Temporary restraints required during installation
This is particularly important for modular and prefabricated steel bridges. A bearing installed in the wrong orientation, or a joint set at the wrong gap, can compromise the bridge's thermal movement performance before traffic even begins.
Factory precision is one of the major advantages of prefabricated steel bridge construction. However, precision manufacturing must be matched by precise field installation.
Key controls include:
- Shop trial assembly for critical truss or girder segments
- Dimensional inspection before shipment
- Marking of bearing direction and fixed/sliding function
- Verified elevation of bearing seats
- Alignment inspection during erection
- Joint-gap measurement before concrete closure pours
- Temperature recording during bearing and joint installation
- Torque verification for structural bolts
- Post-installation survey of bridge line, grade, and bearing position
WSDOT notes that expansion-joint installation settings should correspond to the ambient superstructure temperature at the time of installation. Its guidance provides temperature-based joint settings so devices can operate within their intended movement range.
For owners and contractors, the following field checklist can help reduce avoidable failures.
- Confirm approved-for-construction drawings
- Confirm bearing schedule and movement directions
- Verify bearing IDs, guide directions, and preset values
- Confirm expansion-joint model and movement rating
- Review coating compatibility with sliding and bearing surfaces
- Prepare packing plans that protect PTFE, seals, bolts, and machined surfaces
- Include installation manuals and inspection documentation
- Record ambient and steel temperature
- Verify fixed-bearing and sliding-bearing positions
- Check bearing orientation before permanent connection
- Confirm sole plates are level and fully supported
- Remove temporary transport restraints only at the approved erection stage
- Survey girder alignment and deck elevation
- Protect sliding surfaces from welding spatter, dust, grout, and debris
- Measure actual joint opening at several points across the bridge width
- Compare field measurements with design temperature-setting tables
- Verify skew-related racking movement where applicable
- Confirm seal continuity across the deck width
- Ensure joint drainage and secondary sealing details are complete
- Inspect concrete blockouts and edge-rail anchorage
- Photograph the final gap setting and record temperature
- Inspect joints and bearings at early service intervals
- Check for water leakage, seal damage, debris accumulation, or abnormal noise
- Monitor sliding bearings for travel and alignment
- Inspect expansion-joint edge rails for impact damage
- Include joints and bearings in the bridge asset-management program
In my experience with international steel bridge projects, the most common mistake is not an incorrect formula. It is poor coordination between design assumptions and field installation conditions.
For example, a modular expansion joint may be designed for a 100 mm movement range. But if it is installed with the wrong opening because the contractor uses air temperature rather than actual steel temperature, the usable movement capacity can be reduced significantly. The bridge may then reach its limit during seasonal temperature changes.
A second frequent issue is treating the expansion joint as an isolated product. A high-capacity joint cannot solve the problem if:
- The bearing is locked by corrosion or construction debris
- The sliding direction is incorrect
- The fixed point differs from the design assumption
- The substructure is too flexible
- The joint experiences skew-induced racking beyond its capacity
- Drainage allows water and contaminants to attack bearings below
The strongest solution is integrated responsibility from bridge design through fabrication, shipment, installation, and inspection.
Evercross Bridge provides customized prefabricated steel bridge solutions for government infrastructure, emergency response, transport corridors, industrial access roads, mining operations, rural connectivity, and international EPC projects.
Our integrated capabilities include:
- Customized steel bridge design support
- Prefabricated steel truss bridge and steel girder bridge manufacturing
- Modular bridge solutions for rapid installation
- Emergency bridge engineering and supply
- Bearing, joint, deck, and accessory coordination
- Factory inspection and quality documentation
- International packing and transportation planning
- Site installation guidance
- Lifecycle maintenance recommendations
With more than 30 years of industry experience, projects delivered in over 50 countries, annual production capacity of 100,000 tons, and participation in more than 200 major government infrastructure projects across Southeast Asia, Africa, and Latin America, Evercross Bridge can help owners and contractors develop movement-control solutions suited to local climates, span arrangements, transportation constraints, and project standards.
Thermal expansion management in long-span prefabricated steel bridges depends on more than calculating \(\Delta L = \alpha L \Delta T\). It requires a complete bridge-system approach that integrates climate data, structural analysis, fixed-point selection, bearing design, expansion-joint capacity, fabrication accuracy, erection procedures, and maintenance planning.
For long-span bridges, even small design or installation errors can lead to unnecessary stress, poor riding quality, water leakage, bearing damage, and costly repairs. By addressing thermal movement early—and managing it throughout design, production, transportation, installation, and operation—project teams can improve bridge durability, safety, and whole-life value.

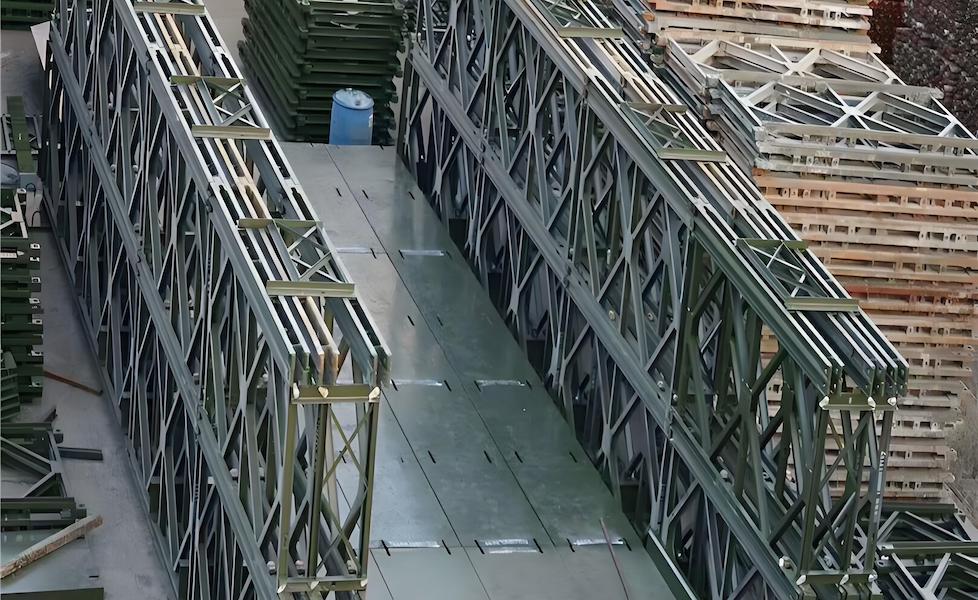

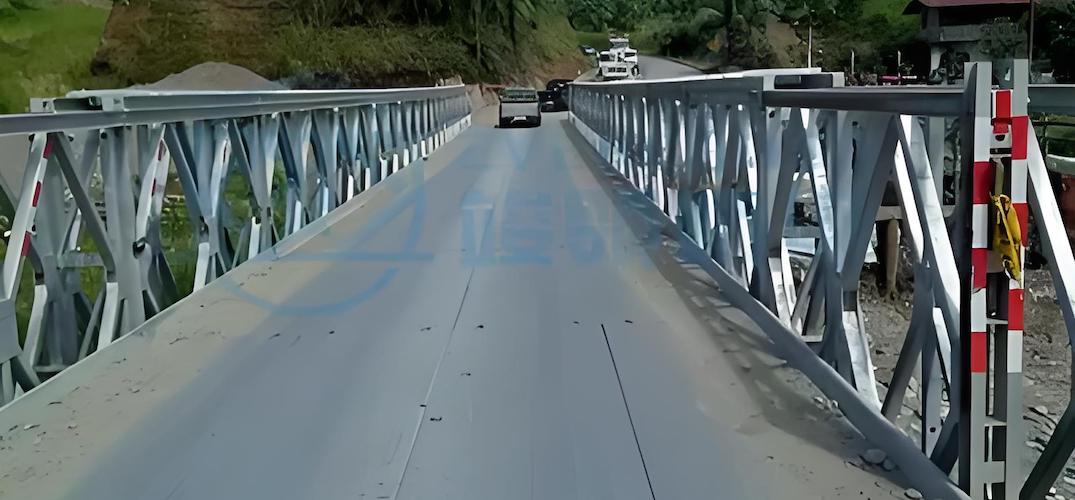

Planning a long-span prefabricated steel bridge project? Contact Evercross Bridge for technical consultation, customized bridge design support, manufacturing solutions, and complete international delivery services.
Thermal expansion is the increase in steel bridge length when temperature rises. Thermal contraction is the shortening that occurs when temperature falls. Long-span steel bridges require bearings and expansion joints to safely accommodate this movement.
Engineers commonly use the formula \(\Delta L = \alpha L \Delta T\). The calculation uses the steel coefficient of thermal expansion, the effective bridge length, and the design temperature range. The final design should also include bridge geometry, bearing layout, fixed-point location, and applicable code requirements.
Expansion joints create a controlled deck gap that allows the bridge to expand and contract without damaging the deck, abutments, bearings, or approach pavement. They also help maintain a safe and smooth traffic surface.
The best bearing depends on structural loads, required translation, rotation, seismic demand, maintenance requirements, and budget. For large thermal movement, PTFE sliding bearings, guided bearings, pot bearings, or spherical bearings may be more suitable than simple elastomeric bearings.
Yes. Expansion-joint gaps must be set according to the actual bridge temperature during installation. If the gap is too narrow or too wide for the installation temperature, the joint may bottom out, overstretch, leak, or wear prematurely during temperature changes.
Skewed bridges can develop asymmetric movement, often called racking. This means movement may vary across the width of the joint. The joint, bearings, and structural analysis must account for both longitudinal and transverse movement components.
Yes. Evercross Bridge provides integrated support for steel bridge design, production, transportation, installation coordination, and technical service. Project-specific support can be tailored according to bridge type, location, governing standard, site access, and local contractor requirements.
1. Washington State Department of Transportation. [Read the WSDOT bridge design guidance]
2. Alaska Department of Transportation & Public Facilities. [Read the Alaska DOT bridge manual]
3. Shterengarts, Ben. "Solving the Impact of Temperature Change on Bridge Deck Expansion Joints."[Read the expansion-joint article]
4. Washington State Department of Transportation. "Bridge Design Manual: Expansion Joints, Thermal Effects, Bearings, and Installation Settings." [Access the WSDOT manual chapter]
5. Alaska Department of Transportation & Public Facilities. "Expansion-Joint Selection, Skew Effects, and PTFE/Elastomeric Bearing Guidance." [Access the Alaska DOT manual chapter]
