● Long-Span Prefabricated Steel vs. Multi-Span Girder: What Are We Comparing?
● How Valley Geometry and Foundations Shape Bridge Selection
>> Deep Valleys Can Make Intermediate Piers Expensive
>> River Channels Require a Separate Hydraulic Assessment
● Structural Performance: Span Length Is Only One Variable
>> Long-Span Steel Bridges Need More Than Strength
>> Multi-Span Girders Benefit from Repetition
● Construction Speed: Compare the Critical Path, Not Just Assembly Time
>> Launching and Crane Erection Have Different Constraints
● Cost Comparison: Evaluate the Whole Crossing
● Durability and Maintenance: Count Details, Not Only Piers
>> Weathering Steel Is Not a Universal Solution
● Three Practical Tools for a Better Wide Valley Crossing Decision
>> 1. Map the "No-Pier Zone" Before Optimizing the Superstructure
>> 2. Test Foundation Risk with an Illustrative Scenario
>> 3. Request a Construction-Ready Tender Package
● How Evercross Bridge Can Support Project Development
● Which Bridge Type Should You Shortlist?
● Discuss Your Wide Valley Crossing with Evercross Bridge
>> Is a Long-Span Prefabricated Steel Bridge Always a Truss?
>> Can a Multi-Span Girder Bridge Be Prefabricated?
>> Which Option Is Better for a Remote Mountain Valley?
>> Does Eliminating River Piers Eliminate Scour Risk?
>> Which Bridge Will Be Cheaper to Maintain?
Long-span prefabricated steel bridges and multi-span girder bridges solve the same problem in different ways: carrying traffic across difficult terrain while controlling construction risk, cost, and long-term maintenance. For wide valley crossings, the better choice usually depends on where foundations can safely be built, how bridge components will reach the site, and whether erection can proceed without extensive work on the valley floor.
My starting point for this comparison is constructability. A lighter superstructure is not necessarily a cheaper bridge, and shorter spans do not automatically mean easier construction. Foundation access, temporary works, and installation sequencing can change the economic picture substantially. Steel bridge design guidance therefore treats structural form and erection planning as connected decisions.

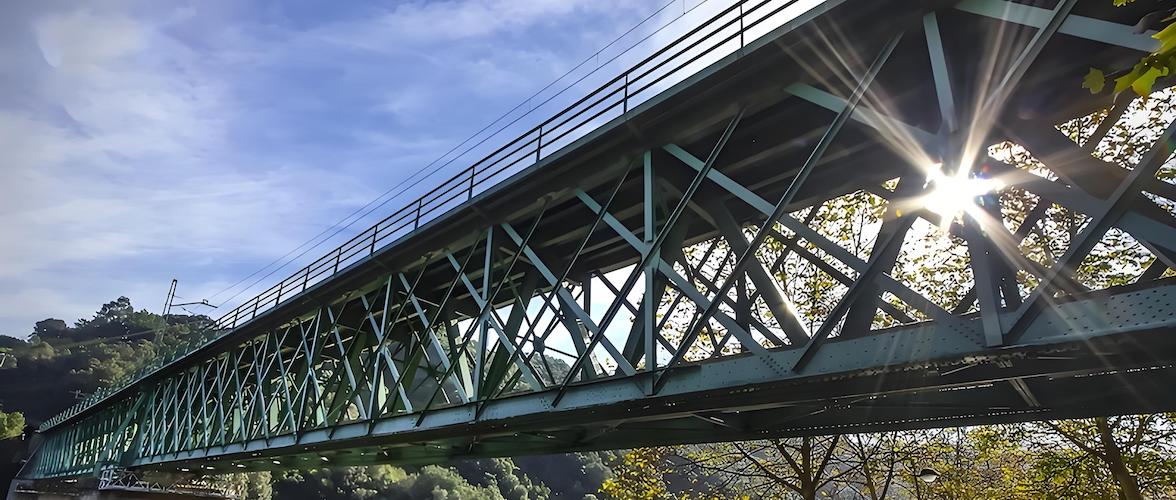

A long-span prefabricated steel bridge uses factory-produced members or assemblies to create a relatively long crossing between supports. Depending on the project, its structural form may include a steel truss, plate girders, or box girders.
A multi-span girder bridge divides the crossing into shorter sections supported by intermediate piers. Its girders may also be fabricated offsite.
This distinction matters: "prefabricated" describes production and assembly, while "multi-span girder" describes structural arrangement. They are not mutually exclusive categories. FHWA identifies prefabricated bridge elements and systems as components manufactured offsite or near-site to reduce onsite construction and traffic disruption.
For this article, the comparison is between a long-span steel solution that minimizes valley-floor supports and a girder viaduct that uses several intermediate piers.
Decision factor |
Long-span prefabricated steel |
Multi-span girder |
Valley-floor intervention |
Potentially fewer foundations |
More intermediate foundation locations |
Structural arrangement |
Longer unsupported crossing |
Repeated shorter spans |
Erection challenge |
Larger assemblies or demanding launch sequence |
Repeated lifts or staged erection |
Fabrication |
Potentially complex members and connections |
Greater opportunity for repetition |
Cost sensitivity |
Superstructure and erection requirements |
Pier height, foundations, and access |
Strongest starting application |
Difficult or restricted valley floor |
Accessible, stable foundation locations |
These are screening considerations, not universal performance rankings. The final comparison must evaluate the complete bridge and its construction method.
A multi-span girder bridge can distribute the crossing across repeated structural units. However, each pier introduces foundations, vertical construction, access requirements, and an interface with the superstructure.
When piers become tall or difficult to reach, their construction may require substantial temporary infrastructure. A long-span alternative can reduce those intermediate work locations, although its superstructure and erection requirements may be more demanding.
The useful question is not simply, "How wide is the valley?" It is, "Where can we build reliable supports at an acceptable total cost?" Site conditions and construction access belong in bridge-type selection from the beginning.
A valley crossing may also cross an active river, floodplain, or migrating channel. Intermediate supports must then be evaluated for scour, debris loading, and changing hydraulic conditions.
FHWA's HEC-18 addresses scour at piers and abutments, including geotechnical considerations and debris effects. Removing a pier from the active channel can remove that particular pier-scour exposure, but it does not eliminate abutment scour, channel migration, or flood-clearance requirements.
A sound comparison therefore combines topographic surveying, geotechnical investigation, and hydraulic analysis before either bridge arrangement is preferred.
Longer spans require careful evaluation of stiffness, deflection, vibration, stability, and construction-stage behavior.
For a truss, the triangulated members primarily carry tension or compression. That arrangement can provide an efficient load path, but fabrication involves numerous members and connections. Industry guidance notes that this connection-intensive work can make trusses expensive for ordinary highway applications.
Consequently, a long-span prefabricated steel bridge should not be marketed as automatically economical because it is modular. Its advantage must emerge from the full crossing: fewer difficult supports, an achievable erection method, and an appropriate structural configuration.
Repeated girder geometry can simplify manufacturing and construction planning. AISC/NSBA provides standard plans for one-, two-, three-, and four-span continuous steel plate-girder bridges, illustrating how standardized arrangements can support project development.
However, continuity does not eliminate engineering complexity. Bearings, support conditions, fit-up, erection stability, and deck construction still need coordinated design.
The owner should also distinguish simple-span girders from continuous systems. A multi-span bridge does not necessarily have an expansion joint at every pier; its joint arrangement depends on the selected structural scheme.
Prefabrication can reduce onsite work and weather-related disruption. FHWA also identifies benefits for material quality, site constructability, and work-zone safety.
Those benefits can apply to both alternatives.
For a remote wide valley crossing, the practical schedule comparison should include:
- Site access and working-platform construction.
- Foundation and pier completion.
- Fabrication and protective treatment.
- Transport permits and delivery sequencing.
- Superstructure erection.
- Deck construction, inspections, and commissioning.
Factory production can overlap with foundation work, but the bridge cannot open until the slowest critical activity is complete. A short steel-assembly period should not be presented as the total project duration. Steel construction guidance explicitly connects planning, fabrication, coating, and erection activities.
Recognized steel bridge erection methods include crane lifting, launching, sliding, rolling, and lifting large preassembled sections.
For a long-span solution, launching may reduce dependence on access beneath the crossing. Nevertheless, the proposal must demonstrate suitable assembly space, temporary support arrangements, and acceptable construction-stage behavior.
For a multi-span girder bridge, repeated crane erection may be practical where access and lifting positions are available. Where the valley floor is inaccessible, erection can become a major constraint rather than a routine operation.
Neither method should be selected solely because it appears faster in an animation.
The most useful commercial comparison includes more than steel tonnage.
An owner should request a consistent cost breakdown covering:
1. Superstructure fabrication.
2. Abutments, piers, and foundations.
3. Access roads and temporary works.
4. Transportation and erection.
5. Deck, bearings, joints, and protective systems.
6. Inspection, maintenance, and future interventions.
FHWA's prefabrication guidance explains that reduced onsite construction can affect traffic control, contract administration, environmental mitigation, and user costs. It also notes that standardized components can improve manufacturing economics.
Meanwhile, WSDOT guidance emphasizes simplified fabrication rather than pursuing weight reduction alone. Minimizing unnecessary plate variations and splices can improve economic design.
From a procurement perspective, the cheapest price per tonne is therefore an incomplete decision metric. Compare equivalent scopes, design requirements, and maintenance assumptions before interpreting the price difference.
Both alternatives need an exposure-appropriate corrosion strategy, effective drainage, and access for inspection.
A truss may have numerous members and connections to inspect. A girder bridge can offer simpler member geometry, but intermediate supports introduce additional bearings and substructure inspection locations.
The actual maintenance burden depends on detailing, coating selection, joint arrangement, and accessibility—not merely the bridge category. FHWA's connection guidance links prefabrication quality and connection design with long-term performance.
Weathering steel develops a protective patina in suitable environments. It still requires detailing that allows drying and avoids moisture or debris retention.
TxDOT guidance cautions against its use in conditions such as heavy saltwater spray, salt-laden fog, and certain corrosive industrial environments.
For either bridge type, establish the environmental exposure first. Then specify the protective system and inspection strategy rather than selecting a finish from appearance alone.
Prepare a site plan identifying locations where supports are prohibited, difficult, or uncertain.
Include the active channel, potential scour areas, unstable ground, environmental restrictions, and inaccessible construction zones.
This map connects hydraulic and geotechnical findings to structural layout. It helps prevent a seemingly economical multi-span arrangement from advancing with unrealistic foundation assumptions. FHWA's scour guidance supports integrating hydraulic and subsurface investigations into preliminary bridge design.
Consider a hypothetical 240-meter crossing. One concept uses a long clear span; another uses four 60-meter girder spans with three intermediate pier lines.
These dimensions illustrate a comparison only. They do not establish the capacity or suitability of any Evercross product.
If the intermediate supports can be constructed on accessible, competent ground, repeated girder spans may offer a practical approach. If those supports require difficult access or substantial scour-resistant foundations, the long-span option deserves closer evaluation.
The lesson is methodological: compare support locations and erection requirements before assuming shorter spans are cheaper.
Require bidders to submit more than a general arrangement drawing.
Ask for:
- Preliminary erection sequence and temporary works.
- Component dimensions, weights, and transport assumptions.
- Fabrication tolerances and fit-up arrangements.
- Inspection and coating procedures.
- Responsibility boundaries for foundations, erection, and commissioning.
Steel bridge construction guidance treats fabrication, protective treatment, and erection as coordinated activities. A procurement package should make those interfaces visible before contract award.
With over 30 years of industry experience, Evercross Bridge is dedicated to providing high-performance prefabricated steel bridge solutions worldwide.
The company operates in more than 50 countries with an annual production capacity of 100,000 tons and has successfully delivered over 200 large-scale government infrastructure projects across Southeast Asia, Africa, and Latin America.
By combining advanced Chinese steel manufacturing processes with international design standards (AASHTO and Eurocode), Evercross Bridge ensures its products are durable, reliable, and cost-effective.
The company offers ISO-certified, one-stop services—including factory pre-assembly and on-site technical guidance—to ensure infrastructure maintains superior performance even in extremely harsh environments.
Shortlist a long-span prefabricated steel bridge when avoiding intermediate supports has substantial value and a credible transport-and-erection strategy is available.
Shortlist a multi-span girder bridge when intermediate foundation locations are accessible, geotechnically suitable, and compatible with an efficient repeated-span arrangement.
Investigate both when foundation uncertainty or erection access could change the ranking. This approach follows the central principle of bridge-type selection: match the structure to site conditions, construction feasibility, cost, and performance rather than selecting a category in isolation.
Send Evercross Bridge your crossing length, topographic survey, road width, traffic-loading requirements, geotechnical information, hydraulic constraints, and target opening date.
Request a comparative proposal covering the long-span and multi-span alternatives, including foundation assumptions, transport limits, erection sequence, and lifecycle maintenance requirements. This creates a more useful purchasing decision than comparing superstructure quotations alone.
No. Prefabrication describes how components are produced and assembled. Steel bridge forms also include plate-girder and box-girder systems; the appropriate form depends on project requirements.
Yes. Girders and other bridge elements can be produced offsite. FHWA's prefabrication guidance also identifies potential cost advantages for multiple-span bridges with repeated geometry.
The option with the more credible foundation and erection strategy. A long-span bridge may reduce valley-floor work, while multi-span construction may suit accessible support locations. Access constraints should be tested during initial design.
No. It removes the scour exposure associated with those omitted piers, but abutments and the crossing still require hydraulic evaluation, including channel behavior and potential scour.
There is no universal winner. Compare corrosion protection, inspection access, bearings, joints, connections, and drainage. Good detailing and suitable protective systems can matter more than the bridge label.
- FHWA, "Prefabricated Bridge Elements and Systems." [fhwa.dot]
- FHWA, "Framework for Prefabricated Bridge Elements and Systems," publication FHWA-IF-06-030. [fhwa.dot]
- FHWA, "Evaluating Scour at Bridges," HEC-18, Fifth Edition. [fhwa.dot]
- AISC/NSBA, "Steel Bridge Design Handbook." [aisc]
- SteelConstruction.info, "Bridge Initial Design: Choosing Form and Preliminary Sizing." [steelconstruction]
- SteelConstruction.info, "Design for Construction in Steel Bridge Projects and Erection."[steelconstruction]
- WSDOT, "Bridge Design Manual," Chapter 6: Structural Steel. [wsdot.wa]
- TxDOT, "Preferred Practices for Steel Bridge Design, Fabrication, and Erection." [ftp.dot.state.tx]
