In the modern landscape of global infrastructure, the choice of structural systems for bridges is no longer just an engineering decision; it is an economic and environmental imperative. As urban populations swell and international trade routes expand, the demand for resilient, cost-effective, and rapidly deployable bridge solutions has never been higher. Among the various structural configurations, the I-beam steel bridge—also known as the plate girder bridge—remains the quintessential choice for engineers worldwide. Its versatility across highway overpasses, railway crossings, and industrial walkways makes it a cornerstone of civil engineering.
As a premier leader in the Chinese steel bridge industry, EVERCROSS BRIDGE operates at the forefront of this sector. With an annual production capacity exceeding 10,000 tons and a prestigious history of collaboration with state-owned giants such as China Communications Construction Company (CCCC), China Railway Group (CREC), and PowerChina, we understand that the "basics" of bridge design are where projects are won or lost. This article provides an exhaustive deep dive into the engineering nuances of I-beam bridges, contrasting them with alternative systems and highlighting the fabrication excellence required to meet the world's most stringent standards.
To appreciate the differences in bridge design, one must first understand the sophisticated physics behind the "I" shape. The I-beam is an efficient structural form because it places the material where it is most needed to resist the specific forces acting upon it.
The "I" shape consists of two horizontal flanges and a vertical web. In a typical gravity-loaded scenario (such as a truck driving across a span), the top flange is subjected to compression, while the bottom flange is subjected to tension. The middle section—the web—experiences relatively little longitudinal stress but bears the brunt of the shear forces. By concentrating the bulk of the steel in the flanges and keeping the web relatively thin, engineers achieve a high "moment of inertia," allowing the beam to resist bending while remaining remarkably lightweight compared to solid rectangular beams.
Modern I-beam bridges are rarely just "steel." They are typically composite structures. Steel shear studs are welded to the top flange of the I-beam before a concrete deck is poured over them. Once the concrete cures, these two materials act as a single unit. This synergy allows the concrete to handle the compressive forces while the steel handles the tension, significantly increasing the load-bearing capacity and reducing the overall depth of the bridge.
Because I-beams are "open" sections, they are susceptible to twisting (torsion) and lateral-torsional buckling. To prevent this, engineers design intricate systems of cross-frames and diaphragms that connect adjacent I-beams. These components ensure that the entire bridge deck moves as a unified system, distributing loads evenly across all girders.
One of the most critical distinctions in bridge engineering is whether to use a standardized rolled section or a custom-fabricated plate girder.

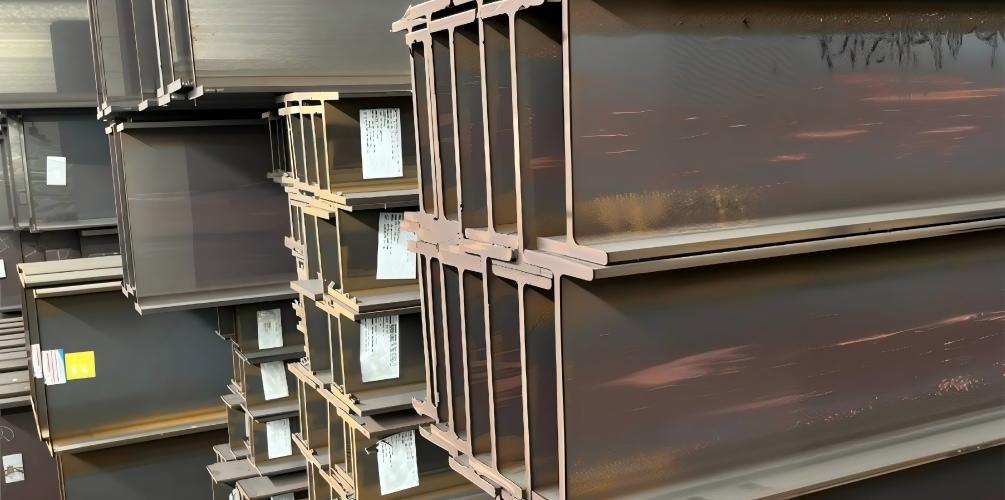

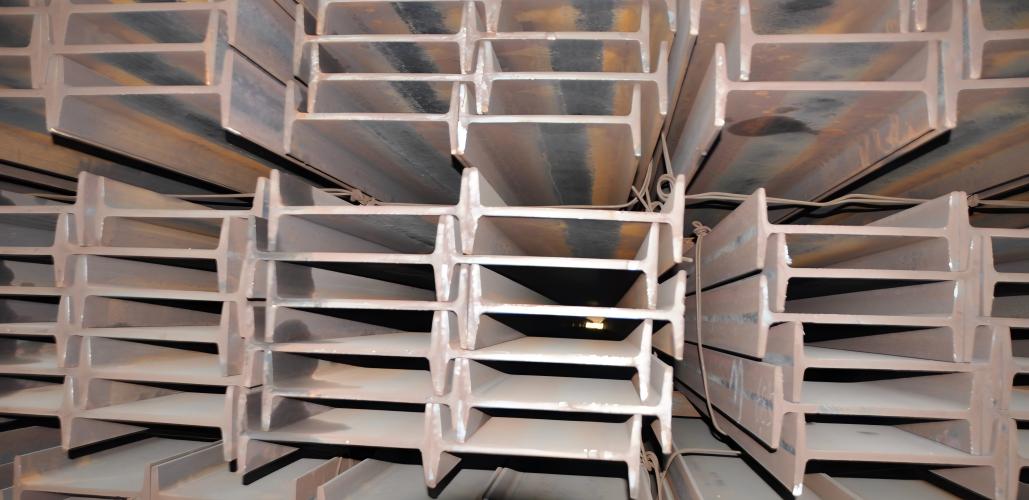

Rolled beams are manufactured in massive rolling mills where a single bloom of steel is shaped into an I-profile while hot.
●Advantages: Since they are produced as a single continuous piece, there are no longitudinal welds, which minimizes the risk of fatigue cracking at the web-to-flange interface. They are also incredibly cost-effective for short-span bridges (up to 25 meters).
●Limitations: Mills can only produce beams up to a certain depth (typically around 1 meter). For longer spans or heavier loads, rolled beams lack the necessary stiffness.
When a project demands a span of 30 to 100 meters, Plate Girders become the standard. These are "built-up" sections where the flanges and web are cut from flat steel plates and welded together.
●Variable Depth (Tapering): Unlike rolled beams, plate girders can be "tapered." They can be deeper at the piers (where the bending moment is highest) and shallower at the mid-span to save weight and improve aesthetics.
●Hybrid Steel Girders: Engineers can use higher-strength steel (e.g., Q420) for the flanges and lower-strength steel (e.g., Q235) for the web. This "hybrid" approach optimizes costs by using expensive high-strength material only where the stress is highest.
Choosing between an I-beam and a box girder is a decision that impacts the entire lifecycle of the bridge, from initial fabrication to 50-year maintenance costs.
Engineering Factor |
I-Beam (Plate Girder) System |
Box Girder (Tub Girder) System |
Structural Geometry |
Open "I" shape; easy to inspect. |
Closed rectangular or trapezoidal shape. |
Torsional Resistance |
Low; requires external bracing. |
High; inherently resists twisting. |
Curved Alignments |
Difficult to adapt to sharp curves. |
Ideal for curved ramps and interchanges. |
Manufacturing Complexity |
Relatively simple; high-speed welding. |
Complex; requires internal stiffeners and access holes. |
Maintenance Access |
Fully accessible from the exterior. |
Requires "Confined Space" safety protocols for internal inspection. |
Weight-to-Strength |
Extremely efficient for straight spans. |
Heavier, but supports longer spans without intermediate piers. |
For the vast majority of highway projects where the alignment is relatively straight, I-beams are the clear winner. They allow for faster fabrication at facilities like EVERCROSS BRIDGE and require less specialized labor during on-site assembly. Box girders are usually reserved for iconic "signature" bridges or complex highway ramps where high torsional forces are unavoidable.
As a supplier to major international contractors like the Gezhouba Group and CNOOC, EVERCROSS BRIDGE adheres to a variety of international manufacturing codes. The "difference" in a bridge often lies in the fine print of its metallurgical specs.
Traditional bridge steel has evolved into HPS, which offers superior toughness and weldability. In the Chinese market, grades like Q355D and Q420 are the workhorses of the industry. These steels are designed to remain ductile even in extreme cold—essential for projects in Northern China, Russia, or the high-altitude regions of Central Asia.
One of the most significant trends in Western markets (USA and Europe) that is now gaining traction in Asia is Weathering Steel. This alloy contains small amounts of copper, chromium, and nickel, which allow the steel to develop a protective "patina."
●No Painting Required: The patina seals the steel, preventing deep corrosion.
●Cost Savings: While the raw material is slightly more expensive, the elimination of initial painting and subsequent repainting every 15 years results in a lower Total Cost of Ownership (TCO).
The integrity of an I-beam bridge depends entirely on the quality of its welds. At EVERCROSS, we utilize Submerged Arc Welding (SAW) for long longitudinal seams, providing deep penetration and a smooth finish. Every critical joint undergoes Ultrasonic Testing (UT) or Radiographic Testing (RT) to ensure there are zero internal defects that could lead to fatigue failure.
Bridge engineering is not just about keeping a structure standing; it is about the experience of the people who use it and the communities it connects.
●Vibration Control: Modern I-beam bridges utilize elastomeric or pot bearings to decouple the bridge deck from the piers. This reduces the "rumble" felt by drivers and the noise pollution experienced by nearby residents.
●Aesthetic Integration: By using haunched (curved) plate girders, engineers can make a steel bridge look as graceful as a concrete arch, blending industrial strength with architectural beauty.
●Rapid Construction: In urban environments, time is money. Prefabricated steel I-beams can be "launched" or lifted into place during night-time windows, minimizing the economic impact of traffic closures. This is a primary reason why our partners at CREC and CCCC prefer steel for high-density metropolitan projects.
Most traditional guides overlook the rapid digital transformation of the bridge industry. At EVERCROSS BRIDGE, we are attempting to fill these information gaps by integrating the following technologies:
●BIM (Building Information Modeling): We are exploring providing 3D digital twin models of bridge components, helping contractors simulate the assembly process in a virtual environment before any steel arrives on site, thus avoiding costly alignment errors.
●Smart Sensors: We are exploring integrating fiber optic sensors into the webs of I-beams to provide real-time data on stress, strain, and corrosion. This “smart bridge” technology enables predictive maintenance, moving away from reactive repairs.
●Sustainable Manufacturing: We are exploring ways to reduce the implicit carbon emissions of each bridge by optimizing CNC cutting paths and recycling 100% of scrap steel, aligning with global ESG (Environmental, Social, and Governance) goals.
To reach the top three in the industry, our fabrication process is a symphony of heavy machinery and expert craftsmanship:
●Raw Material Traceability: Every plate of steel is tracked from the mill to the finished bridge. We provide "Mill Test Certificates" for every component, ensuring total accountability for projects involving international government procurement.
●Advanced surface treatment: Our factory is equipped with a large sandblasting chamber with surface treatment processes such as sandblasting, dipping, painting, hot-dip galvanizing, and zinc-aluminum alloy coating, ensuring that the protective coating or galvanized layer can last for decades.
●Trial Assembly: We perform full-scale shop assemblies for complex projects. By bolting the girders together in our factory, we guarantee that every field splice will fit perfectly on the construction site, regardless of how remote the location may be.
The engineering differences between I-beam bridges and other systems come down to a balance of torsional requirements, span length, and lifecycle costs. While the I-beam is a fundamentally "simple" shape, its execution requires a sophisticated understanding of material science, welding technology, and logistical planning.
As a high-capacity producer with a 10,000-ton annual output, EVERCROSS BRIDGE offers the scale needed for massive state-level projects and the precision required for specialized engineering feats. Our deep-rooted relationships with the world’s leading construction groups—CCCC, CREC, and PowerChina—stand as a testament to our reliability and technical authority. When you choose an I-beam bridge from EVERCROSS, you aren't just buying steel; you are investing in a century of engineering evolution and the dedicated expertise of China’s premier bridge-builders.
The choice between an I-beam (plate girder) and a box girder depends primarily on the span length and torsional (twisting) requirements.
●The "Sweet Spot" for I-Beams: I-beams are most cost-effective for spans between 20m and 60m. They are lighter, easier to fabricate, and significantly cheaper to maintain because all surfaces are accessible for inspection and repainting.
●When to go with Box Girders: If your bridge is curved or has spans exceeding 70m, box girders are superior due to their high torsional rigidity. However, expect higher initial fabrication costs and more complex inspection requirements.
With modern material science and protective coatings, a well-engineered steel bridge is designed for a service life of 75 to 100+ years.
●Durability Factors: Achieving this longevity requires adherence to strict fatigue design standards (like AASHTO LRFD) and the use of high-performance materials.
●Maintenance Role: Regular inspections every 2–5 years and the use of advanced corrosion protection can extend the life of the structure by an additional 25 years or more.
Weathering steel is a high-strength alloy that develops a protective "patina" (a stable rust layer) when exposed to the atmosphere.
●No Painting Required: Because the patina prevents further deep corrosion, the bridge does not require initial painting or periodic repainting.
●Economic Impact: While weathering steel is slightly more expensive upfront, it typically offers initial cost savings of 10% (by eliminating the paint shop phase) and life-cycle cost savings of over 30% over the bridge’s lifespan.
Trial fitting is the process of assembling the bridge sections in the factory before they are shipped to the construction site.
●Eliminating On-Site Rework: It ensures that every bolt hole, splice plate, and girder connection aligns perfectly. Even a 1mm deviation can cause massive delays during on-site crane operations.
●Quality Assurance: At EVERCROSS BRIDGE, we use trial fitting to verify the vertical camber (the slight curve built into the beam to offset weight) and overall geometry, ensuring a seamless "plug-and-play" installation for our clients.
Yes, as one of the top three steel bridge manufacturers in China, we have passed ISO9001 quality management system certification, our welding processes and welders have passed BV (British Vessel Registration System) certification, and our raw materials and finished products have passed the testing of third-party certification bodies such as SGS, CCIC, and CNAS.
