As a premier global leader in the bridge fabrication industry, EVERCROSS BRIDGE has established itself as one of China’s top three professional manufacturers of structural steel bridges. With a formidable annual output exceeding 10,000 tons, we serve as the primary strategic partner for China’s most prestigious state-owned enterprises (SOEs), including CCCC (China Communications Construction), CREC (China Railway Engineering Corporation), PowerChina, and CGGC (Gezhouba Group). Our components support critical infrastructure in railway, highway, and international governmental procurement projects worldwide.
This article primarily aims to provide engineers, infrastructure consultants, and procurement personnel with authoritative and in-depth knowledge of rigid frame bridges. We combine structural mechanics with modern manufacturing processes to create a new generation of highly resilient transportation solutions.
A rigid frame bridge—historically referred to as a Rahmen bridge—represents a sophisticated structural system where the superstructure (the bridge deck or girder) and the substructure (the piers or abutments) are integrated into a single, monolithic unit. Unlike traditional simply supported beam bridges, which rely on mechanical bearings to transfer loads, the rigid frame utilizes moment-resisting connections at the pier-to-beam interface.
The defining mechanical advantage of a rigid frame is its ability to redistribute internal forces. In a standard beam bridge, the maximum positive bending moment occurs at the center of the span. In a rigid frame:
●Negative Moments at Supports: The rigid connection forces a significant portion of the load into the piers, creating negative bending moments at the supports.
●Reduced Mid-span Stress: This redistribution effectively lowers the positive moment at the mid-span, allowing for a reduced girder depth.
●Elimination of Bearings: By removing bearings and expansion joints, the structure eliminates the most common failure points in bridge engineering, significantly lowering the Life Cycle Cost (LCC).
Because the frame acts as a single unit, it possesses inherent resistance to horizontal forces. This makes rigid frames particularly suitable for areas with high seismic activity or high wind loads, as the rigid joints provide a continuous path for energy dissipation throughout the entire structure.
The classification of these structures is typically based on their span configuration, pier geometry, and mechanical behavior. Selecting the correct type is a balance of topographical constraints, load requirements, and aesthetic goals.

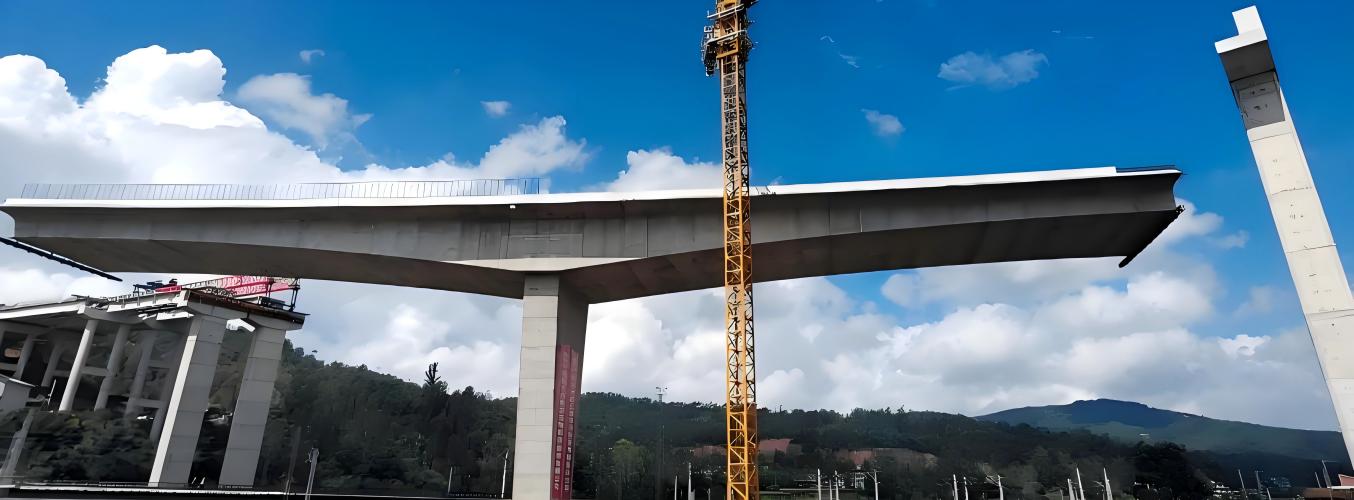

T-shaped frames consist of a central pier and a balanced cantilever beam. Historically, they were popular for medium spans (60m to 150m) but are now considered specialized in modern contexts.
●The "Hinge" Problem: Legacy T-frames often utilized mid-span shear hinges to accommodate thermal expansion. Over decades, these hinges often led to "sagging" due to concrete creep or mechanical wear, leading many modern engineers to prefer continuous designs.
●Current Use: They remain highly effective for short-to-medium crossings where site conditions prevent a continuous multi-span setup or where a symmetrical cantilever approach is the only viable construction path.
Continuous rigid frames are the "gold standard" for long-span crossings, particularly for high-speed railways and deep-valley highways. They eliminate the mid-span joints found in T-frames.
●Span Range: These bridges excel in spans ranging from 100 meters to over 300 meters.
●Structural Integrity: By maintaining continuity across multiple piers, the structure offers immense redundant strength. If one component is stressed, the load is distributed across the entire frame.
●User Experience: The lack of expansion joints ensures a seamless, vibration-free surface for high-speed vehicles, reducing wear on both the bridge and the vehicles.
Often chosen for their architectural beauty and structural efficiency, slant-legged frames use inclined piers to support the deck.
●Effective Span Reduction: The inclined legs effectively "shorten" the main span, which allows for extremely slender deck profiles. This creates a visually "light" structure that is highly desirable for iconic city landmarks.
●Urban Clearances: These are ideal for urban interchanges where vertical and horizontal clearances must be maximized for traffic beneath the bridge.
●Engineering Challenge: The "slant" creates significant horizontal thrust at the foundations, requiring either solid rock anchoring or a specialized tie-beam between the footings to manage the outward forces.
The simplest form of the rigid frame, the portal frame, consists of a single span with two vertical legs, forming a "Pi" or portal shape.
●Railway Overpasses: This design is the standard for railway-over-highway crossings because it provides the maximum vertical envelope without the need for thick abutments or piers.
●Standardization: These are often pre-fabricated as modular steel units for rapid installation in "Accelerated Bridge Construction" (ABC) projects.
Feature |
Simply Supported Beam |
Continuous Rigid Frame |
Slant-Legged Frame |
Span Capacity |
Short (20m-50m) |
Long (100m-300m) |
Medium (40m-150m) |
Girder Depth |
Thick |
Slender/Optimized |
Ultra-Slender |
Joints/Bearings |
Numerous (High Maintenance) |
Minimal/Zero |
Minimal/Zero |
Seismic Response |
Risk of Unseating |
Excellent Integrity |
Good (Rigid) |
Ideal Foundation |
Standard Piles |
Deep Piles/Tall Piers |
Rock/Anchored |
Construction Cost |
Lower (per unit) |
Moderate (Engineering Heavy) |
High (Foundation Heavy) |
At EVERCROSS BRIDGE, we specialize in fabricating steel components that accommodate various high-precision construction methodologies. Our factory-controlled environment ensures that large-scale steel segments fit perfectly upon delivery.
●Balanced Cantilever Method: This is the primary method for long-span continuous rigid frames. Sections are built outward from the piers in pairs. Our steel box girders are pre-fabricated in segments, ensuring that each "lifting unit" is within the capacity of site cranes while maintaining perfect geometry through computerized trial assembly.
●Incremental Launching (ILM): For bridges over deep valleys, sensitive environmental zones, or active highways, ILM is used. The entire bridge deck is fabricated in a "casting yard" behind the abutment and pushed out over the piers. This requires steel components with high local buckling resistance and ultra-precise welding, a specialty of our 10,000-ton manufacturing plant.
●Full-Span Installation: For smaller portal frames, we provide full-span steel assemblies that can be installed overnight using heavy-lift transporters (SPMTs), minimizing traffic disruption—a technique increasingly demanded in European and North American urban projects.
While concrete was the traditional choice for rigid frames due to its perceived weight-bearing capacity, the global infrastructure industry is shifting toward Structural Steel for several critical reasons:
●Seismic Resilience: Steel is inherently ductile. In a rigid frame, the structure's ability to flex and dissipate energy without fracturing is life-saving during an earthquake. Furthermore, because steel is significantly lighter than concrete (~70% less weight for the same span), the inertial forces generated during seismic events are drastically reduced.
●Foundation Cost Savings: Lighter steel superstructures mean that piers and foundations can be smaller and less deep. We have seen projects where switching to steel reduced foundation and substructure costs by over 30%, particularly in poor soil conditions.
●Precision Engineering: Concrete rigid frames are subject to "creep" and "shrinkage," which can alter the bridge's profile over 20 years, causing maintenance headaches. Steel is a stable material that maintains its designed geometry for its entire service life.
●Thermal Flexibility: Steel's thermal properties are well-understood and predictable. In rigid frames (which lack expansion joints), we use high-strength steel that allows piers to bend slightly to accommodate thermal expansion without structural fatigue or cracking.
EVERCROSS BRIDGE operates under the most rigorous international quality controls to ensure that our 10,000-ton annual output meets global expectations. Our collaboration with CNOOC, PowerChina, and CGGC has pushed us to adopt the highest global standards.
Our engineering team is fluent in multiple international design and fabrication standards, ensuring our products are ready for export and immediate integration:
●AASHTO LRFD (USA): Compliance with the American Association of State Highway and Transportation Officials' Load and Resistance Factor Design for highway structures.
●Eurocodes (EU): Specifically EN 1993 for steel structures and EN 1994 for composite bridges.
●GB 50017 (China): The Chinese national standard for steel structure design, often utilized in massive Belt and Road Initiative (BRI) projects.
●AWS D1.5: The American Welding Society’s bridge welding code, ensuring the highest integrity of our structural seams.
●Non-Destructive Testing (NDT): 100% of critical welds undergo ultrasonic or radiographic testing.
●Precision Pre-Assembly: We perform full-scale pre-assembly of segments in our 10,000-ton facility to ensure a "perfect fit" before shipping, avoiding costly site modifications.
●Advanced Coating Systems: We offer hot-dip galvanizing, zinc-rich epoxy primers, and weathering steel (Corten) options to ensure a maintenance-free life of 75 to 100 years.
As global procurement shifts toward ESG (Environmental, Social, and Governance) standards, EVERCROSS BRIDGE is leading the way in sustainable infrastructure.
●Recyclability: Steel is 100% recyclable. Unlike concrete bridges, which require energy-intensive demolition and land-filling at the end of their life, a steel rigid frame can be dismantled and the material reused.
●Reduced Footprint: Smaller foundations mean less disruption to the local ecosystem and less use of carbon-intensive cement.
●Eco-Fabrication: Our factory uses solar-assisted power and advanced filtration to minimize the carbon footprint of our fabrication process, making us a preferred supplier for "Green Infrastructure" projects.
●The rigid frame bridge is a masterpiece of structural synergy, offering a maintenance-light, aesthetically pleasing, and seismically robust solution for modern transit. Whether it is a continuous rigid frame spanning a deep gorge or a portal frame for an urban overpass, the success of the project hinges on two factors: Precision Engineering and Manufacturing Quality.
●EVERCROSS BRIDGE combines the massive scale of a top-tier Chinese manufacturer with the refined expertise of a global engineering partner. Our history of collaboration with giants like CCCC and CREC is a testament to our reliability. With a 10,000-ton capacity, we are ready to supply the world's most ambitious bridge projects, ensuring that infrastructure is built stronger, faster, and more sustainably.
The primary difference lies in the connection to the piers. In a rigid frame bridge, the deck and piers are monolithically connected to transfer moments. In a continuous beam bridge, the deck rests on bearings atop the piers, which primarily transfer vertical loads.
Because the deck and piers act as a single unit, the structure can accommodate thermal expansion through the slight bending of flexible piers rather than through physical gaps in the road surface. This leads to a smoother ride and lower maintenance.
Yes. Steel rigid frame bridges are highly efficient, especially for long-span crossings. EVERCROSS BRIDGE specializes in the fabrication of steel box girders and portal frames that offer high strength-to-weight ratios and faster installation times.
Rigid frame bridges, particularly slant-legged or T-frames, are sensitive to foundation settlement. They are best suited for sites with solid rock foundations or very stable soil conditions to prevent unwanted internal stresses caused by pier movement.
We provide end-to-end steel fabrication, from raw material procurement to precision welding and trial assembly. Our 10,000-ton annual capacity ensures that we can meet the rigorous timelines of giants like CCCC and PowerChina.
