As a premier global leader in the steel fabrication industry, EVERCROSS BRIDGE stands at the forefront of infrastructure innovation. With an annual production capacity exceeding 10,000 tons, we have solidified our position as one of China’s top three professional manufacturers specializing in various steel bridge systems. Our extensive portfolio includes high-stakes collaborations with industry titans such as China Communications Construction Company (CCCC), China Railway Engineering Corporation (CREC), PowerChina, CGGC, and CNOOC.
Whether it is a multi-billion dollar railway project, a critical national highway, or an international government procurement contract, our engineering prowess ensures that every structure meets the highest standards of safety and efficiency. This guide serves as an authoritative deep dive into the structural characteristics of steel cable-stayed bridges and steel temporary bridges, providing engineers, project managers, and stakeholders with the technical insights necessary to make informed infrastructure decisions.

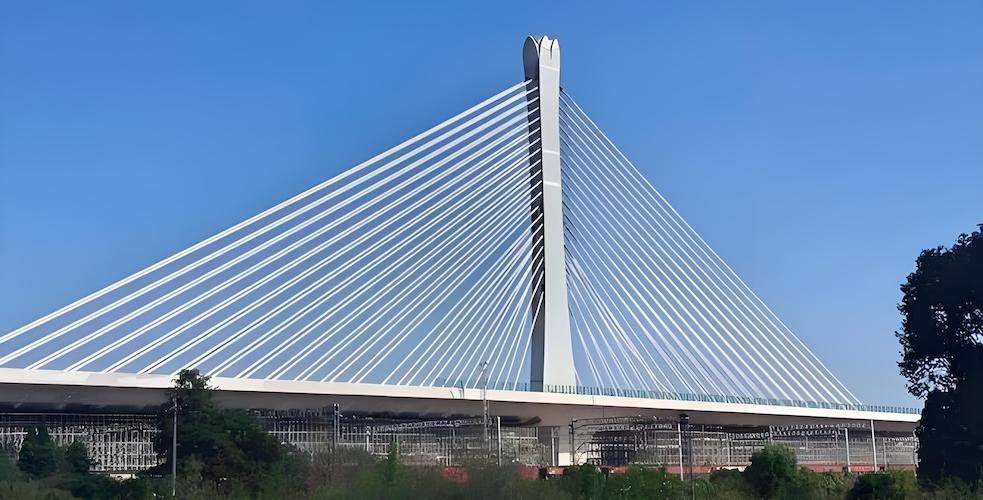

Steel cable-stayed bridges are often described as the most "elegant" solutions in modern civil engineering. They are designed to cover spans that are too long for traditional girder bridges but perhaps do not require the massive scale (and cost) of a suspension bridge. The structural integrity of these bridges relies on a delicate balance of tension and compression.
The pylons, or towers, are the most visible and critical compression members. They must withstand the vertical components of the cable forces and the horizontal forces resulting from unbalanced loads or wind.
●Material Selection: While some pylons are concrete, EVERCROSS BRIDGE specializes in all-steel pylons for high-seismic zones. Steel towers offer superior ductility and a higher strength-to-weight ratio, which reduces the load on the deep-water foundations.
●Structural Geometry: The choice between an A-frame, H-shape, or inverted Y-pylon is not merely aesthetic. For instance, an A-frame tower provides exceptional lateral rigidity, making it ideal for bridges in typhoon-prone coastal regions.
The cables are the primary load-bearing elements that transfer the weight of the deck directly to the pylons.
●High-Strength Composition: We utilize high-tensile, low-relaxation steel strands, typically coated in High-Density Polyethylene (HDPE) for corrosion protection. These strands often reach an ultimate tensile strength of 1860 MPa.
●Arrangement Patterns:
◆Fan Pattern: All cables connect to the top of the tower. This is the most efficient mechanically because the cables are at the steepest possible angle, but it creates congestion at the pylon head.
◆Harp Pattern: Cables are parallel, connecting at different heights on the tower. While less efficient in load transfer, it distributes the cable force more evenly down the tower and is visually striking.
◆Semi-Fan Pattern: A hybrid approach that balances engineering efficiency with easier anchorage installation at the pylon.
One of the most significant advantages of a steel cable-stayed bridge is the use of an orthotropic steel deck.
●Structural Composition: This consists of a flat steel plate stiffened by longitudinal ribs (U-shaped or bulb-shaped) and transverse floor beams.
●Impact on Span: By using steel instead of heavy concrete for the deck, the "dead load" of the bridge is reduced by up to 50%. This allows for longer spans and smaller, more cost-effective cable systems and foundations.
Temporary steel bridges, including the world-renowned Bailey Bridge and modern Steel Trestles, are essential for rapid deployment. Whether used as a bypass during permanent bridge repair or as a construction platform over a river, their structural characteristics are defined by modularity and speed.
The modern Bailey bridge (such as the 321-type or 200-type) is a truss-based system where the main load-carrying members are prefabricated "panels."
●Panel Characteristics: Each panel is a lattice of vertical, horizontal, and diagonal members welded together. The beauty of this system is that these panels can be doubled or tripled (side-by-side or stacked) to increase the bridge's carrying capacity without needing a completely new design.
●Connection Precision: The panels are joined by high-strength panel pins. At EVERCROSS BRIDGE, we ensure these pins are precision-machined and heat-treated to prevent "play" in the joints, which can cause structural vibration under heavy truck loads.
Trestles are often the unsung heroes of large-scale water projects. They provide the stable ground needed for cranes and pile drivers.
●Pipe Pile Foundations: The substructure usually consists of large-diameter steel pipe piles driven deep into the riverbed.
●Distribution Beams: Above the piles, a network of longitudinal and transverse I-beams (or Bailey trusses) creates a rigid platform. These structures must be designed to resist not only the weight of the equipment but also the hydrodynamic pressure of the flowing water and potential debris impact.
Understanding when to use which structure is vital for project cost-control and safety. The following table provides a clear comparison of the two systems.
Feature | Steel Cable-Stayed Bridge | Steel Temporary (Bailey) Bridge |
Primary Structural Member | Tension Cables / Compression Pylons | Truss Panels / Transoms |
Span Capability | Extremely Long (200m - 1000m+) | Short to Medium (9m - 60m per span) |
Foundation Requirement | Massive Deep-Water Caissons/Piles | Modular Abutments or Steel Pipe Piles |
Lifespan | 100+ Years (Permanent) | 5 - 20 Years (Temporary/Semi-Permanent) |
Assembly Method | Cantilever Construction / Segmental | Launching Nose / Crane Lift Assembly |
Maintenance Level | High (Cable Tension Monitoring) | Low (Focus on Pin & Bolt Tightness) |
As a Top 3 manufacturer, our contribution to the "Structural Characteristics" of these bridges lies in our specialized fabrication techniques that exceed standard industry requirements.
We don't just use "steel"; we use project-specific alloys. For permanent cable-stayed bridges, we utilize Q355D or Q420Q high-strength structural steel. These grades offer exceptional "impact toughness" at sub-zero temperatures, ensuring that a bridge in a cold climate won't suffer from brittle fracture.
The failure point of any steel bridge is almost always the weld.
●Automated Submerged Arc Welding (SAW): We use robotic SAW for the main longitudinal seams of box girders to ensure deep, consistent penetration.
●Non-Destructive Testing (NDT): Every critical joint undergoes Ultrasonic Testing (UT) and Radiographic Testing (RT). Our internal QC standards are aligned with both Chinese national standards and international ISO/AWS requirements.
For temporary bridges, we prioritize Hot-Dip Galvanization. By immersing the steel panels in molten zinc, we create a metallurgical bond that protects the steel from rust for decades, even in salty marine environments. For permanent cable-stayed bridges, we apply multi-layer epoxy coatings with a zinc-rich primer to withstand the harshest industrial atmospheres.
While this article discusses the “appearance” of bridges, as leading manufacturers, we must remind you to focus on the “durability” of bridges. Here are three key structural factors we’ve summarized that are often overlooked:
For cable-stayed bridges, the deck is essentially like a giant wing. If poorly designed, wind forces can cause the bridge to vibrate, eventually leading to collapse (the “Tacoma Narrows effect”). We can use wind tunnel testing and computational fluid dynamics (CFD) techniques to design the “nose” or fairing of the steel box girder, ensuring that wind flows smoothly around it rather than creating destructive eddies.
Steel undergoes significant thermal expansion and contraction with temperature changes. In a 500-meter-long cable-stayed bridge, the deck length can vary by tens of centimeters between summer and winter. Therefore, structural design recommends precise expansion joints and spherical bearings to allow the bridge to “breathe” without putting excessive stress on the towers.
Many people believe that temporary bridges are not a concern due to fatigue issues. This is a dangerous misconception. Because Bailey bridges are typically modular in design and reused in multiple projects, accumulated stress cycles can lead to cracks at the weld toes. In such cases, a "lifecycle tracking" system is recommended to ensure that all components do not exceed their safe fatigue life.
Our reputation is built on the success of our partners. Our role in major projects with CCCC and CREC highlights our ability to deliver complex structural solutions:
●The High-Speed Rail Connection: Working with CREC, we provided specialized steel trestles for bridge-erecting machines. These trestles had to support moving loads of over 800 tons with zero deflection, a feat achieved through our high-precision truss manufacturing.
●International Emergency Relief: In collaboration with the Gezhouba Group, we delivered 2,000 tons of modular Bailey bridges to Southeast Asia following a major flood event. The structural characteristic of "Interchangeability" allowed local teams to assemble the bridges in record time with only basic training.
●Offshore Logistics: For CNOOC, we designed and manufactured specialized steel platforms that combine the characteristics of a trestle with the durability of a permanent marine structure, resisting both high-salinity corrosion and massive wave loads.
Looking ahead to infrastructure development over the next decade, EVERCROSS BRIDGE is integrating “smart structural characteristics” into our products.
The steel is 100% recyclable. Unlike concrete bridges that turn to rubble after being scrapped, EVERCROSS steel bridges can be melted down and reused, significantly reducing the carbon footprint of national infrastructure. We are also exploring the use of green steel produced from hydrogen instead of coal to meet international ESG (Environmental, Social and Governance) goals.
We plan to use Building Information Modeling (BIM) to create digital twin models of every cable-stayed bridge we build. This allows engineers to simulate real-time stress distribution and predict when retensioning of the cables is needed. This “proactive structural health monitoring” is the future direction for bridge safety.
The structural characteristics of steel cable-stayed bridges and steel temporary bridges represent two different but equally vital approaches to modern engineering. Cable-stayed bridges provide the permanent, high-performance spans needed for global connectivity, while temporary bridges offer the rapid, modular flexibility essential for project execution and emergency response.
At EVERCROSS BRIDGE, we don't just manufacture steel; we engineer solutions. With a 10,000-ton annual output and a legacy of partnership with the world’s largest construction groups, we possess the scale, the technical expertise, and the commitment to quality required for your most ambitious projects. From the initial structural calculation to the final coat of protective paint, we ensure that your bridge is built to last, built to be safe, and built to lead.
While both utilize high-strength steel cables, the load path is fundamentally different. In a suspension bridge, the main cables are anchored into massive concrete blocks at either end of the bridge, which resist the entire tension of the system. In a cable-stayed bridge, there are no external anchorages; the inclined cables are connected directly to the pylon and the deck. This makes the cable-stayed design more economical for medium-to-long spans (up to 1,000 meters) because it eliminates the cost of large anchorage blocks. Additionally, the cable-stayed pylon handles both compression and bending, whereas suspension towers primarily manage compression.
The decision is based on a balance of structural efficiency and construction complexity. The Fan pattern is generally the most efficient mechanically because the cables are at a steeper angle, which maximizes their ability to support the vertical load of the deck and minimizes the horizontal compression forced into the girder. However, it causes congestion at the pylon head, making anchorage installation difficult. The Harp pattern uses parallel cables spaced along the height of the pylon. While this reduces the vertical efficiency of the cables, it distributes the cable forces more evenly down the pylon and is often preferred for its aesthetic symmetry and easier cable installation.
Unlike permanent structures designed for a specific location, modular Bailey bridges are often disassembled, moved, and reused across multiple projects. Each deployment subjects the bridge panels and connection pins to thousands of stress cycles. Over time, this can lead to microscopic "fatigue cracks" in the steel welds or pin holes. EVERCROSS BRIDGE manages this through a rigorous inspection protocol and heat-treatment processes that increase the surface hardness of the pins. We also recommend that clients track the "service hours" or "load cycles" for each module to ensure no component exceeds its safe fatigue limit.
The choice depends on the environment and maintenance goals. Weathering steel (like Corten) forms a stable, protective oxide layer (rust) that prevents further corrosion without the need for paint. This significantly reduces lifecycle maintenance costs and is ideal for permanent cable-stayed bridges in rural or industrial settings. Galvanized steel, which involves dipping steel into molten zinc, is the preferred choice for modular temporary bridges. It provides superior "sacrificial" protection in high-moisture or coastal environments and is better suited for components that are frequently handled, as the zinc coating is highly resistant to the mechanical abrasions that occur during assembly and disassembly.
Because steel cable-stayed bridges are relatively lightweight and flexible, they are susceptible to aerodynamic instability. To combat this, EVERCROSS BRIDGE engineers utilize aerodynamic deck profiling. Instead of a simple flat surface, we design "closed box girders" with a streamlined, wing-like cross-section (fairings). This shape allows wind to flow smoothly around the bridge rather than forming turbulent vortices that could cause the deck to oscillate. In extreme cases, we also install internal "Tuned Mass Dampers" (TMDs) or hydraulic cable dampers to absorb and dissipate the kinetic energy from wind or heavy traffic.
