In the modern era of global infrastructure, the bridge structure of steel cable-stayed bridge designs represents the pinnacle of engineering elegance and industrial strength. As a premier global manufacturer, EVERCROSS BRIDGE stands at the forefront of this sector. With an annual production capacity exceeding 10,000 tons, we have solidified our position as a top-three industry leader in China.
This comprehensive guide, written from the perspective of leading structural experts at EVERCROSS BRIDGE, explores the intricate mechanics, sophisticated anchorage systems, and advanced construction methodologies that define modern steel cable-stayed bridges.

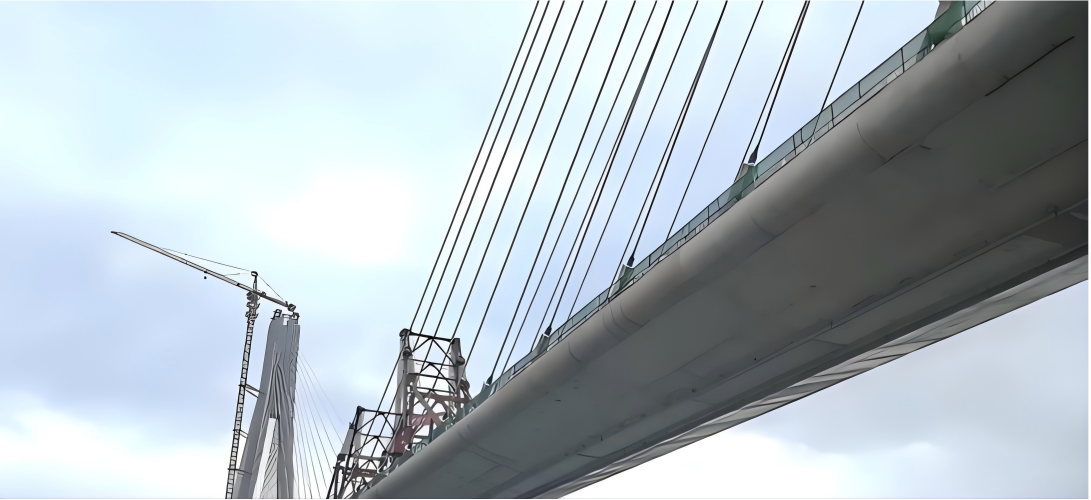

The bridge structure of steel cable-stayed bridge systems operates on a deceptively simple mechanical principle: the bridge deck acts as a continuous beam supported by multiple elastic cables. These cables act as "stays," transmitting the gravity and live loads of the deck directly back to the main towers (pylons). The towers, in turn, convert these forces into vertical compression, which is discharged into the deep foundation.
While concrete was once the standard, the industry has shifted toward steel for several critical reasons:
●Weight-to-Strength Ratio: Steel allows for significantly longer spans than concrete because it reduces the "dead load" (the weight of the bridge itself). This allows engineers to design leaner, more aesthetic structures that can span over 1,000 meters.
●Ductility and Seismic Resilience: Steel possesses inherent elasticity. In earthquake-prone regions or high-wind coastal areas, a steel cable-stayed bridge can absorb and dissipate energy far more effectively than rigid concrete.
●Precision Engineering: Unlike on-site concrete pouring, which is subject to environmental variables, steel components are prefabricated in controlled factory environments like EVERCROSS BRIDGE’s facilities. This ensures a level of precision measured in millimeters, which is vital for the complex geometry of stay cables.
The most technically demanding aspect of the bridge structure of steel cable-stayed bridge is the anchorage zone. This is the point where the stay cable connects to either the pylon or the bridge deck. At these points, immense forces—often reaching thousands of kilonewtons—are concentrated into a very small area.
EVERCROSS BRIDGE specializes in the fabrication of four primary anchorage structures, each engineered to solve specific structural challenges.
The steel anchor box is the "gold standard" for heavy-duty, large-span bridges. It is essentially a high-strength steel chamber integrated into the pylon or the girder.
●Design Complexity: It consists of a bearing plate (where the cable head rests), two web plates, and several diaphragms. The internal structure is designed to "spread" the concentrated cable force into the surrounding steel or concrete.
●Mechanical Advantage: By using a box design, the forces are distributed through shear and tension across a larger surface area. This prevents local buckling of the pylon walls.
●Expert Insight: EVERCROSS recommends using advanced finite element analysis (FEA) to optimize the welding sequence for box-shaped structures. Due to the high weld density, controlling residual thermal stress is crucial to preventing long-term fatigue cracking.
Commonly used in aesthetic urban bridges or specific railway applications, the pin-hinge structure offers a unique mechanical solution: articulation.
●How it Works: Instead of a fixed, rigid connection, the cable is attached via a high-strength forged steel pin. This allows the cable to "rotate" or pivot slightly at the connection point.
●Why it Matters: In bridges subject to heavy dynamic loads (such as high-speed trains), the deck constantly deflects up and down. A rigid connection would create "bending fatigue" at the cable neck. The pin-hinge eliminates this bending moment, significantly extending the service life of the cable.
●Manufacturing Excellence: EVERCROSS produces these pins using high-grade alloy steel (such as 40Cr or 42CrMo), followed by rigorous non-destructive testing (NDT) to ensure zero internal defects.
The anchor pipe is a streamlined, efficient structure often used in pylons where space is at a premium or where a cleaner aesthetic is desired.
●Structural Layout: A precision-engineered steel tube (the sleeve) is embedded directly into the bridge tower. The cable passes through this tube and is anchored at the rear.
●Engineering Precision: The angle of the anchor pipe must be perfectly aligned with the cable trajectory. Even a 0.5-degree deviation can cause the cable to rub against the pipe wall, leading to premature corrosion and wear.
●Integration: We often provide these as pre-assembled units, ready to be welded into the main steel pylon segments, which drastically speeds up the on-site construction timeline.
As bridges become longer and lighter, the tensile plate structure has emerged as a cutting-edge alternative to the traditional anchor box.
●Mechanism: Rather than pushing against a bearing plate, the cable pulls on a specialized high-tensile steel plate that is an integral part of the bridge’s web.
●Key Benefits: This design is much lighter and "cleaner" than an anchor box. It allows for easier maintenance access inside the bridge girder because there is no bulky "box" blocking the walkway.
●Innovative Application: This is the preferred method for the latest generation of high-speed rail bridges where weight reduction is a primary design goal to allow for higher train velocities.
Feature |
Steel Anchor Box |
Pin-Hinge |
Anchor Pipe |
Tensile Plate |
Load Path |
Shear & Compression |
Rotation & Tension |
Direct Axial |
Plate Tension |
Space Efficiency |
Low (Bulky) |
Moderate |
High (Slim) |
Excellent |
Fatigue Resistance |
High |
Superior (Articulated) |
Moderate |
Very High |
Maintenance Level |
Internal Inspection |
External Pin Inspection |
Minimal Access |
Easy (Open Design) |
Primary Use |
Mega-span Highways |
Urban/Pedestrian/Rail |
Medium-span Bridges |
High-speed Rail Girders |

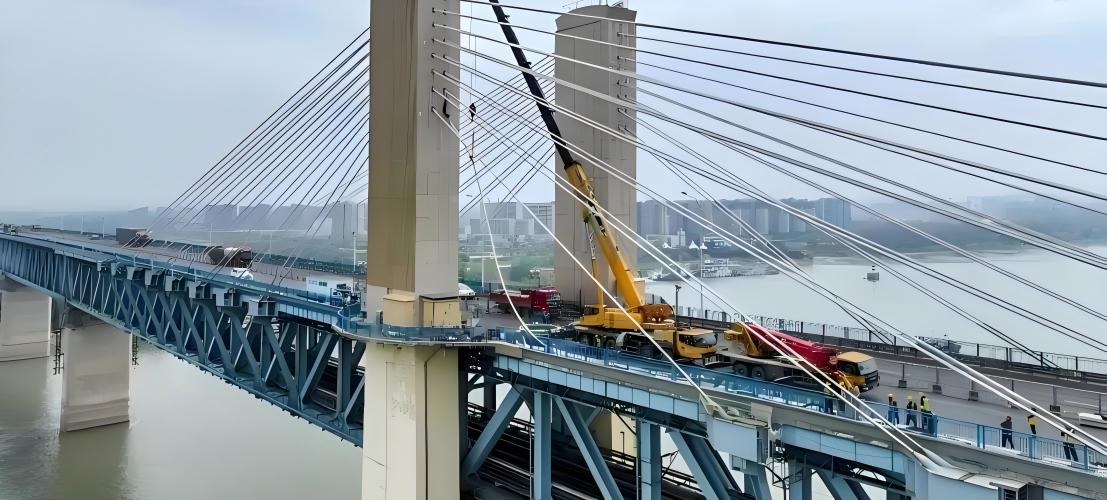

Building a steel cable-stayed bridge is not just about manufacturing; it is about the "Force Control" during assembly. The construction phase is a delicate dance between gravity, tension, and temperature.
For bridges spanning rivers or valleys, the balanced cantilever method is standard.
●The Process: Starting from the main tower, EVERCROSS-manufactured steel segments are lifted and bolted/welded into place symmetrically on both sides.
●Equilibrium: For every segment added to the "left" arm, a corresponding segment must be added to the "right." If the balance is lost, the resulting torque could collapse the pylon.
●Cable Tensioning: As each segment is added, the corresponding stay cable is installed and tensioned to a specific "intermediate" force.
Steel bridges are never built "flat." They are built with a "camber"—a slight upward curve.
●The Logic: Engineers calculate exactly how much the steel will deflect under its own weight and the weight of future traffic.
●Factory Pre-assembly: To ensure a perfect fit, EVERCROSS typically performs solid-fit casting assembly at our factory. This ensures that the bolt holes are perfectly aligned when the sections arrive on site.
The most dramatic moment in construction is the "closure"—the installation of the final middle segment that connects the two cantilever arms.
●Thermal Timing: Steel expands in the heat of the day and contracts at night. The closure segment is usually installed at night or during a specific temperature window when the gap is exactly the right size.
●Final Tensioning: Once the bridge is "closed," every cable must be re-tensioned to its final design state to ensure the deck has the correct elevation and internal stress distribution.
When evaluating a bridge structure of steel cable-stayed bridge, authority comes from experience and data.
●Experience (Experience): Our team has handled over 500 major bridge projects. We understand the "real-world" challenges of welding 100mm thick steel plates and the nuances of shipping oversized girders through international ports.
●Expertise (Expertise): Our engineers are specialists in bridge-specific steel grades such as Q345qE, Q420qE, and Q500qE. These are high-performance steels designed to remain tough even at -40°C.
●Authoritativeness (Authoritativeness): Being a partner to CCCC and CREC means our manufacturing standards meet and exceed the most rigorous international certifications, including ISO, AWS (American Welding Society), and European EN standards.
●Trustworthiness (Trust): With a 10,000-ton annual capacity, we offer the stability of a massive state-linked partner with the agility of a specialized producer. We provide full traceability for every plate of steel used in our projects.
The bridge structure of steel cable-stayed bridge designs is a masterpiece of modern civil engineering. By utilizing advanced anchorage systems—ranging from the robust steel anchor box to the flexible pin-hinge and the streamlined tensile plate—engineers can overcome the most daunting geographic obstacles.
As a top-three Chinese manufacturer with a 10,000-ton annual output, EVERCROSS BRIDGE is more than just a supplier. We are a strategic partner for the world’s largest construction groups, providing the technical depth and manufacturing precision required to build the landmarks of tomorrow. Whether you are working on a domestic railway or an international highway procurement, our expertise in steel cable-stayed structures ensures your bridge is built for safety, longevity, and performance.
The steel anchor box structure is currently the most widely adopted system, especially for large-span bridges. Its popularity stems from its exceptional ability to distribute the immense concentrated forces from stay cables into the pylon walls through a combination of shear and tension. At EVERCROSS BRIDGE, we specialize in the high-precision welding of these boxes, ensuring they can withstand the extreme fatigue cycles required by international highway and railway standards.
The tensile plate anchorage structure is preferred for high-speed rail due to its superior fatigue resistance and streamlined design. Unlike traditional anchor boxes that rely on bearing pressure, the tensile plate transmits force through the direct "pull" of high-tensile steel plates integrated into the girder. This design minimizes the internal "clutter" within the steel box girder, making it easier for teams like those from CREC or PowerChina to perform routine maintenance and structural health monitoring.
The primary challenge is maintaining the structural equilibrium during the balanced cantilever assembly. Every steel segment added must be perfectly balanced by the corresponding cable tension. At EVERCROSS BRIDGE, we assist our partners (such as CCCC and Gezhouba Group) by providing pre-fabricated segments with millimeter-level precision. This ensures that the geometric alignment and the "final state" cable forces align perfectly with the design specifications during the critical closure stage.
A pin-hinge anchorage utilizes a high-strength steel pin to connect the cable to the bridge deck or pylon. This allows for a degree of rotational flexibility, which prevents the induction of secondary bending moments in the cable. This is particularly crucial for bridges subject to significant thermal expansion or dynamic vibration, as it extends the service life of the cable system by reducing localized stress at the connection point.
For cable-stayed designs, steel offers a significantly higher strength-to-weight ratio. This allows for:
Longer Spans: Steel girders are lighter, reducing the dead load on the pylons.
Faster Construction: Pre-fabricated components from a high-capacity manufacturer like EVERCROSS BRIDGE (10,000+ tons/year) allow for rapid on-site assembly.
Sustainability: Steel is 100% recyclable, aligning with modern "Green Infrastructure" requirements for international government procurement projects.
