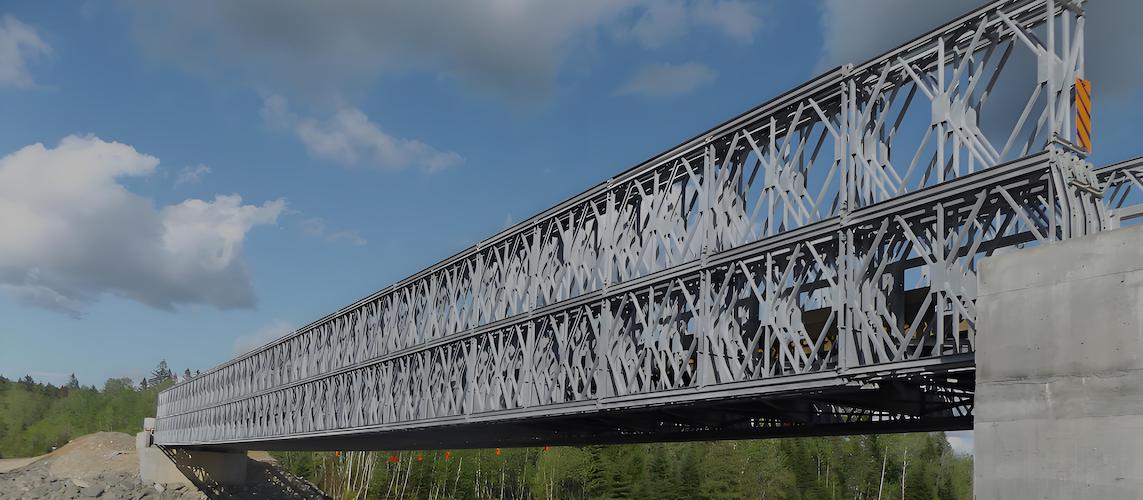

In the landscape of global infrastructure, the Bailey bridge—originally conceived as a rapid-deployment military solution during World War II—has transitioned into a vital component of modern civil engineering. Today, these prefabricated steel truss bridges are used extensively for emergency disaster relief, rural connectivity, and heavy-duty highway projects. However, as global urbanization pushes infrastructure into geographically volatile regions, the threat of seismic activity has become a primary design consideration.
Understanding the principle of Bailey bridge seismic isolation is no longer an academic exercise; it is a life-saving necessity. For a leading manufacturer like EVERCROSS BRIDGE, which produces over 10,000 tons of structural steel annually, integrating seismic resilience into our modular designs is a core mission. Having partnered with global giants such as CCCC (China Communications Construction Company) and CREC (China Railway Engineering Corporation), we have seen firsthand how advanced isolation technology can preserve critical supply lines during and after catastrophic earthquakes. This guide provides an exhaustive look at how we decouple these massive structures from the violent forces of the earth.
To appreciate the genius of seismic isolation, one must first understand the limitations of traditional "seismic resistance." In a standard resistant design, the bridge is built to be "tough." Engineers use high-strength steel and reinforced concrete to ensure the structure can "absorb" the energy of an earthquake through its own strength and ductility. While effective to a point, this often results in permanent structural damage—cracked piers, deformed trusses, and costly post-quake repairs.
Seismic Isolation, by contrast, is a proactive philosophy. Instead of fighting the earthquake's energy, isolation seeks to bypass it.
●The Concept of Decoupling: By placing flexible components between the bridge's superstructure (the truss) and its substructure (the piers), we effectively "float" the bridge.
●The Physics of Motion: During an earthquake, the ground moves violently, but the isolation layer absorbs the majority of this displacement. The Bailey bridge above remains relatively still, experiencing only a fraction of the ground’s acceleration.
●Why Bailey Bridges? Modular steel bridges are naturally lightweight compared to concrete. This lower mass is an advantage in seismic design, but their "stiff" truss nature requires careful isolation to prevent high-frequency vibrations from causing metal fatigue or pin failure.
The principle of Bailey bridge seismic isolation rests on two pillars of structural dynamics: shifting the natural frequency of the bridge and "bleeding off" the energy of the quake.
Every structure has a natural vibration period—the time it takes to sway back and forth once. Most earthquakes deliver their most destructive energy at high frequencies (short periods).
●The Risk of Resonance: If a bridge’s natural period matches the earthquake’s period, resonance occurs, amplifying the shaking until the structure fails.
●The Solution: Isolation bearings are much "softer" than the steel truss itself. By introducing this flexibility, we elongate the natural period of the bridge. This moves the bridge’s response into a "low-energy" zone of the earthquake spectrum. In simple terms, the bridge moves more slowly and gracefully, even while the ground below is jerking violently.
If we only elongated the period, the bridge might sway too far, potentially falling off its supports. To prevent this, we introduce damping.
●Hysteresis and Friction: This involves converting the kinetic energy of the earthquake into heat. As the isolation bearing deforms or slides, internal molecular friction (in rubber) or mechanical friction (in sliders) "eats" the energy.
●The Result: Damping reduces the maximum displacement of the bridge deck, ensuring that the Bailey bridge stays within its designed movement envelope.
At EVERCROSS BRIDGE, we utilize three primary categories of isolation technology, each suited to different geographic and environmental requirements.
The LRB is the "gold standard" for many highway Bailey bridge projects. It consists of a "sandwich" of alternating layers of vulcanized rubber and steel shims, with a solid lead core at the center.
●The Rubber Layers: These provide the lateral flexibility needed for period elongation.
●The Steel Shims: These provide vertical stiffness, ensuring the bearing doesn't bulge under the weight of heavy trucks.
●The Lead Core: This is the "damper." Under seismic force, the lead core yields and deforms plastically, absorbing immense amounts of energy. Once the quake stops, the natural elasticity of the rubber pulls the bridge back to its original position.
For large-span modular bridges or projects in regions with extreme seismic potential, the FPS is an engineering marvel. It operates on the principle of a simple pendulum.
●The Mechanism: The bridge sits on a "slider" that rests in a concave, stainless-steel basin. When the earthquake hits, the slider moves along the curved surface.
●Gravity as a Restorer: As the slider moves up the curve, gravity naturally wants to push it back to the center. This creates a self-centering mechanism that is independent of the bridge's age or material fatigue.
●High Load Capacity: FPS units can support significantly higher vertical loads than rubber bearings, making them ideal for railway Bailey bridges.
HDR bearings are similar to LRBs but do not use a lead core. Instead, the rubber compound itself is engineered with special additives (like carbon black) that increase its internal friction.
●Pros: They are easier to manufacture and more environmentally friendly.
●Cons: They are more sensitive to temperature fluctuations, making them better suited for temperate climates.
Selecting a system requires a balance of cost, maintenance, and seismic risk.
Feature | Lead Rubber Bearings (LRB) | Friction Pendulum (FPS) | High Damping Rubber (HDR) |
Primary Function | Energy absorption via lead yielding | Energy absorption via friction | Material-based hysteresis |
Vertical Load | Moderate to High | Extremely High | Moderate |
Durability | High (Requires UV protection) | Highest (Stainless steel) | Moderate |
Self-Centering | Excellent (Rubber elasticity) | Perfect (Gravity-based) | Good |
Maintenance | Low (Visual inspections) | Minimal | Low |
Best Use Case | Standard Highway Bridges | Large-span/Heavy Railway | Pedestrian/Light Traffic |
Seismic safety isn't just about the bearings; it’s about the bridge itself. EVERCROSS BRIDGE designs prioritize Structural Redundancy, a critical factor in surviving unexpected seismic forces that exceed design limits.

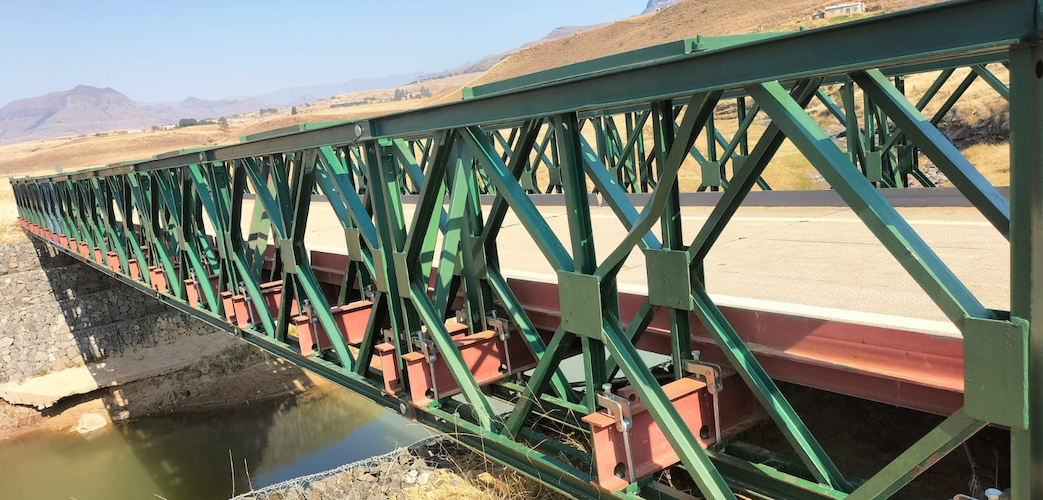

●The "Pin-Connected" Dynamic: Our 321-type and Compact 200 Bailey bridges use high-strength pins to connect truss panels. In a seismic event, these joints allow for a microscopic amount of "play" or rotation, which can actually help distribute localized stresses across the entire frame rather than snapping a rigid weld.
●Multi-Path Load Distribution: Because our bridges are composed of a lattice of chords and diagonals, the failure of a single non-critical member does not lead to a "zipper effect" collapse. The load is instantly redistributed to adjacent panels.
●Post-Disaster Recovery: If an earthquake is so severe that it damages the bridge, the modular nature of our product allows for "surgical" repairs. Engineers can replace specific panels or transoms in the field without needing to demolish the entire structure—a vital advantage for humanitarian aid routes.
When EVERCROSS BRIDGE works with international procurement agencies or state enterprises like PowerChina, we adhere to the world's most stringent seismic codes.
●AASHTO LRFD (USA): We ensure our bridges meet the "Guide Specifications for Seismic Isolation Design," focusing on displacement limits and pier protection.
●Eurocode 8: We design for specific "Design Ground Acceleration" (ag) targets, ensuring that the bridge remains operational even after a "Design-Level" earthquake.
●Quality Control in Manufacturing: Every batch of steel used in our bridges undergoes rigorous Charpy V-Notch (CVN) impact testing. This ensures the steel remains "tough" and doesn't become brittle in the cold or under high-speed seismic loading.
A world-class seismic isolation system is useless if installed incorrectly. Based on decades of site experience with China General Nuclear (CGN) and CNOOC, we emphasize three critical installation phases:
●Substructure Flatness: The concrete piers must be perfectly leveled. Even a 1-degree tilt can cause "creeping" in an isolation bearing, leading to long-term structural offset.
●Thermal Expansion Gaps: Bailey bridges expand and contract with the weather. The seismic isolation system must be calibrated to allow for this "slow" movement while remaining ready for the "fast" movement of an earthquake.
●Debris Shielding: Especially in rural or "off-road" Bailey bridge locations, dust and rocks can interfere with the sliding surfaces of bearings. We provide customized "bellows" or shields to protect the isolation layer from the elements.
Many project managers hesitate at the initial cost of seismic isolation systems. However, a Life-Cycle Cost Analysis (LCCA) usually proves the opposite.
●Reduced Pier Costs: Because isolation reduces the forces transmitted to the ground, the concrete piers and foundations can be made smaller and less reinforced, often saving enough in concrete and rebar to pay for the bearings themselves.
●Insurance and Liability: Bridges equipped with certified isolation systems often qualify for lower insurance premiums in high-risk zones like Indonesia, Nepal, or the Andes.
●Business Continuity: The cost of a bridge collapsing is not just the cost of the steel; it is the cost of the lost trade and disconnected communities. Seismic isolation is an investment in "zero-downtime" infrastructure.
As one of China’s top three steel bridge manufacturers, EVERCROSS BRIDGE is more than a supplier; we are a strategic partner. Our annual output of 10,000+ tons is backed by a team of researchers dedicated to the principle of Bailey bridge seismic isolation.
●Collaborations with Giants: Our work with the Gezhouba Group and China Railway has seen our bridges deployed in some of the most challenging terrains on earth, from the Himalayas to the African Rift Valley.
●Advanced R&D: We utilize Finite Element Analysis (FEA) to simulate earthquake scenarios before the first piece of steel is ever cut. This allows us to "stress-test" the bridge in a virtual environment, ensuring the isolation system is perfectly tuned to the local geography.
The integration of seismic isolation into Bailey bridge design represents the perfect marriage of 20th-century modularity and 21st-century safety technology. By understanding and applying the principles of period elongation, energy dissipation, and structural redundancy, we can build bridges that do more than just span a gap—they survive the unthinkable.
At EVERCROSS BRIDGE, we remain committed to providing the global market with steel bridges that are fast to erect, economical to maintain, and unshakeable in the face of natural disasters. Our mission is to ensure that when the earth moves, your critical infrastructure stays exactly where it belongs.
Traditional seismic reinforcement (seismic resistance) focuses on making the bridge "stronger" to withstand the force of an earthquake. This often leads to massive, rigid, and expensive substructures.In contrast, seismic isolation acts as a "buffer" that filters out ground vibrations before they reach the bridge.This proactive approach is more effective for modular steel bridges because it prevents structural fatigue and protects the connection pins, ensuring the bridge remains operational immediately after a seismic event.
Yes. One of the greatest advantages of modular steel bridges is their adaptability.Existing Bailey bridges can be retrofitted by jacking up the bridge deck and replacing traditional steel plate bearings with Lead Rubber Bearings (LRB) or Friction Pendulum Systems (FPS).EVERCROSS BRIDGE provides specialized retrofitting kits designed to match standard 321-Type and Compact 200 truss configurations, significantly extending the lifespan and safety of older infrastructure.
Our bridges maintain stability through a combination of high-strength Q355B steel and structural redundancy.Unlike single-girder bridges, our truss designs feature multiple load paths. If an earthquake causes localized stress on one section, the seismic isolation system dissipates the energy, while the interlocking bracing system redistributes the remaining load.This prevents "progressive collapse," which is critical for emergency relief bridges in high-risk zones.
Under normal conditions, high-quality seismic isolation bearings (like those used by EVERCROSS BRIDGE) have a service life of 50 to 60 years.However, we recommend a visual inspection every 1 to 2 years and a comprehensive technical audit after any seismic event measuring over 5.0 on the Richter scaleMaintenance typically involves checking for rubber oxidation, ensuring expansion joints remain clear of debris, and verifying that the sliding surfaces of friction systems remain lubricated and rust-free.
While the initial investment for seismic isolation bearings is higher than standard bearings, it offers a massive Return on Investment (ROI). By reducing the seismic forces transmitted to the piers and abutments, engineers can often reduce the size and cost of the bridge foundations. Furthermore, the cost of repairing a non-isolated bridge after an earthquake—not to mention the economic loss of a closed transport route—far outweighs the upfront cost of advanced seismic protection.
