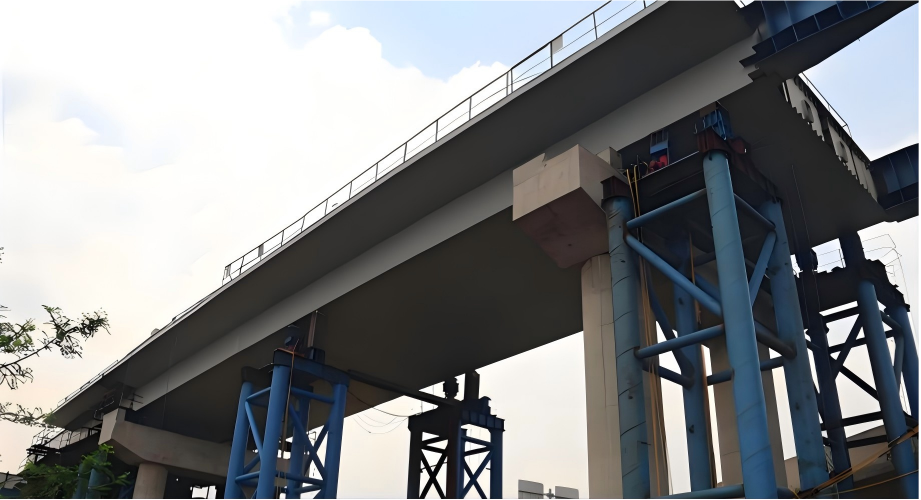

In the modern era of rapid urbanization and global connectivity, the steel box girder has emerged as the quintessential structural element for large-scale bridge projects. For EVERCROSS BRIDGE, a top-tier Chinese manufacturer with an annual production capacity exceeding 10,000 tons, the engineering of steel box girders is more than a process—it is a commitment to safety, durability, and innovation.
Our strategic partnerships with China’s leading State-Owned Enterprises (SOEs), including CCCC (China Communications Construction), CREC (China Railway Group), PowerChina, CGGC (Gezhouba Group), and CNOOC, have positioned us at the forefront of the most complex railway, highway, and maritime projects worldwide. This comprehensive guide explores the intricate classifications of steel box girders, providing technical insights for engineers, procurement officers, and project stakeholders.
The cross-sectional design of a steel box girder is the primary factor determining its torsional rigidity and material efficiency. Choosing the right geometry is critical for balancing project costs with structural requirements.
The single-cell box is the "workhorse" of the bridge industry. It consists of a single enclosed rectangular or trapezoidal loop.
●Application: Ideal for medium-span bridges (40m to 120m) and curved highway ramps.
●Engineering Advantage: Its closed-loop design offers superior torsional resistance, making it the first choice for bridges with significant horizontal curvature where centrifugal forces from traffic are high.
●EVERCROSS Insight: We utilize advanced CNC plasma cutting to ensure the high-precision fit of the top and bottom flanges with the webs, reducing internal stresses during the welding phase.
When the bridge deck width exceeds a certain threshold (typically over 20 meters), a single-cell girder may suffer from local buckling of the top flange.
●Structural Benefit: Multi-cell configurations (double-cell or triple-cell) provide additional internal webs that support the deck plate, allowing for thinner steel sections while maintaining high load-bearing capacity.
●Project Context: Frequently used in multi-lane urban expressways and major river crossings where the deck must accommodate six or more lanes of traffic.
●Trapezoidal Girders: Feature inclined webs that narrow toward the bottom flange. They are visually more slender and offer aerodynamic advantages, reducing the wind load (drag coefficient) on the structure—a vital factor for high-altitude or coastal bridges.
●Rectangular Girders: Easier to manufacture and transport. They are typically used in hidden structures or railway bridges where aesthetic "slenderness" is secondary to absolute stiffness.
The "deck" is the surface that directly interacts with traffic loads. The choice between an Orthotropic Steel Deck (OSD) and a Steel-Concrete Composite Deck is one of the most significant decisions in the design phase.
An OSD is an all-steel system where the deck plate is stiffened by longitudinal ribs (U-ribs) and transverse floor beams.
●The "Lightweight" Champion: OSDs are significantly lighter than concrete alternatives, making them indispensable for long-span suspension and cable-stayed bridges where reducing self-weight is critical to the overall feasibility of the span.
●Fatigue Management: The primary challenge with OSDs is the fatigue life of the weld between the U-rib and the deck plate. EVERCROSS BRIDGE addresses this by using Full Penetration Laser-Arc Hybrid Welding, a technology that drastically improves the fatigue resistance compared to traditional fillet welds.
This system features a steel box girder topped with a reinforced concrete slab, joined by shear connectors (studs).
●Economic Efficiency: By utilizing the compressive strength of concrete and the tensile strength of steel, composite girders offer a cost-effective solution for shorter highway spans.
●Maintenance Profile: While they require periodic inspection of the concrete surface, they provide a very stable and quiet driving experience, reducing noise pollution in urban environments.
Structural Type | Typical Span Range | Key Advantages | Typical Partner Projects |
Simply Supported | 30m - 60m | Fast installation; easy to replace. | Highway Overpasses |
Continuous | 50m - 200m+ | Higher material efficiency; fewer expansion joints. | CREC Railway Bridges |
Cable-Stayed Approach | 100m - 400m | Integrates seamlessly with cable anchors. | CCCC Coastal Projects |
Incremental Launching | Variable | Can be built without disrupting traffic below. | Urban Interchange Ramps |

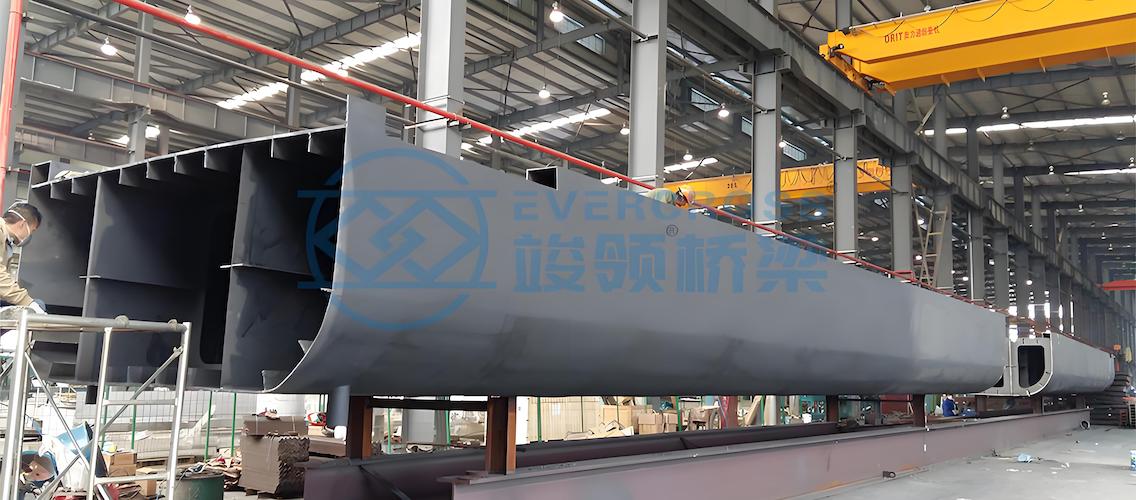

For a 10,000-ton annual producer, quality control is not a department—it is the core of our operations. Working with central enterprises like CGGC and PowerChina requires adherence to the strictest manufacturing tolerances.
The U-rib is the "backbone" of the steel box girder. We employ a fully automated production line that handles:
●CNC Edge Milling: Ensuring the U-rib edges are perfectly prepped for welding.
●Robotic Assembly: Precise positioning of ribs on the deck plate to within ±0.5mm.
●Multi-Torch Submerged Arc Welding (SAW): Providing deep penetration and a smooth finish to prevent stress concentrations.
Given our involvement in CNOOC maritime projects, our coating standards are designed for harsh C5-M (Marine) environments.
●Sandblasting: All steel undergoes automated sandblasting to Sa2.5 or Sa3.0 cleanliness levels.
●Metal Spraying: For high-end international procurement, we offer Aluminum-Zinc thermal spraying, providing up to 50 years of corrosion protection before the first major maintenance cycle.
To eliminate on-site errors, we perform 3D digital pre-assembly followed by a physical trial assembly of key bridge segments. This ensures that every bolt hole aligns perfectly, reducing the "closure gap" risk during field installation.
Designing for the international market means speaking the language of global codes. EVERCROSS BRIDGE is proficient in:
●AASHTO LRFD (United States): We follow the American Association of State Highway and Transportation Officials' guidelines for fracture-critical members and redundancy design.
●Eurocode 3 & 4 (European Union): Focus on the ultimate and serviceability limit states of steel and composite structures, particularly relevant for our European and African procurement projects.
●GB Standards (China): The standard for all CCCC and CREC projects, known for its rigorous testing requirements for high-speed rail bridge stiffness.
As the industry moves toward "Green Infrastructure," EVERCROSS BRIDGE is leading the adoption of Weathering Steel (ASTM A709 / GB Q345QN).
●Zero Maintenance: Weathering steel forms a stable, rust-like patina that protects the underlying metal. This eliminates the need for painting, saving millions in lifecycle maintenance costs.
●Environmental Impact: By removing the need for VOC-emitting paints, weathering steel box girders represent the most sustainable choice for environmentally sensitive areas, such as those managed by PowerChina in hydroelectric projects.
Most manufacturers focus solely on the "delivery" of the steel. However, the true value of a steel box girder lies in its installation engineering.
●Thermal Effects: During the welding of large box segments, thermal expansion can alter the bridge's geometry by several centimeters. We use sophisticated thermal-stress modeling to predict and compensate for these shifts during fabrication.
●Transport Logistics: A single box girder segment can be 4 meters wide and 25 meters long. Our logistics team specializes in modular design, ensuring segments can be transported via standard shipping containers or specialized trailers without compromising structural integrity.
The complexity of steel box girder classification—from single-cell geometries to advanced orthotropic deck systems—requires a manufacturer that combines massive scale with surgical precision. EVERCROSS BRIDGE is that partner.
With a 10,000-ton annual output and a legacy of successful collaboration with CCCC, CREC, and CNOOC, we provide the technical authority and manufacturing power needed for the world’s most demanding projects. Whether you are designing a high-speed railway bridge or a complex urban interchange, our team is ready to deliver excellence that meets AASHTO, Eurocode, and GB standards.
To further assist engineers, procurement officers, and project managers, we have compiled the most common inquiries regarding the design, manufacturing, and application of steel box girders based on our experience with global infrastructure leaders like CCCC and CREC
The choice depends primarily on the bridge deck width and torsional requirements.
●Single-Cell: Generally suitable for deck widths up to 18–20 meters. They offer the best torsional rigidity-to-weight ratio and are easier to fabricate, making them ideal for curved highway ramps.
●Multi-Cell: Required for wider decks (typically over 22 meters) to provide additional internal support for the top flange, preventing local buckling. While more complex to manufacture, they allow for thinner steel plates across a wider surface area, optimizing the overall material weight for multi-lane expressways.
For projects in coastal or offshore environments (often managed by partners like CNOOC), we employ a multi-layered protection strategy:
●Advanced Coating Systems: We apply C5-M (Marine High) category coatings, featuring epoxy zinc-rich primers, high-build epoxy intermediate coats, and fluorocarbon topcoats for maximum UV and salt resistance.
●Thermal Spraying: For extreme environments, we offer Thermal Sprayed Aluminum (TSA) or Zinc-Aluminum (85/15) coatings, which provide cathodic protection for 40–50 years.
●Weathering Steel: For specific climates, we utilize A709-W or Q345QN weathering steel, which develops a stable oxide layer to eliminate the need for painting.
Yes. As a leading manufacturer with a 10,000-ton annual capacity, our engineering and QC teams are fully proficient in:
●AASHTO LRFD (USA): Focusing on fracture-critical members and fatigue-resistant detailing.
●Eurocode 3 & 4 (Europe): Adhering to strict limit state design and composite interaction standards.
●AS/NZS (Australia/New Zealand): Often required for international infrastructure tenders. Our collaboration with China's largest central enterprises ensures that we maintain a global standard of quality and documentation for every international shipment.
The primary advantage of an Orthotropic Steel Deck is weight reduction.
●Span Capability: By reducing the dead load of the bridge by up to 40–50% compared to a concrete deck, OSDs make extremely long-span suspension and cable-stayed bridges feasible.
●Installation Speed: OSD segments are prefabricated in our factory as modular units, allowing for rapid assembly on-site with no waiting time for concrete curing. This is critical for urban projects where traffic disruption must be minimized.
Precision at the site begins in the factory. EVERCROSS BRIDGE utilizes two key technologies to ensure a perfect fit:
●3D Digital Pre-Assembly: We use laser scanning to create a digital twin of each segment, simulating the connection in a virtual environment to detect millimetric deviations.
●Full-Scale Trial Assembly: For critical spans, we perform a physical trial assembly of three consecutive segments (the "Match-Casting" principle applied to steel) to verify the alignment of bolt holes and weld bevels before the steel leaves our facility. This drastically reduces the risk of on-site modifications and project delays.
