In the complex landscape of global infrastructure construction, the structural integrity and functional efficiency of bridges depend on their primary configuration. As a leading bridge manufacturer in China, Evercros Bridge ranks among the top three in the industry, with an annual output exceeding 10,000 tons. We are pioneering the creation of high-performance steel bridges for the world's most demanding environments.
This article will delve into the three main types of bridge deck positioning: through-deck, under-deck, and mid-deck bridges. A thorough understanding of these distinctions is a crucial step for engineers, project managers, and government planners to optimize clearance, cost-effectiveness, and long-term durability.
The fundamental classification of a bridge is defined by the vertical relationship between the "traveling surface" (the deck) and the "main supporting structure" (trusses, arches, or girders). This decision is never arbitrary. It is a calculated response to site-specific challenges including hydraulic requirements for river crossings, vertical clearance for shipping lanes, and the geological stability of the banks.
When EVERCROSS BRIDGE consults on massive projects with CREC or CCCC, we analyze the "Structural Depth"—the distance from the top of the roadway to the lowest point of the bridge structure. This single metric often dictates whether a project will utilize a Deck, Through, or Half-Through design.
In a Deck Bridge, the roadway or railway is positioned entirely on top of the main supporting members. Whether the bridge is a steel truss, a concrete arch, or a steel plate girder, the entire load-bearing mechanism resides beneath the wheels of the vehicles.
In this configuration, the main structural elements (such as the chords of a truss or the ribs of an arch) are primarily in compression or tension beneath the deck. The deck itself acts as a protective "roof" for the steelwork below. For an EVERCROSS fabricated deck truss, the load is transferred from the deck to the stringers, then to the floor beams, and finally to the top chords of the truss.
●Panoramic User Experience: Since there are no structural members above the deck level, passengers enjoy an unobstructed 360-degree view. This makes the deck bridge the "gold standard" for scenic highways and urban tourist corridors where the bridge itself should not hide the landscape.
●Natural Corrosion Shielding: The deck acts as a giant umbrella. By keeping the majority of the steel structure shielded from direct rainfall and harsh UV radiation, the maintenance intervals for protective coatings are often significantly longer than in other bridge types.
●Standardized Maintenance Access: Inspection crews can often move freely within or beneath the structure without interrupting the flow of traffic on the deck above.
●Economical Widening: As urban populations grow, bridges often need to be widened. A deck bridge allows for the relatively simple lateral extension of the deck using cantilevered brackets, provided the main substructure has been designed to handle the additional load.
The primary limitation of the deck bridge is its Under-Bridge Clearance. Because the entire structure—which can be 5 to 20 meters deep—sits below the deck, the bridge must be placed very high above the water or road below. This makes deck bridges ideal for deep mountain valleys or high-altitude crossings, but often impossible for low-lying coastal river crossings.
A Through Bridge represents the inverse of the deck bridge. Here, the deck is located at the lowest level of the main structural elements. When you travel across a through bridge, you are essentially driving through a "tunnel" of steel trusses or arches.
Through bridges are marvels of lateral stability engineering. Because the top of the structure is not "tied" together by a solid deck, engineers must implement a robust system of Lateral Bracing and Portal Bracing. These upper braces prevent the tall trusses or arch ribs from buckling under the massive compressive forces they endure. At EVERCROSS BRIDGE, our fabrication of through-truss bridges for China Railway Group (CREC) involves extreme precision in these upper bracing joints to ensure the "cage" maintains its geometric integrity under the vibration of high-speed trains.
●Minimal Structural Depth Below the Deck: This is the "killer feature" of the through bridge. The distance between the roadway surface and the bottom of the bridge is kept to an absolute minimum (often just the depth of the steel floor beams). This is essential when crossing busy navigation channels where every centimeter of shipping clearance is worth millions in economic trade.
●Elimination of Approach Grades: In flat terrain, a deck bridge would require massive, expensive earthen embankments to lift the road high enough to provide clearance. A through bridge allows the road to stay low to the ground, significantly reducing the total project footprint and cost.
●Iconic Industrial Aesthetic: The through bridge creates a "Sense of Place." Iconic structures like the Sydney Harbour Bridge or the massive through-truss railway bridges in China’s interior are instantly recognizable precisely because the structure is visible to the user.
●Impact Protection: Since the structural members are at the same level as the traffic, they are at risk of vehicle or vessel impact. We utilize high-toughness steel grades that can absorb energy without catastrophic failure.
●Complex Maintenance: Every inch of a through bridge is exposed to the elements. EVERCROSS BRIDGE applies advanced fluorocarbon coatings that offer up to 25 years of protection against the "chimney effect" of moisture and pollutants that can get trapped within the structural cage.

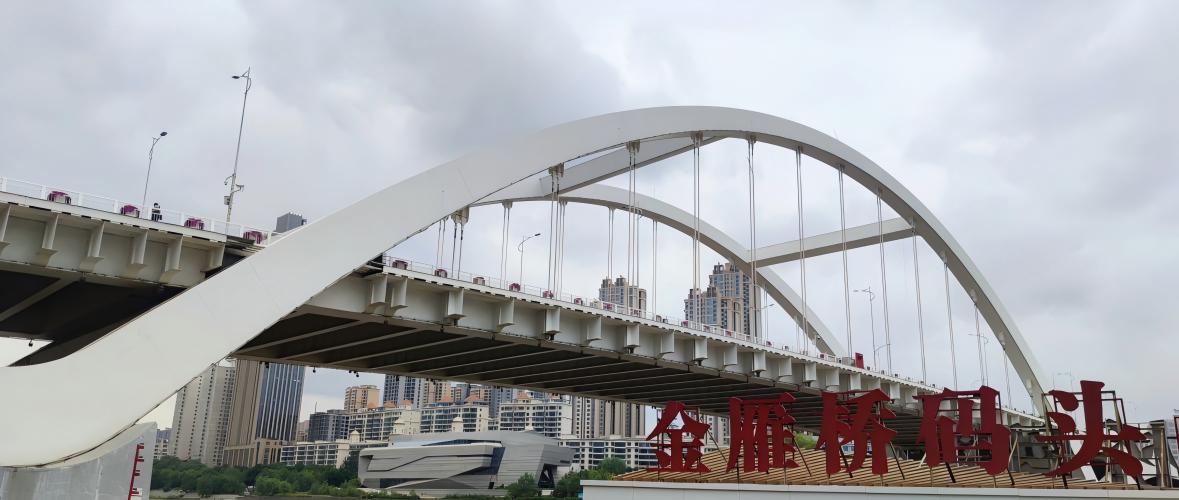

The Half-Through Bridge is a sophisticated architectural middle ground. The deck is positioned at an intermediate level—typically passing through the mid-section of an arch. This is almost exclusively seen in arch bridge designs.
In a half-through arch, the arch ribs begin below the deck at the foundations and rise high above the deck at the center of the span. The deck is supported by Hangers (Suspension Rods) in the middle section and supported by Columns (Spandrel Columns) near the ends. This creates a complex but highly efficient load path that shares the benefits of both deck and through configurations.
●Optimized Clearance & Grade: It provides better clearance than a deck bridge while requiring less massive upper bracing than a full through bridge.
●Structural Stiffness: The hybrid nature allows for a very stiff structure, which is ideal for long-span bridges that must carry heavy rail loads while maintaining a graceful, slender profile.
●Architectural Flexibility: This is the favorite of bridge architects. It allows for dramatic "flying arches" that create a landmark silhouette for cities.
Feature | Deck Bridge | Through Bridge | Half-Through Bridge |
Ideal Geography | Deep Valleys / Canyons | Flat Plains / Busy Ports | Wide River Crossings |
Shipping Clearance | Minimal | Maximal | Moderate to High |
Structure-to-Deck Depth | High (5m - 20m+) | Low (1m - 2m) | Variable |
Material Efficiency | High (Self-bracing) | Lower (Needs extra bracing) | Moderate |
Maintenance Profile | Shielded / Easier | Exposed / Challenging | Mixed |
Aesthetic Goal | Landscape focus | Structural focus | Architectural Landmark |
Producing over 10,000 tons of steel bridge components annually requires more than just raw capacity; it requires an obsession with metallurgical precision and geometric accuracy. When working with partners like Gezhouba Group or PowerChina on international hydroelectric and infrastructure projects, our process includes several "Value-Added" steps that surpass the industry standard.
We utilize high-performance Chinese steel grades such as Q355D, Q420Q, and Q500qE. These "Bridge Quality" steels are characterized by:
●Z-Direction Properties: Preventing lamellar tearing in complex through-bridge joints.
●Low-Temperature Toughness: Essential for bridges in northern climates or high-altitude rail lines.
●Weathering Steel Options: We offer ASTM A588 equivalent "Corten" steel, which develops a protective rust patina, eliminating the need for painting in specific environmental conditions.
Every bridge we build is first constructed in a digital environment. Our CNC drilling and cutting machines are fed directly from 3D models, ensuring that in a 1,000-ton through-truss bridge, every bolt hole aligns to within 0.5mm. This precision is what allows EVERCROSS BRIDGE to maintain its status as a top-three manufacturer.
To eliminate risks during site installation—especially in remote international project sites—we perform a full trial assembly in our 50,000 square meter facility. This ensures that the complex geometry of a half-through arch or the intricate lateral bracing of a through-truss fits perfectly before it ever leaves our floor.
For a successful installation, we recommend the following visual and operational checkpoints:
●At the Foundation Phase: For deck bridges, ensure the abutments are designed for high vertical loads. For through arches, the focus must be on horizontal thrust resistance.
●During Fabrication: Request ultrasonic testing (UT) and magnetic particle inspection (MPI) reports for all tension-member welds in through-type bridges.
●At Installation: Utilize heavy-lift cranes or the "incremental launching method" for deck bridges to minimize environmental impact on the valley below.
The choice between a Deck, Through, or Half-Through bridge is the most consequential decision in the life of a bridge project. It dictates the budget, the appearance, and the functional lifespan of the infrastructure.
●Deck Bridges provide the ultimate scenic experience and simplified maintenance.
●Through Bridges solve the most difficult clearance problems in urban and maritime corridors.
●Half-Through Bridges offer the architectural elegance required for modern city landmarks.
At EVERCROSS BRIDGE, our legacy is built on the strength of the steel we forge and the trust of the partners we serve. Whether it is a high-speed railway bridge for CREC or a complex highway crossing for CCCC, our 10,000-ton annual capacity and top-tier engineering expertise ensure that your project is built on a foundation of excellence.
The primary deciding factor is almost always "Structural Depth" and "Vertical Clearance."
●Choose a Deck Bridge if your project crosses a deep valley, a high-altitude mountain pass, or a location where there is ample space between the roadway and the ground/water below. Because the structure is hidden beneath the deck, it offers the best aesthetics and easiest maintenance.
●Choose a Through Bridge if you are working in flat terrain or crossing a busy navigation channel. If you must provide maximum clearance for ships or other vehicles below while keeping the approach roads as low as possible to save on embankment costs, the Through Bridge is the only viable engineering solution.
Generally, Deck Bridges are more economical in terms of raw material and fabrication complexity. Because the deck itself provides lateral stability to the top chords of the girders or trusses, they require less specialized "upper bracing." Through Bridges, conversely, require a more complex "cage" structure with overhead lateral and portal bracing to prevent buckling. However, the Through Bridge can often save the project millions in total costs by reducing the need for massive, miles-long elevated approach ramps that would be required to lift a Deck Bridge high enough for clearance. At EVERCROSS BRIDGE, we provide a "Total Lifecycle Cost Analysis" to help our partners like CCCC choose the option that balances fabrication costs with site preparation savings.
Through-type steel trusses are the "workhorses" of the railway industry for two main reasons: Stiffness and Profile.
●Stiffness: The enclosed box-like structure of a through-truss offers immense torsional (twisting) resistance, which is critical for the heavy, vibrating loads of high-speed freight and passenger trains.
●Low Profile: By placing the tracks at the bottom of the truss, engineers can keep the railway line as flat as possible, which is essential for heavy trains that struggle with steep inclines. Our experience in fabricating over 10,000 tons of steel annually ensures that these complex railway joints are built to withstand decades of high-cycle fatigue.
The configuration significantly affects the "Micro-environment" of the steel:
●Deck Bridges are naturally more durable because the bridge deck acts as a roof, protecting the main structural members from direct rain, snow, and UV degradation. This often allows for longer intervals between repainting.
●Through and Half-Through Bridges have their primary structural members fully exposed to the elements and potential vehicle impacts. To combat this, EVERCROSS BRIDGE utilizes premium multi-layer coating systems (such as inorganic zinc-rich primers and fluorocarbon topcoats) and high-toughness steel grades that can withstand both environmental "weathering" and accidental physical stress.
Deck Bridges are far superior when it comes to future-proofing for expansion. Because there are no structural members rising above the roadway, you can often "cantilever" or widen the deck outward with relatively simple structural modifications. Through Bridges are essentially "locked" in their width. Because the main trusses or arches are on either side of the traffic, you cannot widen the road without completely rebuilding the bridge or constructing a second, parallel structure. If you anticipate significant population growth in your project area, a Deck Bridge or a specifically designed wide-span Half-Through Bridge is a much safer long-term investment.
