When access roads are narrow, weather is unpredictable, and communities or industrial operations cannot wait for a conventional build, the choice between a Portable Bailey Bridge and a heavy-duty steel bridge becomes a strategic infrastructure decision. Both are prefabricated steel bridge solutions, but they solve different problems: one prioritizes mobility and rapid deployment, while the other prioritizes higher capacity, longer design life, and project-specific performance.
For government agencies, EPC contractors, mining operators, disaster-response teams, and rural-road authorities, the right choice depends on more than span length. It requires an engineering-led review of live load, traffic frequency, transport constraints, foundation conditions, installation equipment, lifecycle expectations, and local design-code requirements.
> Expert perspective: In remote bridge erection, the fastest bridge is not automatically the best bridge. The best solution is the system that can be transported safely, installed realistically, and operated reliably under the project's actual loads.

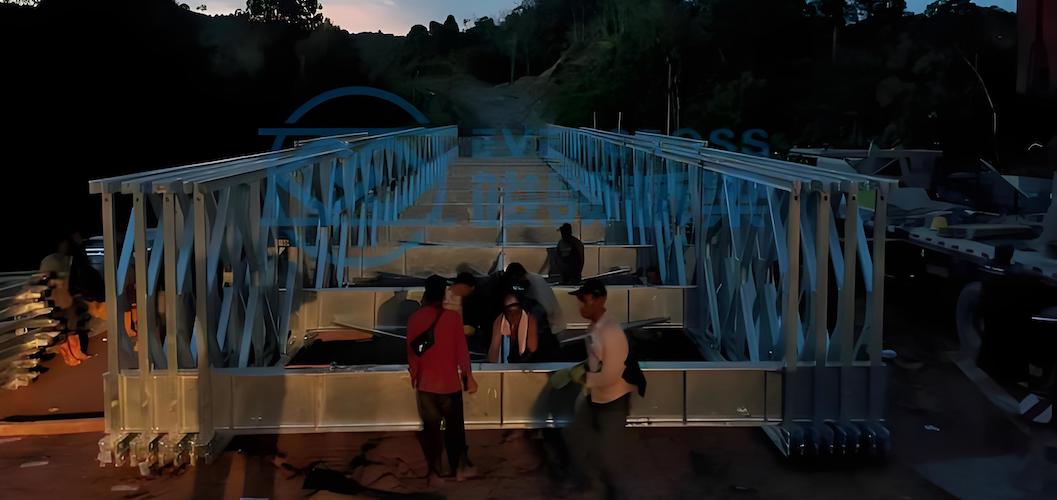

A Portable Bailey Bridge is a panelized, prefabricated steel truss bridge system. It uses standardized panels, transoms, bracing frames, deck elements, pins, and bolts that can be transported in manageable loads and assembled on site.
The system originated as a rapidly deployable military bridge concept, but it has evolved into a practical solution for civil emergency access, rural connectivity, construction detours, mining roads, disaster relief, and temporary or semi-permanent crossings. The defining advantage is modularity: components can be configured into different truss arrangements to match required spans and loading conditions.
For remote bridge erection, a Portable Bailey Bridge is particularly useful where large cranes, concrete batching facilities, or highly specialized site crews are unavailable. Federal Highway Administration research notes that prefabricated steel bridges have historically supported rapid mobilization in remote locations and replacement of damaged crossings during emergencies.
- Standardized steel truss panels and repeatable connection details
- Transportable components suitable for constrained roads and remote regions
- Flexible configurations for single-lane, double-lane, pedestrian, and temporary detour use
- Launching or incremental assembly methods that can reduce the need for falsework in the waterway
- Potential for disassembly, relocation, and reuse when the project is temporary
- Suitability for emergency bridge replacement and rapid restoration of critical access
Modern heavy-panel Bailey-type systems can also be engineered for substantial traffic demands. However, their real capacity must never be assumed from a catalog label alone; it must be verified against span, truss configuration, deck system, axle loads, fatigue demand, wind, seismic exposure, and governing code.

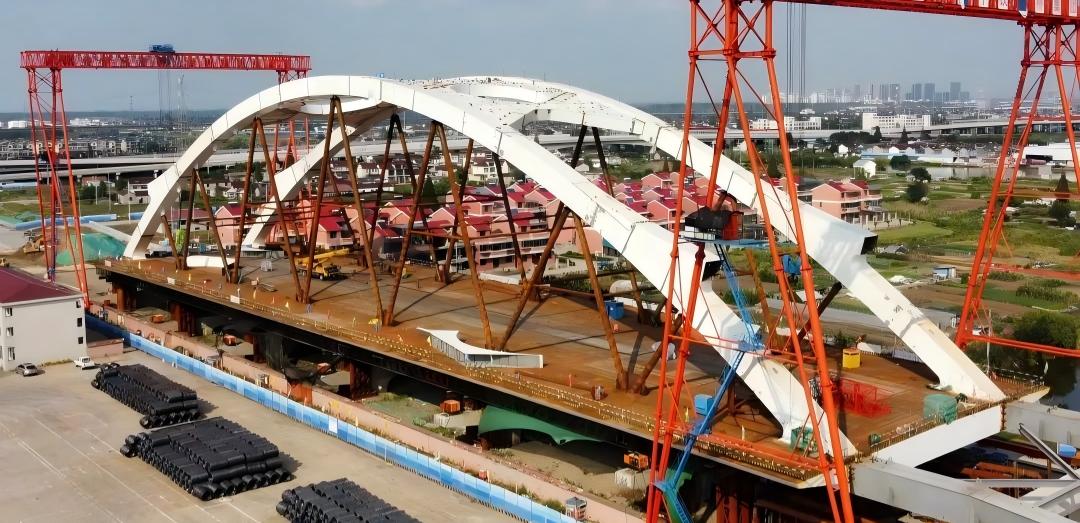

A heavy-duty steel bridge is a broader category of engineered steel bridge structures designed for high loads, frequent traffic, longer spans, wider decks, or long-term permanent service. It may use plate girders, box girders, trusses, modular girders, composite decks, or customized steel superstructures.
Unlike a Portable Bailey Bridge, which is based primarily on repeatable modular panels, a heavy-duty steel bridge is usually tailored to the project. This enables engineers to optimize the superstructure for heavy mining vehicles, overloaded logistics traffic, multi-lane highway traffic, railway corridors, wide industrial access roads, or demanding environmental conditions.
A heavy-duty steel bridge can also be prefabricated. In fact, off-site fabrication is a major advantage of steel bridge construction because it supports controlled manufacturing, reduces field labor, and limits the time workers spend in hazardous construction zones.
- Permanent highway bridges and major rural-road upgrades
- Mining, quarry, forestry, and energy-project haul roads
- Ports, logistics hubs, and industrial access routes
- High-load crossings for wind-turbine, transformer, or heavy-equipment transport
- Long-span crossings where modular panel bridges become inefficient
- Bridges requiring custom width, sidewalks, utilities, barriers, or drainage systems
The following comparison helps project owners identify which remote bridge solution better fits their operating requirements.
Decision factor |
Portable Bailey Bridge |
Heavy-Duty Steel Bridge |
Primary purpose |
Rapid, adaptable, modular crossing |
High-capacity, long-life, project-specific crossing |
Typical deployment |
Emergency, temporary access, rural roads, detours |
Permanent roads, industrial routes, high-volume transport |
Transport logistics |
Components can be shipped in smaller, repeatable loads |
Larger fabricated sections may require heavy-haul planning |
On-site equipment |
Can often use lighter lifting equipment or launching methods |
Usually requires cranes, engineered lifting plans, and larger crews |
Design flexibility |
Flexible through panel and truss configurations |
Highly flexible through customized structural engineering |
Load capacity |
Can be substantial, but span and configuration strongly affect capacity |
Better suited to sustained heavy axle loads and high traffic demand |
Span efficiency |
Best for short-to-medium modular spans |
More efficient for longer spans and complex geometry |
Reusability |
High potential for dismantling and redeployment |
Usually designed as a permanent, site-specific asset |
Construction speed |
Very fast where standardized components fit the need |
Fast compared with cast-in-place construction, but often slower than panelized systems |
Initial engineering |
Relatively streamlined for standard configurations |
More extensive, especially for foundations, fatigue, and custom loads |
Lifecycle role |
Temporary, emergency, permanent low-to-moderate demand, depending on design |
Permanent, high-demand, asset-management-focused infrastructure |
The comparison should not be interpreted as "light bridge versus strong bridge." A correctly configured heavy-panel Bailey bridge can support demanding loads, while a poorly specified custom steel bridge can still fail to meet operational needs. The engineering question is whether the selected system has adequate strength, stiffness, fatigue resistance, deck performance, foundations, and safety margin for the defined design scenario.
Load is usually the first decisive factor. A Portable Bailey Bridge can provide strong performance for emergency vehicles, local road traffic, construction equipment, and selected industrial loads. Yet as span length increases, the structural demand rises and the usable load capacity can decrease unless the truss arrangement is strengthened.
A heavy-duty steel bridge is generally the better choice when the crossing must carry repetitive heavy trucks, high gross vehicle weights, concentrated axle loads, oversized industrial cargo, or large daily traffic volumes. Customized girder or truss systems can be designed around a precise vehicle-loading model instead of relying primarily on standardized panel configurations.
A common procurement mistake is to request a "60-ton bridge" without defining the vehicle geometry. Two vehicles with the same gross weight can create very different structural effects because of axle spacing, axle weights, wheel paths, braking, lane position, and frequency of crossings.
Before selecting either system, develop a design traffic schedule that includes:
1. Maximum gross vehicle weight and axle-load distribution
2. Vehicle dimensions, wheelbase, and number of axles
3. Expected crossings per day and direction of travel
4. Future traffic growth and unusual permit-load requirements
5. Pedestrian, motorcycle, livestock, or local-vehicle needs
6. Applicable national standard, such as AASHTO LRFD or the client's local bridge code
AASHTO's LRFD Bridge Design Specifications are used for the design, evaluation, and rehabilitation of highway bridges in the United States, illustrating why project requirements must be tied to an explicit engineering standard rather than a generic capacity claim.
For remote bridge erection, logistics can outweigh the superstructure price. If the site has weak access roads, limited turning radius, no crane access, seasonal flooding, or a shortage of skilled labor, the Portable Bailey Bridge often has a major advantage.
Its components can be delivered in smaller packages and assembled progressively. Depending on site conditions and bridge configuration, teams may use launching noses, rollers, winches, or localized lifting equipment. This reduces the need to place heavy temporary works in the river or ravine.
A heavy-duty steel bridge typically requires more detailed delivery sequencing. Large girders, deck units, diaphragms, and bearings may demand escort vehicles, crane pads, engineered lifting studies, and wider site access. These requirements are manageable, but they must be budgeted at the feasibility stage.
- Confirm route surveys from port or warehouse to bridge site
- Check maximum truck payload, bridge clearances, turning radii, and road gradients
- Review rainy-season, flood-season, and wind restrictions
- Verify lifting equipment availability and operator certification
- Test soil bearing capacity for abutments, crane pads, and launching areas
- Establish a safe temporary traffic and pedestrian-control plan
- Plan spare parts, installation tools, coatings, and future inspection access
The FHWA identifies prefabricated bridge elements and systems as a means to reduce on-site construction time and the mobility impacts associated with conventional construction. Its accelerated bridge construction program notes that some bridge replacements have been completed in 48 to 72 hours, though such timelines are project-specific and should not be treated as a universal promise.
A Portable Bailey Bridge may offer the lower initial cost when a project needs fast access, a modest-to-medium span, standardized loading, and the ability to reuse the structure later. It can also reduce indirect costs caused by long detours, delayed emergency response, interrupted trade, or construction downtime.
However, a heavy-duty steel bridge may produce stronger lifecycle value when the road is expected to carry heavy trucks every day for decades. It can be designed with wider lanes, improved fatigue performance, durable deck surfacing, robust barriers, drainage, corrosion protection, and maintenance access.
The correct cost comparison should include:
- Engineering and approvals
- Fabrication and quality inspection
- Inland transport and customs logistics
- Foundations, abutments, and approach-road works
- Installation equipment and crew requirements
- Protective coating and corrosion environment
- Inspection, deck maintenance, and component replacement
- Downtime costs if the route fails or becomes restricted
- Salvage, relocation, or reuse value for temporary bridges
Choose a Portable Bailey Bridge when speed, transportability, modularity, and reuse are the project's primary priorities. It is an especially strong option for post-disaster access, temporary detours, rural crossings, remote construction camps, and locations where heavy lifting equipment cannot be mobilized efficiently.
Choose a heavy-duty steel bridge when the project requires sustained heavy traffic, longer spans, a customized deck width, major industrial loads, or a permanent asset with long-term performance objectives. The system should be designed as part of the complete crossing, including geotechnical conditions, hydraulics, abutments, approaches, drainage, bearings, barriers, and maintenance requirements.
For many government and industrial projects, the best answer is not an either-or decision. A Portable Bailey Bridge can restore access immediately, while a permanent heavy-duty steel bridge is designed, fabricated, and installed as the long-term replacement.
This phased strategy is highly relevant after floods, landslides, washouts, and infrastructure failures. FHWA documentation recognizes prefabricated steel bridges as useful temporary structures during repair, rehabilitation, construction, or replacement, including situations where damaged bridges require rapid restoration of access.
Evercross Bridge provides end-to-end prefabricated steel bridge support, from engineering design and manufacturing through transportation coordination and installation guidance. With more than 30 years of industry experience, annual production capacity of 100,000 tons, and delivery experience across Southeast Asia, Africa, Latin America, and other global markets, our team helps buyers evaluate bridge type, loading, site logistics, and long-term operating requirements before production begins.
Need a bridge solution for a remote, emergency, or heavy-load project? Send Evercross Bridge your span, deck width, vehicle loads, site photographs, geotechnical information, destination country, and target completion date. Our engineering team can recommend a Portable Bailey Bridge, heavy-duty steel bridge, or phased solution aligned with your project requirements.
Yes, a Portable Bailey Bridge can serve as a permanent crossing when it is properly engineered for the design loads, environment, foundations, corrosion protection, deck system, and maintenance plan. Its suitability depends on local regulations and the project's long-term traffic demand.
Maximum span depends on the bridge model, panel arrangement, deck width, design load, wind conditions, and applicable standard. Some modern heavy-panel modular bridge systems are marketed for spans around 60 meters, but the final span-capacity combination must be confirmed by qualified bridge engineers.
A Portable Bailey Bridge is often faster when access is constrained because its components are modular and can be assembled or launched in stages. A heavy-duty steel bridge can also be installed quickly through prefabrication, but it more often requires larger transport vehicles and cranes.
Yes. Heavy-duty steel bridges are commonly fabricated off site and delivered as girders, trusses, deck modules, or other structural assemblies. Off-site fabrication can improve quality control and reduce field labor requirements.
Provide the required span, deck width, design vehicle loads, traffic volume, site photographs, coordinates, soil information, waterway data, desired design standard, destination port or project location, and expected delivery date. This allows the manufacturer to recommend the right structural system and provide a more accurate proposal.
Yes. Its modularity and rapid-assembly potential make it well suited to restoring temporary access after floods, washouts, and bridge failures. Site safety, hydraulic clearance, abutment stability, and scour risk must still be assessed before installation.
1. Federal Highway Administration. "[Prefabricated Steel Bridge Systems: Final Report]." Discusses the role of prefabricated steel bridges in remote access, emergency response, and temporary bridge applications.
2. Federal Highway Administration. "[Accelerated Bridge Construction (ABC)]." Explains prefabricated bridge elements and systems, construction-speed benefits, and reduced mobility impacts.
3. Short Span Steel Bridge Alliance. "[Accelerated Construction]." Covers off-site steel fabrication, reduced field labor, construction safety, and lower disruption.
4. American Association of State Highway and Transportation Officials. "[AASHTO Issues 10th LRFD Bridge Design Specifications Edition]." Describes the role of AASHTO LRFD specifications in bridge design, evaluation, and rehabilitation.
5. New York State Department of Transportation. "[Accelerating Bridge Construction with Prefabricated Bridge Elements and Systems]." Addresses the benefits of off-site fabrication, standardized components, safety, and reduced field construction time.
6. iBeehive Steel Structure. "[Bailey Bridge Specifications]." Provides example specifications for modern 321 and 200-type modular Bailey bridge configurations; specifications vary by supplier and project.
