Designing a steel truss bridge is not simply a matter of selecting a familiar triangular pattern. It is an engineering and delivery decision that must connect loading requirements, span geometry, site conditions, fabrication capability, transport constraints, installation methods, and long-term maintenance.
At Evercross Bridge, we have spent more than 30 years working with steel truss bridges, Bailey bridges, modular bridges, and emergency bridge systems. From our experience supporting infrastructure projects across Southeast Asia, Africa, and Latin America, the best bridge solution is usually the one that balances structural reliability, constructability, logistics, lifecycle value, and project urgency—not merely the lowest initial steel weight.
This guide explains how to design a truss bridge from concept through installation planning. It is intended for project owners, contractors, procurement teams, consultants, and public-sector decision-makers evaluating a prefabricated steel bridge solution. Final structural design, review, and approval must always be completed by qualified engineers under the governing codes and site-specific requirements.
A steel truss bridge is a bridge system that uses interconnected straight members arranged in triangular units. These triangles create a rigid structural framework that transfers loads efficiently through tension and compression in the bridge members.
Unlike a simple beam bridge, which primarily relies on bending resistance, a truss bridge distributes forces across multiple structural elements. This makes a properly engineered steel truss bridge an effective option for applications requiring longer clear spans, high load capacity, rapid construction, or limited intermediate supports.
The main principle is straightforward: a triangle is geometrically stable. When a vehicle, pedestrian, or other load acts on the bridge deck, the deck system transfers that load to floor beams and stringers. The truss then channels those forces through chords, diagonals, verticals, bearings, abutments, and ultimately into the ground.
Component | Primary Function | Design Consideration |
Top chord | Resists major compression forces in many truss configurations | Buckling resistance and lateral bracing are critical |
Bottom chord | Often resists major tension forces | Connection details and fatigue performance matter |
Diagonal members | Transfer shear and distribute load across panels | May operate in tension or compression depending on the truss type |
Vertical members | Support panel geometry and transfer loads | Common in Pratt, Howe, and K trusses |
End posts | Connect the chords at each bridge end | Must efficiently transfer reactions toward the bearings |
Floor beams | Carry deck loads across the bridge width | Vehicle wheel loads and spacing affect sizing |
Stringers | Support the deck between floor beams | Must suit the deck type and traffic loading |
Deck system | Provides the driving or walking surface | May use steel deck panels, timber, concrete, or anti-skid surfacing |
Bearings and abutments | Transfer loads from the superstructure to the substructure | Soil condition, scour, settlement, and movement must be considered |
These are the basic components of a bridge; however, a project-ready design process also needs to consider manufacturing, modular assembly, transportation, installation sequence, corrosion protection, and inspection access.
Steel truss bridges are not only historical structures. They remain highly relevant where a project requires a durable, adaptable, and transportable bridge system.
For remote infrastructure projects, a modular steel truss bridge can reduce dependence on heavy site casting operations. For emergency access restoration, standardized panels and bolted components can enable faster mobilization than a conventional cast-in-place bridge approach. For mining, industrial, rural-road, and disaster-recovery projects, the ability to transport components in manageable sections can be as important as the bridge's theoretical structural capacity.
The U.S. Federal Highway Administration notes that prefabricated steel bridge systems can be used for temporary, permanent, and emergency applications. Its review of prefabricated steel bridge systems describes systems capable of spans up to 450 feet and widths accommodating up to three traffic lanes, depending on the specific system, design configuration, loading, and project conditions.
- Rapid installation: Off-site fabrication allows bridge components to be prepared while foundations and site works proceed in parallel.
- Flexible span options: Truss systems can provide long clear spans without requiring a pier in a river, floodway, valley, or environmentally sensitive area.
- Modular transport: Bolted panels, chords, transoms, decking, and bracing can be shipped in containers or trucks and assembled near the project site.
- High load adaptability: Designs can be engineered for pedestrian use, light vehicles, heavy trucks, construction equipment, mining haulage, or other specified loads.
- Reduced site disruption: Prefabricated bridge elements may reduce lane closures, on-site forming, and exposure time for workers in active construction zones.
- Potential reusability: Bailey bridge and modular emergency bridge systems may be dismantled, relocated, stored, and redeployed when designed and maintained for that purpose.
The most common early-stage mistake is asking, "What truss type should we use?" before defining what the bridge must actually do.
A sound steel truss bridge design begins with a complete project brief. This document should turn operational needs into measurable engineering inputs.
1. Required span length
Measure the clear distance between supports, then assess whether additional clearance is needed for flood flow, vessel passage, debris movement, road alignment, or future widening.
2. Bridge width and traffic arrangement
Confirm whether the bridge is for one lane, two lanes, pedestrians, motorcycles, trucks, construction equipment, mining vehicles, or mixed traffic.
3. Design vehicle and loading standard
Define the governing vehicle type, axle loads, wheel spacing, braking forces, impact effects, pedestrian loading, and any special industrial equipment loads.
4. Site environment
Identify flood levels, scour risk, river velocity, seismic exposure, wind, snow, high temperatures, salt spray, humidity, and corrosive industrial conditions.
5. Service-life expectations
A short-term emergency crossing, a five-year temporary detour bridge, and a permanent public highway bridge require very different design, inspection, coating, and maintenance strategies.
6. Construction access and lifting capacity
Check road access, crane availability, launch space, working platforms, river restrictions, local labor skill levels, and equipment availability before finalizing module dimensions.
7. Applicable local regulations
The design must comply with the client's governing code, authority requirements, and permit conditions. AASHTO's LRFD Bridge Design Specifications are widely used in the United States for bridge design, evaluation, and rehabilitation, while other regions may require national or project-specific standards.
For export bridge projects, the physical bridge is only one part of the solution. A structurally efficient 40-meter truss may still create project risk if a remote site can only accept small trucks, has no large crane, or requires containerized shipment.
This is why Evercross Bridge evaluates the full delivery chain early:
- Maximum shipping-unit length, width, and weight
- Container loading and export packing strategy
- Inland transport limitations
- On-site assembly area
- Crane, winch, or launching-nose availability
- Bolted versus welded field connections
- Need for installation supervision or local contractor training
A bridge that is designed for manufacture, transport, and erection from the beginning is more likely to remain on schedule and within budget.
Different truss types distribute forces differently. The best configuration depends on span, loading, deck position, structural depth, fabrication complexity, aesthetics, clearance requirements, and project economics.
A Pratt truss typically uses vertical members in compression and diagonal members that are primarily in tension under common gravity loading. Because steel performs well in tension, the Pratt configuration has been widely used in steel bridge design.
A Pratt truss can be a practical choice for many roadway and modular bridge applications, especially where repeated panel geometry supports standardized fabrication.
A Howe truss generally has diagonals that work primarily in compression and vertical members that work in tension. It has historical importance in timber bridge construction, although it can also be adapted for steel applications.

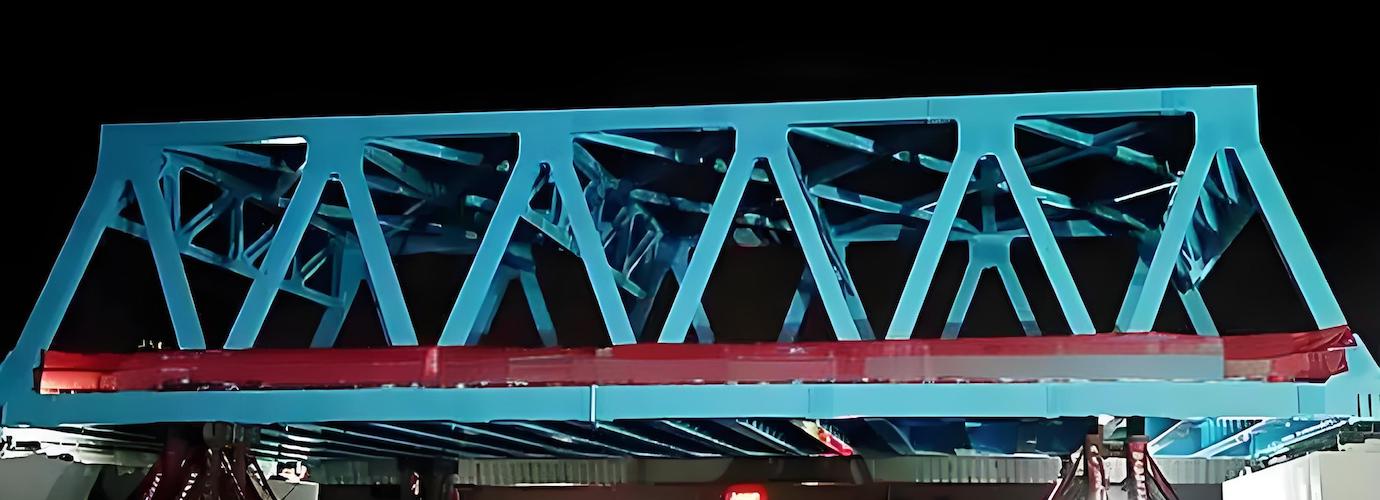

A Warren truss uses a repeating series of triangles, often without vertical members. It can distribute loads efficiently and offers a visually clean, symmetrical appearance.
For bridges with relatively uniform loading and a preference for simplified panel geometry, the Warren truss can be attractive. However, the final choice must be based on structural analysis, not visual preference alone.
A K truss divides longer vertical members into shorter segments with diagonal members shaped like the letter "K." This can improve the control of compression-member buckling for some span and loading conditions.
Its geometry may increase connection complexity, so the savings in member weight should be weighed against fabrication and inspection requirements.
Truss Type | Typical Structural Character | Potential Benefit | Main Consideration |
Pratt | Diagonals commonly carry tension under gravity loads | Efficient use of steel tension members | Requires detailed connection design |
Howe | Diagonals commonly carry compression | Familiar geometry and strong visual identity | Compression members need buckling checks |
Warren | Repeating triangles, often minimal verticals | Clean geometry and efficient load distribution | Force patterns can vary with moving loads |
K Truss | Subdivided vertical panels | Can reduce unsupported compression length | More members and connections |
Bridge engineering begins with loads, combinations, and load paths. A bridge must safely resist expected actions throughout construction, operation, extreme weather, and—in some cases—emergency events.
For a practical steel truss bridge project, the design team should evaluate at least the following.
Dead load includes the self-weight of permanent structural and nonstructural components:
- Truss steelwork
- Floor beams and stringers
- Decking and wearing surface
- Guardrails, curbs, sidewalks, and utility supports
- Lighting, pipes, cables, or future permanent attachments
Live load is created by traffic using the bridge:
- Trucks and axle groups
- Construction vehicles
- Mining equipment
- Pedestrians and cyclists
- Emergency vehicles
- Maintenance equipment
The client should clearly state the required vehicle type, gross weight, axle configuration, and anticipated traffic frequency. "Heavy-duty bridge" is not a sufficient engineering input.
Environmental effects can control bridge design in challenging locations:
- Wind pressure and wind-induced vibration
- Seismic loading
- Snow and ice accumulation
- Thermal expansion and contraction
- Flood forces, buoyancy, debris impact, and scour
- Corrosion from marine, tropical, industrial, or chemically aggressive environments
This area is often overlooked. A bridge can be safe in its completed condition but vulnerable during erection, launching, lifting, or temporary support.
For a launched Bailey bridge or modular steel bridge, the engineer must check:
- Cantilever forces during launching
- Temporary rollers and support reactions
- Launching-nose design
- Winch capacity and anchorage
- Temporary lateral stability
- Assembly-stage member forces
- Personnel safety and exclusion zones
A steel truss bridge's performance is often determined by its details. The major members may appear adequate in a calculation, but poor connection design, weak drainage, inaccessible inspection points, or unsuitable coatings can shorten the bridge's service life.
Connections must transfer force safely between truss members, floor systems, bracing, and bearings. Depending on the bridge system, they may use:
- High-strength bolted connections
- Pin connections
- Welded shop connections
- Modular panel connections
- Reinforced chords and transoms
- Site-installed bracing assemblies
For export and emergency bridge projects, bolted site connections are often preferred because they reduce field welding requirements and support faster assembly. However, bolt quality, tightening procedures, alignment, inspection, and spare-part availability must be planned in advance.
The deck must match the intended use of the bridge.
Deck Option | Suitable Applications | Key Consideration |
Steel deck panels | Temporary, emergency, modular, and rapid-installation bridges | Requires anti-skid treatment and drainage planning |
Timber deck | Low-volume rural crossings and certain temporary uses | Requires moisture and decay management |
Concrete deck | Permanent highway applications | Adds dead load and may extend construction time |
Composite deck system | Permanent or high-performance infrastructure | Requires careful interface and fatigue design |
A bridge installed in a dry inland climate faces a different corrosion environment from one in a coastal port, tropical rainforest, floodplain, or mining corridor.
For long-term performance, specify the corrosion-protection system based on site exposure and expected maintenance capability. Options may include hot-dip galvanizing, multi-coat paint systems, metallizing, and protected bolted connections.
Do not treat coating as a cosmetic purchase decision. It is a service-life and maintenance-access decision.
A complete bridge solution should integrate engineering with manufacturing and field execution.
At Evercross Bridge, this means coordinating bridge design, steel fabrication, trial assembly where required, export packaging, shipping, erection guidance, and after-sales support as one project workflow. This approach is especially important for overseas clients who need a predictable interface between the manufacturer, local civil contractor, consultant, and owner.
1. Collect project data
Confirm site drawings, span, width, road class, vehicle loads, hydrology, geotechnical information, and governing standards.
2. Develop the preliminary bridge solution
Select truss arrangement, deck system, bridge width, loading class, steel grade, connection type, and foundation interface.
3. Complete structural calculations and drawings
Perform structural analysis for service, strength, fatigue, wind, seismic, erection, and other relevant design conditions.

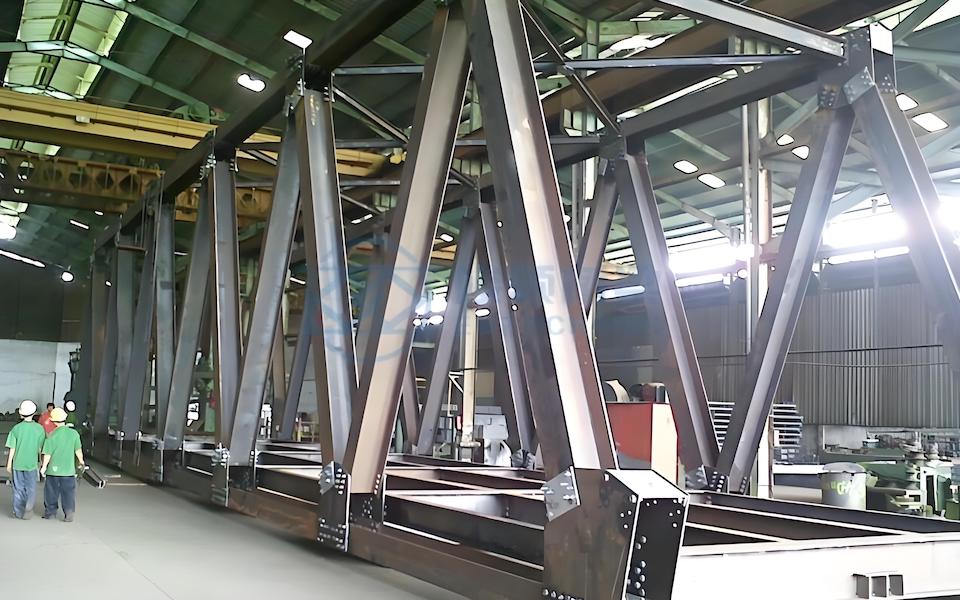

4. Fabricate under controlled factory conditions
Cut, drill, weld, inspect, coat, mark, and package components according to approved drawings and quality procedures.
5. Conduct trial fit-up when required
Check key module interfaces, hole alignment, panel fit, bolted connections, and assembly sequence before shipment.
6. Prepare logistics and site installation
Deliver installation drawings, packing lists, assembly instructions, tools, bolt schedules, lifting plans, and safety guidance.
7. Install, inspect, and hand over
Verify alignment, bolt tightening, deck installation, bearings, drainage, safety barriers, and final load readiness.
The FHWA notes that prefabricated bridge elements can shorten field assembly time and potentially reduce lane closures, temporary works, and on-site forming. However, it also emphasizes that accelerated construction should be evaluated against project-specific design, site, cost, schedule, and contractor-capability conditions.
Even experienced project teams can create avoidable cost and schedule problems if they focus only on span and price.
- Selecting a bridge before confirming the real design vehicle and axle loads
- Ignoring flood level, scour, debris impact, and abutment conditions
- Assuming a standard Bailey bridge configuration will fit every application
- Designing only for the completed bridge, not for lifting or launching stages
- Specifying steelwork without a corrosion-protection and drainage strategy
- Overlooking container dimensions, local road limits, crane access, or assembly space
- Treating installation manuals and spare parts as optional extras
- Comparing quotations without checking steel grade, deck type, loading standard, coating system, accessories, engineering scope, and delivery support
A lower quoted price can become much more expensive if it excludes engineering documents, connection hardware, erection equipment, packaging, inspection records, installation guidance, or replacement components.
The right steel truss bridge supplier should do more than manufacture steel members. The supplier should understand design coordination, international project documentation, quality control, shipping realities, site installation, and long-term operational needs.
Evercross Bridge provides prefabricated steel bridge solutions for permanent, temporary, emergency, and modular applications. With more than 30 years of industry experience, annual production capacity of 100,000 tons, business coverage in over 50 countries, and more than 200 large government infrastructure projects delivered in Southeast Asia, Africa, and Latin America, we support clients from concept selection through fabrication, delivery, and installation.
If you are planning a steel truss bridge, Bailey bridge, emergency bridge, or modular heavy-load bridge, send us your project requirements—including span, width, load class, drawings, site photos, and destination country. Our engineering and project team can help you evaluate a practical bridge solution built around your site conditions, delivery schedule, and budget.
Contact Evercross Bridge today to request a preliminary steel bridge proposal, technical consultation, or project quotation.
There is no universal "best" truss type. Pratt, Howe, Warren, and K trusses each have different force paths, fabrication implications, and visual characteristics. The right choice depends on span, bridge width, design load, deck position, clearance, local code, fabrication approach, transport limits, and erection method.
Span capability depends on the bridge system, loading, width, structural depth, support conditions, and code requirements. The FHWA reports that certain prefabricated steel bridge systems, including Bailey-type systems, can reach spans up to 450 feet in specific configurations. This should not be treated as a universal design limit; every project requires project-specific engineering.
Yes, a Bailey bridge or modern modular steel bridge can be engineered for permanent use when it is designed for the required loads, environmental exposure, foundation conditions, corrosion protection, inspection regime, and governing regulations. Bailey-type systems are also widely used for temporary diversions and emergency access because of their modularity and rapid deployment potential.
Provide the clear span, required roadway width, vehicle loading or axle configuration, bridge location, site drawings, approach-road information, flood data, foundation conditions, desired deck type, corrosion environment, local design standard, preferred delivery time, and whether installation support is required.
Installation duration varies substantially by span, weight, access, foundation readiness, weather, equipment availability, crew skill, and erection method. Prefabrication can reduce field construction time because components are manufactured off-site and assembled more quickly than many conventional site-built alternatives.
Maintenance typically includes routine visual inspections, bolt and connection checks, drainage cleaning, deck and bearing inspection, corrosion assessment, coating repair, and review after flood, collision, seismic, or overload events. The required frequency should follow the governing authority's inspection requirements and the bridge's environment and usage.
