Bailey bridges are a type of modular bridge that can be quickly assembled and disassembled, making them ideal for temporary or emergency situations. Originally designed during World War II, these bridges have become a staple in civil engineering due to their versatility and strength. This article explores the various types of loads that Bailey bridges can support, the engineering principles behind their design, and their applications in different scenarios.
The Bailey bridge was developed by the British during World War II to provide quick and efficient means of crossing obstacles such as rivers and ravines. Named after Sir Donald Bailey, the bridge's design allows for rapid deployment and ease of transport. Its modular nature means that sections can be easily connected to create bridges of varying lengths and load capacities. The design was revolutionary at the time, as it allowed military engineers to construct bridges in a matter of hours, significantly enhancing logistical capabilities in combat zones. Over the decades, the Bailey bridge has evolved, but its core principles remain the same, making it a reliable choice for both military and civilian applications.

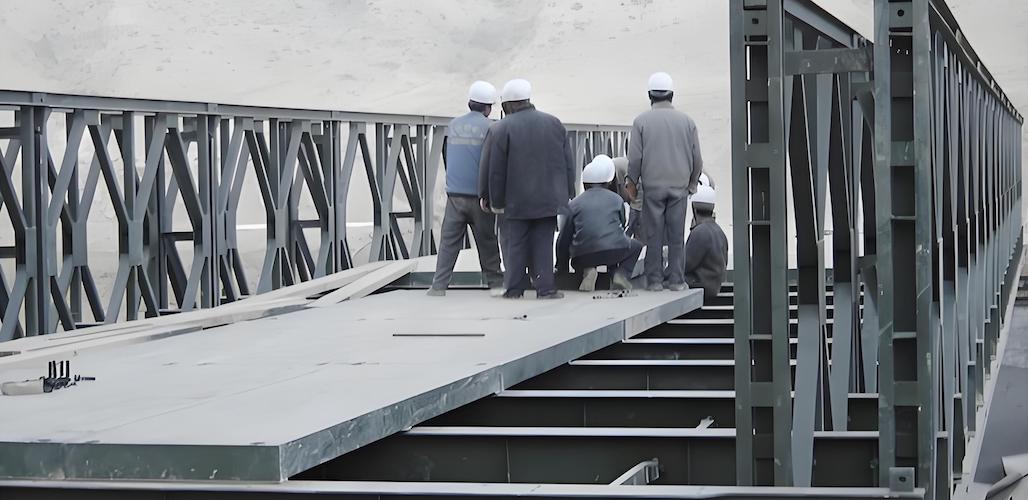

Bailey bridges are constructed from steel panels that are bolted together, forming a lattice structure. This design provides significant strength while minimizing weight. The panels are typically made from high-strength steel, which contributes to the bridge's ability to support heavy loads. The modular design allows for flexibility in construction, enabling engineers to adapt the bridge to specific site conditions and load requirements. The lattice structure not only enhances the bridge's strength but also allows for efficient use of materials, making it a cost-effective solution for many projects. Additionally, the ease of assembly and disassembly means that Bailey bridges can be relocated as needed, further increasing their utility in various situations.
Dead loads refer to the static weight of the bridge itself, including all structural components such as beams, panels, and supports. The design of a Bailey bridge takes into account these loads to ensure stability and safety. The materials used in construction are selected for their strength and durability, allowing the bridge to support its own weight while remaining functional. Engineers must carefully calculate the dead load to ensure that the bridge can withstand not only its own weight but also any additional loads that may be applied over time. This consideration is crucial in preventing structural failure and ensuring the longevity of the bridge.
Live loads are dynamic forces that act on the bridge during its use. These include the weight of vehicles, pedestrians, and any additional loads that may be present, such as construction equipment or emergency vehicles. Bailey bridges are designed to accommodate a range of live loads, making them suitable for various applications. The ability to support different types of live loads is a key feature of Bailey bridges, allowing them to be used in diverse environments, from busy urban areas to remote locations.
One of the primary considerations in the design of Bailey bridges is the type and weight of vehicles that will use them. Standard Bailey bridges can support military vehicles, trucks, and even larger construction equipment. The load capacity can vary based on the specific configuration of the bridge and the materials used in its construction. For instance, a Bailey bridge designed for heavy military transport may have additional reinforcements to accommodate the weight and dynamic forces exerted by large vehicles. This adaptability makes Bailey bridges a preferred choice for military operations and construction projects where heavy loads are common.
In addition to vehicle loads, Bailey bridges can also support pedestrian traffic. This is particularly important in scenarios where the bridge is used for temporary access to areas affected by natural disasters or construction projects. The design ensures that the bridge can safely accommodate foot traffic without compromising structural integrity. Engineers often consider the maximum expected pedestrian load when designing the bridge, ensuring that it can handle not only regular foot traffic but also crowded situations, such as during events or emergencies. This versatility enhances the bridge's functionality in various contexts.
Environmental loads include forces exerted by natural elements such as wind, snow, and seismic activity. Bailey bridges are engineered to withstand these forces, ensuring safety and stability in various weather conditions. The design takes into account factors such as wind speed and snow accumulation, allowing for safe use in diverse environments. Understanding these environmental factors is crucial for engineers, as they can significantly impact the performance and safety of the bridge over time.
Wind can exert significant pressure on a bridge, especially in open areas. Bailey bridges are designed with aerodynamic considerations to minimize wind resistance. The lattice structure helps to distribute wind loads evenly across the bridge, reducing the risk of structural failure. Engineers often conduct wind tunnel tests to assess how different designs perform under various wind conditions, ensuring that the bridge can withstand extreme weather events. This attention to detail is essential for maintaining the safety and reliability of the bridge in windy conditions.
In regions where snow and ice are common, Bailey bridges must be able to support the additional weight of accumulated snow. Engineers calculate the potential snow load based on historical weather data to ensure that the bridge can safely handle these conditions. The design may include features to facilitate snow removal and prevent ice buildup. Additionally, the materials used in construction are selected for their ability to resist corrosion from ice and salt, which can extend the lifespan of the bridge in harsh winter conditions.
Impact loads occur when a moving object strikes the bridge, such as a vehicle hitting a support beam. Bailey bridges are designed to absorb and distribute these forces to prevent damage. The materials and construction techniques used in Bailey bridges enhance their ability to withstand impact loads, making them suitable for high-traffic areas. Engineers often analyze potential impact scenarios during the design phase, ensuring that the bridge can handle unexpected forces without compromising safety. This proactive approach is vital for maintaining the structural integrity of the bridge over time.
The load capacity of a Bailey bridge is determined by various engineering standards and guidelines. These standards take into account factors such as material strength, design specifications, and safety margins. Engineers must adhere to these guidelines to ensure that the bridge can safely support the intended loads. Compliance with established standards not only ensures safety but also provides a framework for evaluating the performance of the bridge under different conditions. This rigorous approach is essential for maintaining public trust in infrastructure.
Before a Bailey bridge is put into service, it undergoes rigorous load testing to verify its capacity. This testing involves applying known weights to the bridge and monitoring its performance. Any signs of deformation or structural weakness are addressed before the bridge is opened to traffic. Load testing is a critical step in the engineering process, as it provides empirical data on the bridge's performance and helps identify any potential issues that may arise during its use. This thorough evaluation process is essential for ensuring the safety and reliability of the bridge.
Regular maintenance and inspection are crucial for ensuring the ongoing safety and performance of Bailey bridges. Engineers conduct routine checks to assess the condition of the bridge and identify any potential issues. This proactive approach helps to extend the lifespan of the bridge and maintain its load-carrying capacity. Maintenance activities may include visual inspections, structural assessments, and repairs as needed. By prioritizing regular maintenance, engineers can address minor issues before they escalate into major problems, ensuring the bridge remains safe for all users.
Bailey bridges were originally designed for military applications, providing rapid deployment capabilities in combat zones. They are used to create temporary crossings for troops and equipment, allowing for quick movement in challenging terrain. Their ability to support heavy military vehicles makes them invaluable in wartime logistics. The speed at which these bridges can be assembled and disassembled allows military operations to adapt quickly to changing conditions, enhancing overall operational efficiency. This flexibility is a key reason why Bailey bridges continue to be a preferred choice for military engineers around the world.
In the aftermath of natural disasters, Bailey bridges play a critical role in providing access to affected areas. They can be quickly assembled to restore transportation routes, allowing emergency services to deliver aid and supplies. Their modular design enables rapid deployment, making them ideal for disaster response scenarios. The ability to quickly establish crossings over damaged infrastructure can be a lifesaver in emergencies, facilitating the movement of rescue teams and essential supplies. This capability underscores the importance of Bailey bridges in humanitarian efforts and disaster recovery.

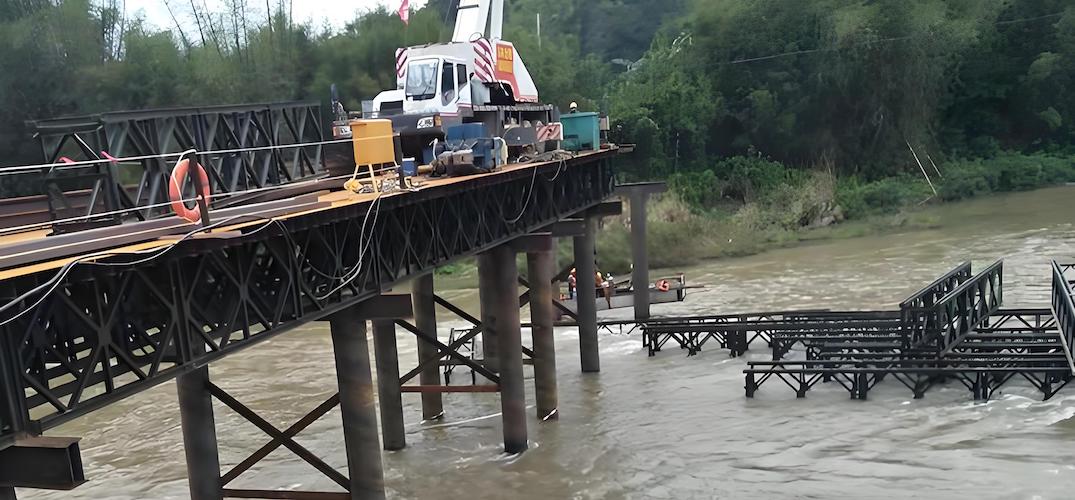

Bailey bridges are often used in construction projects where temporary access is needed. They provide safe crossings over excavations, rivers, or other obstacles, facilitating the movement of equipment and personnel. Their load capacity allows for the transport of heavy machinery, making them essential in construction logistics. The use of Bailey bridges in construction not only improves efficiency but also enhances safety by providing stable access points in potentially hazardous areas. This application highlights the versatility of Bailey bridges in various construction scenarios.
In addition to their practical applications, Bailey bridges can also be used in recreational settings. Parks and nature reserves may utilize these bridges to create pedestrian crossings over streams or ravines. Their aesthetic appeal and functional design make them suitable for enhancing outdoor spaces. By providing safe and attractive crossings, Bailey bridges can improve the overall experience for visitors, encouraging outdoor activities and promoting environmental stewardship. This recreational use demonstrates the adaptability of Bailey bridges beyond their traditional applications.
Bailey bridges are a remarkable engineering solution that can support a wide range of loads, from static dead loads to dynamic live loads and environmental forces. Their modular design, strength, and versatility make them suitable for various applications, including military use, disaster relief, construction projects, and recreational areas. Understanding the types of loads that Bailey bridges can support is essential for engineers and planners to ensure safety and functionality in their design and implementation. As infrastructure needs continue to evolve, Bailey bridges will remain a vital tool in the engineering toolkit, providing reliable solutions for temporary and permanent crossings. Their enduring legacy is a testament to the ingenuity of their design and the critical role they play in modern engineering.
Bailey bridges are primarily constructed from high-strength steel, which provides excellent tensile strength and durability. The steel panels are designed to resist corrosion and fatigue, ensuring longevity. Additionally, the use of bolted connections allows for easy assembly and disassembly, making the bridges modular and adaptable to various load requirements.
The load-bearing capacity of a Bailey bridge can vary significantly based on its configuration, including the number of panels used, the span length, and the type of truss design. Longer spans typically require more panels and reinforcements to support heavier loads. Additionally, configurations that include additional cross-bracing can enhance stability and load distribution, allowing the bridge to support greater weights.
Long-term maintenance for Bailey bridges includes regular inspections to check for signs of wear, corrosion, and structural damage. Maintenance activities may involve repainting to prevent rust, tightening bolts, and replacing any damaged panels. Engineers also recommend periodic load testing to ensure the bridge continues to meet safety standards and can support the intended loads.
While Bailey bridges are often used for temporary applications, they can also be employed in permanent installations, especially in areas where rapid deployment is necessary or where traditional bridge construction is impractical. With proper maintenance and reinforcement, Bailey bridges can serve as long-term solutions in both urban and rural settings.
The advantages of Bailey bridges include their rapid assembly and disassembly, which allows for quick deployment in emergency situations. They are also cost-effective due to their modular design, which reduces construction time and labor costs. Additionally, their ability to support heavy loads and adapt to various site conditions makes them versatile for a wide range of applications, from military to civilian use.
