Bridges are essential structures that facilitate transportation and connectivity across various terrains. Among the many types of bridges, Bailey bridges stand out due to their unique design, modular construction, and significant load-bearing capacities. This article delves into the capacity of Bailey bridges, exploring their design, applications, and the factors influencing their load-bearing capabilities.
Bailey bridges were developed during World War II by the British engineer Sir Donald Bailey. The design was intended to provide a quick and efficient means of constructing temporary bridges in combat zones. The need for rapid deployment of infrastructure in military operations led to the creation of a bridge that could be assembled with minimal tools and manpower. The modular nature of Bailey bridges allows for rapid assembly and disassembly, making them ideal for military and emergency applications. Over the years, the design has evolved, but the core principles of simplicity and efficiency remain. Today, Bailey bridges are not only used in military contexts but have also found applications in civilian infrastructure projects around the world.

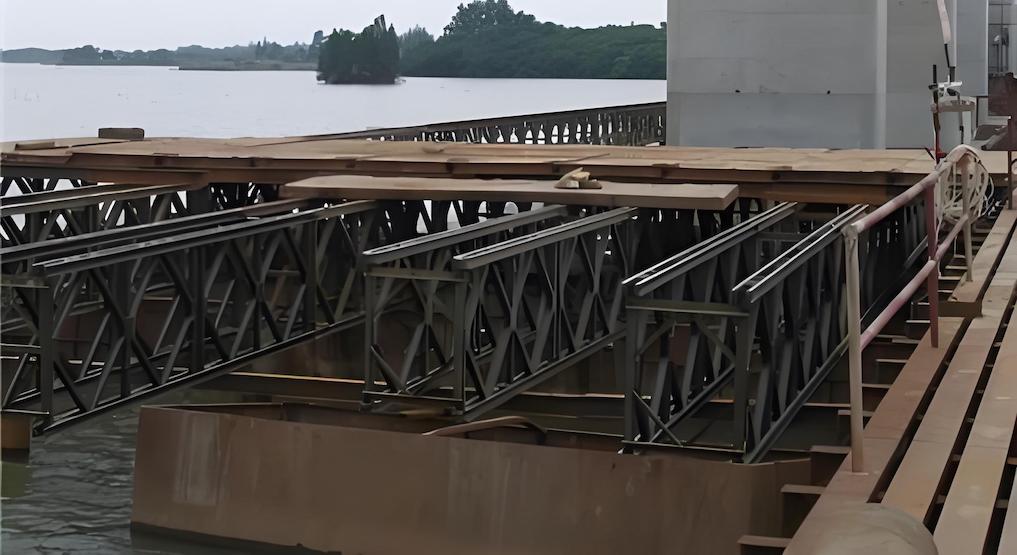

Bailey bridges are constructed from prefabricated steel panels, which can be easily transported and assembled on-site. The primary components include:
Panels: The basic building blocks of a Bailey bridge, typically made from high-strength steel. These panels are designed to interlock, providing a stable and robust structure.
Trusses: These provide structural support and distribute loads across the bridge. The truss design is crucial for maintaining the integrity of the bridge under various load conditions.

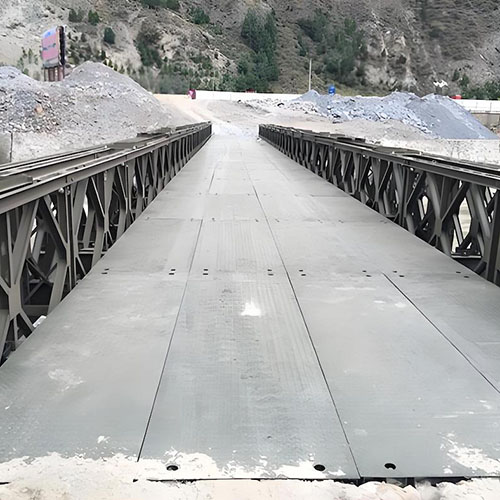

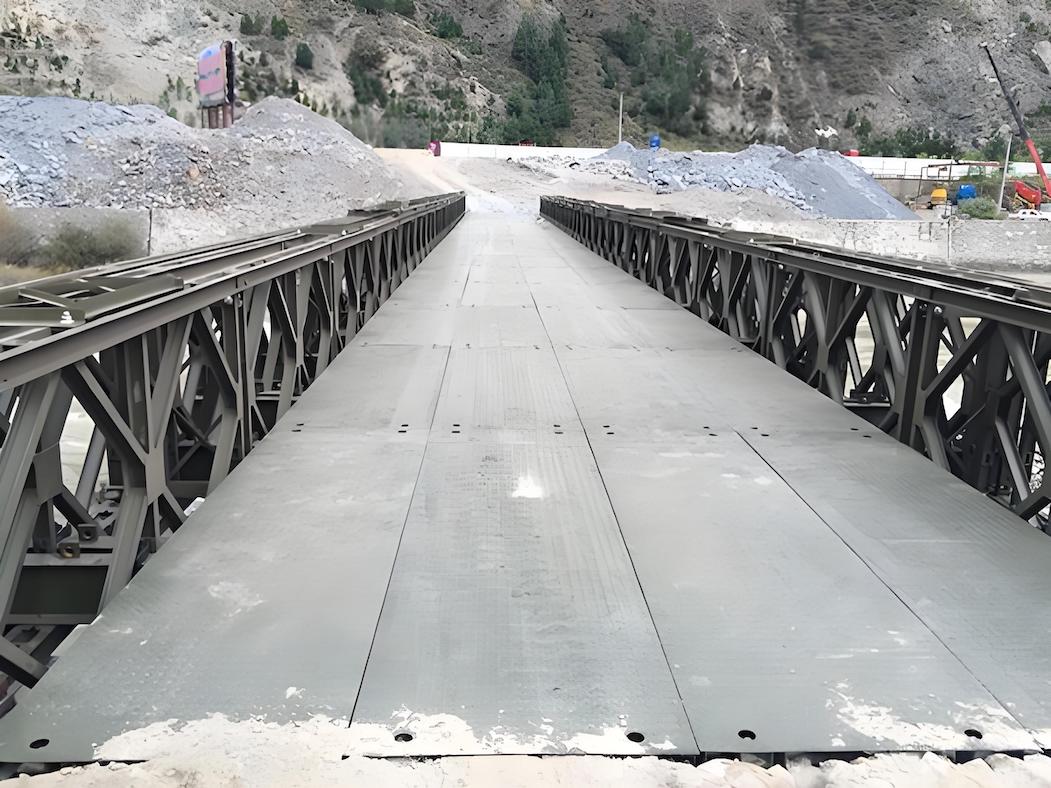

Decking: The surface on which vehicles and pedestrians travel, often made from wooden planks or steel plates. The decking must be durable enough to withstand the wear and tear of traffic while providing a safe surface for users.
The modular design allows for various configurations, enabling the construction of bridges with different spans and load capacities. This flexibility is one of the key advantages of Bailey bridges, allowing them to be tailored to specific site conditions and requirements.
The load-bearing capacity of a Bailey bridge is influenced by several factors, including:
Material Strength: The quality and type of steel used in the panels significantly affect the bridge's overall strength and durability. High-strength steel can enhance the load capacity and longevity of the bridge, making it more suitable for heavy traffic.
Design Configuration: Different configurations of Bailey bridges can support varying loads. For instance, a single-lane bridge will have a different capacity compared to a multi-lane bridge. Engineers can optimize the design based on expected traffic patterns and vehicle types.
Span Length: The distance between supports (span) plays a crucial role in determining how much weight the bridge can safely carry. Longer spans typically reduce load capacity, as the structural integrity must be maintained over greater distances.
Environmental Conditions: Factors such as temperature, humidity, and exposure to corrosive elements can impact the structural integrity of the bridge over time. Regular assessments are necessary to ensure that environmental factors do not compromise safety.
Understanding these factors is essential for engineers and planners when designing and implementing Bailey bridges in various settings.
Bailey bridges are designed to accommodate a range of load capacities, typically categorized as follows:
Lightweight Configurations: These can support loads of up to 20 tons, suitable for pedestrian traffic and light vehicles. They are often used in temporary applications where heavy loads are not anticipated.
Standard Configurations: Most commonly used, these bridges can support loads ranging from 30 to 50 tons, making them suitable for military vehicles and emergency response operations. Their versatility allows them to be deployed in various scenarios, from disaster relief to construction sites.
Heavy-Duty Configurations: Designed for maximum load-bearing, these configurations can support loads exceeding 70 tons, often used in construction and heavy transport scenarios. These bridges are engineered to handle the stresses of large vehicles and equipment, ensuring safety and reliability.
The ability to customize load capacities makes Bailey bridges a preferred choice in many applications, providing solutions that meet specific needs.
Bailey bridges were initially designed for military applications, providing a quick solution for crossing obstacles such as rivers and ravines. Their ability to be rapidly deployed makes them invaluable in combat situations where time is of the essence. Military engineers can set up these bridges in a matter of hours, allowing troops and equipment to move swiftly across challenging terrains. The modular design also means that they can be easily transported to remote locations, making them a critical asset in military logistics.
In civil engineering, Bailey bridges are often used for temporary crossings during construction projects. They can also serve as permanent solutions in remote areas where traditional bridge construction may be impractical. For instance, in rural or underdeveloped regions, Bailey bridges can provide essential connectivity, enabling access to markets, schools, and healthcare facilities. Their cost-effectiveness and ease of installation make them an attractive option for local governments and organizations working to improve infrastructure.
During natural disasters, Bailey bridges can be deployed quickly to restore access to affected areas. Their modular design allows for rapid assembly, making them ideal for emergency response teams. In situations where roads are washed out or damaged, these bridges can provide a critical lifeline for delivering aid and supplies. The speed at which they can be erected often makes the difference between life and death in disaster scenarios, highlighting their importance in humanitarian efforts.
To ensure the safety and longevity of Bailey bridges, regular inspections are essential. Engineers assess the condition of the panels, trusses, and decking, looking for signs of wear, corrosion, or structural damage. Inspections should be conducted at regular intervals and after significant weather events or heavy usage. This proactive approach helps identify potential issues before they become serious problems, ensuring the bridge remains safe for use.
Routine maintenance practices include:
Cleaning: Removing debris and contaminants that can cause corrosion. Regular cleaning helps maintain the integrity of the steel and prolongs the life of the bridge.
Repairs: Addressing any damage to panels or trusses promptly to prevent further deterioration. Timely repairs can prevent small issues from escalating into major structural failures.
Load Testing: Periodically testing the load capacity to ensure the bridge can safely support expected traffic. Load testing is a critical component of maintenance, providing data that can inform future use and modifications.
By implementing a comprehensive maintenance program, the lifespan of Bailey bridges can be significantly extended, ensuring they continue to serve their intended purpose effectively.
Bailey bridges represent a remarkable engineering solution, combining versatility, strength, and ease of use. Their capacity to support significant loads while being rapidly deployable makes them an essential tool in military, civil, and emergency applications. Understanding the factors that influence their load-bearing capacity is crucial for ensuring their effective use and maintenance. As infrastructure needs continue to evolve, Bailey bridges will remain a vital component of modern engineering solutions, adapting to meet the challenges of the future while providing reliable service in a variety of contexts. Their legacy, rooted in wartime necessity, continues to impact civilian life, demonstrating the enduring value of innovative engineering.
Bailey bridges are primarily constructed from high-strength steel panels. These materials are chosen for their durability, strength, and ability to withstand various environmental conditions. The use of steel allows for a lightweight yet robust structure that can be easily transported and assembled.
The assembly time for a Bailey bridge can vary depending on the size and configuration, but it generally takes a few hours to a couple of days. The modular design allows for quick assembly with minimal tools and manpower, making it ideal for emergency situations or military operations.
Yes, Bailey bridges can be used for permanent installations, especially in remote or rural areas where traditional bridge construction may be impractical. They provide a cost-effective solution for improving infrastructure and ensuring connectivity in underserved regions.
The types of vehicles that can safely cross a Bailey bridge depend on its load capacity. Lightweight configurations can support pedestrian traffic and light vehicles, while standard configurations can accommodate military vehicles and emergency response units. Heavy-duty configurations are designed for larger vehicles, including construction equipment and heavy transport trucks.
Bailey bridges should be inspected regularly, typically at least once a year, and after significant weather events or heavy usage. Routine maintenance practices, such as cleaning, repairs, and load testing, should also be conducted to ensure the bridge remains safe and functional over time. Regular inspections help identify potential issues early, preventing costly repairs and ensuring safety.
