A Bailey bridge is far more than a temporary crossing. When properly engineered, fabricated, transported, and installed, it is a fast-deployment modular steel bridge solution for emergency restoration, rural connectivity, construction access, mining logistics, and long-term public infrastructure.
At Evercross Bridge, we have seen that the most successful bridge projects begin with one principle: a modular bridge system must be designed around the site, the traffic load, the logistics route, and the full service-life objective—not simply around a standard panel configuration. With more than 30 years of industry experience, Evercross Bridge supplies prefabricated steel bridge solutions worldwide, including Bailey bridges, emergency bridges, temporary construction bridges, and permanent modular steel bridge systems.
This guide explains how to select, design, manufacture, deliver, and install a Bailey bridge system that performs reliably in real-world conditions.

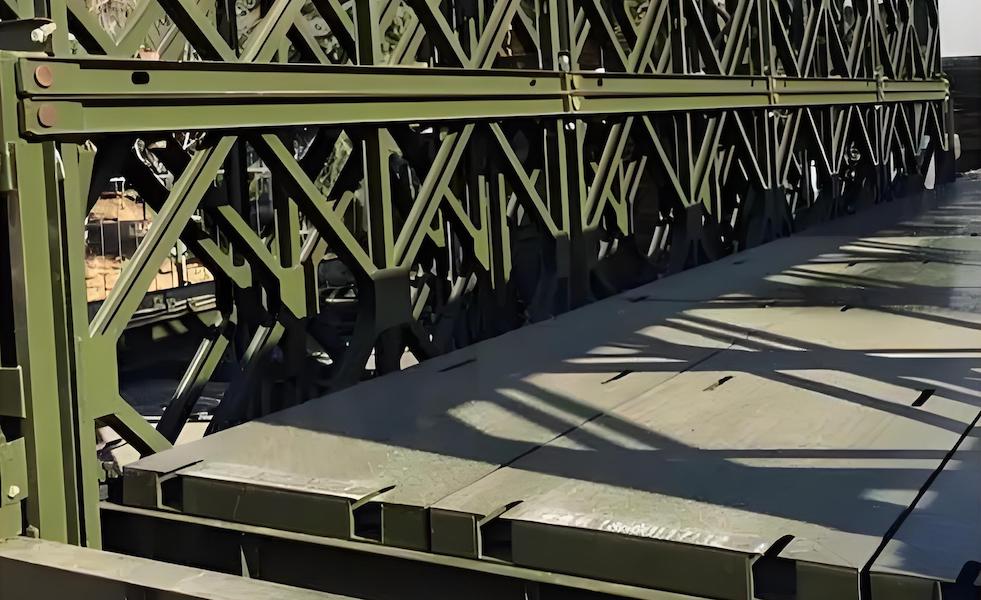

A Bailey bridge is a portable, prefabricated steel truss bridge assembled from standardized modular components. It was originally developed for rapid military bridge deployment during the Second World War, but its modular engineering principles continue to make it highly relevant for civil, industrial, emergency, and infrastructure applications today.
The system normally consists of steel truss panels, transoms, stringers, bracing members, deck components, bearings, end posts, and connection pins or bolts. These individual components can be transported in containers, trucks, or conventional cargo shipments and assembled at or near the project site.
The core advantage is simple: standardized parts can create customized bridge solutions.
Depending on engineering requirements, a Bailey bridge can be configured as:
- A single-lane or double-lane steel bridge
- A temporary detour bridge
- An emergency relief bridge
- A rural road bridge
- A construction-access bridge
- A mining or industrial transport bridge
- A pedestrian bridge
- A permanent or semi-permanent infrastructure bridge
- A multi-span modular bridge with intermediate supports
However, a Bailey bridge is not a "one-size-fits-all" product. The final configuration must respond to the actual span, design load, roadway width, hydraulic conditions, foundation capacity, environmental exposure, and installation method.
For governments, contractors, humanitarian organizations, and industrial operators, bridge downtime can create much more than a transportation inconvenience. It can interrupt access to hospitals, schools, ports, agricultural markets, work sites, and emergency-response routes.
This is why modular steel bridge technology has become increasingly important in areas facing flood damage, cyclone exposure, conflict-related infrastructure disruption, remote construction conditions, or limited local fabrication capacity.
The World Bank has highlighted that modular bridges can shorten design and construction time, reduce road-closure periods, lower worker safety risks, and reduce disturbance to surrounding environments. It also notes that modular systems can help projects move more quickly from disaster recovery toward resilient permanent infrastructure.
In Ukraine, UNOPS and the World Bank supported delivery of modular bridge systems to restore disrupted transport links. The programme delivered bridge sets totaling hundreds of metres, demonstrating how modular bridge fleets can help authorities reopen key logistical connections after infrastructure damage.
For project owners, the practical benefits often include:
Project Need | How a Bailey Bridge Helps |
Washed-out road crossing | Enables rapid restoration of access |
Remote project site | Reduces dependence on large local fabrication facilities |
Heavy construction traffic | Can be engineered around defined vehicle loads |
Limited construction season | Allows off-site fabrication before site readiness |
Emergency response | Supports pre-positioned bridge inventory and faster deployment |
Rural connectivity | Provides a durable crossing where conventional construction is difficult |
Industrial logistics | Creates access for mining, energy, forestry, and construction operations |
Important: Fast delivery does not mean reduced engineering. A bridge that is quickly installed but incorrectly designed for traffic, flood level, foundations, or corrosion exposure may create long-term risk and higher lifecycle cost.
A reliable Bailey bridge design begins with project data—not with a catalogue image. In our experience, the following inputs should be clarified before selecting a truss configuration or issuing a commercial quotation.
The clear span is the unobstructed distance between bridge supports. It is one of the first design variables, but it should not be measured in isolation.
Engineers must also consider:
- Abutment location and available bearing length
- River width during normal and flood conditions
- Scour risk around foundations
- Required freeboard above flood level
- Potential debris impact during high-flow events
- Whether intermediate piers are practical
- Future widening or replacement requirements
For longer crossings, a multi-span steel bridge may be more economical or technically appropriate than an excessively long single-span configuration. The best choice depends on hydrology, soil conditions, erection equipment, and maintenance access.
A common mistake is to ask for a "heavy-duty Bailey bridge" without defining the vehicle types that will cross it.
The bridge designer needs clear loading information, including:
- Maximum gross vehicle weight
- Axle loads and axle spacing
- Traffic volume and frequency
- One-way or two-way traffic operation
- Construction equipment, cranes, mining vehicles, or abnormal loads
- Pedestrian, bicycle, or livestock requirements
- Applicable design-code requirements
Modular steel bridge systems can be engineered for different load models and operational conditions. For example, published modular bridge references identify systems designed around highway loading standards such as HS-15, HS-20, HS-25, and HL-93, but suitability must always be confirmed by project-specific calculations and governing code requirements.
Never select a bridge based only on a stated tonnage. A 60-ton vehicle does not automatically define the correct bridge configuration. Axle geometry, dynamic effects, lane position, braking, fatigue, and traffic frequency can substantially affect the design.
Bridge width affects safety, user experience, traffic capacity, and overall steel quantity.
A practical design brief should identify:
- Clear carriageway width
- Single-lane or two-lane traffic
- Vehicle type and turning behavior
- Pedestrian walkway requirements
- Guardrail or handrail requirements
- Emergency evacuation use
- Future traffic-growth assumptions
A single-lane bridge may be suitable for low-volume rural roads, temporary access routes, and controlled industrial sites. By contrast, high-volume public roads may require a wider deck, traffic barriers, drainage details, and a more comprehensive approach to approach-road safety.
The steel truss is only one part of a bridge system. Long-term performance also depends on abutments, foundations, bearings, drainage, approaches, and corrosion protection.
For flood-prone, coastal, tropical, or industrial sites, the project team should assess:
- Seasonal water-level variation
- Flood frequency and design flood level
- Scour depth and riverbed movement
- Soil bearing capacity
- Seismic exposure
- Wind loading
- Salt spray or high-humidity corrosion exposure
- Availability of local maintenance resources
The World Bank's guidance on innovative bridge technologies emphasizes that factory-manufactured, standardized modular components can improve resilience because damaged units can be repaired or replaced more easily than fully bespoke bridge elements.
A Bailey bridge procurement decision should not be based solely on the lowest unit price. The real cost of a bridge project includes engineering accuracy, fabrication quality, packaging reliability, shipping coordination, site support, installation risk, maintenance requirements, and downtime consequences.
When evaluating a Bailey bridge manufacturer, ask the following questions.
A qualified manufacturer should be able to provide:
- General arrangement drawings
- Structural design calculations
- Load and configuration recommendations
- Material specifications
- Connection details
- Foundation and bearing interface requirements
- Installation drawings and method guidance
- Bill of materials and packing lists
The supplier should also clarify which aspects are included in its engineering scope and which must be completed by the local civil engineer, contractor, or project consultant.
Steel bridge fabrication requires more than cutting and welding. Quality should be controlled from raw material receiving through final packing.
Key checkpoints include:
1. Steel material traceability and certificates
2. Dimensional inspection of truss panels and connecting members
3. Welding procedure control and weld inspection
4. Bolt, pin, and connection compatibility checks
5. Surface-preparation verification
6. Coating-thickness inspection for painted or galvanized components
7. Trial assembly, where required by the project
8. Pre-shipment inspection and complete packing verification
For export projects, clear component identification is especially valuable. Every bridge part should be marked and packed in a way that helps the installation team find, inspect, and assemble it efficiently after a long international shipment.
The bridge may be engineered correctly and fabricated well, yet still encounter site delays because of incomplete shipping documentation, poor container-loading plans, missing parts, unclear labels, or damage during transit.
A bridge supplier with international project experience should support:
- Containerization and cargo securing
- Packing lists and loading diagrams
- Commercial invoice and export documentation
- Component marking
- Spare-parts recommendations
- Port-to-site logistics coordination
- Installation documentation in English and, when needed, local languages
For overseas infrastructure projects, logistics planning should begin during design. A bridge configuration that looks efficient in a drawing may be impractical if local roads, port restrictions, lifting capacity, or inland transport limits are ignored.
A clear workflow reduces rework, protects the schedule, and helps ensure that all parties understand their responsibilities.
Stage | Key Output | Why It Matters |
Site data collection | Span, load, width, soil, hydraulic and logistics data | Prevents incorrect bridge selection |
Preliminary engineering | Proposed bridge configuration and budget | Aligns technical needs with investment scope |
Detailed design | Drawings, calculations, material list | Supports approval, procurement, and construction |
Factory production | Controlled fabrication and inspection records | Ensures component compatibility and quality |
Packaging and shipping | Marked packages, loading plan, export documents | Reduces customs and site-assembly delays |
Site installation | Erection method, equipment plan, safety controls | Protects people and structural integrity |
Commissioning | Final inspection and load verification as required | Confirms operational readiness |
Maintenance planning | Inspection and coating-maintenance schedule | Extends working life and availability |

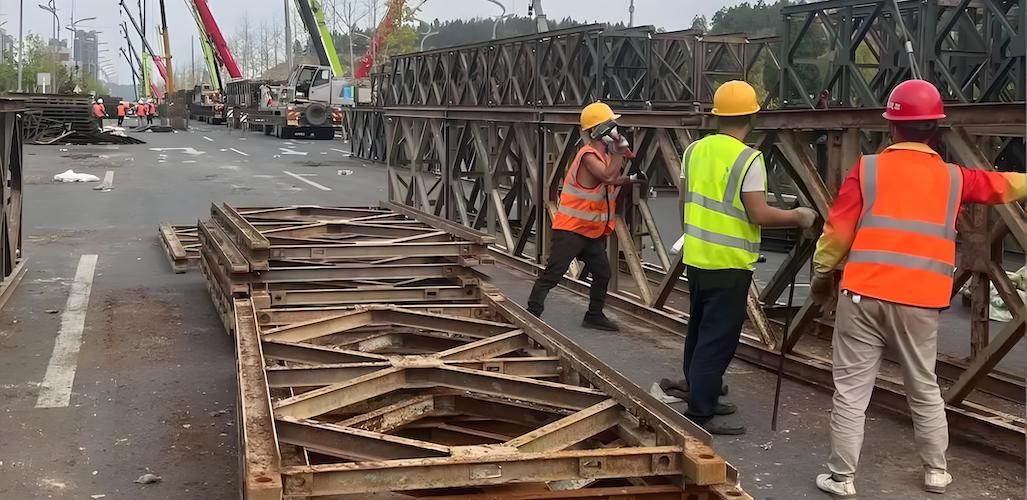

A Bailey bridge may be installed using different methods depending on site access, river conditions, available equipment, and bridge size.
Common methods include:
- Launching erection: The bridge is assembled behind one abutment and pushed across the gap using rollers, a launching nose, and controlled equipment.
- Crane installation: Preassembled sections are lifted into place using cranes, often suitable where access and lifting capacity are available.
- Incremental assembly: Components are assembled progressively, particularly useful in constrained or remote sites.
- Temporary support erection: Temporary piers or support frames may be used when the erection plan requires them.
The installation method should be reviewed early. It affects bridge configuration, work area requirements, equipment selection, crew training, temporary works, and project safety planning.
In emergency or budget-constrained projects, buyers often focus on the immediate objective: reopening a crossing as quickly as possible. That urgency is understandable. But the strongest infrastructure decision is usually the one that considers speed, safety, maintenance, and long-term adaptability together.
A well-designed modular steel bridge can offer several lifecycle advantages:
- Factory-controlled production can improve component consistency.
- Standardized components can simplify future repairs and replacement.
- Modular systems can be relocated or adapted in some project scenarios.
- Proper corrosion protection can reduce maintenance exposure.
- Reusable bridge inventory can strengthen disaster-response capability.
The World Bank has described modular bridges as a potential long-term solution for resilience, particularly because they can help restore access after disasters and can be repaired or replaced through standardized components. In climate-vulnerable regions, this flexibility can help governments reduce prolonged isolation after floods, cyclones, or other infrastructure-disrupting events.
For Evercross Bridge customers, the recommended approach is to define a bridge's intended role early:
- Emergency bridge: Prioritize speed, transportability, rapid installation, and inventory readiness.
- Temporary construction bridge: Prioritize construction loads, site relocation potential, and practical access.
- Permanent public bridge: Prioritize design life, corrosion protection, traffic safety, drainage, foundations, and lifecycle maintenance.
- Industrial bridge: Prioritize axle loads, operational frequency, oversized vehicles, and downtime risk.
A bridge is not just a steel structure. It is a connection between people, supply chains, public services, and economic activity.
Evercross Bridge is a China-based steel bridge manufacturer with more than 30 years of industry experience in Bailey bridges, emergency bridges, and prefabricated steel bridge systems. We provide integrated support from bridge design and manufacturing through packing, international delivery, installation guidance, and after-sales service.
Our capabilities include:
- Bailey bridge and modular steel bridge design
- Custom steel bridge fabrication
- Emergency bridge solutions
- Temporary and permanent bridge systems
- Export packaging and global shipping coordination
- Installation drawings and technical support
- Project solutions for government, contractor, industrial, and infrastructure applications
With an annual production capacity of 100,000 tons and delivery experience across more than 50 countries, Evercross Bridge supports complex steel bridge requirements for projects in Southeast Asia, Africa, Latin America, and other global markets.
Need a Bailey bridge quotation or technical proposal? Send Evercross Bridge your required span, deck width, design load, project location, site photos, foundation information, and preferred delivery schedule. Our engineering team can help evaluate the appropriate modular steel bridge configuration for your application.
A Bailey bridge uses standardized, prefabricated modular components that can be transported and assembled quickly. A conventional steel bridge is often more customized and may require longer fabrication and site-construction periods. The best option depends on span, load, design life, site conditions, project schedule, and budget.
Yes. A Bailey or modular steel bridge can be used for long-term service when it is properly engineered for the required load, site conditions, corrosion environment, foundations, drainage, safety features, and maintenance plan. The final design should follow the applicable local code and project specification.
Installation time varies significantly based on span, bridge configuration, erection method, site access, equipment availability, foundation readiness, weather, and crew experience. Modular construction can reduce on-site work compared with fully site-fabricated alternatives, but each project requires a specific erection plan.
The basic information includes the required span, deck width, vehicle load and axle configuration, traffic direction, project location, site photos, soil or foundation data, river or flood information, road alignment, clearance requirements, preferred corrosion protection, and delivery destination.
Load capacity depends on the bridge configuration, span, panel arrangement, deck system, traffic lane arrangement, load model, and applicable design code. Buyers should provide detailed vehicle and axle-load information rather than relying only on a general tonnage figure.
Neither option is universally better. Hot-dip galvanizing can provide robust corrosion protection in many environments, while high-performance paint systems may be selected for specific exposure conditions, repair requirements, colour specifications, or project standards. The appropriate coating system should be chosen based on environment, required service life, and maintenance strategy.
Yes. Evercross Bridge can provide technical documents, component lists, installation drawings, remote guidance, and project-specific support. The exact scope should be confirmed during quotation and contract review, particularly for overseas site services, local labour, lifting equipment, and safety responsibilities.
