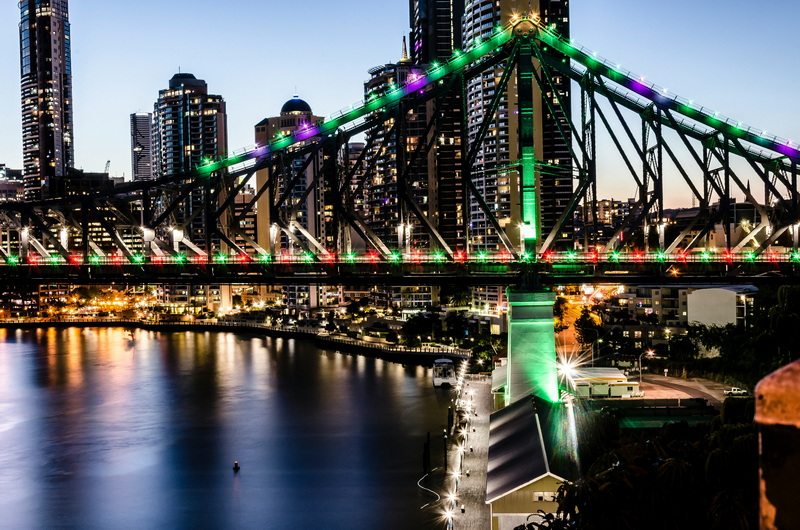

A truss bridge is a type of bridge where the load-bearing superstructure is composed of a truss, a structure of connected elements, typically forming triangular units. The connected elements, usually straight, may be stressed from tension, compression, or sometimes both in response to dynamic loads. Trusses are popular for bridge building because they use a relatively small amount of material for the amount of weight they can support.
A truss is a series of individual members, acting in tension or compression and performing together as a unit. On truss bridges, a tension member is subject to forces that pull outward at its ends. Even on a "wooden" truss bridge, these members are often individual metal pieces such as bars or rods. Compressive forces push or compress together and are heavier. The individual members form a triangular pattern. A truss is simply an interconnected framework of beams that holds something up. The beams are usually arranged in a repeated triangular pattern, since a triangle cannot be distorted by stress.
In a truss bridge, two long - usually straight members known as chords - form the top and bottom; they are connected by a web of vertical posts and diagonals. The bridge is supported at the ends by abutments and sometimes in the middle by piers. A properly designed and built truss will distribute stresses throughout its structure, allowing the bridge to safely support its own weight, the weight of vehicles crossing it, and wind loads.
The individual pieces of a truss bridge intersect at truss joints, or panel points. The connected pieces forming the top and bottom of the truss are referred to respectively as the top and bottom chords. The sloping and vertical pieces connecting the chords are collectively referred to as the web of the truss.
The component parts of a truss bridge are stressed primarily in axial tension or compression. A single-span truss bridge is like a simply supported beam because it carries vertical loads by bending. Bending leads to compression, in the top chords (or horizontal members), tension in the bottom chords, and either tension or compression in the vertical and diagonal members, depending on their orientation.
Truss bridges offer several advantages in construction:
- Rapid Installation: Truss structures are prefabricated in factories and easily assembled on-site, leading to quicker construction timelines.
- Increased Span Length: Their triangular force distribution minimizes force concentration, allowing for longer span lengths.
- Accessibility: Triangular spaces between truss members create pathways for electrical and mechanical installations.
- Efficient Use of Materials: Trusses are popular for bridge building because they use a relatively small amount of material for the amount of weight they can support. A truss bridge is economical to construct primarily because it uses materials efficiently.
- High Strength: The load-bearing capacity of truss bridges is significant due to the interconnecting triangle design. The structure effectively distributes the weight across its complicated system by compressing and tensing it.
- Affordable Design Option: If a truss bridge is an option, it will most likely be more affordable than other options like box girder bridges because of their lower material costs and fewer steps required during construction due to its design which simplifies the process by eliminating some welding work (which could add another expense).
Despite their strengths, truss structures have limitations:
- Space Requirement: The interconnected triangular components require ample space, particularly in large truss bridges. The structure of a truss bridge is, by design, large. The interconnecting triangular components need to be large in order to bear and distribute heavy loads. This means that in certain restricted spaces, the truss bridge may not be the best option. The main disadvantage of using a truss bridge to span a distance is that they generally take up more space than other bridges. Therefore, a truss bridge might not be the best option when there isn't enough room for a structure since it may not fit.
- Maintenance Costs: Truss structures can incur high maintenance costs, especially for extensive projects. A truss bridge, like any load-bearing structure, will require regular and detailed maintenance. So many parts to look after can mean that this is expensive—not to mention time consuming! Truss bridges may provide high levels of support, but the additional components and connections of the bridge mean it requires high levels of maintenance as well.
- Weight: Due to their size, truss bridges can be heavy. Because truss bridges are so large and use a lot of materials, hence the overall weight of the structure can be very heavy.
- Lower Weight Tolerance: Truss bridges can have a lower weight tolerance.
- High Maintenance: A truss bridge, like any load-bearing structure, will require regular and detailed maintenance. Truss bridges may provide high levels of support, but the additional components and connections of the bridge mean it requires high levels of maintenance as well. Every inch of the structure plays a significant role in how the span performs. There are several additional connections and components in this design that create a higher risk of failure at some point.
- Professional Construction Required: A truss bridge requires detailed engineering and specialist construction—this does not come cheap.
There are several types of truss bridges, including some with simple designs that were among the first bridges designed in the 19th and early 20th centuries.
- Pratt Truss: In Pratt Truss Design, the members have their end fixities set to pinned. This ensures that the force is all transferred in either compression or tension, with little (theoretically, none) transferred in the form of bending moment force. Diagonal members are in tension, vertical members in compression. Advantages of Pratt Truss include awareness of member's behavior, cost-effectiveness, simple design, and well-accepted use. A disadvantage is that it is not as advantageous if the load is not vertical.
- Warren Truss: The Warren Truss is easily identified by its construction from equilateral triangles. One of the main advantages of a Warren Truss is its ability to spread the load evenly across a number of different members; this is however generally for cases when the structure is undergoing a spanned load (a distributed load). Its main advantage is also the cause of its disadvantage – the truss structure will undergo concentrated force under a point load. Advantages of Warren Truss include spreading load fairly evenly between members and a fairly simple design. Disadvantages include poorer performance under concentrated loads and increased constructability due to additional members.
- K Truss: The K Truss is a slightly more complicated version of the Pratt Truss. Its main difference is that the vertical members have become shortened – improving its resistance against buckling. It does, however, have similar pros and cons to the Pratt Truss and although it is not widely used, it is a strong design. One of its main disadvantages is that the members don't always behave as expected. A member may be in compression under one load scenario and in tension under another.
Truss bridges can be constructed from a variety of materials, including wood and metal. Even on a "wooden" truss bridge, the tension members are often individual metal pieces such as bars or rods.
A truss bridge, like any load-bearing structure, will require regular and detailed maintenance. The maintenance costs of so many parts can be expensive. Painting and maintenance can be the most expensive disadvantage of a truss bridge. Truss bridges are more vulnerable to corrosion; they require much more maintenance than box girder and beam bridges because steel is a weighty material that needs to be replaced regularly to weaken over time due to wear and tear. When repairs need to be done, or replacement work happens, it usually requires shutting down traffic which means these types of projects often take longer and cost significantly more money than other solutions like building new roads above where the old ones were (a process called decking).
Truss bridges are commonly used in covered bridges, railroad bridges, and military bridges.
Truss bridges continue to be a viable option for bridge construction, particularly in situations where long spans are required and material costs need to be minimized. Ongoing research and development in materials and design techniques are likely to further enhance the performance and durability of truss bridges in the future.
In conclusion, a truss system for a bridge is a load-bearing structure composed of interconnected elements, typically arranged in triangular units, that efficiently distribute loads through tension and compression. Truss bridges offer advantages such as rapid installation, increased span length, and efficient use of materials. However, they also have disadvantages, including space requirements, maintenance costs, and weight considerations. Different types of truss bridges, such as Pratt, Warren, and K trusses, offer varying performance characteristics depending on the load conditions. Proper maintenance is essential to ensure the long-term durability and safety of truss bridges. As technology advances, truss bridges are expected to remain a practical choice for bridge construction, with ongoing innovations aimed at improving their performance and sustainability.
A truss bridge is a bridge whose load-bearing superstructure is composed of a truss, a structure of connected elements, usually forming triangular units.
Advantages of truss bridges include rapid installation, increased span length, efficient use of materials, high strength, and affordability.
Disadvantages of truss bridges include space requirements, maintenance costs, weight, lower weight tolerance, and the need for professional construction.
Different types of truss bridges include Pratt Truss, Warren Truss, and K Truss.
Truss bridges can be constructed from a variety of materials, including wood and metal.
