Steel box girders are pivotal in contemporary bridge construction, offering unparalleled strength, durability, and design flexibility. As a leading manufacturer in the steel bridge industry, EVERCROSS BRIDGE recognizes the significance of these structural components in ensuring the safety and longevity of bridges.

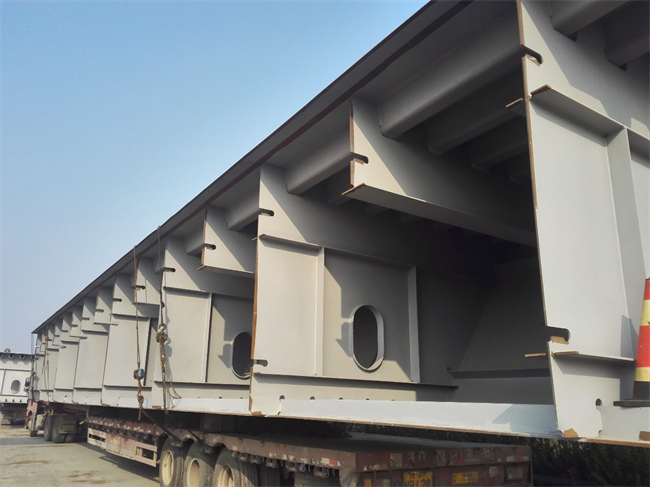

Steel box girders are hollow structural elements shaped like a box, typically made from high-strength steel. Their design allows for exceptional load-bearing capacity and torsional rigidity, making them ideal for long-span bridges and complex geometries. The box girder configuration not only enhances structural integrity but also contributes to the aesthetic appeal of bridges, allowing for sleek and modern designs.
The box shape distributes loads evenly, making it suitable for heavy traffic and dynamic loads. For example, the Auburn Station Rail Overbridge in Australia utilizes steel box girders to support significant rail traffic, demonstrating their effectiveness in high-load scenarios.
This feature is crucial for bridges that experience twisting forces, such as those subjected to high winds or uneven loading. The Lily Street Rail Overbridge, also in Australia, showcases how box girders can maintain stability under such conditions.
Steel box girders are resistant to environmental factors, ensuring a longer lifespan with minimal maintenance. The Northern Area Precinct Bridge at Sydney Airport is a prime example, where the use of weather-resistant steel has minimized maintenance needs.
Steel box girders provide superior structural performance compared to traditional beam designs. Their closed-section shape minimizes the weight of the bridge while maximizing strength, allowing for longer spans without the need for additional supports. This is particularly beneficial in urban areas where space is limited. For instance, the Fossedyke Bridge in Lincoln, UK, effectively uses curved steel box girders to achieve long spans over waterways, enhancing both functionality and aesthetics.
The prefabrication of steel box girders reduces construction time and labor costs. By manufacturing girders off-site, projects can be completed more efficiently, minimizing disruptions to traffic and surrounding areas. Additionally, their durability translates to lower long-term maintenance costs. A notable case is the Evans Mill Road Bridge in Peoria County, which utilized steel box girders to save both time and money during construction, demonstrating the economic benefits of this approach.
Engineers can utilize steel box girders in various configurations, including straight, curved, and skewed designs. This flexibility allows for innovative architectural solutions that meet specific project requirements while maintaining structural integrity. The I-195 Bridge in Rhode Island exemplifies this flexibility, where the design incorporates curved box girders to navigate complex urban landscapes while ensuring safety and aesthetic appeal.
In rail bridge construction, the stiffness and durability of steel box girders are essential for accommodating the dynamic loads and stringent deflection limits of high-speed rail lines. For instance, many bridges on France's TGV lines and Germany's ICE network utilize steel box girders to ensure safety and performance. The Hannover–Berlin high-speed rail line features several steel box girder bridges that effectively manage the high-speed train loads while maintaining structural integrity.
Steel box girders are commonly used in highway overpasses, where their ability to support heavy vehicular loads is critical. The aerodynamic shape of these girders reduces wind resistance, enhancing the overall stability of the bridge. The I-10 overpass in California is a prime example, where steel box girders were employed to create a robust structure capable of withstanding heavy traffic and environmental stresses.
For pedestrian bridges, steel box girders provide a safe and aesthetically pleasing solution. Their design allows for longer spans without intermediate supports, creating unobstructed pathways for pedestrians. The Millennium Bridge in London, which features steel box girders, exemplifies how these structures can enhance urban landscapes while ensuring safety and accessibility for pedestrians.
Recent advancements in steel manufacturing have led to the development of high-strength, lightweight materials that further enhance the performance of steel box girders. These innovations allow for even longer spans and reduced material usage, contributing to more sustainable construction practices. The Texas Department of Transportation has been at the forefront of these innovations, implementing new materials in their bridge designs to improve performance and reduce costs.
Integrating smart technologies into steel box girder bridges can enhance monitoring and maintenance. Sensors embedded within the girders can provide real-time data on structural health, allowing for proactive maintenance and ensuring safety over the bridge's lifespan. The Ed Koch Queensboro Bridge in New York City is an example where smart technologies are being tested to monitor structural integrity and traffic loads, paving the way for future smart infrastructure.
Steel box girders are a cornerstone of modern bridge construction, offering unmatched strength, efficiency, and design versatility. As infrastructure demands continue to grow, understanding the role and benefits of these structural elements is crucial for engineers and decision-makers. At EVERCROSS BRIDGE, we are committed to providing high-quality steel box girders that meet the evolving needs of the construction industry.
For more information on our steel box girder solutions or to discuss your next bridge project, contact us today. Let us help you build the future of infrastructure with confidence and reliability.
Steel box girders can vary significantly in dimensions and weight depending on the specific application and design requirements. Typically, the depth of steel box girders ranges from 1 to 3 meters (3 to 10 feet), while the span lengths can reach up to 50 meters (164 feet) or more for highway and rail bridges. The weight of these girders can range from 200 kg/m (135 lb/ft) to over 1,000 kg/m (670 lb/ft), depending on the thickness of the steel and the design specifications.
Steel box girders generally offer several advantages over concrete box girders. In terms of cost, steel girders can be more economical for longer spans due to their lighter weight, which reduces foundation requirements. Durability-wise, steel box girders are resistant to cracking and can withstand dynamic loads better than concrete. However, they require regular maintenance to prevent corrosion. In terms of construction time, steel girders can be prefabricated off-site, allowing for quicker installation compared to concrete girders, which often require curing time on-site.
Best practices for inspecting and maintaining steel box girder bridges include:
●Regular Inspections: Conduct visual inspections at least annually and detailed inspections every few years to check for signs of corrosion, fatigue, and structural integrity.
●Corrosion Protection: Apply protective coatings and paints to prevent rust and corrosion, especially in areas exposed to moisture and salt.
●Load Monitoring: Use sensors to monitor load conditions and structural health in real-time, allowing for proactive maintenance.
●Repairs: Address any identified issues promptly, including welding repairs for cracks and replacing corroded sections.
●Documentation: Keep detailed records of inspections, maintenance activities, and repairs to track the bridge's condition over time.
Steel box girders are commonly used in various types of bridges, including:
●Highway Overpasses: For their ability to support heavy vehicular loads and long spans.
●Rail Bridges: To accommodate the dynamic loads of trains while maintaining structural integrity.
●Pedestrian Bridges: Offering unobstructed pathways and aesthetic appeal.
●Cable-Stayed and Suspension Bridges: As stiffening girders to enhance stability and load distribution.
The environmental benefits of using steel box girders include:
●Recyclability: Steel is 100% recyclable, reducing waste and the need for new raw materials.
●Reduced Material Usage: The high strength-to-weight ratio of steel allows for lighter structures, which can minimize the environmental impact of foundations and support systems.
●Long Lifespan: Steel box girders have a long service life, reducing the frequency of replacements and the associated environmental costs of new construction.
●Sustainable Practices: The use of advanced manufacturing techniques and materials can lead to more sustainable construction practices, including lower energy consumption during production.
