Building a steel pedestrian bridge is a significant engineering project that requires careful planning, design, and execution. This article will guide you through the essential steps and considerations involved in constructing a steel pedestrian bridge, ensuring safety, durability, and aesthetic appeal. By understanding the intricacies of each phase, you can appreciate the complexity and artistry involved in creating these vital structures.

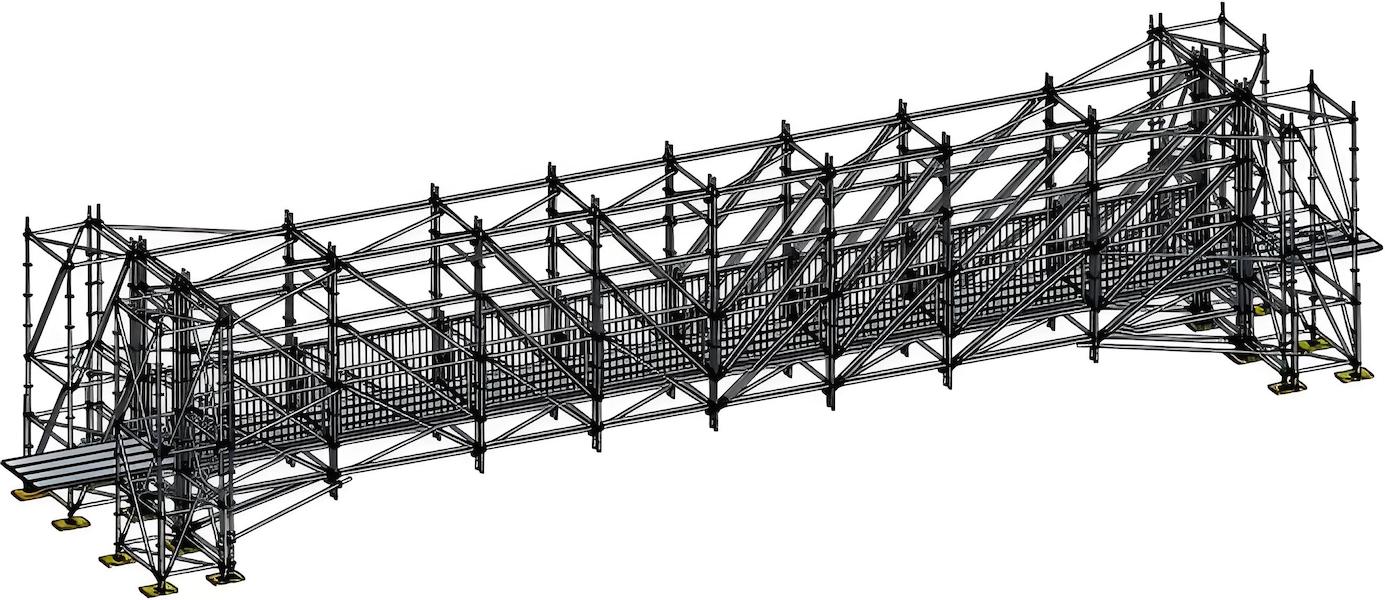

A steel pedestrian bridge is a structure designed to allow pedestrians to cross obstacles such as roads, rivers, or valleys. These bridges are typically made from steel due to its strength, durability, and versatility. Steel bridges can be designed in various styles, including truss, arch, and beam configurations, each offering unique benefits and aesthetic qualities. The choice of design often reflects the bridge's intended use, the environment it inhabits, and the budget available for construction.
Steel is often the preferred material for pedestrian bridges for several reasons:
Strength-to-Weight Ratio: Steel provides excellent strength while being relatively lightweight, allowing for longer spans without the need for excessive support. This characteristic is particularly beneficial in urban areas where space is limited, and minimizing the number of supports can enhance pedestrian flow and safety.
Durability: Steel is resistant to many environmental factors, including weather and corrosion, especially when treated with protective coatings. This durability ensures that the bridge can withstand harsh conditions over time, reducing the need for frequent repairs and maintenance.
Design Flexibility: Steel can be fabricated into various shapes and sizes, accommodating different design requirements and aesthetic preferences. This flexibility allows architects and engineers to create visually striking structures that can become landmarks in their communities.
Before construction begins, a thorough site assessment is crucial. This involves evaluating the location for:
Topography: Understanding the landscape helps determine the bridge's design and necessary supports. A detailed topographical survey can reveal potential challenges, such as steep slopes or unstable ground, which may influence the design and construction methods.
Soil Conditions: Soil stability is vital for the foundation; geotechnical studies may be required. These studies assess the soil's load-bearing capacity and identify any potential issues, such as the presence of groundwater or loose soil, which could affect the bridge's stability.
Environmental Impact: Assessing the potential impact on local wildlife and ecosystems is essential for compliance with regulations. Environmental assessments help identify sensitive areas that may require special consideration during construction, such as habitats for endangered species or wetlands that need protection.
When designing a steel pedestrian bridge, several factors must be taken into account:
The bridge must be designed to support the expected pedestrian load, including potential additional loads from maintenance vehicles or emergency services. This involves calculating the maximum load the bridge will need to bear, which can vary based on the bridge's location and intended use. Engineers often use safety factors in their calculations to ensure the bridge can handle unexpected loads.
The bridge should complement its surroundings. Consider the architectural style of nearby structures and the natural landscape. A well-designed bridge enhances the visual appeal of the area and can even become a tourist attraction. Incorporating local materials or design elements can help the bridge blend seamlessly into its environment.
Incorporating safety features is paramount. This includes:
Railings: To prevent falls, railings should be installed at appropriate heights and designed to withstand lateral forces. The design of railings can also contribute to the overall aesthetic of the bridge, with options ranging from simple metal bars to intricate designs that reflect local culture.
Lighting: Adequate lighting improves visibility and safety during nighttime use. Thoughtful lighting design can enhance the bridge's appearance at night, creating a welcoming atmosphere for pedestrians.
Non-slip Surfaces: The walking surface should be designed to minimize slipping, especially in wet conditions. Various materials can be used for the decking, each offering different levels of traction and durability.
Once the design is finalized, the steel components are fabricated. This process typically involves:
Cutting and Shaping: Steel plates and beams are cut to size and shaped according to the design specifications. Advanced technologies such as laser cutting and CNC machining can ensure precision and reduce waste during fabrication.

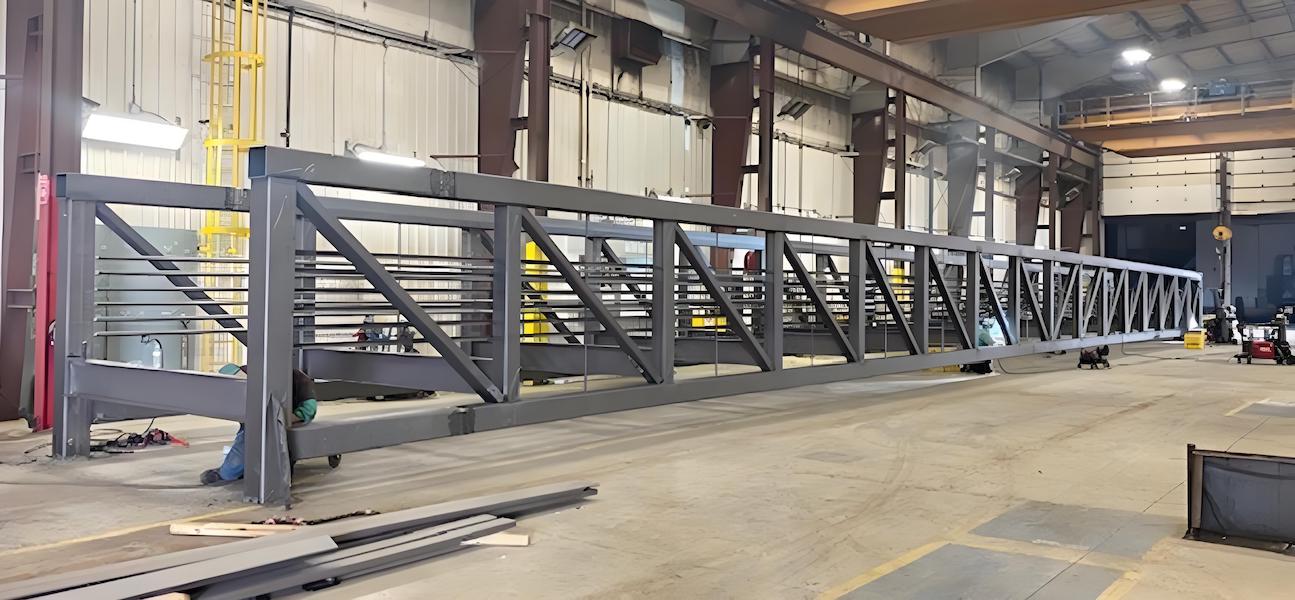

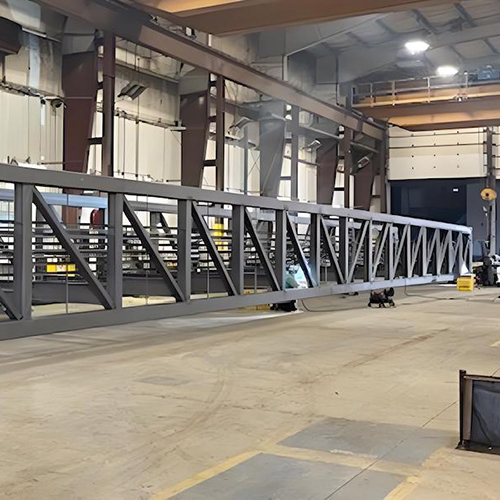

Welding and Assembly: Components are welded together to form larger sections of the bridge, often done in a controlled factory environment to ensure quality. This off-site fabrication can speed up the construction process and improve safety by minimizing on-site welding.
After fabrication, the steel sections are transported to the construction site. This requires careful planning to ensure that the components can be safely moved and positioned. Transportation logistics may involve specialized vehicles and routes, especially for large or heavy components that cannot be easily maneuvered through urban areas.
The foundation is critical for the stability of the bridge. Depending on the site conditions, foundations may include:
Concrete Footings: These provide a stable base for the bridge supports. The size and depth of the footings are determined by the load requirements and soil conditions.
Piers and Abutments: These structures support the bridge and transfer loads to the ground. Proper design and construction of piers and abutments are essential to prevent settlement or shifting over time.
The assembly process involves:
Erection of Steel Components: Using cranes, the fabricated steel sections are lifted into place and secured. This phase requires skilled operators and careful coordination to ensure safety and accuracy during the lifting process.
Connection of Components: Bolts and welds are used to connect the various parts of the bridge, ensuring structural integrity. Quality control measures are essential during this phase to verify that all connections meet engineering standards.
Once the main structure is in place, the decking is installed. This can be made from various materials, including:
Steel Grating: Provides a durable, slip-resistant surface. Steel grating allows for drainage, reducing the risk of water accumulation on the bridge.
Wood Planks: Offers a more natural aesthetic but requires more maintenance. Wood can provide warmth and character to the bridge, making it more inviting for pedestrians.
Before the bridge opens to the public, thorough safety inspections are conducted. This includes checking:
Structural Integrity: Ensuring all connections are secure and the structure is stable. Engineers may use advanced techniques such as non-destructive testing to assess the quality of welds and materials.
Safety Features: Verifying that railings, lighting, and non-slip surfaces meet safety standards. Any deficiencies identified during inspections must be addressed before the bridge can be opened.
To integrate the bridge into its environment, landscaping may be performed. This can include planting vegetation around the bridge, adding seating areas, or creating pathways leading to the bridge. Thoughtful landscaping can enhance the user experience and encourage more pedestrian traffic.
Once all inspections are complete and any necessary adjustments have been made, the bridge can be officially opened. A public ceremony may be held to celebrate the completion of the project and its benefits to the community. This event can foster a sense of ownership and pride among local residents.
To ensure the longevity of the steel pedestrian bridge, regular inspections are essential. This includes checking:
Corrosion: Steel should be inspected for signs of rust, especially in areas where water may accumulate. Regular maintenance can prevent minor issues from becoming major problems.
Structural Damage: Any signs of wear or damage should be addressed promptly to prevent further issues. This proactive approach can extend the life of the bridge and ensure ongoing safety for users.
Routine maintenance practices can extend the life of the bridge, including:
Cleaning: Removing debris and dirt from the bridge surface and components. Regular cleaning helps maintain the bridge's appearance and prevents the buildup of materials that could cause corrosion.
Repainting: Applying protective coatings to prevent corrosion and maintain aesthetic appeal. Repainting should be scheduled based on the condition of the existing paint and environmental factors that may accelerate wear.
Building a steel pedestrian bridge is a complex but rewarding endeavor that enhances connectivity and accessibility in communities. By carefully considering design, construction, and maintenance, engineers and builders can create structures that are not only functional but also beautiful and enduring. The successful completion of a pedestrian bridge can significantly improve the quality of life for residents and visitors alike, providing safe passage and enhancing the overall landscape. The bridge stands as a testament to engineering excellence and community commitment, fostering connections that bring people together.
The costs can vary widely based on factors such as design complexity, materials used, location, and labor. On average, the cost can range from $100 to $500 per square foot. Additional expenses may include site preparation, foundation work, and landscaping.
The construction timeline can vary depending on the bridge's size and complexity. Generally, a small to medium-sized pedestrian bridge can take anywhere from a few months to over a year to complete, including planning, design, and construction phases.
Permits typically required include zoning permits, environmental impact assessments, and construction permits. The specific requirements can vary by location, so it's essential to consult local regulations and authorities before starting the project.
Safety measures during construction include using proper scaffolding, ensuring all workers wear personal protective equipment (PPE), conducting regular safety meetings, and following strict protocols for lifting and securing steel components. Additionally, inspections should be performed at various stages of construction to ensure compliance with safety standards.
Regular maintenance includes inspections for corrosion, structural integrity, and wear. Cleaning the bridge surface, repainting protective coatings, and ensuring that drainage systems are clear are also essential tasks. Scheduled maintenance can help extend the bridge's lifespan and ensure safety for users.
