In modern infrastructure, speed and load capacity are the two most critical metrics for success. When disaster strikes, or when remote logistics require rapid heavy-duty access, the Reinforced Bailey Bridge serves as the industry gold standard. At Evercross Bridge, we don't just supply steel; we provide engineered solutions that ensure resilience, safety, and rapid deployment on a global scale [ibeehivesteelstructures] [linkedin].
This comprehensive technical guide explores how Bailey Bridge reinforced chords function, their vital role in heavy-load logistics, and the precise assembly methodologies required to maximize their performance.

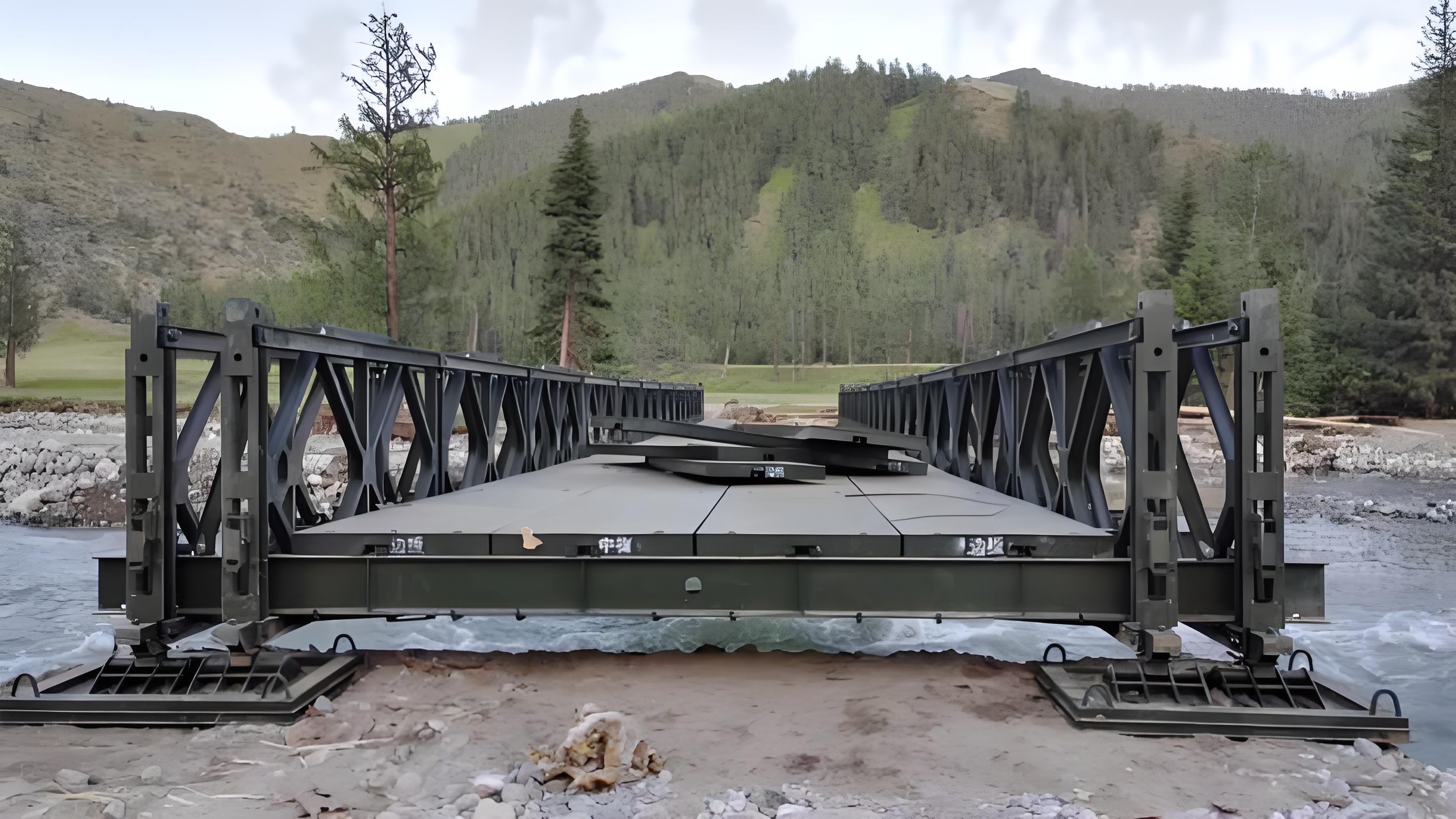

The classic Bailey Bridge is renowned for its modular, truss-based design. However, there are scenarios—such as moving heavy machinery, supporting public utility transport, or ensuring infrastructure endurance in disaster-prone areas—where standard load capacities are insufficient [baileybridgesolution] [engineeringmanagementinstitute].
* Bending Resistance: Reinforcing chords function as external structural members bolted to the outer edges of the main trusses. By effectively increasing the moment of inertia, these components drastically enhance the bending resistance and overall shear capacity of the bridge [steelbaileybridges] .
* Dynamic Load Management: In a reinforced system, the load is more evenly distributed across the enhanced chord members and the core truss, reducing deflection during vehicle passage. This creates a stiffer, more stable riding surface, which is essential for heavy vehicular safety .
* Versatility in Application: These systems are modular, meaning bridge designers can choose to add reinforcement only to specific bays or across the entire span based on the load-bearing requirements of the project.
Assembly of a reinforced Bailey bridge is a systematic process that demands precision. Missing a single bolt sequence can compromise the structural load capacity.
Before starting, ensure all specialized hardware is present:
- High-Tensile Reinforced Chords: The primary members.
- Specially Engineered Chord Bolts: These are not standard fasteners; they are designed for high-stress connections.
- Connecting Support Frames: Essential for multi-row bridge configurations .
1. Strategic Pre-installation: For double or triple-row bridges, support frames must be installed on the reinforcing chords before they are bolted to the main truss. Once the chord is connected to the truss, the internal connection points become inaccessible .
2. Launching Preparation: Always utilize sloped/inclined chords at the ends of the bridge trusses. These serve as a guide to prevent snagging against rollers as the bridge is launched across a gap .
3. Optimization of Assembly Methods:
* The Pre-assembled Approach: By attaching reinforced chords to the truss panels *before* lifting, you significantly reduce the time spent in the air. While this increases the weight of individual sections and requires a higher-capacity crane, it is often the safest and fastest route for complex builds .
* The Incremental Approach: This involves building the truss first, then systematically adding reinforced chords in place. This is ideal for manual assembly in sites with limited crane access, though it is slower .
* Double-Layer Strategy: When building a double-story bridge, we recommend a hybrid lift: use a crane to lift the interior upper trusses together with their pre-installed reinforced chords to form a stable framework, then perform a separate lift for the exterior row .

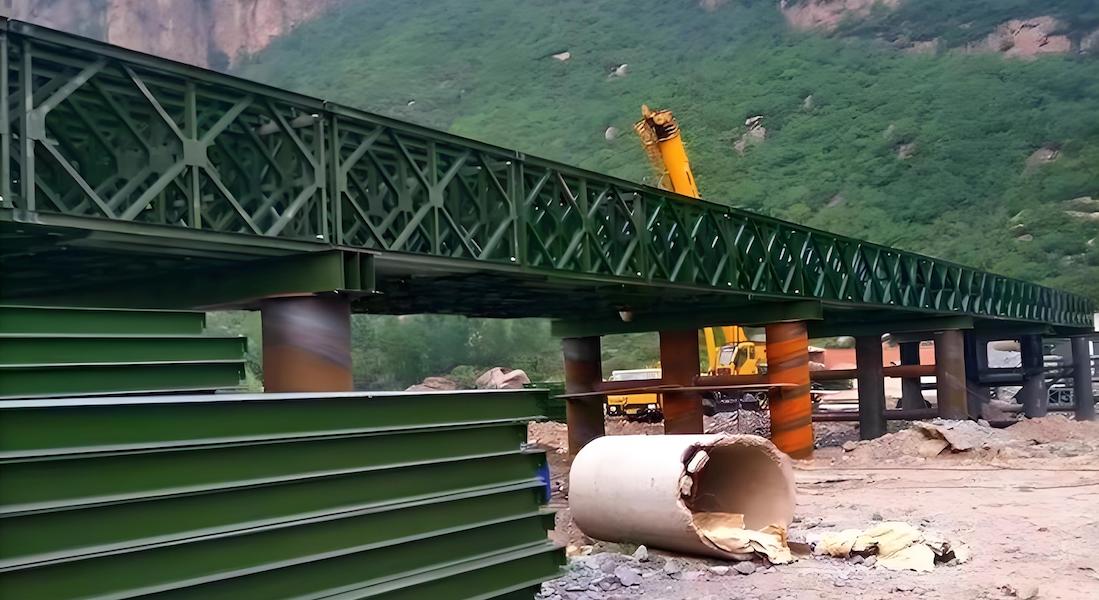

In a recent deployment scenario, a remote bridge was severely damaged by regional flooding. The site required a bridge capable of supporting heavy transport trucks for reconstruction efforts within a 72-hour window.
By utilizing a triple-truss reinforced Bailey configuration, the engineering team was able to:
- Exceed Load Targets: The reinforced design allowed the structure to carry 30% more load than a standard configuration.
- Maintain Stability: Despite turbulent currents underneath, the stiffened truss system provided superior resistance to lateral vibration and deflection.
- Rapid Restoration: Because the reinforced components are bolt-on, the bridge was functional within the required timeframe, proving that modular steel solutions are the superior choice for emergency infrastructure response [baileybridgesolution] [engineeringmanagementinstitute].
At Evercross Bridge, we recognize that there is no room for error in bridge engineering. Our quality management system covers every stage of the lifecycle:
Quality Pillar |
Our Approach |
Material Integrity |
Sourcing high-strength, certified structural steel linkedin. |
Precision Manufacturing |
Computer-aided CNC machining to ensure bolt hole alignment . |
Certified Processes |
Strictly adhering to ISO 9001 and international structural standards . |
Full Lifecycle Support |
Providing expert-led design, shipping, and technical assembly guidance steelbaileybridges. |
Reinforcing chords are not merely accessories—they are the key to unlocking the true heavy-duty potential of the Bailey bridge system. By understanding the structural requirements, adhering to precise assembly workflows, and partnering with experienced manufacturers like Evercross Bridge, organizations can ensure that their infrastructure remains resilient, regardless of the load or the terrain.
1. What is the primary technical advantage of using reinforced chords?
Reinforced chords dramatically increase the bending resistance of the bridge truss, allowing it to support heavier vehicles than a non-reinforced design can handle [steelbaileybridges] .
2. Can reinforced chords be added later to an existing Bailey bridge?
Yes, because of the modular design, reinforcing chords can typically be added as a retrofit to boost load capacity, provided the foundation and support structures are capable of handling the increased load rating .
3. Why is the order of installation for support frames critical?
In reinforced bridges, the tight structural layout means that once the reinforcing chord is bolted to the main truss, the specific connection bolts for the support frames become unreachable, making pre-installation mandatory .
4. How do I choose between pre-assembled and incremental assembly?
Choose the pre-assembled method when heavy lifting equipment is available for speed; choose the incremental method when space is restricted or when assembly must be performed manually .
5. How does Evercross Bridge support international project needs?
We offer a full-service package including professional structural design, high-quality production, secure global transport, and on-site technical installation guidance to meet strict safety standards .
