Bailey bridges are a remarkable engineering solution designed for rapid deployment and assembly in various environments, particularly in military and emergency situations. This article delves into the assembly process of Bailey bridges, exploring their components, assembly techniques, and practical applications in the field. Understanding the intricacies of Bailey bridges not only highlights their engineering brilliance but also emphasizes their importance in modern infrastructure.
Bailey bridges were developed during World War II by the British to provide a quick and efficient means of crossing obstacles such as rivers and ravines. Their design allows for easy transport and assembly, making them ideal for military operations and disaster relief efforts. The bridge consists of prefabricated steel panels that can be assembled without the need for heavy machinery, which is crucial in remote or challenging locations. The versatility of Bailey bridges has led to their use in various contexts, from temporary military crossings to permanent installations in civilian infrastructure. Their ability to be deployed quickly and effectively has made them a staple in engineering solutions for over seven decades.
The primary components of a Bailey bridge include:
Panels: The basic building blocks of the bridge, typically made of steel, which provide the necessary strength and rigidity. These panels are designed to interlock, creating a robust framework that can support significant loads.
Transoms: Horizontal beams that connect the panels and support the decking. Transoms play a critical role in distributing the load across the bridge, ensuring stability and safety during use.
Decking: The surface of the bridge where vehicles and pedestrians travel, often made of wooden planks or steel plates. The choice of decking material can vary based on the expected load and environmental conditions, impacting the overall durability of the bridge.
End Posts: Vertical supports at each end of the bridge that help transfer loads to the ground. These posts are essential for maintaining the structural integrity of the bridge, especially under dynamic loads such as moving vehicles.
In addition to the main structural elements, several other components are essential for the assembly and stability of the bridge:
Bracing: Diagonal supports that enhance the structural integrity of the bridge by preventing lateral movement. Bracing is crucial in ensuring that the bridge can withstand forces such as wind and seismic activity.
Lugs and Clamps: Connective elements that secure the panels and transoms together. These components are designed for quick assembly and disassembly, allowing for efficient setup and takedown of the bridge.
Sway Braces: Additional supports that help stabilize the bridge under load. Sway braces are particularly important in longer spans, where the risk of lateral movement increases.
Before assembly begins, a thorough site assessment is conducted to determine the best location for the bridge. Factors such as ground stability, water levels, and accessibility are evaluated. This initial phase is critical, as it ensures that the bridge will be safe and effective in its intended use. Once a suitable site is identified, the following steps are taken:
Clearing the Site: The area where the bridge will be assembled is cleared of debris and obstacles to ensure a safe working environment. This may involve removing vegetation, rocks, or any other impediments that could hinder the assembly process.
Setting Up Foundations: Depending on the terrain, temporary foundations may be established to support the bridge's end posts. These foundations are designed to distribute the load evenly and prevent settling or shifting over time.
The assembly of a Bailey bridge is a systematic process that can be completed by a small team of personnel using basic tools. The steps involved include:
The first step in the assembly process is to lay out the panels in the correct configuration. This involves:
Positioning the panels according to the desired length and width of the bridge. Careful planning at this stage ensures that the bridge will meet the required specifications for load capacity and span.
Ensuring that the male and female ends of the panels are aligned for proper connection. This alignment is crucial for the structural integrity of the bridge, as misalignment can lead to weaknesses in the overall structure.
Once the panels are laid out, they are connected using lugs and clamps. This step involves:
Securing the panels together to form the bridge's truss structure. The truss design allows for efficient load distribution, making the bridge capable of supporting heavy vehicles and equipment.
Ensuring that all connections are tight and secure to prevent any movement during use. Regular checks during this process help maintain the quality of the assembly.

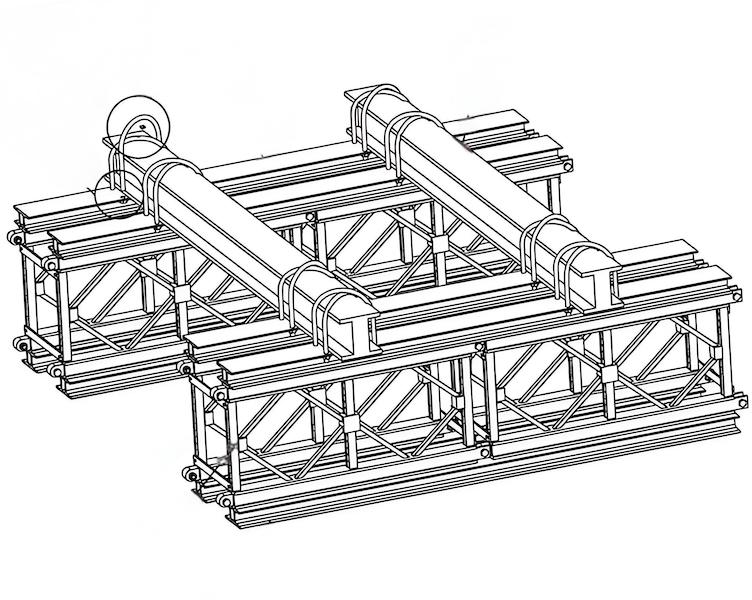

After the panels are connected, transoms are installed to provide additional support. This process includes:
Placing the transoms across the panels at regular intervals. The spacing of the transoms is determined by the expected load and the design specifications of the bridge.
Securing the transoms to the panels using bolts or clamps. Proper installation of transoms is vital for the overall stability of the bridge, as they help to prevent sagging and deformation under load.
With the truss structure in place, the next step is to install the decking. This involves:
Laying wooden planks or steel plates across the transoms to create a solid surface for vehicles and pedestrians. The choice of decking material can significantly affect the bridge's durability and maintenance requirements.
Ensuring that the decking is securely fastened to the transoms to prevent any shifting. This step is crucial for safety, as loose decking can pose a hazard to users.
Once the bridge is fully assembled, final adjustments are made to ensure stability and safety. This includes:
Inspecting all connections and components for any signs of weakness or instability. A thorough inspection helps identify potential issues before the bridge is put into use.
Making necessary adjustments to the bracing and sway braces to enhance the bridge's structural integrity. This final check ensures that the bridge can withstand the expected loads and environmental conditions.
Bailey bridges offer several advantages that make them a preferred choice for temporary and emergency crossings:
One of the most significant benefits of Bailey bridges is their ability to be assembled quickly. This feature is crucial in military operations and disaster response scenarios where time is of the essence. The rapid deployment capability allows for immediate access to critical areas, facilitating rescue and recovery efforts.
The modular design of Bailey bridges allows for easy transport. The components can be loaded onto trucks and transported to remote locations, making them ideal for use in areas with limited access. This portability ensures that Bailey bridges can be deployed wherever they are needed, regardless of the logistical challenges.
Bailey bridges can be configured to span various distances and support different load capacities. This versatility makes them suitable for a wide range of applications, from military use to civilian infrastructure projects. Their adaptability allows engineers to customize the bridge design to meet specific project requirements.
The assembly of Bailey bridges does not require heavy machinery, which is particularly advantageous in field conditions. A small team can complete the assembly using basic tools, reducing the logistical burden. This simplicity in assembly makes Bailey bridges an attractive option for organizations with limited resources.
Bailey bridges were initially designed for military applications, providing essential crossing capabilities for troops and equipment. They have been used extensively in combat zones and during military exercises. The ability to quickly establish a crossing can be a decisive factor in military operations, allowing for the rapid movement of forces and supplies.
In the aftermath of natural disasters, Bailey bridges can be deployed to restore access to affected areas. Their rapid assembly allows for quick response times, facilitating the delivery of aid and resources. In situations where traditional infrastructure has been compromised, Bailey bridges provide a vital lifeline for communities in need.
Beyond military and emergency use, Bailey bridges are also employed in civil engineering projects. They can serve as temporary solutions during road construction or bridge repairs, ensuring that traffic flow is maintained. Their use in civil projects demonstrates their versatility and effectiveness in a variety of contexts.
The assembly of a Bailey bridge in the field is a testament to innovative engineering and design. Its modular components, rapid deployment capabilities, and ease of assembly make it an invaluable resource in various situations. Whether for military operations, disaster relief, or civil engineering projects, Bailey bridges continue to play a crucial role in providing essential infrastructure when it is needed most. As engineering technology advances, the principles behind Bailey bridges remain relevant, showcasing the enduring legacy of this remarkable structure in modern engineering practices.
Bailey bridges are primarily used for military operations, disaster relief, and civil engineering projects. They provide quick and efficient crossing solutions in situations where traditional infrastructure is unavailable or compromised.
The assembly time for a Bailey bridge can vary depending on the size and complexity of the bridge, as well as the number of personnel involved. However, a standard Bailey bridge can typically be assembled in a few hours to a day, making it an ideal solution for urgent situations.
Bailey bridges are primarily constructed from steel, which provides the necessary strength and durability. The decking can be made from wooden planks or steel plates, depending on the expected load and environmental conditions.
Yes, Bailey bridges are designed to support heavy vehicles, including military trucks and equipment. The load capacity can be adjusted based on the configuration and materials used in the bridge's construction.
While Bailey bridges are primarily designed for temporary use, they can be adapted for permanent installations in certain situations. Their modular design allows for customization, making them a viable option for long-term infrastructure solutions in remote or challenging environments.
