Truss bridges remain one of the most efficient ways to span distance with strength, stability, and material economy. In this expert guide, we explain how a truss bridge works, why steel truss bridge systems are so effective, and how modern manufacturers like Evercross Bridge design, fabricate, transport, and install high-performance prefabricated steel bridge solutions for global infrastructure projects.

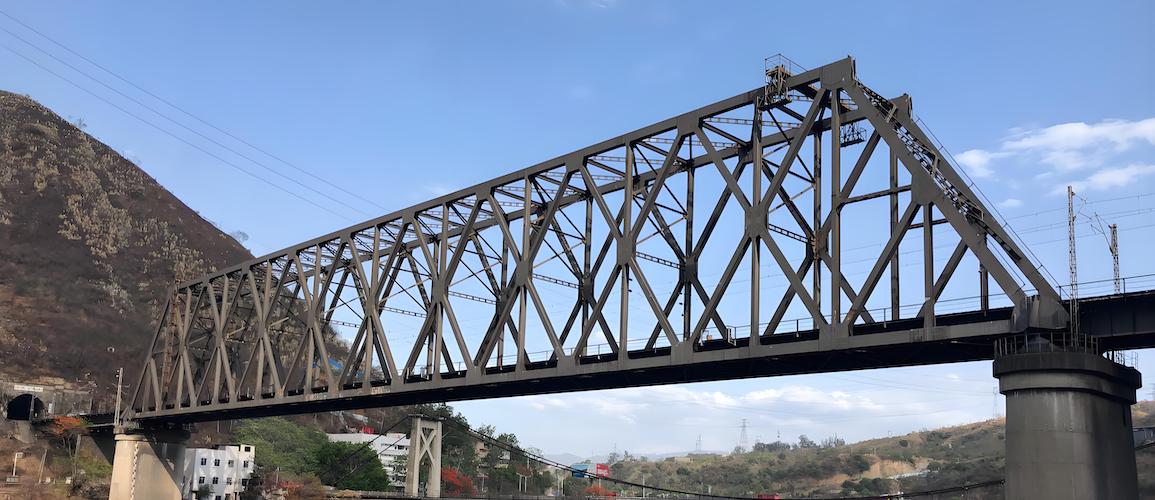

A truss bridge is a bridge whose main load-bearing system is a triangular framework of connected members. Those triangles are not just a visual feature; they are the reason the bridge can transfer forces efficiently through tension and compression rather than relying only on bending.
In simple terms, a truss bridge works by breaking a large load into many smaller forces that move through straight members. This makes the structure stiffer, lighter, and more efficient than many other bridge types for certain spans and applications.
The key to understanding a truss bridge is to understand load paths. When vehicles, pedestrians, or other live loads enter the bridge deck, that weight is transferred into the floor beams, then into the truss members, and finally into the abutments or piers that send the load safely to the ground.
- Compression pushes members together.
- Tension pulls members apart.
- Shear appears at connections and supports.
- Bending is reduced by the truss geometry, though not eliminated entirely in real structures.
The top chord usually carries compression, while the bottom chord usually carries tension. Diagonal and vertical members help move forces through the structure, and their internal force state depends on the truss type and loading condition.
Triangles are structurally efficient because a triangle cannot deform as easily as a square under load. When a force acts on a truss bridge, the triangular pattern spreads the force across multiple members instead of concentrating it in one point.
This is why truss bridges are often chosen when engineers want to achieve one or more of the following:
- A longer span with less material.
- Better stiffness than a simple beam bridge.
- A clear and predictable structural load path.
- A visually recognizable architectural profile.
For steel bridge systems, this efficiency matters even more. Steel offers a high strength-to-weight ratio, making it ideal for prefabricated truss bridge applications where transportation, rapid installation, and durability are critical.
A beam bridge is structurally simpler, but a truss bridge is usually better at handling longer spans and heavier demands because the load is distributed through a framework rather than one primary bending member.
Feature |
Truss Bridge |
Beam Bridge |
Structural system |
Triangular framework |
Horizontal beams |
Load transfer |
Tension and compression through multiple members |
Primarily bending |
Span efficiency |
Better for moderate to longer spans |
Best for short spans |
Material use |
Often more efficient |
Usually simpler, but less efficient over longer spans |
Visual character |
Distinctive, engineering-focused appearance |
Cleaner, simpler profile |
Typical applications |
Roadways, pedestrian bridges, emergency bridges, temporary access, industrial crossings |
Short pedestrian spans, low-complexity crossings |
For many infrastructure owners, the decision comes down to span length, load requirement, budget, site access, and installation speed.
Not all truss bridges are the same. Different layouts change how forces move through the bridge.
The Pratt truss uses diagonals that typically work in tension under gravity loading, which makes it efficient and widely used in bridge engineering.
The Warren truss uses a repeating triangular pattern with members that alternate force direction depending on the load case. It is valued for simplicity and material efficiency.
The Howe truss places diagonal members primarily in compression under typical loading. It is also common in certain steel bridge applications.
A Bailey bridge is a prefabricated modular truss system widely used for emergency bridge replacement, military logistics, disaster response, and rapid access restoration. This is especially relevant when speed matters more than architectural aesthetics.

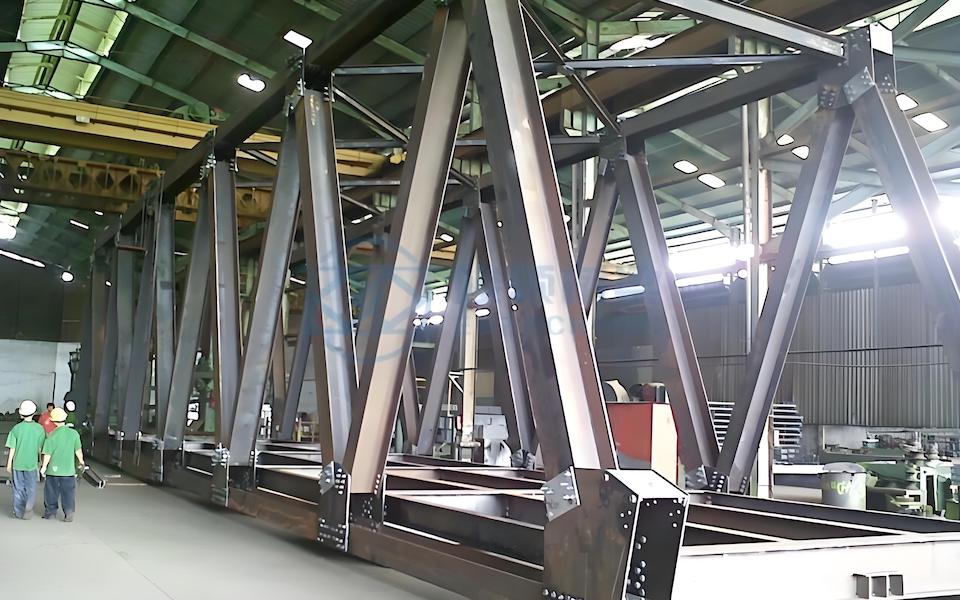

Steel truss bridges are not just a historic bridge type. They are still highly relevant because modern steel fabrication and prefabrication allow engineers to combine speed, precision, durability, and adaptability.
For export-oriented infrastructure projects, a steel truss bridge can offer several important advantages:
- High strength-to-weight efficiency.
- Factory-controlled quality.
- Faster site assembly.
- Better suitability for remote or difficult sites.
- Long service life when properly protected against corrosion.
At Evercross Bridge, these advantages are especially important because bridge projects often need to serve diverse climates, transportation constraints, and local construction capabilities across different countries.
A modern truss bridge is not designed by guesswork. Engineers use structural analysis software, design standards, and load assumptions to determine the best member sizes, connections, and support conditions.
- Span length and bridge width.
- Live loads, such as vehicles or pedestrian traffic.
- Dead loads, including the bridge self-weight and deck system.
- Environmental loads, such as wind, snow, flood, seismic, and temperature effects.
- Site conditions, including foundation type, access limitations, and installation method.
1. Define use case and span requirements.
2. Model the bridge geometry in structural software.
3. Apply design loads according to project standards.
4. Analyze force distribution in each truss member.
5. Select member sizes and connection details.
6. Verify fabrication, transport, and erection feasibility.
7. Finalize corrosion protection, decking, and installation plan.
This workflow is important because a bridge must perform not only in theory, but also in real-world manufacturing and field conditions.
Truss bridges are especially effective when the project demands a balance of span, strength, and practical construction efficiency. Typical applications include:
- Pedestrian bridges for parks, trails, and communities.
- Light vehicle crossings.
- Temporary access bridges.
- Emergency replacement bridges.
- Industrial and site-access crossings.
- Government infrastructure projects in remote areas.
For example, in regions where local construction resources are limited, prefabricated steel truss bridge systems reduce on-site complexity. That can shorten project timelines and improve consistency in quality control.
From an engineering and delivery perspective, the bridge type alone does not guarantee success. What matters is whether the manufacturer can handle design, production, logistics, installation support, and long-term project coordination.
That is where experienced bridge suppliers create measurable value. With more than 30 years of industry experience, Evercross Bridge has delivered more than 200 large government infrastructure projects across Southeast Asia, Africa, and Latin America. That kind of project experience matters because bridge work is rarely only about steel; it is about coordination, compliance, and execution.
- Can the supplier provide design, fabrication, transport, and installation support?
- Do they have proven export experience?
- Can they tailor the bridge to local load standards?
- Can they provide corrosion protection suitable for the environment?
- Can they show completed projects similar to yours?
These questions help buyers avoid hidden risk and select a partner who can actually deliver the bridge, not just the drawings.
Even the best steel truss bridge needs maintenance. Regular inspection helps preserve safety and service life.
- Connection points and gusset plates.
- Signs of corrosion or coating failure.
- Deck condition and drainage.
- Fatigue-sensitive areas.
- Bearing and abutment movement.
- Alignment of members and joints.
- Apply a corrosion protection system matched to the environment.
- Keep water from pooling on the deck.
- Inspect after storms, floods, or heavy use.
- Replace damaged components before they affect the full structure.
- Use a documented inspection schedule.
For owners, maintenance is not just an expense. It is a lifecycle strategy that protects the investment.
A good truss bridge is not simply strong. It is balanced. It should be efficient in materials, practical to fabricate, safe to erect, and suitable for the site environment.
In our view, the best truss bridge designs share five traits:
- Clear load paths.
- Simple and reliable connections.
- Efficient use of steel.
- Compatibility with transport and installation constraints.
- Long-term maintainability.
That is why bridge engineers still rely on truss systems for many modern projects, especially where performance and delivery speed both matter.
A truss bridge works by using triangles, tension, and compression to move loads efficiently from the deck to the foundation. Compared with many other bridge types, it remains a smart choice when the project needs structural efficiency, longer spans, and reliable prefabricated delivery.
If you are planning a steel truss bridge, Bailey bridge, or emergency bridge project, partner with a manufacturer that can support the full process from design through installation. Contact Evercross Bridge to discuss your span, load requirements, site conditions, and delivery timeline.
A truss bridge works by using a triangular framework to distribute weight through tension and compression, which reduces bending and improves stability.
Triangles are used because they are structurally stable and help transfer forces efficiently across the bridge instead of letting the structure deform easily.
The top chord usually carries compression, while the bottom chord usually carries tension.
Not always, but steel truss bridges are often better for longer spans, heavier loads, or projects where material efficiency and rigidity are important.
Truss bridges are commonly used for pedestrian bridges, light vehicle crossings, temporary access, emergency replacement, and remote infrastructure projects.
Service life depends on design, coating, maintenance, climate, and usage. With proper protection and maintenance, steel truss bridges can perform for decades.
