Bailey bridges, named after Sir Donald Bailey, who designed them during World War II, are a type of modular bridge that can be quickly assembled and disassembled. Originally intended for military use, these bridges have found applications in various civil engineering projects due to their versatility and ease of construction. This article explores the potential for using Bailey bridges in permanent installations, examining their design, advantages, limitations, and case studies.

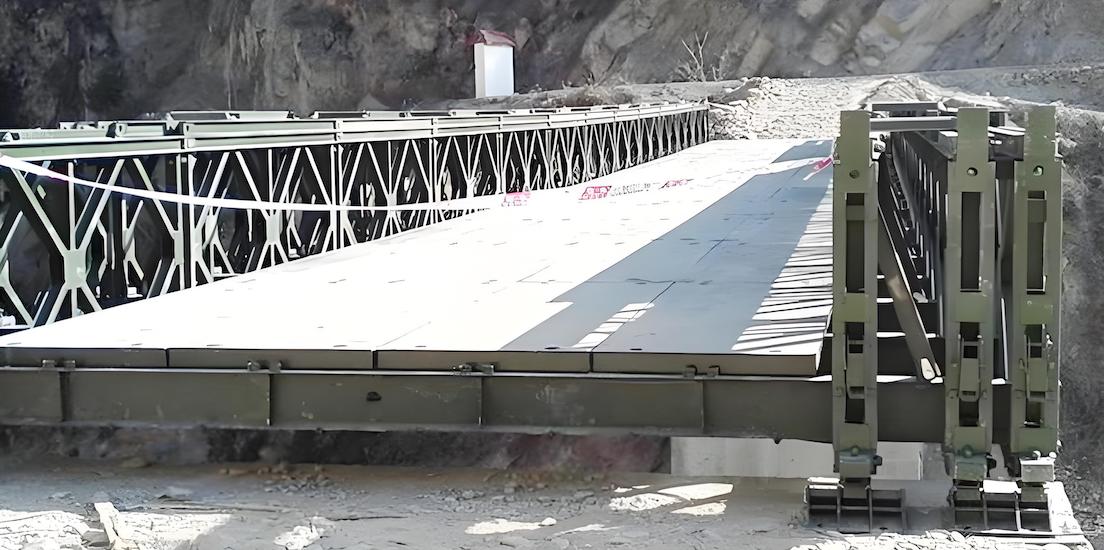

Bailey bridges are prefabricated, modular structures made from steel. They consist of a series of panels that can be assembled on-site to create a bridge capable of supporting vehicular and pedestrian traffic. The design allows for quick deployment, making them ideal for emergency situations or temporary crossings. The modular nature of these bridges means that they can be easily transported and assembled in various configurations, making them suitable for a wide range of applications, from military operations to civil engineering projects. Their ability to be disassembled and relocated also adds to their appeal, particularly in areas where infrastructure needs may change over time.
The design of Bailey bridges includes several key features that contribute to their functionality. The panels are typically made of rolled steel sections, which provide strength while keeping the weight manageable. The modular nature of the bridge allows for various configurations, enabling engineers to adapt the structure to different spans and load requirements. Each panel can be connected to others using simple pins and bolts, allowing for quick assembly without the need for specialized tools or equipment. This design not only facilitates rapid construction but also allows for easy repairs and modifications, ensuring that the bridge can be maintained effectively over its lifespan.

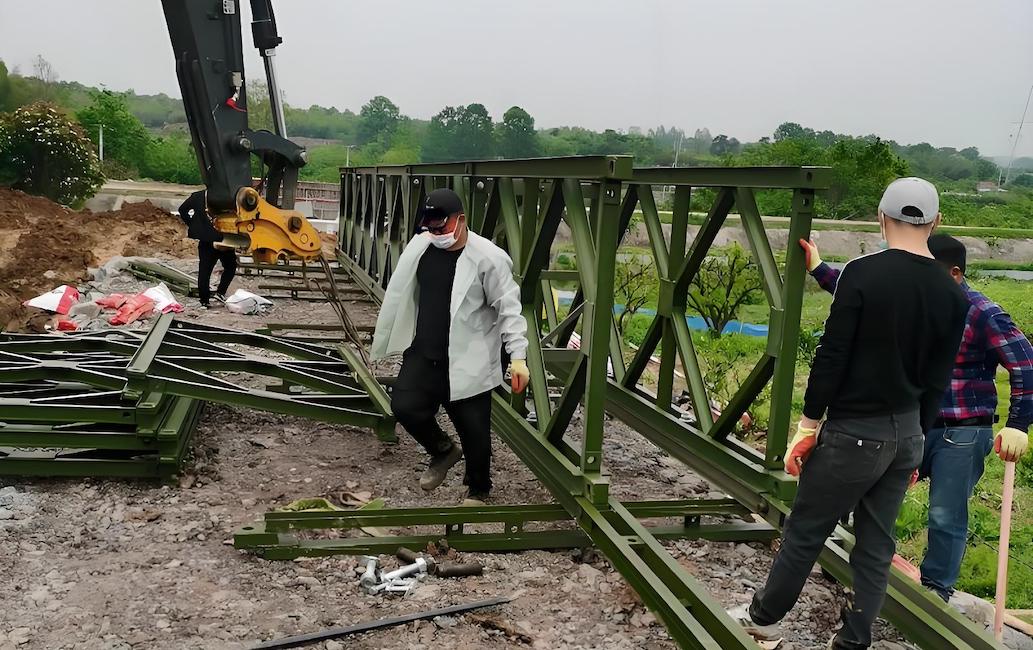

One of the most significant advantages of Bailey bridges is their ease of assembly and disassembly. The components can be transported to the site and assembled using basic tools, often without the need for heavy machinery. This feature makes them particularly useful in remote or challenging locations where traditional construction methods may be impractical. The ability to quickly set up a bridge can be crucial in disaster relief scenarios, where access to affected areas is needed urgently. Furthermore, the disassembly process is equally straightforward, allowing for the bridge to be relocated or stored when no longer needed, thus maximizing resource efficiency.
Bailey bridges can be a cost-effective solution for permanent installations. The materials used in their construction are relatively inexpensive compared to traditional bridge materials. Additionally, the quick assembly time reduces labor costs, making them an attractive option for budget-conscious projects. The overall lifecycle cost of a Bailey bridge can be lower than that of conventional bridges, especially when considering the reduced need for extensive site preparation and the potential for lower maintenance costs. This financial advantage is particularly appealing to municipalities and organizations with limited budgets for infrastructure development.
The rapid construction time associated with Bailey bridges is a significant advantage. In situations where a bridge is needed urgently, such as after a natural disaster, Bailey bridges can be deployed quickly to restore access. This speed can also be beneficial in permanent installations, allowing for faster project completion. The ability to have a functional bridge in place within days or weeks, rather than months or years, can significantly impact communities, enabling them to recover more swiftly from disruptions. This rapid deployment capability is a key factor in the decision to use Bailey bridges in both temporary and permanent applications.
Bailey bridges are highly versatile and can be adapted to various applications. They can be used for pedestrian walkways, vehicular traffic, and even railway crossings. This adaptability makes them suitable for a wide range of environments, from urban settings to rural areas. The modular design allows for customization based on specific site conditions and load requirements, making it possible to create bridges that meet the unique needs of different projects. This versatility extends to their use in various climates and terrains, demonstrating their effectiveness in diverse geographical locations.
The installation of a Bailey bridge typically requires minimal site preparation. Unlike traditional bridges that may need extensive foundation work, Bailey bridges can often be placed on existing ground conditions, reducing the need for excavation and other preparatory work. This characteristic not only speeds up the construction process but also minimizes the environmental impact associated with site preparation. By reducing the amount of earthmoving and material transport required, Bailey bridges can be a more sustainable option for infrastructure development, aligning with modern environmental standards and practices.
While Bailey bridges are functional, they may not always meet aesthetic standards for permanent installations. Their industrial appearance may not blend well with certain environments, particularly in scenic or historic areas. This limitation can be a significant factor in the decision-making process for permanent bridge projects. Communities often seek infrastructure that enhances their surroundings rather than detracts from them. As a result, engineers and designers may need to consider additional treatments or modifications to improve the visual appeal of Bailey bridges, such as incorporating landscaping or decorative elements that harmonize with the local environment.
Although Bailey bridges are designed to support significant loads, they may not be suitable for all applications. The load capacity of a Bailey bridge is determined by its design and the materials used. In cases where heavy traffic or large vehicles are expected, engineers must carefully assess whether a Bailey bridge can meet the required specifications. This assessment involves detailed calculations and simulations to ensure that the bridge can safely accommodate the anticipated loads over its intended lifespan. In some instances, additional reinforcements or modifications may be necessary to enhance the load-bearing capacity of the bridge.
While Bailey bridges are made from steel, which is inherently durable, their long-term performance can be affected by environmental factors. Corrosion, particularly in coastal or industrial areas, can compromise the integrity of the bridge over time. Regular maintenance and protective coatings may be necessary to ensure the longevity of a permanent installation. Engineers must also consider the potential for wear and tear from traffic and environmental conditions, implementing strategies to mitigate these effects. This proactive approach to maintenance is essential for preserving the structural integrity and safety of the bridge throughout its operational life.
In many developing regions, access to remote areas is often limited by the lack of infrastructure. Bailey bridges have been successfully used to provide permanent access to rural communities. In one notable case, a Bailey bridge was installed over a river that previously isolated a village. The quick installation allowed for immediate access to essential services, such as healthcare and education, significantly improving the quality of life for residents. This case illustrates how Bailey bridges can serve as a catalyst for economic development, enabling better connectivity and access to resources that were previously out of reach.
During natural disasters, urban areas often face significant challenges in maintaining transportation routes. In one instance, a Bailey bridge was used as a permanent solution to replace a damaged roadway bridge in a city. The rapid deployment of the Bailey bridge allowed for the restoration of traffic flow while a more permanent structure was planned and constructed. This case highlights the effectiveness of Bailey bridges in emergency situations that transition into long-term solutions. The ability to quickly restore connectivity can be crucial for emergency services and the overall recovery of the affected community.
Bailey bridges continue to be used in military applications, where rapid deployment and adaptability are crucial. In a recent project, a Bailey bridge was installed to provide a permanent crossing over a river on a military base. The bridge not only facilitated vehicle movement but also served as a training ground for soldiers in bridge construction and maintenance. This dual purpose enhances the operational capabilities of the military while providing a valuable resource for ongoing training and development. The use of Bailey bridges in military contexts underscores their versatility and effectiveness in various scenarios.
Before a Bailey bridge can be installed as a permanent structure, a thorough structural analysis must be conducted. Engineers must evaluate the load requirements, environmental conditions, and potential stresses the bridge will encounter over its lifespan. This analysis ensures that the bridge will perform safely and effectively. Advanced modeling techniques and simulations can be employed to predict how the bridge will behave under different conditions, allowing for informed design decisions that enhance safety and performance.
The choice of materials is critical in the construction of a permanent Bailey bridge. While steel is the primary material, engineers may consider using corrosion-resistant coatings or alternative materials to enhance durability. The selection process should take into account the specific environmental conditions where the bridge will be located. For instance, in areas prone to heavy rainfall or salt exposure, materials that resist corrosion and degradation will be essential for maintaining the bridge's integrity over time. This careful consideration of materials can significantly impact the long-term success of the installation.
For a Bailey bridge to function effectively as a permanent installation, a maintenance plan must be established. Regular inspections and maintenance activities are essential to identify and address any issues that may arise over time. This proactive approach can extend the lifespan of the bridge and ensure its safety for users. Maintenance plans should include routine checks for structural integrity, corrosion, and wear, as well as scheduled repairs and upgrades as needed. By prioritizing maintenance, stakeholders can ensure that the bridge remains a reliable and safe crossing for years to come.
As engineering technology advances, the design of Bailey bridges is also evolving. New materials and construction techniques are being explored to enhance the performance and aesthetic appeal of these structures. Innovations such as lightweight composites and modular designs may further expand the applications of Bailey bridges in permanent installations. These advancements could lead to bridges that are not only stronger and more durable but also more visually appealing, addressing some of the aesthetic concerns associated with traditional Bailey bridge designs.
The future of bridge construction may also involve the integration of smart technology. Sensors and monitoring systems can be incorporated into Bailey bridges to provide real-time data on structural health and traffic conditions. This information can help engineers make informed decisions about maintenance and upgrades, ensuring the longevity of the bridge. By leveraging technology, stakeholders can enhance the safety and efficiency of bridge operations, allowing for timely interventions that prevent potential issues before they escalate.
Sustainability is becoming an increasingly important consideration in construction. The use of Bailey bridges can align with sustainable practices by reducing the environmental impact of traditional bridge construction. Their modular nature allows for recycling and reuse, minimizing waste and promoting eco-friendly solutions. Additionally, the ability to quickly deploy and relocate Bailey bridges can reduce the carbon footprint associated with transportation and construction activities. As the construction industry continues to prioritize sustainability, Bailey bridges may play a pivotal role in meeting these goals.
Bailey bridges offer a unique solution for both temporary and permanent installations. Their cost-effectiveness, speed of construction, and versatility make them an attractive option for various applications. However, considerations such as aesthetics, load capacity, and durability must be carefully evaluated when planning for permanent installations. As engineering practices continue to evolve, the potential for Bailey bridges in permanent applications will likely expand, providing innovative solutions for infrastructure challenges around the world. The ongoing development of new materials, technologies, and design practices will further enhance the role of Bailey bridges in modern infrastructure, ensuring they remain a relevant and valuable option for future projects.
The typical lifespan of a Bailey bridge can range from 20 to 50 years, depending on environmental conditions and maintenance practices. Regular inspections are essential to identify any signs of wear, corrosion, or structural issues. Maintenance requirements may include repainting to prevent rust, tightening connections, and replacing damaged panels as needed.
Bailey bridges are generally more cost-effective than many other modular bridge systems due to their simpler design and quicker assembly time. While performance can vary based on specific designs and materials, Bailey bridges are known for their strength and versatility, making them suitable for a wide range of applications. However, other modular systems may offer enhanced aesthetic options or specialized features that could be beneficial in certain contexts.
The environmental impacts of Bailey bridges are relatively low compared to traditional bridge construction. Their modular design reduces the need for extensive site preparation and excavation, minimizing habitat disruption. Additionally, the materials used can often be recycled, and the quick installation process reduces the carbon footprint associated with construction activities. However, ongoing maintenance is necessary to prevent corrosion and ensure longevity.
Yes, Bailey bridges can be adapted for urban environments, although aesthetic considerations may need to be addressed. Engineers can incorporate design modifications, such as decorative elements or landscaping, to help the bridge blend into the urban landscape. Their modular nature allows for flexibility in design, making them suitable for various urban applications, including pedestrian walkways and emergency access routes.
Several factors should be considered, including the expected load capacity, environmental conditions, aesthetic requirements, and the specific site characteristics. Engineers must also evaluate the long-term maintenance needs and potential for corrosion based on the location. Additionally, community acceptance and regulatory requirements may influence the decision to use a Bailey bridge for permanent installations.
