When a project needs to support temporary utility pipelines, process pipes, or large-diameter pipe strings, the choice of structure matters as much as the pipe itself. In many cases, the debate comes down to Bailey type bridge systems versus custom girders for temporary utility pipe support.
From our experience at Evercross Bridge, the "best" solution is rarely the cheapest or the strongest on paper. It is the system that delivers the right balance of speed, load performance, span efficiency, site adaptability, and installation risk.
Temporary utility pipe support is not just a construction convenience. It is a safety-critical engineering decision that protects pipe integrity, maintains alignment, and helps crews work efficiently in difficult terrain.
In pipeline construction, utility relocation, refinery turnaround work, and emergency access projects, a support system must control vertical load, lateral movement, settlement, and side thrust torque. If the support is undersized or poorly configured, the consequences can include pipe deformation, coating damage, misalignment, and costly schedule delays.

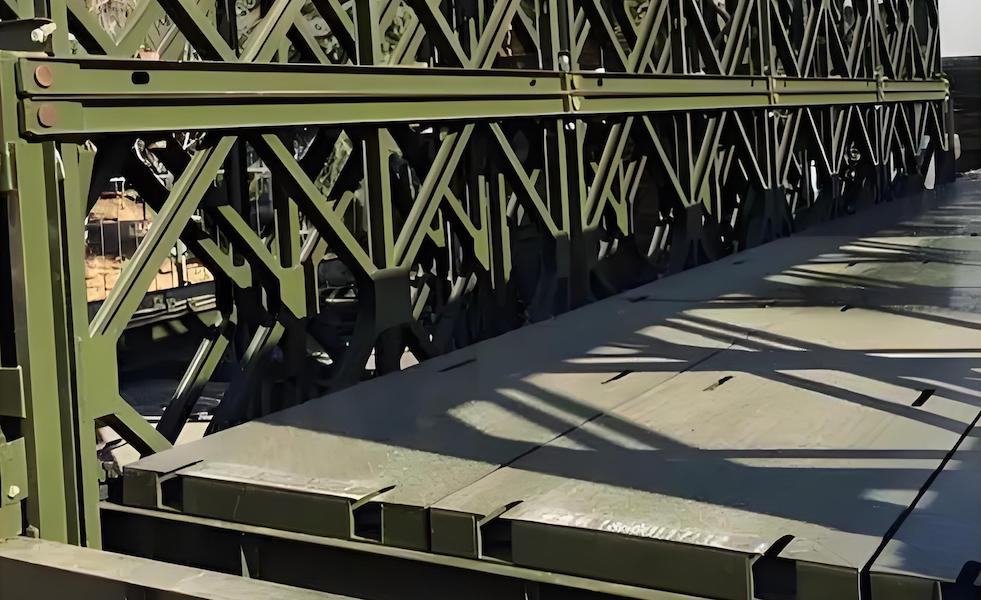

A Bailey type bridge is a modular prefabricated steel truss system originally developed for rapid assembly and transport. Its greatest advantage is that it can be erected quickly using standardized components, which is why it remains widely recognized in emergency, military, and temporary infrastructure applications. According to the U.S. FHWA report on prefabricated steel bridge systems, Bailey bridges are built from prefabricated modular panels that can be pinned or bolted together to form truss girders of the required length.
For temporary utility pipe support, this modularity is valuable when the project needs a fast-deploying crossing structure with repeatable installation logic. Bailey type systems are especially useful when the site is remote, the schedule is urgent, or the structure may need to be dismantled and reused elsewhere.
Custom girders are project-specific load-bearing steel members designed around the exact geometry, span, pipe load, and site constraints of the application. Unlike modular panel systems, custom girders are engineered to match a specific load path, support height, clearance requirement, and foundation condition.
For temporary utility pipe support, custom girders are often chosen when the project demands precise pipe elevation, fewer intermediate supports, higher stiffness, or unusual geometry. Custom utility or pipe support bridge solutions are also commonly marketed as fully customizable and capable of spanning long distances for municipal or industrial applications.
Factor | Bailey Type Bridge | Custom Girders |
Speed of deployment | Fast, thanks to modular prefabrication. | Slower if the design is project-specific and fabrication is required. |
Design flexibility | Good, but limited by modular panel dimensions. | Excellent, because the bridge is engineered to the exact site requirement. |
Span adaptability | Strong for repeated standard spans and multi-panel configurations. | Strong for unique spans, offsets, or special clearances. |
Pipe support fit | Best when pipe support needs align with modular bridge geometry. | Best when pipe line, elevation, or clearance needs are highly specific. |
Reuse potential | High, especially for repeat temporary jobs. | Medium to low, depending on future reusability. |
Lead time | Usually shorter. | Usually longer. |
Project risk | Lower on schedule, higher if geometry is non-standard. | Lower on geometry, higher on design/fabrication time. |

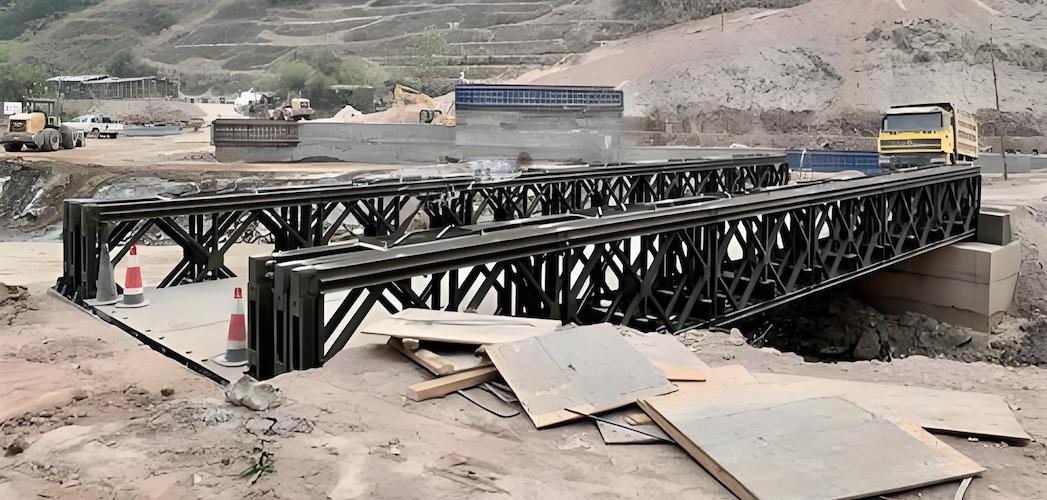

A Bailey type bridge is often the right answer when time is the dominant constraint. Because the system is modular, it can be prefabricated, shipped, and assembled quickly with standardized connections. FHWA notes that Bailey-style panel bridges were designed for rapid erection and multi-configuration use, which is why they remain a practical temporary structure type today.
For temporary utility pipe support, Bailey type bridges are especially attractive when you need:
- Rapid mobilization for emergency or schedule-critical work.
- Reusable modules for multiple projects.
- A field-proven structural concept with predictable assembly logic.
- A cost-effective temporary bridge solution for standard spans.
In our view, Bailey type bridge systems are strongest when the project team needs a proven, prefabricated, repeatable platform rather than a highly specialized one-off frame.
Custom girders are usually superior when the project demands exact structural tailoring. For example, if pipe size changes across the span, if clearance is tight, if the support must fit around existing equipment, or if the site geometry is irregular, a custom girder system may outperform a modular bridge.
Custom pipe support bridge providers emphasize that these systems can be fully customizable and designed to carry a variety of utility pipelines over long distances. That flexibility matters when the support must integrate with permanent structures, road crossings, plant piping corridors, or staging zones.
Custom girders are often the right choice when you need:
- Precise load distribution.
- Special pipe elevation or slope control.
- Unusual span geometry.
- Fewer site compromises.
If the site is complex, custom girders may reduce operational risk even if they take longer to fabricate.
In practice, the decision is not just about bridge type. It is about project risk allocation. The right answer depends on what is most expensive to get wrong: schedule, fabrication time, load margin, or field fit.
From an engineering standpoint, compare these variables first:
1. Pipe load and spacing.
2. Required clear span.
3. Allowable deflection.
4. Ground and foundation conditions.
5. Transport and crane access.
6. Need for future reuse.
A Bailey type bridge usually wins when the project needs a fast, modular answer. A custom girder usually wins when the project needs a precise, site-optimized answer. The best teams evaluate both through a whole-project lens instead of a unit-price lens.
One major shift in temporary infrastructure is that owners are no longer asking only, "Can it carry the load?" They are also asking, "How fast can it be installed, removed, reused, and documented?"
The FHWA report highlights that prefabricated steel bridge systems evolved from military-era rapid deployment concepts into systems used for temporary, emergency, and even permanent applications. At the same time, modern utility and pipe bridge providers increasingly emphasize customization and project-specific engineering.
That tells us the market is moving in two directions at once:
- Modular systems are becoming more efficient and field-ready.
- Custom systems are becoming more application-specific and performance-focused.
For global contractors and EPC teams, that means sourcing strategy should match the project profile, not a generic product category.
If you want a simple rule, use this:
- Choose a Bailey type bridge when the project is urgent, the span is repeatable, and modular speed matters most.
- Choose custom girders when the pipe arrangement is unusual, clearance is tight, or structural optimization matters more than speed.
A practical selection workflow looks like this:
1. Confirm pipe diameter, operating weight, and temporary load cases.
2. Measure the clear span and required support elevations.
3. Check the site access for transport, assembly, and crane work.
4. Decide whether reuse across multiple projects is likely.
5. Compare fabrication lead time against project deadlines.
6. Review inspection, installation, and removal plans before purchase.
This is the stage where a manufacturer with both design capability and fabrication capacity can add real value.
Evercross Bridge brings a strong advantage to temporary steel bridge projects because the company combines bridge design, production, transport, and installation support under one roof. With more than 30 years of experience, service in over 50 countries, annual capacity of 100,000 tons, and more than 200 large government infrastructure projects delivered across Southeast Asia, Africa, and Latin America, the company is positioned to handle both standard and highly customized steel bridge demands.
That matters for temporary utility pipe support because many projects fail not in design, but in execution. A capable supplier should understand load performance, shipping constraints, field assembly, and installation sequencing — not just steel fabrication.
If your priority is rapid deployment, modular reuse, and predictable assembly, a Bailey type bridge is often the smarter temporary utility pipe support solution. If your priority is site-specific engineering, tighter geometry control, and custom load optimization, custom girders usually deliver better long-term fit.
For many industrial owners and EPC contractors, the best answer is not either/or. It is selecting the system that best aligns with project risk, schedule pressure, and structural reality.
If you are planning a temporary utility pipe support project, contact Evercross Bridge to request a tailored engineering review, span recommendation, and fabrication plan for your site conditions.
A Bailey type bridge is a modular prefabricated truss system, while custom girders are project-engineered steel members designed for a specific site and load condition. Bailey systems are usually faster to deploy; custom girders are usually more precise.
A Bailey type bridge is usually faster because it uses standardized modules and repeatable assembly steps. Custom girders normally require more design and fabrication time before installation.
Custom girders are better when the pipe routing, support elevation, or site clearance is non-standard. They can be designed to match complex geometry more accurately.
Yes, but only if the system is properly engineered for the load case. Load capacity depends on span, panel configuration, support spacing, and structural design, so the actual rating must be checked by an engineer.
Not always. Custom girders can cost more upfront, but they may reduce project risk, rework, or installation delays. The real cost depends on schedule, reuse potential, and site complexity.
They are common in pipeline construction, utilities, refinery work, industrial plants, emergency restoration, and infrastructure replacement projects.
No. Price alone ignores installation speed, engineering fit, reuse value, and schedule risk. For temporary structures, the cheapest option can become the most expensive if it delays the project.
