The Bailey Bridge is a remarkable engineering achievement that has played a crucial role in infrastructure development since its inception during World War II. Known for its modular design and rapid deployment capabilities, the Bailey Bridge has become a staple in both military and civilian applications. This article explores the key features of Bailey Bridge design, highlighting its components, advantages, applications, and innovations.
The Bailey Bridge is a type of portable, pre-fabricated truss bridge. Its design allows for easy assembly and disassembly, making it ideal for temporary and permanent applications. The bridge consists of standardized steel panels that can be transported and assembled on-site without the need for heavy machinery. This modularity is one of the defining features of Bailey Bridge design.

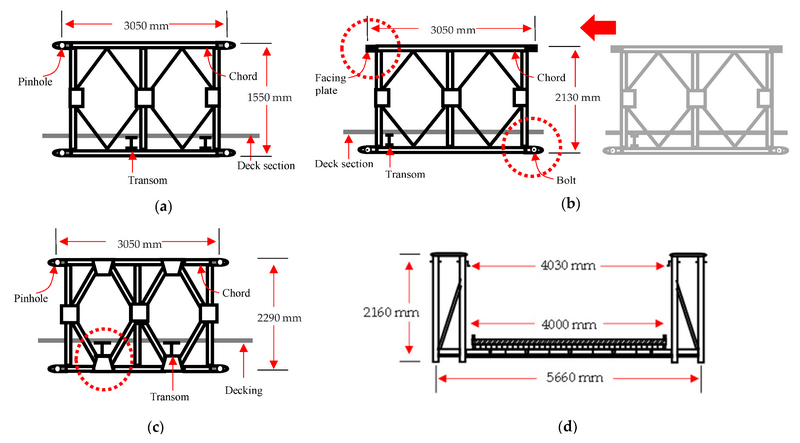

The design of a Bailey Bridge includes several key components, such as:

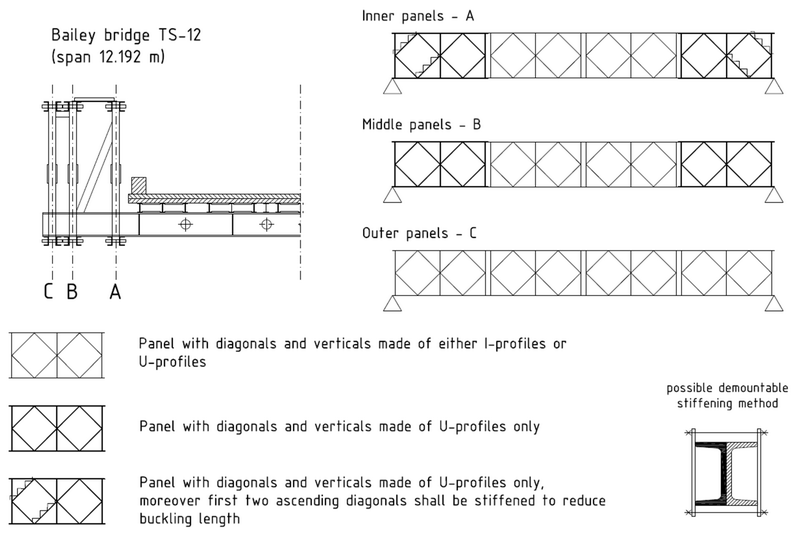

Truss Panels: The primary structural elements that provide strength and stability.
Decking: The surface on which vehicles and pedestrians travel, typically made from wooden or steel planks.
End Posts and Side Panels: These components help to secure the bridge structure and provide additional support.
One of the primary advantages of Bailey Bridge design is its speed of construction. A team can assemble a Bailey Bridge in a matter of days, depending on the size and complexity. Additionally, the modular design allows for flexibility in configuration, accommodating various spans and load requirements. This adaptability makes the Bailey Bridge suitable for a wide range of applications, from military operations to civil engineering projects.
Bailey Bridges are used in various applications, including:
Military Operations: Their rapid deployment capabilities make them ideal for military logistics.
Disaster Relief: Bailey Bridges can be quickly installed to restore connectivity after natural disasters.
Civil Engineering Projects: They are often used in construction projects where temporary or permanent crossings are needed.
Over the years, the design of Bailey Bridges has evolved to incorporate modern materials and engineering practices. Innovations include the use of high-strength steel for improved durability and the integration of advanced design software to optimize structural performance. These advancements have enhanced the efficiency and effectiveness of Bailey Bridges in various applications.
In conclusion, the Bailey Bridge design is a vital engineering solution due to its numerous advantages, including rapid deployment, versatility, and ease of construction. Its historical significance and continued relevance in modern engineering make it a remarkable example of innovative design.
Bailey Bridges are primarily constructed from high-strength steel, which provides durability and load-bearing capacity.
The assembly time can vary, but a typical Bailey Bridge can be constructed in a matter of days, depending on the size and complexity.
Yes, Bailey Bridges can be used for both temporary and permanent installations, making them versatile for various applications.
The load capacity of a Bailey Bridge depends on its configuration and the number of panels used, allowing for a wide range of applications.
Yes, Bailey Bridges are still widely used in military and civilian applications around the world due to their effectiveness and efficiency.
