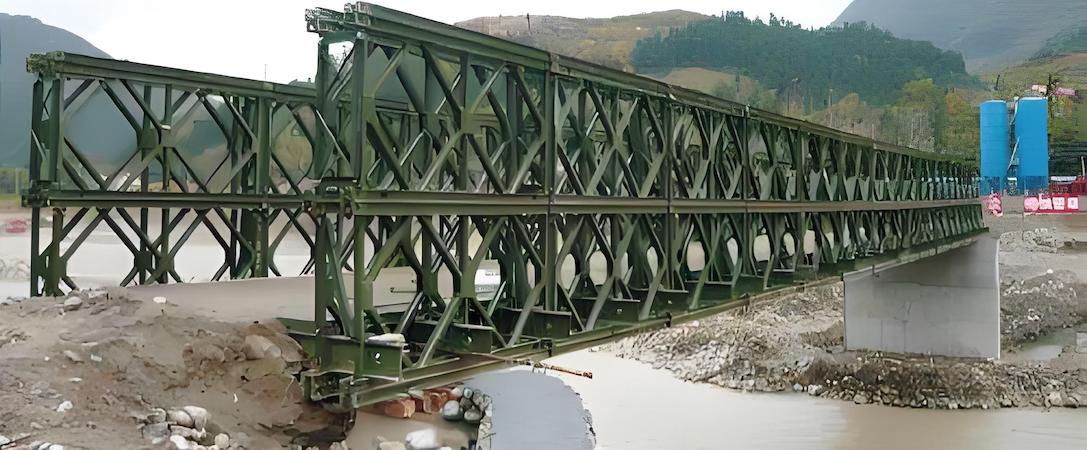

Bailey Bridges are portable, prefabricated steel truss bridges that have become essential in various applications, from military operations to humanitarian aid. Developed during World War II by Sir Donald Bailey, these bridges are designed for rapid assembly and deployment, making them invaluable in emergency situations. With an annual production capacity exceeding 10,000 tons, EVERCROSS BRIDGE stands among the top three manufacturers in China, collaborating with major enterprises like China Communications Construction Company and China Railway Group. This collaboration not only enhances the credibility of Bailey Bridges but also ensures that they meet the rigorous standards required for large-scale infrastructure projects.

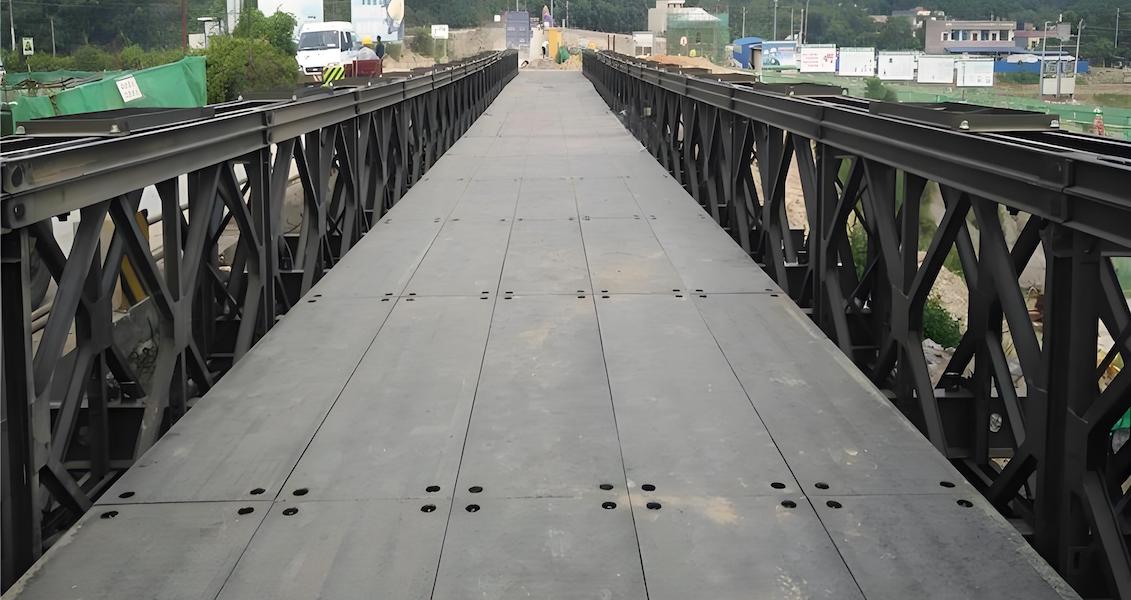

A Bailey Bridge is a modular bridge system that can be assembled quickly and efficiently. Its design allows for easy transportation and installation, making it ideal for temporary or permanent use in diverse environments. The bridge consists of prefabricated steel trusses, panels, and decking units, which are connected using bolts and pins, enabling rapid construction without the need for specialized tools. This modularity is particularly beneficial in remote areas where traditional construction methods may be impractical or too time-consuming.
● Portability: Lightweight and easy to transport, Bailey Bridges can be deployed in remote locations, making them ideal for disaster relief and military applications. Their design allows for quick disassembly and relocation, which is crucial in dynamic environments.
● Modularity: The modular design allows for customization based on specific site requirements. This flexibility means that Bailey Bridges can be adapted to various spans and load capacities, catering to the unique needs of each project.
● Durability: Made from high-strength steel, these bridges are resistant to environmental factors, ensuring longevity. The materials used in their construction are designed to withstand harsh weather conditions, making them suitable for use in diverse climates.
Bailey Bridges are utilized in various sectors, including:
● Military Operations: Used for rapid deployment in combat zones, Bailey Bridges provide essential infrastructure for troop movements and supply lines. Their ability to support heavy military vehicles makes them a critical asset in military logistics.
● Humanitarian Aid: Essential for providing access to isolated communities during disasters, these bridges facilitate the delivery of food, medical supplies, and other critical resources. In many cases, they are the first step in restoring normalcy after a disaster strikes.
● Infrastructure Development: Employed in road and rail construction projects, Bailey Bridges can serve as temporary solutions while permanent structures are being built. This capability helps maintain transportation links in areas undergoing development.
In recent years, Bailey Bridges have played a crucial role in disaster relief efforts. For instance, after the 2010 Haiti earthquake, these bridges were instrumental in restoring access to remote areas, facilitating the delivery of essential supplies and medical aid. Their rapid deployment capabilities allowed humanitarian organizations to set up operations quickly, ensuring that help reached those in need without delay. This case exemplifies the bridge's importance in crisis situations, highlighting its role in saving lives and rebuilding communities.
● Span: Suitable for short to medium spans, making it versatile for various applications. This model is particularly effective in situations where quick access is needed, such as in rural or disaster-stricken areas.
● Load Capacity: Designed for light to moderate loads, it is ideal for temporary crossings where heavy traffic is not anticipated. This makes it a popular choice for emergency situations where speed is more critical than load-bearing capacity.
● Dimensions: Panel heights of 1.83 meters (6 feet) provide a balance between strength and ease of handling, allowing for efficient assembly and disassembly.
● Span: Maximum free span of 60.96 meters (200 feet) for single-lane width, accommodating larger vehicles and higher traffic volumes. This model is particularly useful in urban settings where space is limited but traffic demands are high.
● Load Capacity: Enhanced design for heavier loads, making it suitable for more demanding applications, such as military logistics and heavy construction projects.
● Innovative Features: Joints are strategically placed to reduce deformation, ensuring structural integrity under load. This design consideration enhances the bridge's performance and longevity, making it a reliable choice for critical infrastructure.
● New 40-Meter Bailey Bridge Revolutionizes Travel in Rural Ethiopia
● 64-Meter D Type Single-Span Modular Steel Bridge Project in Somalia
● 45 sets of Compact-200 and 100 Bailey bridges to the Myanmar Railway Ministry
● 23 sets of Compact-200 Bailey bridges to the Ecuador Highway Department
● 40 sets of Bailey bridges to Colombia Government
● 500m modular bridges for Phnom Penh capital of Cambodia
● Rapid Deployment: Can be assembled in less than 24 hours, significantly reducing downtime in critical situations. This speed is essential in emergencies where every moment counts.
● Cost-Effective: Reduces the need for extensive construction resources, making it a budget-friendly option for temporary infrastructure. The lower labor and material costs associated with Bailey Bridges make them an attractive choice for governments and organizations with limited budgets.
● Versatility: Suitable for various terrains and conditions, Bailey Bridges can be adapted to meet the specific needs of different environments, from urban areas to remote rural locations.
Bailey Bridges represent a remarkable engineering solution that combines portability, durability, and ease of use. As a leading manufacturer, EVERCROSS BRIDGE is committed to providing high-quality, innovative bridge solutions that meet the demands of modern infrastructure projects. For more information or to discuss your project requirements, please reach out to us today. Our expertise and experience in the field ensure that we can deliver the best solutions tailored to your needs.
Bailey Bridges are primarily used in military operations, humanitarian aid, and infrastructure development. They are ideal for rapid deployment in emergency situations, providing essential access to remote areas during disasters, and serving as temporary or permanent solutions in construction projects.
A Bailey Bridge can typically be assembled in less than 24 hours, depending on the size and complexity of the installation. This rapid deployment capability makes it an excellent choice for emergency situations where quick access is critical.
The load capacities of Bailey Bridges vary by model. For example, the ESC-HD-100 model is designed for light to moderate loads, while the ESC-HD-200 model can support heavier loads, making it suitable for more demanding applications such as military logistics and heavy construction.
Yes, Bailey Bridges are designed to be versatile and can be adapted to various terrains and conditions. Their modular design allows for customization based on specific site requirements, making them effective in both urban and rural settings.
Bailey Bridges are primarily constructed from high-strength steel, which provides durability and resistance to environmental factors. The use of prefabricated components allows for quick assembly and disassembly, making them ideal for temporary or emergency use.
