Steel box girders are a crucial component in modern bridge construction, known for their strength, versatility, and efficiency. This article explores the advantages and disadvantages of steel box girders, providing insights into their applications and case studies that highlight their effectiveness in various engineering projects.

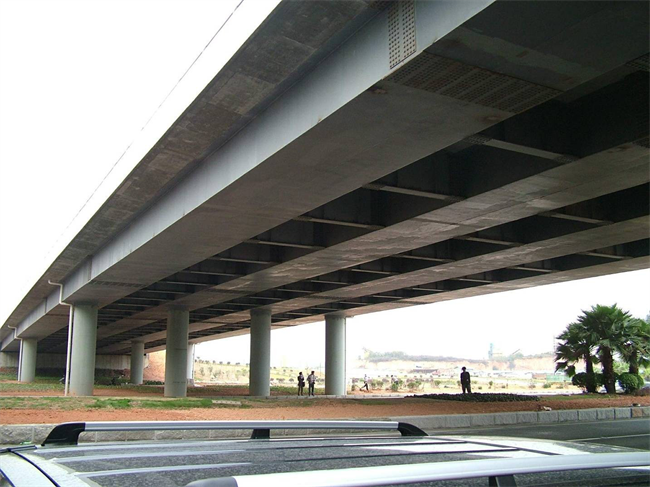

A steel box girder is a structural element characterized by its hollow, rectangular cross-section, which provides superior strength and stability compared to traditional I-beams. This design allows for longer spans and reduced material usage, making it an ideal choice for various bridge types, including highway, railway, and pedestrian bridges. The box girder's unique shape not only enhances its load-bearing capacity but also contributes to its overall structural integrity, allowing it to withstand significant forces and environmental stresses.
● High Strength-to-Weight Ratio: The hollow design minimizes weight while maximizing load-bearing capacity. This feature is particularly beneficial in applications where reducing the overall weight of the structure is critical, such as in long-span bridges where excessive weight can lead to increased foundation costs.
● Torsional Rigidity: Excellent resistance to twisting, making them suitable for curved bridge designs. This rigidity is essential in maintaining the structural integrity of bridges that experience lateral forces, such as those caused by wind or seismic activity.
● Aerodynamic Performance: Enhanced stability under wind loads, crucial for long-span bridges. The streamlined shape of box girders helps to reduce wind resistance, which is particularly important in regions prone to high winds or extreme weather conditions.
Steel box girders are designed to handle significant loads while maintaining a lightweight structure. This efficiency reduces the need for extensive support systems, allowing for longer spans and fewer piers, which can lower construction costs. The ability to span greater distances without intermediate supports not only enhances the aesthetic appeal of the bridge but also improves traffic flow by minimizing obstructions.

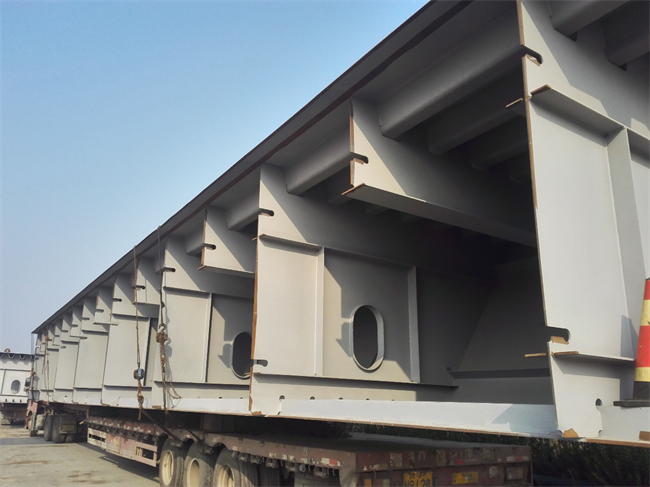

These girders can be customized for various applications, including:
● Curved Bridges: Their torsional stiffness makes them ideal for bridges with non-linear alignments. This adaptability allows engineers to design bridges that fit the specific topography and requirements of the site, leading to more innovative and functional structures.
● Composite Structures: Steel box girders can be combined with concrete decks to enhance performance and aesthetics. This combination leverages the strengths of both materials, resulting in a structure that is not only strong and durable but also visually appealing.
Steel box girders require less maintenance due to their enclosed design, which minimizes exposure to environmental elements. This feature reduces the risk of corrosion and extends the lifespan of the structure. Additionally, advancements in protective coatings and materials have further enhanced the durability of steel box girders, making them suitable for use in harsh environments, such as coastal areas or regions with extreme temperatures.
The clean lines of steel box girders contribute to the visual appeal of bridges, making them a popular choice for urban infrastructure projects where aesthetics are a priority. The ability to design box girders in various shapes and sizes allows architects and engineers to create iconic structures that enhance the surrounding landscape and contribute to the cultural identity of the area.
The complexity of fabricating steel box girders can lead to higher initial costs compared to simpler designs like I-beams. This includes the need for specialized equipment and skilled labor. While the upfront costs may be higher, the long-term benefits of reduced maintenance and increased durability can offset these initial investments over the lifespan of the structure.
While they are generally low-maintenance, accessing the interior of box girders for inspections and repairs can be challenging, potentially leading to increased long-term maintenance costs. Engineers must plan for adequate access points during the design phase to facilitate future inspections and maintenance activities, ensuring the longevity of the structure.
The design and construction of steel box girders require careful engineering to ensure structural integrity, particularly in curved applications. This complexity can lead to longer design times and increased project costs. Engineers must also consider factors such as load distribution, material properties, and environmental conditions, which can complicate the design process.
This project utilized composite steel box girders to replace an existing bridge, demonstrating superior span-to-depth ratios and flexibility in geometry. The new design improved traffic flow and safety while minimizing construction disruptions. The successful implementation of this project highlights the effectiveness of steel box girders in enhancing infrastructure while accommodating modern transportation needs.
The use of steel box girders in this project allowed for a wider bridge with pedestrian walkways, enhancing accessibility and safety. The design also incorporated aesthetic elements that aligned with the airport's modern architecture. This case study illustrates how steel box girders can be effectively integrated into high-profile projects, contributing to both functionality and visual appeal.
This innovative project employed high-performance weathering steel box girders, showcasing the advantages of reduced maintenance and enhanced durability. The design facilitated a continuous span structure, optimizing load distribution and minimizing deflection. The successful execution of this project demonstrates the potential of steel box girders to meet the demands of modern engineering challenges.
Steel box girders represent a significant advancement in bridge engineering, offering numerous advantages in terms of strength, versatility, and aesthetic appeal. However, their higher fabrication costs and maintenance challenges must be carefully considered during the design phase. By understanding both the advantages and disadvantages, engineers can make informed decisions that enhance the safety and longevity of bridge structures.
Steel box girders can vary significantly in dimensions and weight depending on their application and design requirements. Typically, the width of a steel box girder ranges from 1 to 3 meters, while the height can range from 0.5 to 2 meters. The weight of steel box girders can vary from 100 kg/m to over 1,000 kg/m, depending on the thickness of the steel plates used and the overall design. For long-span bridges, larger dimensions are often utilized to ensure adequate load-bearing capacity.
Welding techniques play a crucial role in the structural integrity of steel box girders. Common welding methods include MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), and submerged arc welding. Each technique has its advantages and disadvantages. For instance, MIG welding is faster and suitable for thicker materials, while TIG welding provides a cleaner finish and is ideal for thinner sections. The choice of welding technique can affect the girder's strength, fatigue resistance, and overall durability, making it essential to select the appropriate method based on the specific requirements of the project.
Recent innovations in corrosion protection for steel box girders in marine environments include the use of advanced coatings such as epoxy and polyurethane, which provide superior resistance to saltwater and humidity. Additionally, the development of weathering steel, which forms a protective rust layer that prevents further corrosion, has gained popularity. Cathodic protection systems, which involve applying a small electrical charge to the steel, are also being implemented to prevent corrosion. These advancements help extend the lifespan of steel box girders in harsh marine conditions.
When designing steel box girders for seismic regions, several factors must be considered, including:
● Torsional Stiffness: Ensuring the girder can withstand twisting forces during an earthquake.
● Ductility: Designing for sufficient ductility to allow the structure to deform without failing.
● Connection Design: Ensuring that connections between girders and other structural elements can accommodate movement and forces during seismic events.
● Material Selection: Using high-strength materials that can absorb and dissipate energy effectively.
● Foundation Design: Ensuring that the foundation can support the additional loads and movements caused by seismic activity.
Steel box girders generally have higher initial fabrication costs compared to traditional I-beams due to their complex design and manufacturing processes. However, they offer superior performance in terms of load-bearing capacity, torsional rigidity, and aesthetic appeal. Box girders can span longer distances with fewer supports, which can reduce overall construction costs in the long run. Additionally, their enclosed design often leads to lower maintenance costs over time, making them a cost-effective solution for many bridge applications despite the higher upfront investment.
