In the fast-paced world of global infrastructure, the ability to deploy robust, reliable, and rapid bridging solutions is a strategic necessity. The Bailey Bridge, a name synonymous with modular engineering, remains the most versatile prefabricated steel bridge system ever devised. Originally a military breakthrough for rapid deployment during World War II, the modern Bailey system has been re-engineered for 21st-century civil applications, from high-speed railway support to remote highway connectivity.
As a top 3 Chinese steel bridge manufacturer, EVERCROSS BRIDGE stands at the forefront of this industry. With an annual production capacity exceeding 10,000 tons, we don’t just manufacture components; we provide the backbone for critical infrastructure. This article provides an exhaustive technical analysis of Bailey panels, their structural logic, and their evolving role in global development.

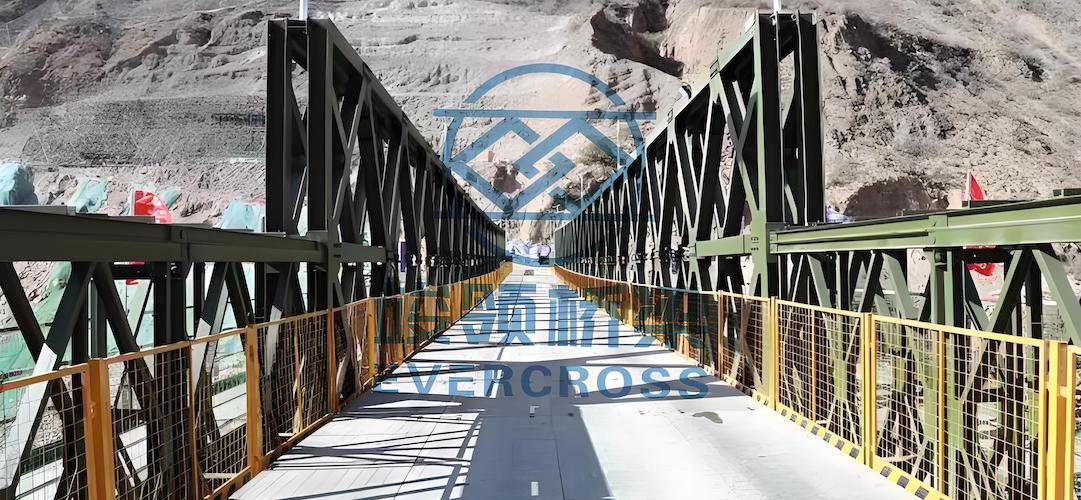

At the heart of every modular bridge lies the Bailey panel (or Bailey truss). Its design is a masterpiece of structural efficiency, balancing weight and load-bearing capacity through a sophisticated triangular truss configuration.
The performance of a Bailey bridge begins with the raw material. At EVERCROSS BRIDGE, we utilize high-tensile structural steel, primarily Q355B or Q345B (equivalent to European S355 or American ASTM A572).
●Q355B Excellence: This steel grade offers the perfect equilibrium between yield strength (355 MPa) and weldability. In cold climates or high-altitude projects—common in PowerChina’s hydroelectric developments—we utilize low-temperature impact-resistant steel to prevent brittle fractures.
●Chemical Integrity: We monitor carbon equivalents strictly. A lower carbon equivalent ensures that when we apply our advanced welding techniques, the heat-affected zone (HAZ) retains its structural integrity, preventing the long-term fatigue issues that plague inferior manufacturers.
While many manufacturers offer generic panels, EVERCROSS specializes in the two global standards:
●The 321-Type (International Standard): Measuring 3.048m by 1.448m, this is the classic "Bailey" dimension. It is optimized for versatility and can be handled by small crews with minimal heavy machinery.
●The 200-Type (High-Clearance): Standing at 2.134m tall, the 200-type panel offers increased stiffness and allows for larger internal clearances. This is the preferred choice for China Railway (CREC) projects where heavy equipment transport is a daily requirement.
●Chord Members: The horizontal top and bottom channels bear the massive bending moments. We reinforce these with thickened steel plates in our "heavy-duty" variants.
●Vertical and Diagonal Bracing: These members handle the shear forces. Their "K" or "N" shape configuration ensures that the truss remains rigid even under the eccentric loading of heavy trucks.
●The Panel Pin: Often overlooked, the pin is the single point of failure. We use 30CrMnSiA alloy steel for our pins, ensuring they can withstand shear forces that would snap ordinary steel.
The true genius of the Bailey system is its "Lego-like" scalability. Engineers do not need to design a new bridge for every span; they simply adjust the configuration of the panels.
The strength of a bridge is determined by how many panels are placed side-by-side (Rows) and how many are stacked vertically (Stories).
Configuration Code | Rows | Stories | Application Depth | Max Recommended Span |
SS (Single-Single) | 1 | 1 | Pedestrian walkways and light rural vehicle access. | 9 - 12 Meters |
DS (Double-Single) | 2 | 1 | Standard temporary highway detours for 20-ton loads. | 15 - 24 Meters |
TS (Triple-Single) | 3 | 1 | Heavy construction site access; supports concrete mixers. | 21 - 30 Meters |
DD (Double-Double) | 2 | 2 | High-stiffness requirements; used in railway support. | 24 - 45 Meters |
TD (Triple-Double) | 3 | 2 | The "Gold Standard" for long-span, heavy-haul routes. | 36 - 60 Meters |
By stacking panels vertically, we exponentially increase the "Moment of Inertia" of the bridge girder. This significantly reduces deflection (sagging). For CCCC’s overseas highway projects, where 50-ton multi-axle trailers are common, a TD (Triple-Double) configuration is often the only viable modular solution to ensure safety and meet international "Limit State" design criteria.
One of the biggest challenges in the bridge industry is the discrepancy between local manufacturing and international engineering standards. As a global exporter, EVERCROSS BRIDGE bridges this gap.
When we work on international government procurement projects, we adapt our production to the specific region's codes:
●AASHTO (American Association of State Highway and Transportation Officials): Common in the Philippines, Southeast Asia, and Latin America. We focus on the Load and Resistance Factor Design (LRFD) to ensure our steel thickness and pin tolerances meet US-standard safety factors.
●Eurocodes (EN 1993): Common in African and Central Asian projects (Belt and Road Initiative). Here, the focus is on "Execution Classes." EVERCROSS is certified for EXC3, meaning our bridges are approved for use in high-consequence structures where human life depends on absolute structural reliability.
China's own standards (GB50017) have become world-class due to the sheer volume of domestic infrastructure built by our partners like CREC. We provide a "Cross-Reference Certificate" that proves our GB-standard steel meets or exceeds the physical properties of ASTM or EN grades, simplifying the approval process for project consultants.
The ability to install a bridge without "touching the water" is the primary reason why Gezhouba Group and other hydropower giants use our systems.
●The Launching Nose: We attach a lightweight "nose" to the front of the bridge. This nose is longer than the gap's half-width and is angled upward to compensate for the natural "droop" of the steel as it hangs in the air.
●Roller Assembly: Heavy-duty rocking rollers and sliding rollers are placed on the "near bank." The bridge is assembled on these rollers.
●The Push: Using a winch or a simple bulldozer, the bridge is pushed across the gap. Because the weight is balanced by the assembly on the shore, the bridge remains stable.
●The Landing: Once the nose reaches the "far bank," it is guided onto receiving rollers. The nose is then disassembled, and the main bridge body is lowered onto its permanent bearings.
This method eliminates the need for expensive underwater foundations or massive 500-ton cranes, drastically reducing project costs for our clients.
In 2026, "Green Construction" is no longer optional. The modular steel bridge is the ultimate sustainable infrastructure tool.
●Reusability: A bridge used by CCCC for a 2-year highway diversion can be disassembled, inspected at an EVERCROSS facility, and sold or leased for a different project. This "Circular Infrastructure" model reduces the carbon footprint by over 70% compared to building a new concrete bridge for every site.
●Low Impact: Because the components are prefabricated, site noise is reduced, and there is zero "wet-work" (concrete pouring) in the river, protecting local aquatic ecosystems.
●Recyclability: At the end of its 70-year life, the steel is 100% recyclable, unlike reinforced concrete which often ends up in landfills.
Our bridges are currently serving in some of the world's most challenging environments:
●The "Belt and Road" Lifelines: Providing access to remote mining sites in Central Asia, supporting heavy equipment for CNOOC.
●Disaster Recovery: Following the floods in Southeast Asia, EVERCROSS supplied emergency kits to local governments within 15 days, restoring food and medical supplies to isolated villages.
●High-Speed Rail Detours: Working with CREC, our bridges carry temporary traffic so that permanent rail overpasses can be built without closing national highways.
●Urban Pedestrian Solutions: In rapidly growing cities, our Bailey panels are used to create "Quick-Build" pedestrian bridges to solve traffic congestion near subway stations.
While our bridges are "set and forget" for many, professional maintenance ensures a century of service. We provide our partners with a Digital Maintenance Manual:
●Torque Audits: Every six months, high-strength bolts should be checked with calibrated torque wrenches.
●Bearing Lubrication: Ensuring the expansion bearings are free of debris allows the bridge to breathe (expand and contract) with temperature changes.
●Visual Inspection of the "Tension Chord": The bottom row of panels is under constant tension. We teach site engineers how to use simple ultrasonic kits to check for "stress fatigue" in older bridges.
Choosing a Top 3 Manufacturer is about more than just the product; it’s about the security of your supply chain.
●Capacity Guarantee: With a 10,000-ton annual output, we can fulfill large-scale orders for international procurement that smaller factories simply cannot handle.
●SOE Trusted Partner: Our long-standing relationships with China’s Central Enterprises (CCCC, CREC, etc.) prove that our quality control survives the strictest state audits.
●In-House Engineering: We don't just sell parts; we provide full structural calculations, FEA (Finite Element Analysis) reports, and installation supervision.
The Bailey bridge is an enduring testament to the power of modular design. By combining the historical reliability of this system with EVERCROSS BRIDGE’s massive manufacturing scale and modern technological precision, we offer a solution that is faster than concrete, more flexible than traditional steel, and more sustainable than both.
From the high-altitude projects of PowerChina to the coastal installations of CNOOC, our bridges are proving that with the right partner, no gap is too wide to cross. We invite global engineers and project managers to experience the reliability that comes with being an industry leader.
The lifespan of a Bailey bridge depends primarily on its surface treatment and maintenance. For temporary installations (such as construction detours for CREC or CCCC projects), a standard painted finish can last 5 to 10 years. However, for permanent infrastructure, we utilize hot-dip galvanization, which extends the service life to over 50 years with minimal maintenance, even in corrosive coastal or humid environments.
The load capacity is highly customizable based on the bridge configuration (rows and stories of panels). A basic Single-Single (SS) configuration is suitable for light vehicles or pedestrians, while a Triple-Double (TD) or Double-Double (DD) configuration can easily support heavy-haul trucks and machinery exceeding 60 to 100 tons. Our designs comply with international standards such as AASHTO HS20-44 and Eurocode LM1, ensuring they meet the rigors of modern highway and railway demands.
Yes, one of the primary advantages of the modular steel bridge is its "crane-free" installation capability. Using the cantilever launching method, the bridge is assembled on one side of the river and pushed across using a launching nose and rollers. This allows for rapid deployment in remote areas where heavy cranes cannot reach, which is why our bridges are preferred by PowerChina and CGGC for remote hydroelectric and mining sites.
For a standard 321-type Bailey bridge, the practical limit for a single span is typically between 60 and 69 meters, depending on the load requirements. For gaps wider than this, we design multi-span structures supported by intermediate piers. Our engineering team can provide custom truss reinforcements and specialized chord members to maximize span length while maintaining structural safety.
As a top 3 Chinese manufacturer with an annual output of 10,000+ tons, we maintain a rigorous quality control system that meets ISO 9001, EN 1090, and AWS (American Welding Society) standards . Every batch of steel (typically Q355B) is traceable, and all critical welds undergo Non-Destructive Testing (NDT) . This level of compliance is why we are a trusted supplier for international government procurement and large-scale projects involving CNOOC and other state-owned enterprises
