In the high-stakes arena of global infrastructure, the structural integrity of a bridge is determined by the precision of its components. The choice between an H-beam and an I-beam is not merely an aesthetic or minor architectural preference; it is a fundamental engineering decision that dictates a bridge’s load-bearing capacity, its resistance to natural disasters, and its total lifecycle cost.
As EVERCROSS BRIDGE, a top-three specialized manufacturer in China with an annual production capacity exceeding 10,000 tons, we have witnessed firsthand how these structural choices play out in the world’s most demanding environments. Through our extensive collaborations with state-owned giants like CCCC (China Communications Construction Company), CREC (China Railway Group), and PowerChina, we have supplied critical steel components for massive railway, highway, and international procurement projects. This guide serves to bridge the information gap for engineers, procurement officers, and project managers, ensuring that every ton of steel serves its purpose with maximum efficiency.
To the untrained eye, H-beams and I-beams may look similar, but their geometric properties create entirely different mechanical profiles. Understanding these nuances is essential for adhering to international standards such as AASHTO LRFD or Eurocode 3.

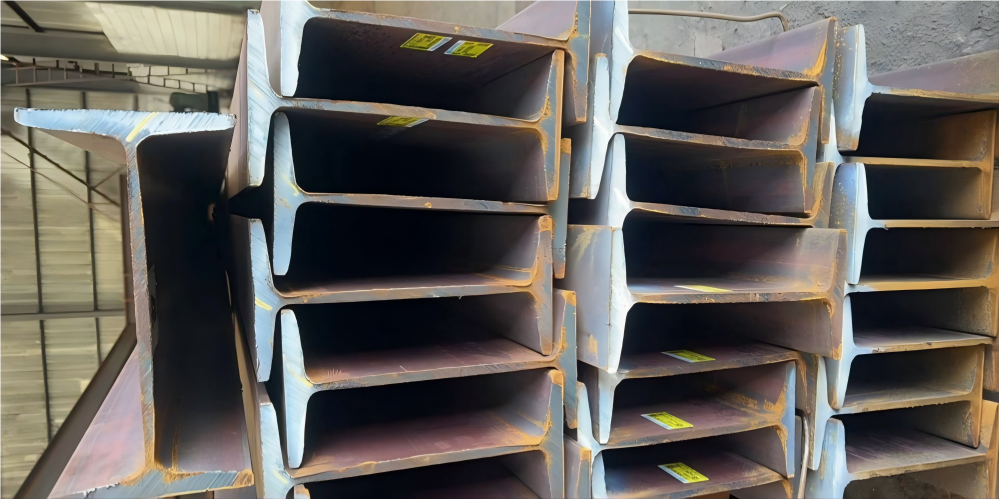

The I-beam is characterized by its "S" shape (Standard) or "I" shape, featuring narrow flanges that possess a distinct inner taper.
●The Tapered Flange: The inner surfaces of an I-beam's flanges are not parallel; they are thicker near the web and become thinner toward the edges, typically at a slope of about 1:10. This design is inherited from older rolling mill technologies and is primarily intended to handle vertical loads.
●Web-to-Flange Ratio: I-beams generally have a taller web relative to their flange width. This makes them exceptionally strong in a single direction (the vertical axis) but leaves them vulnerable to lateral (sideways) forces.
●Weight Efficiency: Because they use less steel in the flanges, I-beams are lighter. In bridge construction, they are often relegated to secondary support structures, such as bracing or shorter pedestrian spans where heavy lateral wind or seismic loads are not the primary concern.

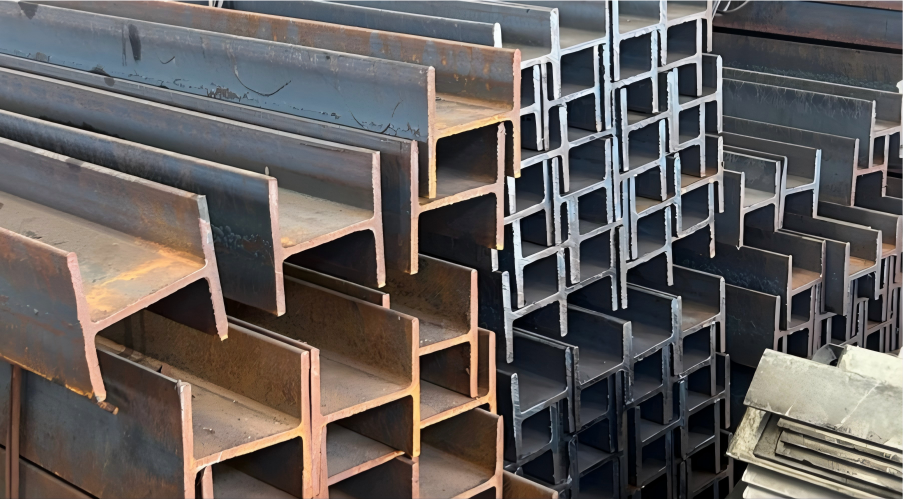

The H-beam is the "heavyweight" of the two, named for its resemblance to a capital letter "H."
●Parallel, Wide Flanges: Unlike the I-beam, an H-beam features flanges that are significantly wider and have parallel inner and outer surfaces. This uniform thickness across the flange width allows for much better stress distribution.
●The "Block" Profile: The wider flanges mean that the H-beam has a much higher Radius of Gyration and Moment of Inertia on its weak axis. In layman’s terms, it is much harder to twist or bend an H-beam sideways than an I-beam.
●Structural Versatility: The H-beam is the preferred choice for primary load-bearing girders in highway and railway bridges. At EVERCROSS BRIDGE, our 10,000-ton annual output is largely dominated by high-grade H-sections due to their dominance in modern large-span infrastructure.
To assist in the procurement process, the following table breaks down the core differences that impact project planning and material logistics.
Feature | I-Beam (S-Section) | H-Beam (Wide Flange) |
Flange Geometry | Narrow, tapered edges (sloped) | Wide, parallel surfaces (flat) |
Web Thickness | Generally thinner; optimized for weight | Thicker; optimized for shear resistance |
Manufacturing Process | Hot-rolled as a single, solid piece | Rolled or welded from three separate plates |
Lateral Stability | Low; prone to lateral-torsional buckling | High; excellent resistance to twisting |
Maximum Span Capacity | Ideal for spans under 30 meters | Capable of spans exceeding 100 meters |
Cross-Sectional Area | Smaller; uses less material per meter | Larger; more material for higher load capacity |
Best Application | Secondary beams, machinery, light industry | Main bridge girders, skyscrapers, offshore rigs |
Bridge engineering is a battle against gravity, wind, and dynamic movement. How a beam responds to these forces determines the safety of the millions who cross it.
The ability of a beam to resist bending is defined by its Moment of Inertia ($I$). Because H-beams distribute more of their steel mass further away from the neutral axis (in those wide flanges), they achieve a much higher $I$ value for both the vertical and horizontal axes. This is why H-beams are essential for bridges spanning wide rivers or deep valleys—they can carry more weight over longer distances with less deflection.
A common failure mode in steel bridges is when a beam twists under a heavy load before it reaches its full bending strength. Narrow I-beams are notoriously susceptible to this "twisting" effect unless they are heavily braced by cross-frames. H-beams, with their wider base, are inherently stable. For our partners like China State Construction (CSCEC), utilizing H-beams reduces the need for complex external bracing, which simplifies the assembly process and reduces labor costs on-site.
In bridge design, the "web" (the vertical part) handles the shear forces, while the "flanges" handle the bending. H-beams often feature thicker webs, making them more resilient against shear failure at the points where the bridge rests on its piers. This is a critical factor for the heavy-haul railway projects managed by CREC, where the weight of freight trains creates immense localized pressure.
In the factory, the difference between an H-beam and an I-beam becomes a matter of sophisticated metallurgy and fabrication technology. EVERCROSS BRIDGE employs two primary methods to produce these sections at our 10,000-ton capacity facility:
●Hot-Rolling: For standard sizes, steel billets are heated to over 1,000°C and passed through a series of rollers. While I-beams are easy to roll in one go, large-scale H-beams require advanced universal mills that can apply pressure to both the web and the flanges simultaneously.
●Built-up Welded Sections: For many of the "mega-projects" overseen by CCCC, standard rolled sizes are insufficient. We specialize in "Built-up H-beams," where three separate steel plates are joined using Submerged Arc Welding (SAW). This allows us to create custom dimensions—such as ultra-deep webs or extra-thick flanges—that are impossible to achieve via traditional rolling.
●Quality Control & Testing: Every beam that leaves our facility undergoes rigorous testing. We utilize Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI) to ensure that the weld seams in our H-beams have 100% penetration. This level of scrutiny is why we are a trusted supplier for CNOOC in offshore environments where a single weld failure could be catastrophic.
One of the most significant "information gaps" in standard steel articles is the behavior of these beams during an earthquake. In seismic-prone regions, the ductility of the bridge is paramount.
H-beams are the "gold standard" for seismic design. Because of their wide flanges and uniform thickness, they can undergo significant "plastic deformation" (bending without snapping) during a seismic event. This allows the bridge to absorb and dissipate the energy of the earthquake, rather than fracturing. In our work on international highway projects in Southeast Asia and South America, we exclusively recommend high-ductility H-beams for bridge piers and main spans to ensure they meet the strict seismic requirements of global procurement agencies.
For international buyers, the terminology can be confusing. EVERCROSS BRIDGE ensures full compliance across all major global frameworks:
●ASTM A6 (USA): Refers to H-beams as "W-shapes" (Wide Flange) and I-beams as "S-shapes" (American Standard).
●EN 10365 (Europe): Uses the terms HEB, HEA, and HEM for various H-sections and IPE for I-sections.
●GB/T 11263 (China): The standard we utilize for our large-scale domestic projects with CCCC and CREC, which is now highly harmonized with international ISO standards to facilitate global trade.
Our engineering team provides cross-standard mapping to ensure that if your design calls for an "HEB 500," we provide the exact equivalent in high-strength Chinese steel, fully certified by third-party inspectors like SGS or Intertek.
The debate between H-beams and I-beams is ultimately a debate about the future of a project. While the I-beam has its place in light construction and secondary supports, the H-beam is the engine of modern global infrastructure. Its superior strength, lateral stability, and seismic resilience make it the only logical choice for high-capacity highway, railway, and industrial bridges.
As a top-three Chinese manufacturer with a 10,000-ton annual output, EVERCROSS BRIDGE is more than a supplier. We are a technical partner to the world’s largest construction firms.
A: Generally, no. While an I-beam may be the same height, its narrower flanges mean it has a much lower Moment of Inertia and lateral stability. Replacing an H-beam with an I-beam without redesigning the entire support structure could lead to structural failure or excessive swaying.
A: Modern engineering favors H-beams because they allow for longer spans with fewer intermediate piers. This reduces the environmental impact on rivers and valleys and lowers the total cost of foundation construction, which is often the most expensive part of a bridge project.
A: H-beams are superior for seismic zones. Their wide flanges and thicker webs provide better ductility and energy absorption capacity. They can withstand the multi-directional forces of an earthquake far better than the relatively thin and narrow I-beam.
A: Yes. Unlike standard steel traders, as a manufacturer, we can produce welded H-beams (Plate Girders) to any specific height, width, and thickness required by your engineering drawings, ensuring 100% compliance with your project’s load requirements.
A: Yes. H-beams are easier to maintain because their flat surfaces allow for uniform paint application and easier inspection of weld seams. I-beams have "hidden" corners due to the flange taper, which can collect moisture and debris, making them more susceptible to localized corrosion if not properly coated.
