In today's era of rapid infrastructure development, steel box girders have become the ideal choice for long-span bridges, high-speed railway viaducts, and complex urban overpasses. Their popularity stems from their superior torsional stiffness, lighter weight compared to solid beams, and sleek, aesthetically pleasing appearance. However, the successful implementation of these structures depends entirely on the precision of the steel box girder formwork system.
As one of China's three leading manufacturers, EVERCROSS BRIDGE, with an annual production capacity exceeding 10,000 tons, is a leader in the development of high-performance formwork solutions. Our long-term partnerships with many industry giants in China enable us to continuously improve our engineering techniques to meet the most stringent international standards. This guide will delve into the technical components, superior manufacturing processes, and operational strategies of world-class steel box girder formwork.
The formwork system is not merely a "container" for concrete; it is a high-precision engineering tool that dictates the structural integrity, surface quality, and aerodynamic performance of the final bridge. In projects managed by Gezhouba Group or CNOOC, where environmental conditions can range from corrosive marine air to extreme temperature fluctuations, the formwork must perform with zero failure.
For a steel box girder, which often features complex internal reinforcement and prestressing tendons, the template must provide a perfectly stable environment. Any minor deflection in the steel panels during the pouring process can result in "honeycombing" of the concrete or, worse, structural misalignment that compromises the bridge's 100-year design life. At EVERCROSS BRIDGE, we view the formwork as the "genome" of the bridge—if the template is perfect, the structure will be flawless.

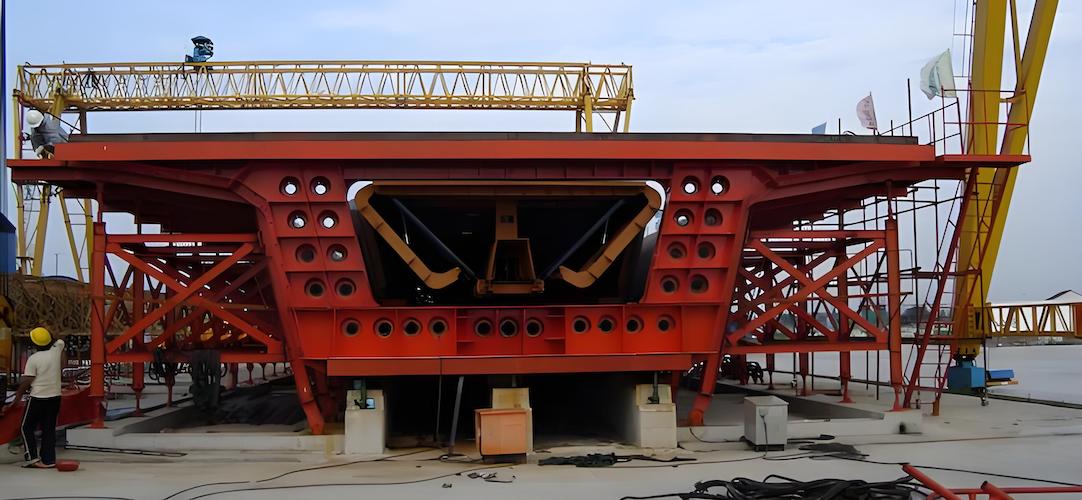

A professional-grade formwork system is a modular assembly of several critical sub-systems. Each part must work in perfect synchronization to handle the massive hydrostatic pressures exerted by wet concrete.

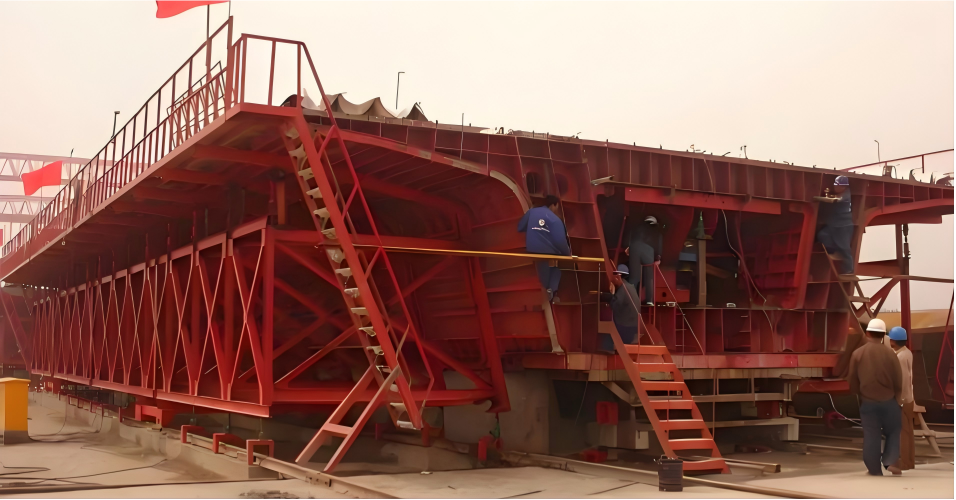

The side mold is responsible for shaping the exterior "skin" of the bridge. Because this is the most visible part of the structure, the side mold must ensure a "mirror-like" concrete finish.
●Structural Framing: The exterior is supported by a robust network of longitudinal and transverse stiffeners. At EVERCROSS BRIDGE, we use high-strength channel steel or customized H-beams to create a rigid cage that prevents the faceplate from "pillowing" under pressure.
●Flange and Wing Plates: Modern bridges often feature wide cantilevered wings to accommodate pedestrian paths or drainage. Our side molds include adjustable wing templates that can be fine-tuned to specific angles and widths.
●Sealing Technology: To prevent grout leakage—which causes "sand streaks" on the concrete surface—we employ specialized EPDM rubber gaskets between panel joints, secured by high-tension bolts.
The bottom mold bears the most significant load, including the weight of the concrete, the inner mold, and the construction personnel.
●Load-Bearing Pedestals: The bottom mold is typically anchored to a heavy-duty steel or concrete pedestal. Our designs incorporate adjustable leveling jacks that allow for sub-millimeter height corrections.
●Pre-Camber Engineering: Bridges naturally deflect under their own weight once the temporary supports are removed. We build "pre-camber" into the bottom mold—essentially a calculated upward curve—so that the final bridge settles into a perfectly level position.
●Thermal Expansion Management: For long-line casting beds, our bottom molds are designed with sliding joints to accommodate the thermal expansion of the steel during summer months or steam curing processes.
Creating the hollow interior of a box girder is the most challenging aspect of formwork design. The inner mold must be rigid during the pour but "shrinkable" for removal.
●Hydraulic Folding Mechanisms: We utilize a "rhombus" or "hinged" folding design. By activating a central hydraulic cylinder, the entire inner mold collapses inward, pulling away from the concrete walls simultaneously.
●Trolley Integration: Once collapsed, the inner mold sits on a motorized or rail-guided trolley. This allows a single operator to move the entire interior section to the next casting bay in minutes, rather than hours.
●Automated Air Vents: To ensure concrete completely fills the "shoulders" of the box section, our inner molds are equipped with strategically placed air release valves.
The end molds define the joints between girder segments and provide the entry points for prestressing tendons.
●Anchor Plate Precision: We use CNC-machined holes to ensure that the prestressing ducts are aligned with absolute accuracy. Even a 5mm deviation can cause significant friction losses during cable tensioning.
●Modular Expansion: Our end molds are designed to be modular, allowing for different tendon configurations depending on whether the girder is a "standard" or "pier-top" segment.
The longevity and performance of a template are directly tied to the quality of the steel and the precision of the fabrication process.
While standard construction uses Q235 steel, EVERCROSS BRIDGE utilizes Q345B or Q355C low-alloy high-strength steel.
●Q355C Advantage: This material offers superior impact toughness, especially in low-temperature environments (common in high-altitude railway projects).
●Faceplate Quality: We use 10mm to 12mm thick plates from premier mills like Baosteel. These plates undergo a "leveling" process to ensure the flatness is within 1mm per square meter.
●CNC Plasma Cutting: Every component is cut using computer-controlled plasma or laser cutters to ensure intricate geometries are executed perfectly.
●Jig-Based Assembly: To ensure interchangeability between mold sets, all welding is performed on heavy-duty assembly jigs. This guarantees that every 10-meter section is identical to the next.
●Submerged Arc Welding (SAW): For the main structural trusses, SAW is used to provide deep penetration and high fatigue resistance.
●Sandblasting and Coating: All steel surfaces are sandblasted to Sa2.5 grade to remove mill scale and rust, followed by a high-build epoxy primer and a specialized "concrete-release" topcoat.
Efficiency on a project site translates directly to cost savings. A well-designed formwork system from EVERCROSS BRIDGE can reduce the casting cycle from 10 days down to 5 or 6 days.
Phase | Activity | EVERCROSS Optimization |
Setup | Foundation leveling and bottom mold anchoring. | Integrated leveling bolts for rapid alignment. |
Assembly | Side mold closing and locking. | Tapered pin connections reduce locking time by 50%. |
Internal | Inner mold trolley positioning. | Self-propelled hydraulic systems eliminate the need for cranes. |
Pouring | Concrete placement and vibration. | Pre-installed high-frequency vibrator brackets ensure uniform density. |
Stripping | Hydraulic collapse and extraction. | One-touch hydraulic control for synchronized mold withdrawal. |
Our reputation with the China Railway Group (CREC) and PowerChina is built on a foundation of rigorous quality control.
●Trial Assembly: Every set of formwork undergoes a 1:1 trial assembly at our factory before shipping. We verify every dimension, hydraulic movement, and seal integrity.
●Stress Analysis: Using Finite Element Analysis (FEA), we simulate the stresses of concrete pouring. We ensure a safety factor of at least 2.0 against yield.
●Standard Compliance: Our products are designed to meet:
◆GB/T 19001-2016 (Chinese National Standard)
◆AASHTO (American Association of State Highway and Transportation Officials)
◆Eurocode 3 & 4 (Design of Steel and Composite Structures)
In the world of international government procurement and mega-infrastructure, you need a partner who understands both the engineering and the logistics.
●Scale: Our 10,000-ton annual output means we never miss a deadline.
●Experience: Decades of cooperation with central enterprises (Central SOEs) give us a deep understanding of complex project management.
●Global Logistics: We have extensive experience in "Flat-Pack" shipping, ensuring that massive templates can be transported efficiently to overseas project sites in Southeast Asia, Africa, and the Middle East.
The steel box girder formwork system is much more than a collection of steel plates. It is a sophisticated blend of mechanical engineering, material science, and digital technology. As bridge spans get longer and construction schedules get tighter, the demand for high-precision, automated formwork will only grow.
At EVERCROSS BRIDGE, we are proud to be at the forefront of this industry. By choosing our engineering solutions, you are not just buying a product; you are investing in the safety, efficiency, and longevity of the world’s most critical infrastructure.
A: With proper maintenance and cleaning, a high-quality steel template from EVERCROSS BRIDGE can last for 80 to 120 pours. The use of robotic welding and high-tensile steel significantly reduces fatigue damage compared to standard templates.
A: Hydraulic systems allow for the synchronous movement of side and inner molds. This reduces the time required for stripping and re-positioning from several days to just a few hours, potentially cutting overall construction timelines by 20-30%.
A: Yes. We specialize in bespoke engineering. Using BIM modeling, we can design modular panels that adjust to different radii and skew angles, ensuring versatility across different segments of a single project.
A: We utilize a "triple-seal" approach: precision-machined joints, high-elasticity rubber gaskets, and mechanical tensioning bolts. This ensures the template remains watertight even under high-frequency vibration.
A: BIM allows for "virtual construction." We can identify potential clashes between the formwork, rebar, and prestressing ducts before production starts. This reduces on-site modifications and material waste by up to 15%.
