Steel bridges are a vital part of modern infrastructure, known for their strength, durability, and versatility. This article explores the various aspects of steel bridges, including their types, construction methods, advantages, and applications. By delving deeper into each topic, we can appreciate the engineering feats that steel bridges represent and their significance in our daily lives.
Steel bridges are structures that utilize steel as the primary material for their construction. This choice of material allows for the creation of robust frameworks capable of supporting heavy loads and spanning significant distances. The use of steel in bridge construction dates back to the 19th century, and it has evolved significantly over the years, leading to various designs and engineering techniques. The transition from traditional materials like wood and stone to steel marked a significant advancement in civil engineering, enabling the construction of larger and more complex structures.
Steel is favored in bridge construction for several reasons:
Strength-to-Weight Ratio: Steel has a high strength-to-weight ratio, which means it can support heavy loads without being excessively heavy itself. This property allows for longer spans and lighter structures, making it possible to design bridges that can cross wide rivers or deep valleys without the need for numerous supports.
Durability: Steel is resistant to many environmental factors, making it suitable for various climates and conditions. With proper maintenance, steel bridges can last for decades, often outlasting bridges made from other materials. This durability is particularly important in areas prone to extreme weather conditions, where other materials might fail.
Versatility: Steel can be fabricated into various shapes and sizes, allowing for innovative designs that can meet specific engineering requirements. This versatility enables engineers to create bridges that not only serve functional purposes but also enhance the aesthetic appeal of their surroundings.
Steel bridges can be categorized into several types based on their design and structural form. Each type has unique characteristics that make it suitable for different applications. Understanding these types helps in selecting the right bridge design for specific needs.
Steel girder bridges are among the most common types of steel bridges. They utilize girders as the main load-bearing elements. Girders are horizontal beams that span between two supports, carrying the weight of the bridge deck.
Simple Design: The design of girder bridges is straightforward, making them easier and quicker to construct. This simplicity is advantageous in projects with tight deadlines or limited budgets.
Cost-Effective: Due to their simplicity, they are often more economical than other types of bridges. The reduced material and labor costs contribute to their popularity in various infrastructure projects.
Versatile Applications: They can be used for various applications, including highways, railways, and pedestrian walkways. Their adaptability makes them suitable for both urban and rural settings, accommodating different traffic needs.

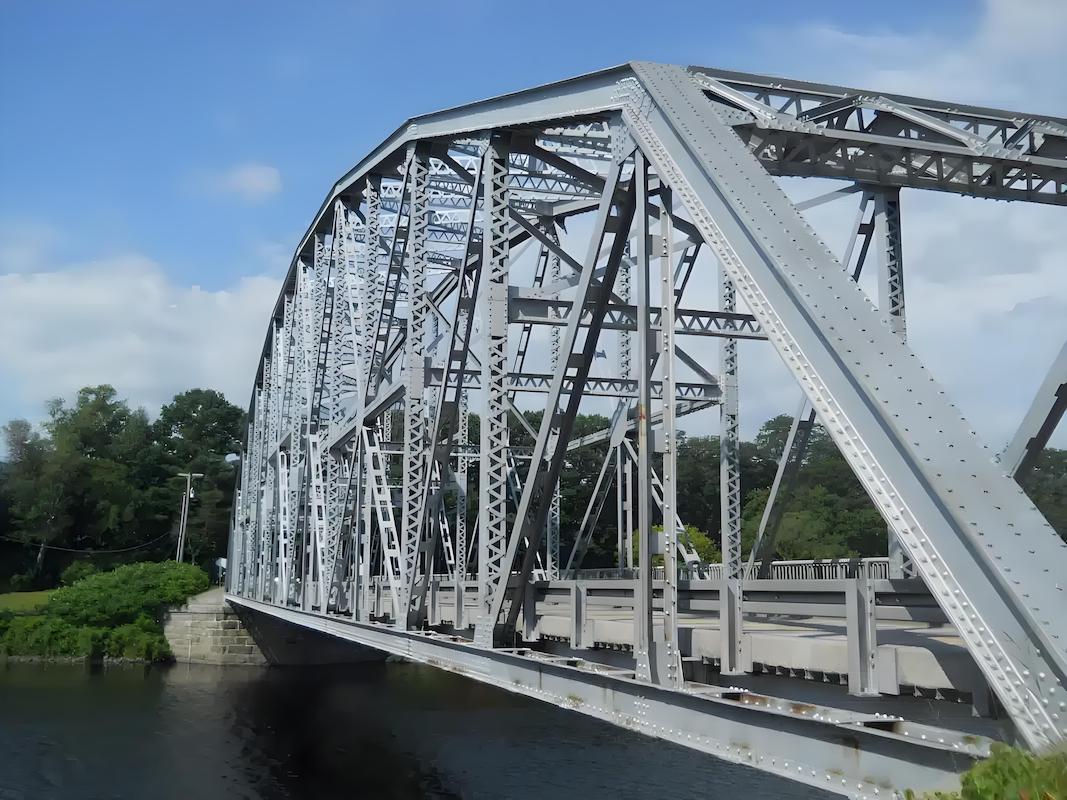

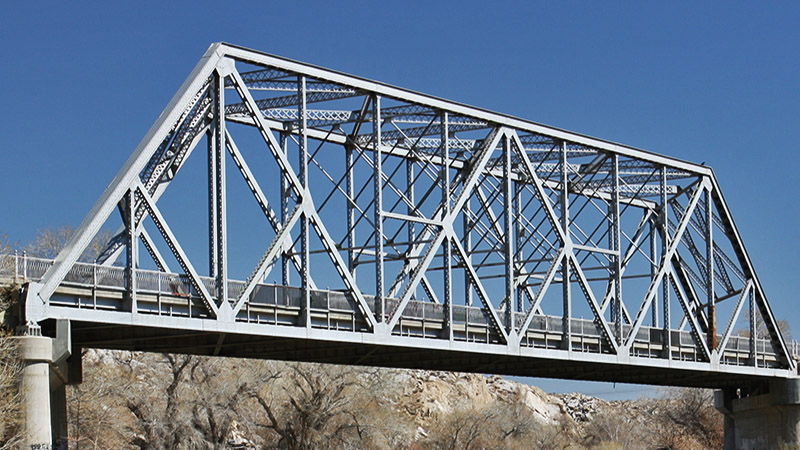

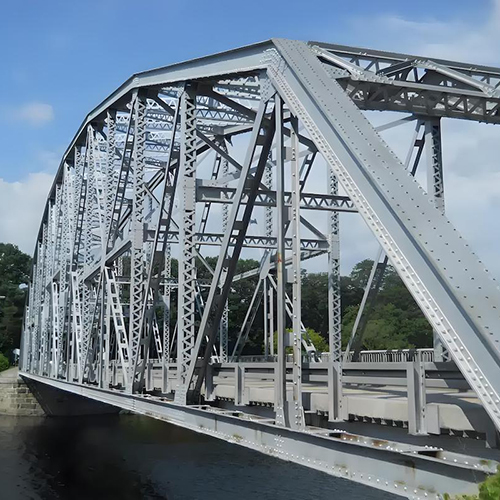

Truss bridges are characterized by their triangular framework, which distributes loads efficiently. They are often used for longer spans and can be found in both road and rail applications.
Load Distribution: The triangular design allows for effective load distribution, making them suitable for heavy traffic. This design minimizes the risk of structural failure under heavy loads, ensuring safety for users.
Aesthetic Appeal: Truss bridges can be visually striking, often becoming landmarks in their locations. Their unique designs can enhance the beauty of the landscape, attracting tourists and photographers.
Material Efficiency: They use less material than solid beams, making them lighter and often more cost-effective. This efficiency not only reduces costs but also lessens the environmental impact of construction.
Steel arch bridges feature a curved arch structure that supports the bridge deck. The arch shape allows for the efficient transfer of loads to the supports.
Aesthetic Design: The arch design is often considered more visually appealing than other types of bridges. This aesthetic quality can enhance the overall environment, making the bridge a focal point in its setting.
High Load Capacity: They can support significant loads while maintaining a lighter structure. This capability is particularly beneficial in areas with heavy traffic or where large vehicles frequently cross.
Long Spans: Arch bridges can span longer distances without the need for intermediate supports. This feature is advantageous in locations where placing supports is impractical, such as over rivers or deep gorges.
Suspension bridges use cables suspended between towers to support the bridge deck. The deck is hung from these cables, allowing for long spans and flexibility.
Long Span Capability: They are ideal for crossing wide bodies of water or deep valleys. This ability to span great distances without supports in the water makes them a preferred choice for major river crossings.
Flexibility: The design allows for some movement, which can be beneficial in areas prone to earthquakes or high winds. This flexibility helps to absorb shocks and reduce the risk of structural damage during extreme weather events.
Iconic Structures: Many famous bridges, such as the Golden Gate Bridge, are suspension bridges, showcasing their aesthetic appeal. These iconic structures often become symbols of their cities, attracting millions of visitors each year.
Cable-stayed bridges are similar to suspension bridges but use cables that are attached directly to the bridge deck and connected to towers. This design provides a different aesthetic and structural performance.
Efficient Use of Materials: They require less material than suspension bridges, making them more economical. This efficiency can lead to lower construction costs and reduced environmental impact.
Aesthetic Variety: The design allows for various configurations, providing flexibility in aesthetics. Engineers can create unique designs that complement the surrounding landscape.
Reduced Maintenance: They typically require less maintenance than suspension bridges due to their simpler design. This lower maintenance requirement can lead to significant cost savings over the bridge's lifespan.
The construction of steel bridges involves several key steps, from design to completion. Understanding these methods is crucial for ensuring the safety and longevity of the structure.
The design phase is critical in determining the type of steel bridge to be constructed. Engineers consider factors such as:
Load Requirements: The expected loads the bridge will carry, including vehicles, pedestrians, and environmental factors. Accurate load assessments are essential for ensuring the bridge's safety and performance.
Site Conditions: The geographical and environmental conditions of the site, including soil type, weather patterns, and potential hazards. Understanding these conditions helps engineers design bridges that can withstand local challenges.
Aesthetic Considerations: The visual impact of the bridge on its surroundings. A well-designed bridge can enhance the beauty of the area, contributing positively to the local environment.
Once the design is finalized, the steel components are fabricated. This process involves cutting, shaping, and assembling the steel into the required forms.
Precision Engineering: Modern fabrication techniques utilize advanced technology, such as computer-aided design (CAD) and automated cutting machines, to ensure precision and quality in the components. This precision is crucial for the structural integrity of the bridge.
Quality Control: Rigorous quality control measures are implemented during fabrication to ensure that all components meet the required standards. This attention to detail helps prevent issues during construction and throughout the bridge's lifespan.
The erection phase involves transporting the fabricated steel components to the construction site and assembling them. This can be done using cranes and other heavy machinery.
Logistical Planning: Effective logistical planning is essential to ensure that components are delivered on time and assembled efficiently. Delays in this phase can lead to increased costs and extended project timelines.
Safety Protocols: Safety is a top priority during the erection phase. Workers must follow strict safety protocols to prevent accidents and ensure a safe working environment.
After the main structure is in place, finishing touches such as painting, installing safety features, and adding the bridge deck are completed.
Protective Coatings: Steel bridges are often coated with protective materials to prevent corrosion and extend their lifespan. These coatings are essential for maintaining the bridge's structural integrity over time.
Safety Features: Installing safety features such as guardrails, lighting, and signage is crucial for ensuring the safety of users. These features help to prevent accidents and improve visibility, especially at night.
Steel bridges offer numerous advantages over other types of bridges, making them a popular choice for engineers and planners.
Steel bridges are designed to withstand harsh environmental conditions, including extreme temperatures, moisture, and corrosion. With proper maintenance, they can last for many decades, often outlasting bridges made from other materials.
Maintenance Practices: Regular inspections and maintenance practices are essential for ensuring the longevity of steel bridges. These practices include cleaning, repainting, and repairing any damage that may occur over time.
Adaptability: Steel bridges can be retrofitted or modified to accommodate changes in traffic patterns or load requirements, further extending their useful life.
While the initial cost of steel bridges may be higher than some alternatives, their longevity and low maintenance requirements often make them more cost-effective in the long run.
Life-Cycle Cost Analysis: Engineers often conduct life-cycle cost analyses to evaluate the long-term costs associated with different bridge materials. This analysis helps in making informed decisions that balance initial costs with future maintenance and replacement expenses.
Economic Impact: The use of steel bridges can have a positive economic impact on communities by improving transportation efficiency and reducing travel times, which can lead to increased commerce and tourism.
Steel bridges can be prefabricated off-site, allowing for quicker assembly on-site. This reduces construction time and minimizes disruption to traffic and the surrounding area.
Modular Construction: The modular construction approach allows for components to be built simultaneously, further speeding up the overall construction process. This method is particularly beneficial in urban areas where minimizing disruption is critical.
Reduced Traffic Disruption: Faster construction times mean less disruption to existing traffic patterns, which is a significant advantage for communities that rely on busy roadways.
Steel is a recyclable material, making steel bridges an environmentally friendly option. At the end of their life cycle, the steel can be reused, reducing waste and the need for new materials.
Sustainability Practices: Many steel manufacturers are adopting sustainable practices, such as using recycled steel in their products. This commitment to sustainability helps reduce the environmental impact of steel production.
Green Certifications: Steel bridges can contribute to green building certifications, such as LEED (Leadership in Energy and Environmental Design), which recognize environmentally responsible construction practices.
Steel bridges are used in a variety of applications, reflecting their versatility and strength.
Steel bridges are commonly used in transportation infrastructure, including highways, railways, and pedestrian pathways. Their ability to support heavy loads makes them ideal for busy routes.
Highway Overpasses: Many highway overpasses are constructed using steel bridges, allowing for efficient traffic flow and reducing congestion at intersections.
Railroad Crossings: Steel bridges are essential for railroad crossings, providing safe passage for trains while minimizing disruptions to road traffic.
In urban areas, steel bridges often serve as vital connections between neighborhoods, facilitating the movement of people and goods. Their aesthetic appeal can also enhance the urban landscape.
Pedestrian Bridges: Steel pedestrian bridges are increasingly common in urban settings, providing safe and attractive routes for walkers and cyclists. These bridges often incorporate design elements that reflect the local culture and history.
Public Transit: Steel bridges are essential for public transit systems, allowing buses and trains to traverse urban landscapes efficiently. Their design can accommodate the unique needs of public transportation.
Steel bridges are used in industrial settings, such as factories and warehouses, where they may support heavy machinery or provide access to different levels of a facility.
Loading Docks: Steel bridges can be used to create loading docks that facilitate the movement of goods in and out of industrial facilities. Their strength allows them to support heavy loads during loading and unloading operations.
Access Walkways: In large industrial complexes, steel bridges can provide access walkways between different buildings, improving safety and efficiency for workers.
Many steel bridges are designed for recreational purposes, such as pedestrian walkways in parks or scenic viewpoints. These bridges often incorporate aesthetic elements to enhance the user experience.
Scenic Overlooks: Steel bridges can be designed to provide scenic overlooks, allowing visitors to enjoy beautiful views of natural landscapes. These structures often become popular tourist attractions.
Bicycle Paths: Steel bridges are increasingly used to create dedicated bicycle paths, promoting cycling as a sustainable mode of transportation. These paths enhance connectivity and encourage outdoor activities.
Steel bridges are a crucial component of modern infrastructure, offering strength, durability, and versatility. With various types available, including girder, truss, arch, suspension, and cable-stayed bridges, engineers can select the most suitable design for specific applications. The construction methods and advantages of steel bridges further highlight their importance in transportation and urban development. As technology advances, the future of steel bridges looks promising, with ongoing innovations in design and materials that will continue to enhance their performance and sustainability.
The main advantages of using steel in bridge construction include its high strength-to-weight ratio, durability against environmental factors, versatility in design, and cost-effectiveness over the long term due to low maintenance requirements.
Steel truss bridges distribute loads through a triangular framework, which efficiently transfers weight from the bridge deck to the supports. This design minimizes stress on individual components and enhances the overall stability of the structure.
The primary difference lies in their design and load distribution. In a suspension bridge, the deck is hung from cables that are suspended between towers, allowing for long spans. In contrast, a cable-stayed bridge has cables that connect directly from the towers to the deck, providing support at multiple points along the span.
The construction process of steel bridges typically begins with the design phase, where engineers assess load requirements, site conditions, and aesthetic considerations. Once the design is finalized, the steel components are fabricated, followed by transportation to the site for assembly.
Essential maintenance practices for steel bridges include regular inspections to identify signs of wear or damage, cleaning to prevent corrosion, repainting protective coatings, and repairing any structural issues. These practices help extend the lifespan of the bridge and ensure safety for users.
