Bailey bridges are a type of portable, prefabricated truss bridge that have been widely used since their development during World War II. Their design allows for quick assembly and disassembly, making them ideal for military and emergency applications. This article explores the materials commonly used in the construction of Bailey bridges, detailing their properties, advantages, and the overall construction process. By understanding the materials and methods involved, we can appreciate the engineering ingenuity that makes Bailey bridges a reliable solution for various infrastructure needs.
Bailey bridges are known for their modular design, which consists of a series of panels that can be easily transported and assembled on-site. Originally developed to provide rapid deployment of bridges in combat situations, their design has evolved to serve a wide range of applications, including temporary crossings for vehicles and pedestrians in civilian contexts. The primary materials used in their construction are high-strength steel and, in some cases, wood. The choice of materials is crucial for ensuring the bridge's structural integrity, durability, and ease of assembly. Understanding the historical context and the engineering principles behind Bailey bridges enhances our appreciation of their continued relevance in modern infrastructure projects.
High-strength steel is the primary material used in Bailey bridge construction. This type of steel is favored for several reasons:
Load-Bearing Capacity: High-strength steel can support significant loads, making it suitable for various applications, from military transport to civilian infrastructure. Its ability to withstand heavy traffic and dynamic loads is essential for ensuring safety and reliability.
Lightweight: Despite its strength, high-strength steel is relatively lightweight, which facilitates easier handling and transportation of bridge components. This characteristic is particularly advantageous in remote or challenging environments where heavy machinery may not be available.
Corrosion Resistance: Many high-strength steels are treated or alloyed to resist corrosion, extending the lifespan of the bridge, especially in harsh environmental conditions. This treatment is vital for bridges exposed to moisture, salt, or other corrosive elements, ensuring that maintenance costs remain low over time.
The use of high-strength steel not only enhances the performance of Bailey bridges but also contributes to their longevity, making them a cost-effective solution in the long run.

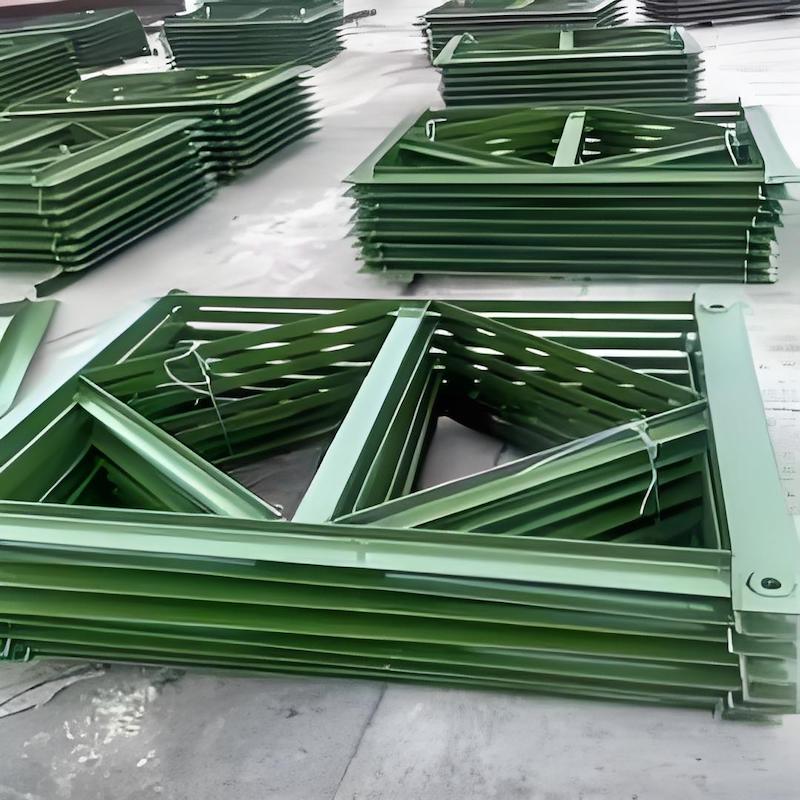

The steel panels used in Bailey bridges are manufactured in standard sizes, allowing for flexibility in design and construction. These panels are typically made from rolled steel and are designed to interlock, providing a stable and secure structure. The modular nature of these panels allows for quick assembly, which is particularly beneficial in emergency situations.
The design of the panels also allows for easy replacement or repair, which is crucial for maintaining the bridge's functionality over time. Additionally, the interlocking mechanism ensures that the panels distribute loads evenly, reducing the risk of structural failure. This adaptability makes Bailey bridges suitable for a variety of terrains and conditions, from urban settings to remote locations.
While steel is the predominant material, wood may also be used in certain components of Bailey bridges, particularly for decking. Wooden decking can provide a cost-effective and lightweight solution, although it may not offer the same durability as steel. In some designs, wood is used in conjunction with steel to enhance the bridge's overall performance.
Wooden components can be particularly advantageous in situations where weight is a critical factor, or where the aesthetic appeal of natural materials is desired. However, the use of wood requires careful consideration of its treatment and maintenance, as untreated wood can be susceptible to rot and insect damage. By combining wood with steel, engineers can create a balanced structure that leverages the strengths of both materials.
End posts are vertical components that provide support at the ends of the bridge. They are typically made from high-strength steel and are designed to withstand the forces exerted on the bridge. Transoms, which are horizontal members that connect the panels, also play a critical role in maintaining the structural integrity of the bridge.
The design of end posts and transoms is crucial for ensuring that the bridge can handle both static and dynamic loads. These components must be engineered to absorb and distribute forces effectively, preventing localized stress that could lead to failure. The integration of these elements into the overall design of the bridge enhances its stability and safety.
The decking of a Bailey bridge is the surface on which vehicles and pedestrians travel. It can be made from various materials, including steel grating or wooden planks. The choice of decking material depends on the intended use of the bridge and the load it must support.
Steel grating offers advantages such as durability and low maintenance, while wooden planks can provide a more aesthetically pleasing surface. The decking must be designed to accommodate the expected traffic loads and environmental conditions, ensuring that it remains safe and functional over time. Additionally, the choice of decking material can influence the overall weight of the bridge, which is an important consideration in its design and construction.
Reinforcements are additional components that enhance the strength and stability of the bridge. These may include diagonal bracing and additional steel plates that are strategically placed to distribute loads more evenly across the structure.
The use of reinforcements is essential for improving the overall performance of the bridge, particularly in areas where stress concentrations may occur. By reinforcing critical points in the structure, engineers can enhance the bridge's ability to withstand dynamic loads, such as those caused by moving vehicles or environmental factors like wind and seismic activity. This attention to detail in the design process contributes to the safety and reliability of Bailey bridges.
The use of steel in Bailey bridge construction offers several advantages:
Durability: Steel is resistant to many environmental factors, including moisture and pests, which can compromise other materials like wood. This durability ensures that the bridge can withstand the rigors of daily use and adverse weather conditions.
Versatility: Steel can be fabricated into various shapes and sizes, allowing for customized designs that meet specific engineering requirements. This versatility enables engineers to adapt the bridge design to suit different applications and site conditions.
Rapid Assembly: The modular design of steel components allows for quick assembly and disassembly, making Bailey bridges ideal for temporary or emergency use. This rapid deployment capability is particularly valuable in disaster response scenarios, where time is of the essence.
The combination of these advantages makes steel an ideal choice for Bailey bridges, ensuring that they remain a reliable solution for a wide range of applications.
Before construction begins, the site must be prepared. This involves clearing the area and ensuring that the ground is stable enough to support the bridge. Proper site preparation is crucial for the safety and longevity of the bridge.
Site preparation may also include the installation of temporary supports or foundations, depending on the specific site conditions. Engineers must assess the soil type, drainage patterns, and potential environmental impacts to ensure that the bridge will be stable and safe throughout its lifespan. This thorough preparation lays the groundwork for a successful construction process.
Once the site is ready, the assembly of the Bailey bridge can begin. The process typically involves the following steps:
Transporting Components: All necessary components, including steel panels, end posts, and decking, are transported to the site. Efficient logistics are essential to ensure that all materials arrive on time and in good condition.
Erecting the Framework: The end posts are erected first, followed by the installation of the transoms and panels. This framework provides the basic structure of the bridge. Careful alignment and securing of these components are critical to ensure the bridge's stability.
Installing the Decking: After the framework is complete, the decking is installed. This step is critical, as it provides the surface for vehicles and pedestrians. The decking must be securely fastened to the underlying structure to prevent movement or failure during use.
Final Reinforcements: Any additional reinforcements are added to ensure the bridge can support the intended loads. This final step is essential for enhancing the overall strength and safety of the bridge.
The assembly process is designed to be efficient and straightforward, allowing for rapid deployment in various situations. The modular nature of Bailey bridges means that even untrained personnel can often assemble them with minimal instruction.
Throughout the construction process, quality control measures are implemented to ensure that all components meet safety and engineering standards. This includes inspecting welds, checking for proper alignment, and ensuring that all materials are free from defects.
Quality control is vital for maintaining the integrity of the bridge and ensuring that it can safely support the intended loads. Regular inspections and testing during construction help identify any potential issues before they become significant problems. This proactive approach to quality assurance contributes to the overall safety and reliability of Bailey bridges.
When constructing Bailey bridges, it is essential to consider the environmental impact of the materials used. High-strength steel is often favored for its durability and recyclability. Additionally, using sustainably sourced wood can help minimize the ecological footprint of the bridge.
Environmental considerations also extend to the construction process itself. Minimizing disruption to the surrounding ecosystem, managing waste, and ensuring that construction activities do not harm local wildlife are all critical factors in modern bridge construction. By prioritizing sustainability, engineers can create infrastructure that meets current needs without compromising the environment for future generations.
Bailey bridges are a remarkable engineering solution that combines strength, versatility, and ease of assembly. The primary materials used in their construction, particularly high-strength steel, play a crucial role in their performance and longevity. Understanding these materials and the construction process is essential for engineers and builders involved in bridge design and construction. As infrastructure needs continue to evolve, the Bailey bridge remains a vital tool for both military and civilian applications, demonstrating the enduring legacy of its innovative design. The continued development and refinement of materials and construction techniques will ensure that Bailey bridges remain relevant and effective in addressing the challenges of modern infrastructure.
A Bailey bridge is a type of portable, prefabricated truss bridge that can be quickly assembled and disassembled. It is commonly used in military applications for rapid deployment, as well as in civilian contexts for temporary crossings, emergency situations, and in areas where permanent bridges are not feasible.
The primary materials used in Bailey bridge construction are high-strength steel and, in some cases, wood. High-strength steel is favored for its load-bearing capacity, lightweight nature, and corrosion resistance, while wood may be used for decking in certain designs.
The modular design of Bailey bridges allows for easy transportation and quick assembly on-site. This design enables even untrained personnel to assemble the bridge with minimal instruction, making it ideal for emergency situations where time is critical.
High-strength steel offers several advantages, including durability, lightweight properties, and resistance to environmental factors such as moisture and pests. Its ability to support significant loads while remaining lightweight makes it an ideal choice for bridge construction.
Quality control measures are implemented throughout the construction process to ensure that all components meet safety and engineering standards. This includes inspecting welds, checking for proper alignment, and ensuring that materials are free from defects, which helps maintain the integrity and safety of the bridge.
