When it comes to constructing bridges, simplicity often leads to efficiency and effectiveness. Among various types of bridges, the Bailey Bridge stands out as one of the simplest and most versatile designs. This article delves into the characteristics, construction methods, advantages, and applications of the Bailey Bridge, providing a comprehensive understanding of why it is considered the simplest bridge to build.
The Bailey Bridge was developed during World War II by the British engineer Sir Donald Bailey. Its primary purpose was to provide quick and efficient means of crossing obstacles such as rivers and ravines, especially in wartime scenarios where speed was crucial. The design was revolutionary, allowing for rapid assembly and disassembly, which made it an ideal solution for military operations.

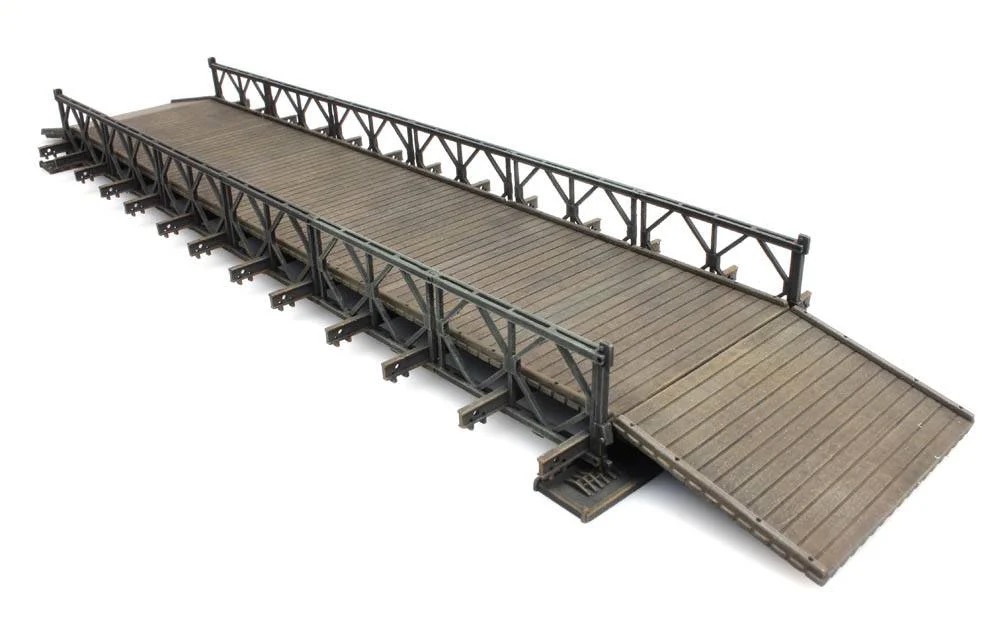

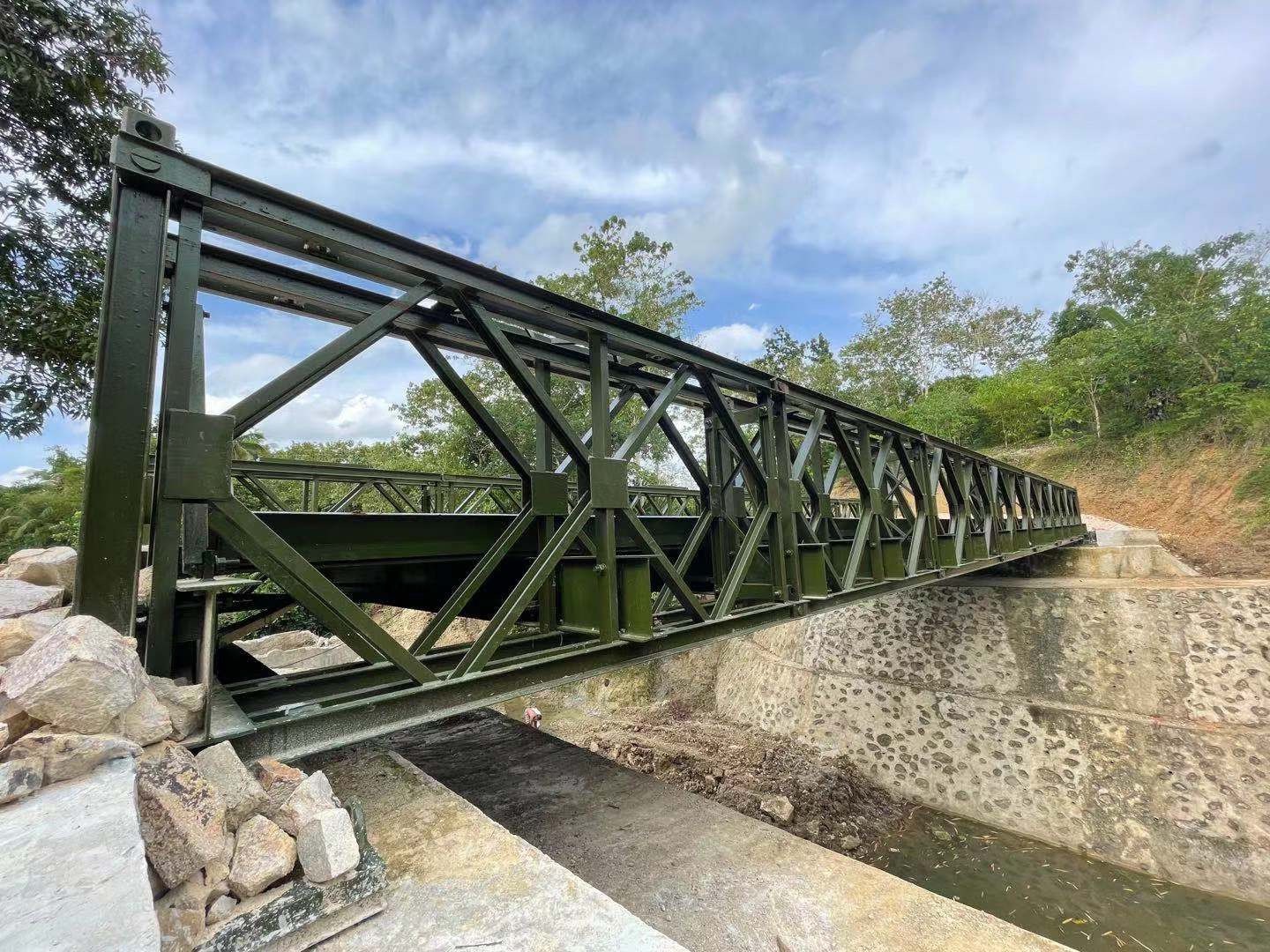

The Bailey Bridge is a modular bridge made up of prefabricated steel components. Its design consists of a series of panels that can be easily transported and assembled on-site. The key features of the Bailey Bridge include:
Modularity: The bridge is constructed from standard panels that can be combined in various configurations to create spans of different lengths.
Lightweight Materials: The use of steel allows for a strong yet lightweight structure, making it easier to handle and transport.
Simple Assembly: The bridge can be assembled using basic tools and requires minimal training, making it accessible for non-specialists.
Before constructing a Bailey Bridge, the site must be adequately prepared. This involves clearing the area of debris, ensuring stable ground conditions, and determining the appropriate location for the bridge. Proper site preparation is crucial for the stability and longevity of the bridge.
The assembly of a Bailey Bridge involves several key steps:
The primary materials required for a Bailey Bridge include steel panels, trusses, and connectors. These components are typically manufactured in a factory and then transported to the construction site.
The first step in the assembly process is to connect the individual panels. Each panel consists of a series of steel beams arranged in a lattice formation. Workers can easily connect these panels using bolts and pins, which allows for quick assembly.
Once the panels are connected, the next step is to install the trusses. Trusses provide additional support and stability to the bridge. They are typically placed at regular intervals along the length of the bridge to distribute weight evenly.
After the trusses are in place, the decking is installed. The decking provides a surface for vehicles and pedestrians to cross the bridge. It is usually made from wooden planks or steel plates, depending on the intended use of the bridge.
Once the bridge is fully assembled, a thorough inspection is conducted to ensure that all components are securely fastened and that the structure meets safety standards. This step is crucial to guarantee the safety of users and the longevity of the bridge.
One of the most significant advantages of the Bailey Bridge is its speed of construction. The modular design allows for rapid assembly, making it possible to erect a bridge in a matter of hours or days, depending on the span length. This speed is particularly beneficial in emergency situations where immediate access is required.
The Bailey Bridge is also cost-effective. Its prefabricated components reduce labor costs and construction time, leading to overall savings. Additionally, the materials used are often readily available, further lowering expenses.
The versatility of the Bailey Bridge is another key advantage. It can be adapted to various environments and uses, from temporary military crossings to permanent structures in civilian applications. The bridge can accommodate different load capacities, making it suitable for a wide range of vehicles.
Once constructed, the Bailey Bridge requires minimal maintenance. The durable steel materials are resistant to weathering and corrosion, ensuring a long lifespan with little need for repairs. This characteristic makes it an attractive option for both temporary and permanent installations.
The original purpose of the Bailey Bridge was for military applications. Its ability to be quickly deployed in combat zones has made it an essential tool for armed forces around the world. It allows for the rapid establishment of supply routes and troop movements, significantly enhancing operational efficiency.
In addition to military use, the Bailey Bridge has found applications in civil engineering projects. It is often used in situations where traditional bridge construction is impractical due to time constraints or budget limitations. Examples include:
Temporary Crossings: During natural disasters, Bailey Bridges can be quickly installed to restore access to affected areas.
Rural Access: In remote locations where permanent bridges are not feasible, Bailey Bridges provide essential connectivity for communities.
Bailey Bridges play a crucial role in disaster relief efforts. After events such as floods or earthquakes, these bridges can be deployed to restore access to critical infrastructure, allowing for the delivery of aid and resources to affected populations.
In some cases, Bailey Bridges are used in recreational settings, such as parks and hiking trails. Their lightweight and portable nature makes them ideal for creating temporary crossings over streams or ravines, enhancing the outdoor experience for visitors.
The Bailey Bridge exemplifies simplicity in bridge construction. Its modular design, ease of assembly, and versatility make it an ideal choice for a wide range of applications, from military operations to civil engineering projects. As we continue to face challenges in infrastructure development, the Bailey Bridge remains a valuable solution, demonstrating that sometimes the simplest designs can have the most significant impact. Whether in times of war or peace, the Bailey Bridge stands as a testament to innovative engineering and practical design.
The primary material used in the construction of a Bailey Bridge is steel. The bridge is made up of prefabricated steel panels, trusses, and connectors, which provide strength while keeping the structure lightweight.
The assembly time for a Bailey Bridge can vary depending on the span length and the number of workers involved. However, it can typically be erected in a matter of hours or days, making it one of the fastest bridge types to construct.
Yes, Bailey Bridges can be designed to support various load capacities, including heavy vehicles. The load-bearing capacity depends on the specific configuration and materials used in the bridge's construction.
While originally designed for temporary use, Bailey Bridges can also be used as permanent structures. They are durable and require minimal maintenance, making them suitable for long-term applications in both military and civilian contexts.
In civilian life, Bailey Bridges are commonly used for temporary crossings during natural disasters, rural access in remote areas, and recreational purposes such as hiking trails. They provide essential connectivity and can be deployed quickly in various situations.
