The integrity and longevity of any bridge, especially a truss bridge, depend significantly on understanding and managing the loads it bears. These loads are broadly classified into two categories: dead loads and live loads[1]. Dead load refers to the static, non-moving weight of the structure itself, including all permanent components[1][9]. Live load, on the other hand, encompasses the variable, transient loads imposed by external factors such as vehicles, pedestrians, and environmental conditions[2][1]. This article delves into the intricacies of dead loads on truss bridges, exploring their characteristics, components, calculation methods, and their crucial role in ensuring structural stability and safety.
Dead load is defined as the constant and unchanging weight of a structure and its integral parts[1]. For a truss bridge, this includes the weight of the truss itself, the decking, support beams, and any permanent fixtures[2][1]. Unlike live loads, which fluctuate with traffic and environmental conditions, dead loads remain constant over time unless structural modifications are made[1].
- Fixed Weight: Dead load remains constant and does not fluctuate unless structural changes occur[1].
- Permanent Nature: It comprises the weight of the bridge's structural elements and components that are permanently part of the structure[1].
- Vertical Distribution: Dead load applies vertically downward due to gravity, exerting consistent pressure on the structural elements[1].
The dead load of a truss bridge consists of several key components, each contributing to the overall static weight:
- Truss Frame: This includes the top chord, bottom chord, and end posts, forming the outer structure of the bridge[2].
- Truss Members: These are the triangular shapes within the frame that support the bridge's weight[2].
- Decking: The surface or floor system of the bridge, which can be made of reinforced concrete, steel grid, or wood[2][5].
- Floor Beams and Outriggers: These provide support for loads spanning between the truss members[2].
- Stringers: Parallel lines of beams over the abutments that support the decking[2].
- Permanent Fixtures: This includes any permanent installations such as lighting, railings, and signage[1].
Several truss designs exist, each with unique structural characteristics that affect how dead loads are distributed and managed:
- Howe Truss: This design features vertical and diagonal members, with diagonal members under compression and vertical members under tension[2].
- Pratt Truss: The Pratt truss has angled diagonal members under tension and shorter vertical members under compression[2].
- K Truss: This design uses vertical members under compression, breaking them into smaller sections to reduce tension[2].
- Warren Truss: The Warren truss contains equilateral triangles that help distribute the bridge's load, alternating compression and tension members without vertical members[2].

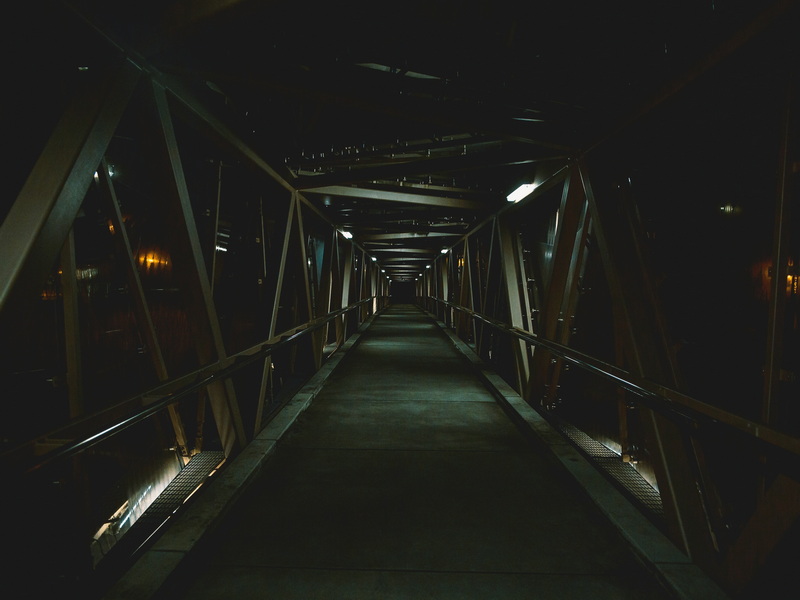

- Through-Truss: In this design, the roadway dissects the truss, meaning the truss is seen both above and below the deck[3].
Accurately calculating dead loads is essential for designing a safe and durable truss bridge. Engineers consider the weight of all permanent components and their distribution throughout the structure[5][6].
The unit weight of the materials used in the bridge's construction is a fundamental factor in calculating dead loads[5]. Common materials include:
- Steel: Known for its high tensile strength, steel is often used for truss members[10].
- Concrete: Reinforced concrete is frequently used for decking due to its cost-effectiveness[3].
- Wood: Wood can be used for decking or truss members in some pedestrian bridges[5].
1. Determine the Weight of Structural Components: Calculate the weight of each component based on its volume and material density[5].
2. Consider Non-Structural Attachments: Include the weight of permanent fixtures such as railings, lighting, and signage[1].
3. Account for Wearing Surfaces: Add the weight of the wearing surface, such as asphalt or concrete overlays[5].
4. Include Future Wearing Surfaces: Account for the weight of potential future wearing surface layers[5].
5. Calculate Girder Weight: If the bridge has girders, include their weight, considering the haunch[5].
6. Add Traffic Barriers: Include the weight of traffic barriers, parapets, and railings[5].
7. Consider SIP Deck Forms: Include the weight of stay-in-place deck forms used during construction[5].
8. Account for Diaphragms and Cross Frames: Add the weight of diaphragms and cross frames[5].
Engineers use structural modeling software to build a wire-frame model of the bridge, applying loads according to established standards such as AASHTO[2]. This software helps determine the required strengths for each truss member based on load resistance factor design (LRFD) or allowable stress design (ASD)[2]. Computer models simulate various load scenarios to identify weak points and optimize the structure before construction[6].
Dead load plays a pivotal role in the structural design of truss bridges, influencing various aspects of the design process[6].
Engineers must calculate the maximum weight a bridge can support, including its dead load and expected live loads[6]. Safety factors are incorporated to account for unexpected stresses, ensuring the bridge can handle loads beyond normal conditions[6][10].
Truss bridges distribute forces through a network of interconnected triangles[6][10]. The design must ensure that these forces are evenly distributed to prevent any single member from being overloaded[6]. Different truss designs distribute forces differently, affecting the overall stability and efficiency of the bridge[10].
The choice of materials is heavily influenced by the need to withstand both dead and live loads[10]. Steel is often selected for its high tensile strength, while concrete is used for its compressive strength and cost-effectiveness[10][3].
Reasonable truss deflection limits (typically 1/400 of the span length) are maintained to prevent excessive vibrations[7]. More stringent deflection requirements may be necessary if vibration or frequency limits are a concern[7].
Several factors can influence the dead load of a truss bridge:
- Design Code: Design codes such as those governing prefabricated steel truss pedestrian bridges impact design considerations[7].
- Truss Depth: The truss depth (center-line to center-line of chord dimension) affects the bridge's load-bearing capacity[7]. A general rule is that the truss depth should be no less than 1/20th of the bridge span but not less than 1/25th of the bridge span[7].
- Decking Material: The decking material significantly impacts the bridge's weight and longevity[3]. Reinforced concrete is cost-effective, while steel is used when reducing weight is a primary concern[3].
- Environmental Factors: Weather conditions and environmental loads, such as snow and wind, must be considered in the design[2].
Accurate calculation of dead loads is crucial, and errors can lead to structural problems. Common mistakes include:
- Underestimating Material Weights: Failing to accurately determine the unit weights of materials[5].
- Ignoring Non-Structural Components: Overlooking the weight of permanent fixtures and attachments[5].
- Incorrectly Assessing Wearing Surface Loads: Not properly accounting for the weight of existing and future wearing surfaces[5].
- Using Inaccurate Models: Relying on simplified models that do not accurately represent the bridge's structure[6].
Examining real-world examples of truss bridges can provide valuable insights into the impact of dead loads on structural performance.
A highway overpass utilizes a Pratt truss design with a reinforced concrete deck. The dead load includes the weight of the concrete deck, steel truss members, and permanent lighting fixtures. Engineers carefully calculated these loads to ensure the bridge could withstand heavy traffic and environmental stresses.
A pedestrian bridge employs a Warren truss design with a wooden deck. The lighter materials result in a lower dead load compared to the highway overpass. However, the design still accounts for the weight of the truss, decking, and railing systems to ensure safety and stability.
Several strategies can be employed to ensure the structural integrity of a truss bridge concerning dead loads[6]:
- Accurate Load Calculation: Employ precise methods for calculating dead loads, using detailed material properties and comprehensive structural models[5].
- Regular Inspections: Conduct routine inspections to identify any signs of deterioration or stress that could compromise the bridge's load-bearing capacity[6].
- Maintenance and Repairs: Implement timely maintenance and repairs to address issues such as corrosion, cracking, or deformation[6].
- Advanced Monitoring Systems: Utilize sensors and monitoring systems to track the bridge's performance under various loading conditions[6].
Understanding and accurately accounting for dead loads is paramount in the design, construction, and maintenance of truss bridges. Dead load, comprising the static weight of the bridge's permanent components, significantly influences structural stability, load-bearing capacity, and overall longevity. By carefully considering material properties, employing precise calculation methods, and utilizing advanced modeling techniques, engineers can ensure that truss bridges are designed to withstand the constant forces exerted by dead loads, thereby ensuring their safety and durability. Regular inspections, timely maintenance, and the use of monitoring systems further enhance the structural integrity of these vital infrastructures. The principles and practices outlined in this article provide a comprehensive guide to understanding and managing dead loads in truss bridges, contributing to safer and more reliable transportation networks.
Dead load refers to the static, non-moving weight of a structure and its permanent components, while live load represents the variable, transient loads imposed by occupancy, traffic, and environmental factors[1].
Different truss designs, such as Howe, Pratt, K, and Warren trusses, distribute forces differently through their unique arrangements of tension and compression members, affecting the overall stability and efficiency of the bridge[2][10].
Common materials include steel, concrete, and wood. Steel is known for its high tensile strength, concrete for its compressive strength and cost-effectiveness, and wood for its lighter weight in pedestrian bridges[10][3][5]. The choice of material significantly affects the overall dead load due to variations in density and weight[5].
Accurate calculation of dead loads is crucial for ensuring the structural stability, load-bearing capacity, and longevity of the bridge. Errors in calculation can lead to underestimation of the bridge's weight, resulting in structural failure or premature deterioration[6][5].
Common errors include underestimating material weights, ignoring non-structural components, and incorrectly assessing wearing surface loads[5]. These errors can be avoided by using detailed material properties, comprehensive structural models, and thorough consideration of all permanent fixtures and attachments[5][6].
