Bailey bridges are a type of modular bridge that can be quickly assembled and disassembled, making them ideal for temporary or emergency use. However, like all structures, they are subject to wear and tear over time. Understanding the common signs of wear in a Bailey bridge is crucial for ensuring safety and longevity. This article will explore the various signs of wear, their implications, and the importance of regular maintenance.

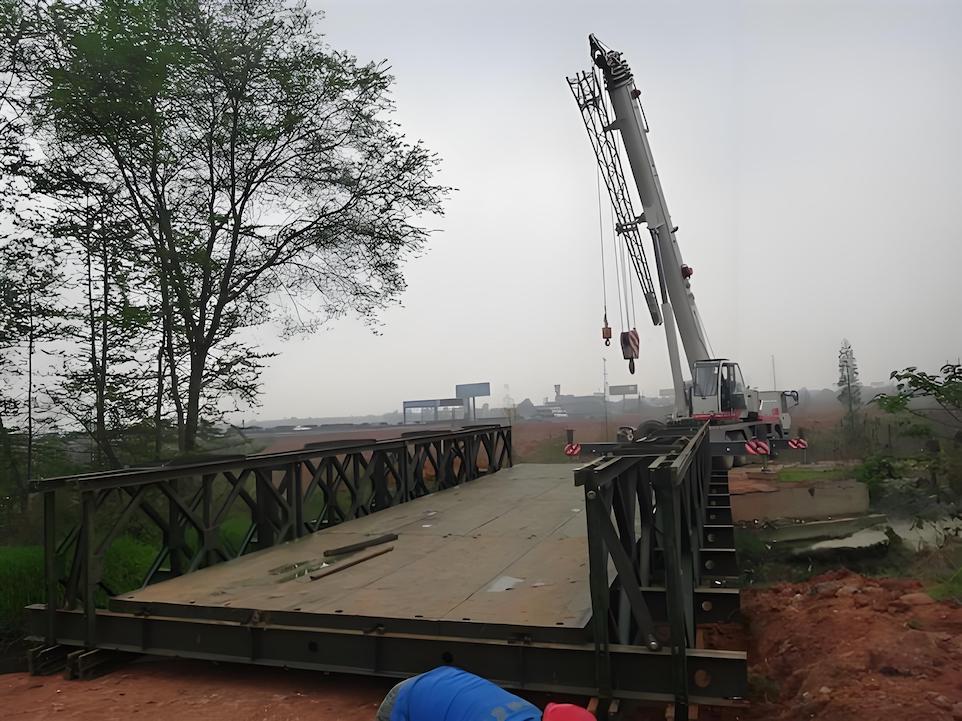

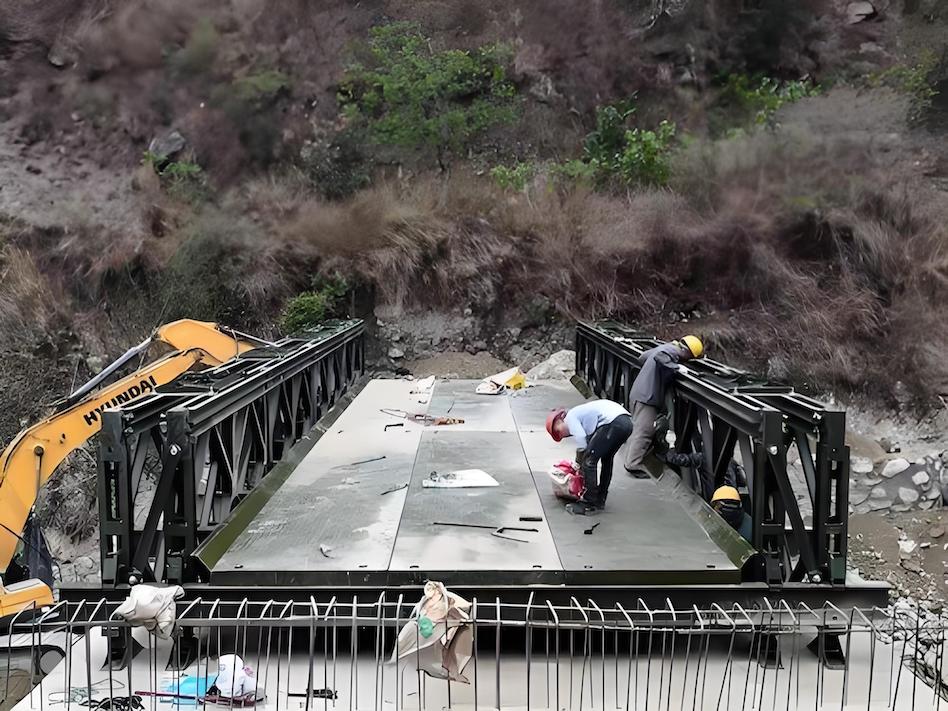

A Bailey bridge is a type of prefabricated, modular bridge that was developed during World War II. It consists of a series of panels that can be easily transported and assembled on-site. The design allows for quick deployment, making it suitable for military and civilian applications alike. Bailey bridges are typically made of steel and can support heavy loads, making them versatile for various uses. Their modular nature means that they can be adapted to different spans and load requirements, making them a popular choice in both emergency situations and for long-term infrastructure projects.
The main components of a Bailey bridge include:
Panels: The primary structural elements that form the bridge deck. These panels are designed to interlock, providing a stable surface for vehicles and pedestrians.
Transoms: Horizontal beams that support the panels. They distribute the load evenly across the bridge, enhancing stability.
Chords: The top and bottom members of the truss structure. Chords are critical for maintaining the shape and integrity of the bridge under load.
Verticals: Vertical members that provide support to the chords. They help transfer loads from the deck to the ground.
Decking: The surface on which vehicles and pedestrians travel. Decking materials can vary, but they must be durable and capable of withstanding traffic.
Understanding these components is essential for identifying signs of wear and damage. Each part plays a vital role in the overall functionality and safety of the bridge.
One of the most prevalent signs of wear in Bailey bridges is rust and corrosion on steel components. Exposure to moisture and environmental elements can lead to the deterioration of metal surfaces. Inspectors should look for:
Surface Rust: This may appear as a reddish-brown discoloration on the steel. Surface rust can be superficial, but if left untreated, it can penetrate deeper layers of the metal.
Pitting Corrosion: Small holes or pits may develop, indicating deeper structural issues. Pitting can significantly weaken the material, making it more susceptible to failure.
Flaking Paint: Loss of protective coatings can accelerate corrosion. When paint begins to flake, it exposes the underlying metal to moisture and air, increasing the risk of rust.
Regular monitoring for rust and corrosion is essential, as these issues can compromise the structural integrity of the bridge over time.
Cracks can develop in various parts of a Bailey bridge, including the decking, panels, and truss members. These cracks can compromise the structural integrity of the bridge. Key areas to inspect include:
Decking: Look for visible cracks or splits in the surface. Cracks in the decking can lead to hazardous conditions for vehicles and pedestrians.
Truss Members: Inspect for hairline fractures that may indicate stress or fatigue. Even small cracks can propagate under load, leading to more significant failures.
Connection Points: Areas where components are joined are particularly vulnerable to cracking. These joints are often subjected to high stress and should be closely monitored.
Identifying cracks early can prevent more extensive damage and ensure the safety of the bridge.
Fasteners, such as bolts and nuts, play a critical role in maintaining the stability of a Bailey bridge. Over time, these fasteners can loosen or become missing due to vibration, load stress, or corrosion. Signs to watch for include:
Visible Gaps: Spaces where bolts should be present but are missing. Missing fasteners can lead to instability and increased stress on remaining components.
Worn Threads: Fasteners that show signs of wear may not hold components securely. Worn threads can lead to loosening under load, increasing the risk of failure.
Deformation: Bent or distorted fasteners can indicate excessive stress. Deformed fasteners should be replaced immediately to maintain structural integrity.
Regular checks of fasteners are crucial for ensuring that all components remain securely connected.
Deformation refers to any change in the shape or size of structural components. This can occur due to excessive loads, environmental factors, or material fatigue. Inspectors should look for:
Bowed Panels: Panels that are no longer straight may indicate underlying issues. Bowing can affect the load distribution and lead to further structural problems.
Twisted Trusses: A truss that appears twisted can compromise the bridge's load-bearing capacity. Twisting can result from uneven loading or material fatigue.
Uneven Surfaces: Any irregularities in the surface can affect vehicle stability and safety. Uneven surfaces can lead to accidents, especially for heavy vehicles.
Monitoring for deformation is essential to ensure that the bridge can safely support its intended loads.
Bailey bridges are designed to support specific weight limits. Signs of overloading can manifest in various ways, including:
Deflection: Excessive bending or sagging of the bridge deck under load. Deflection can indicate that the bridge is being subjected to loads beyond its design capacity.
Cracking: Increased cracking in areas that bear the most weight. Cracks may develop in the decking or truss members, signaling potential failure points.
Fatigue Signs: Repeated stress can lead to fatigue cracks, particularly in high-traffic areas. Fatigue can accumulate over time, leading to sudden and catastrophic failures.
Understanding the signs of overloading is crucial for maintaining the safety and functionality of Bailey bridges.
Regular inspections are essential for identifying signs of wear before they lead to significant issues. Preventive maintenance can include:
Routine Visual Inspections: Regular checks for rust, cracks, and loose fasteners. Visual inspections should be conducted by trained personnel who can identify potential problems.
Load Testing: Assessing the bridge's ability to support expected loads. Load testing can help determine if the bridge is still within safe operational limits.
Cleaning: Removing debris and corrosive materials that can accelerate wear. Regular cleaning helps maintain the integrity of the bridge and prolongs its lifespan.
Implementing a preventive maintenance program can significantly reduce the risk of unexpected failures.
The safety of users is paramount when it comes to bridge maintenance. Regular inspections help ensure that any signs of wear are addressed promptly, reducing the risk of accidents or structural failures. Ensuring that the bridge is safe for all users, including vehicles and pedestrians, is a critical responsibility for bridge operators and maintenance teams.
By identifying and addressing signs of wear early, the lifespan of a Bailey bridge can be significantly extended. This not only saves costs associated with repairs and replacements but also ensures that the bridge remains functional for its intended use. A well-maintained Bailey bridge can serve its purpose for many years, providing essential connectivity in various applications.
Bailey bridges are invaluable structures that provide essential support in various applications. However, like all engineering solutions, they require regular maintenance and inspection to ensure their safety and longevity. By understanding the common signs of wear, such as rust, cracks, loose fasteners, and deformation, stakeholders can take proactive measures to maintain these bridges effectively. Regular inspections and preventive maintenance are crucial for extending the lifespan of Bailey bridges and ensuring the safety of all who use them. Investing in the upkeep of these structures not only protects public safety but also enhances the overall efficiency of transportation networks.
The typical lifespan of a Bailey bridge can vary based on environmental conditions, usage, and maintenance practices. Generally, with proper maintenance, a Bailey bridge can last anywhere from 20 to 50 years.
Bailey bridges should be inspected at least once a year, but more frequent inspections may be necessary in areas with heavy traffic, harsh weather conditions, or after significant events such as floods or earthquakes.
Ignoring signs of wear can lead to severe consequences, including structural failure, accidents, and potential loss of life. It can also result in costly repairs and extended downtime for the bridge.
Yes, Bailey bridges can often be repaired if significant wear is detected. Common repairs include replacing corroded panels, reinforcing truss members, and tightening or replacing loose fasteners. However, the extent of the damage will determine the feasibility of repairs.
Bailey bridges are primarily constructed from steel, which provides strength and durability. Some designs may also incorporate aluminum or composite materials for specific applications, especially where weight reduction is critical.
