Bailey bridges are a type of prefabricated truss bridge that gained prominence during World War II due to their ease of assembly and transportability. Named after their designer, Donald Bailey, these bridges are characterized by their modular construction, allowing for quick deployment in various environments. This article explores the key factors influencing the design of Bailey bridges, including their structural components, load considerations, environmental impacts, and advancements in materials and technology.
The Bailey bridge was developed in the early 1940s to meet the military's need for a portable and robust bridge that could be assembled quickly without heavy machinery. Its design was revolutionary, allowing for rapid deployment in combat zones and disaster relief situations. The bridge's modular nature means that it can be constructed from standard components, making it versatile for various applications. The success of the Bailey bridge during the war led to its adoption in civilian engineering projects, where its ability to provide temporary or permanent crossings in challenging conditions proved invaluable. Today, Bailey bridges are used not only in military applications but also in civil engineering projects, emergency response scenarios, and even recreational areas, showcasing their enduring relevance.
Bailey bridges consist of several key components that contribute to their strength and functionality. These include:
Panels: The primary structural elements that form the truss. Each panel is made of steel and can be connected to others to create longer spans. The design of these panels allows for efficient load distribution, which is crucial for maintaining structural integrity under various conditions.
Transoms: Horizontal beams that connect the panels and provide support for the decking. Transoms play a vital role in ensuring that the bridge can handle the stresses imposed by traffic and environmental factors.
Decking: The surface on which vehicles and pedestrians travel, typically made from timber or steel. The choice of decking material can significantly affect the bridge's weight, durability, and maintenance requirements.
Bracing: Diagonal members that provide stability and prevent deformation under load. Proper bracing is essential for maintaining the shape of the bridge and ensuring it can withstand lateral forces, such as wind or seismic activity.
Understanding these components is crucial for engineers when designing a Bailey bridge to ensure it meets specific load and environmental requirements. Each component must be carefully considered to create a cohesive structure that performs reliably over time.
One of the most critical factors in the design of Bailey bridges is the load they must support. This includes:
Dead Load: The weight of the bridge itself, including all its components. Engineers must calculate this load accurately to ensure that the bridge's foundation can support it without settling or shifting.
Live Load: The weight of vehicles, pedestrians, and any additional loads that may be present during its use. This load can vary significantly depending on the type of traffic the bridge is expected to accommodate, necessitating careful planning and analysis.
Dynamic Load: Forces that occur due to moving vehicles, which can cause vibrations and additional stress on the structure. Engineers must consider the impact of dynamic loads, especially for bridges that will experience heavy or high-speed traffic.
Engineers must calculate these loads accurately to ensure the bridge can safely support the intended traffic without risk of failure. This involves using advanced modeling techniques and simulations to predict how the bridge will behave under various loading conditions, ensuring safety and reliability.
The span length of a Bailey bridge significantly influences its design. Longer spans require more panels and additional bracing to maintain structural integrity. The configuration of the bridge, whether single or multi-span, also affects its overall strength and stability. Engineers must consider the specific site conditions and intended use when determining the optimal span length and configuration. For instance, a bridge spanning a wide river may require a different design approach than one crossing a narrow stream. Additionally, the choice of configuration can impact the ease of assembly and the materials needed, influencing both cost and construction time.
Bailey bridges are often deployed in various environments, from urban areas to remote locations. Environmental factors that influence design include:
Soil Conditions: The type of soil at the bridge site affects the foundation design. Engineers must assess soil stability and load-bearing capacity, which can vary widely depending on the location. For example, sandy soils may require different foundation techniques compared to clay or rocky soils.
Weather Conditions: Bridges must be designed to withstand local weather patterns, including wind, rain, and snow. This may involve selecting materials that resist corrosion and degradation. In regions prone to heavy snowfall, for instance, the design must account for the additional weight of snow accumulation.
Seismic Activity: In areas prone to earthquakes, additional design considerations are necessary to ensure the bridge can withstand seismic forces. This may involve incorporating flexible materials or specific bracing techniques to absorb and dissipate energy during an earthquake.
By carefully considering these environmental factors, engineers can design Bailey bridges that are not only functional but also resilient to the challenges posed by their surroundings.
The choice of materials is another crucial factor in the design of Bailey bridges. Steel is the primary material used due to its high strength-to-weight ratio and durability. However, advancements in materials science have introduced alternatives such as composite materials that offer benefits like reduced weight and increased resistance to environmental factors. Engineers must balance cost, availability, and performance when selecting materials for a Bailey bridge. The use of high-strength steel, for example, can reduce the overall weight of the bridge while maintaining its load-bearing capacity, leading to lower transportation costs and easier assembly.
The modular nature of Bailey bridges allows for various assembly methods, which can influence the design process. Common techniques include:
Cantilever Method: This involves extending the bridge sections outwards from a support point, allowing for construction without scaffolding. This method is particularly useful in locations where access is limited or where traditional scaffolding would be impractical.

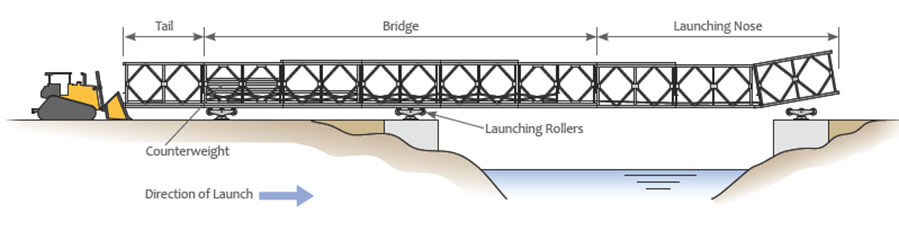

Incremental Launching: A method where sections of the bridge are pushed out from the abutment, suitable for longer spans. This technique can significantly reduce construction time and minimize disruption to the surrounding area.
Each method has its advantages and challenges, and the choice of technique can affect the overall design and construction timeline. For instance, while the cantilever method may be faster in some situations, it may require more complex engineering to ensure stability during construction.
Given that Bailey bridges are often used in remote or disaster-stricken areas, transportation logistics play a significant role in their design. The components must be lightweight and compact enough to be transported easily, often by truck or helicopter. This requirement influences the dimensions and materials used in the bridge's construction. Engineers must also consider the availability of transportation routes and the potential need for temporary access roads to facilitate the delivery of bridge components to the site.
Safety is paramount in bridge design. Bailey bridges must adhere to strict safety standards to ensure they can support the intended loads without risk of collapse. This includes regular inspections and maintenance to identify and address any potential issues before they become critical. Engineers must also consider the safety of construction workers during the assembly process, implementing measures to minimize risks and ensure a safe working environment.
The design of Bailey bridges also considers long-term maintenance. Components should be accessible for inspection and repair, and materials should be chosen for their durability to minimize maintenance needs. Regular maintenance schedules are essential to ensure the bridge remains safe and functional throughout its lifespan. This may involve routine inspections, cleaning, and repairs to address wear and tear caused by environmental factors or traffic loads. By prioritizing maintenance in the design phase, engineers can extend the lifespan of the bridge and reduce long-term costs.
The future of Bailey bridge design is likely to be influenced by advancements in technology. Innovations such as 3D printing and advanced materials could lead to even more efficient and robust designs. Additionally, the use of computer modeling and simulation can help engineers predict how bridges will perform under various conditions, leading to safer and more effective designs. These technologies can also streamline the design process, allowing for quicker iterations and more precise calculations.
As environmental concerns grow, the design of Bailey bridges is also shifting towards sustainability. This includes using recycled materials, reducing waste during construction, and designing bridges that have a minimal environmental impact. Sustainable practices not only benefit the environment but can also reduce costs and improve the overall efficiency of bridge construction. For example, using locally sourced materials can lower transportation emissions and support local economies. Furthermore, designing bridges with a focus on longevity and minimal maintenance can contribute to a more sustainable infrastructure overall.
The design of Bailey bridges is influenced by a multitude of factors, including load considerations, environmental conditions, material selection, and construction techniques. As technology advances and the need for rapid deployment in various scenarios continues, the design of these bridges will evolve to meet new challenges. Understanding these key factors is essential for engineers and designers to create safe, efficient, and sustainable Bailey bridges that can serve communities effectively for years to come. By embracing innovation and prioritizing sustainability, the future of Bailey bridge design holds great promise for enhancing infrastructure resilience and adaptability in an ever-changing world.
Bailey bridges are primarily used for military applications, emergency response, and civil engineering projects. They are ideal for temporary crossings in disaster relief situations, as well as for permanent installations in remote areas where traditional bridge construction may be impractical.
Bailey bridges are assembled using a modular approach, where pre-fabricated panels are connected to form the bridge structure. Common assembly methods include the cantilever method, which extends sections outward from a support point, and incremental launching, where sections are pushed out from the abutment.
The primary material used in Bailey bridges is steel due to its high strength-to-weight ratio and durability. However, advancements in materials science have introduced alternatives such as composite materials, which can offer benefits like reduced weight and increased resistance to environmental factors.
Key factors influencing the design of a Bailey bridge include load considerations (dead, live, and dynamic loads), span length and configuration, environmental conditions (soil type, weather, seismic activity), and material selection. Each of these factors must be carefully evaluated to ensure the bridge's safety and functionality.
Engineers ensure the safety of Bailey bridges by adhering to strict safety standards, conducting regular inspections and maintenance, and accurately calculating the loads the bridge must support. They also consider environmental factors and use durable materials to minimize wear and tear over time.
