Constructing a reliable, temporary crossing in challenging terrain requires precision, efficiency, and adherence to rigorous engineering standards. As experts at Evercross Bridge, we have successfully deployed modular steel solutions across diverse global environments—from post-flood reconstruction in Europe to major infrastructure projects in Africa.
The launching nose is the critical component that allows for the safe incremental launching of a Bailey bridge. Mastering its assembly—specifically the double-row, single-layer configuration—is essential for project safety and speed. This guide breaks down the process into actionable steps, integrated with industry best practices for quality assurance.

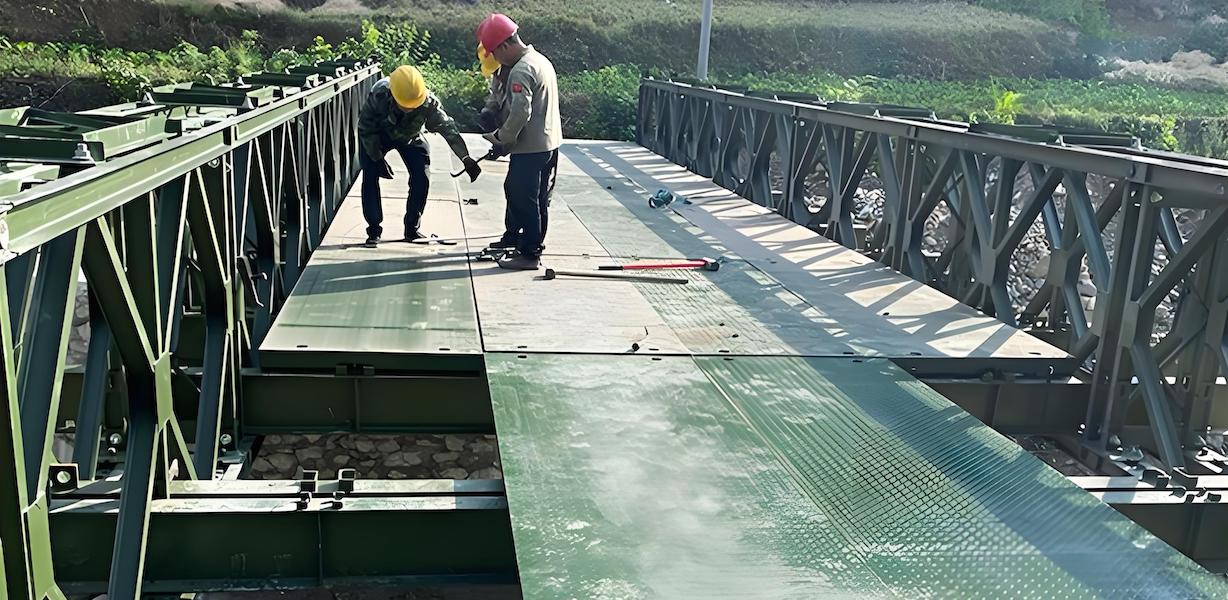

A Bailey bridge is a masterpiece of modular engineering. The launching nose acts as a cantilevered extension, extending the bridge's reach to the far bank before the final deck is in place. By balancing torque and weight, it ensures the main bridge structure remains stable during the entire transit process.
*Note: Before starting, ensure your site is prepared with level launching rollers and that all necessary components (panels, transoms, sway braces, pins, and bolts) are staged for quick access.*
1. Initial Connection: Once the single-row nose is complete and inspected, begin the double-row assembly. Align the male (or female) end of the new Bailey panel with the matching end of the last section of the single-layer bridge. Secure them using pins and insert the safety locking pins immediately [gov] [radionerds]. Precision at this stage prevents misalignment in subsequent sections.
2. External Panel Installation: Position a second panel on the outside of the connected panel. Place a support frame across the top chords of both adjacent panels to form a temporary, stable frame; keep bolts loose to allow for minor adjustments [radionerds]. This "looseness" is vital for aligning multiple panels accurately.
3. Transom Positioning: Install the cross-beam (transom) at the front of the vertical members. Secure it with a beam clamp, but do not fully tighten yet [radionerds]. This ensures the assembly remains flexible until the entire bay is squared.
4. Backend Alignment: Secure the second transom in front of the rear vertical member using a beam clamp [radionerds]. Correct positioning of these transoms dictates the structural load distribution of the nose.
5. Diagonal Bracing: Install the third transom behind the rear vertical member. Simultaneously, mount the diagonal braces onto the second transom to ensure structural rigidity [radionerds]. Diagonal bracing is critical to prevent twisting under cantilever loads.
6. Internal Row and Wind Bracing: Install the inner row of Bailey panels for the new section. At this stage, install the wind-resistant tie rods within the first section [radionerds]. Wind bracing is often overlooked but essential for stability during the launch process.
7. Final Securing: Install the outer row of panels for the second section of the bridge. Once aligned, fully tighten the support frames, beam clamps, and wind-resistant tie rods of the first section to finalize that bay [radionerds]. Double-check all connections—a loose bolt here can compromise the entire launching operation.
8. Cycling: Repeat these steps sequentially until the launching nose has reached the required length and is ready for the bridge launch [radionerds].
To ensure superior performance, professionals must consider these critical factors:
* Torque Balancing: The launching process is a dynamic game of leverage. The weight on the home bank must consistently counteract the weight of the cantilevered nose as it reaches the far bank [scribd]. Use rockers to manage friction and load transfer.
* Safety Protocols: Always designate a dedicated safety officer to monitor assembly. Height safety and heavy-lift protocols are non-negotiable [coursehero].
* Quality Control: At Evercross Bridge, we emphasize using components that comply with international standards (e.g., ISO 9001, EN 1090) [baileybridgesolution]. Only certified panels should ever be integrated into a load-bearing structure.
Q1: Do I need heavy machinery to assemble a Bailey bridge?
A: No. Bailey bridges are designed for manual, incremental assembly using standard hand tools and pioneer skills [bits].
Q2: How do I ensure the launching nose is strong enough?
A: Adhere strictly to the engineering design documentation provided. Using correct panel configurations and tightening all bracing as specified is critical for structural integrity [gov].
Q3: What should I do if a component is damaged?
A: Never use damaged parts. If you identify a faulty pin or panel, replace it immediately with a certified, undamaged component. Safety margins are calculated based on perfect parts [bits].
Q4: How often should the bridge be inspected during assembly?
A: Perform a visual check of all connections every time a new bay is added. Post-launch, conduct a comprehensive structural audit [steelbaileybridges].
Q5: Why choose Evercross Bridge for my infrastructure project?
A: With decades of experience, Evercross Bridge provides end-to-end support—from initial design and manufacturing to expert installation guidance, ensuring compliance with global standards [baileybridgesolution].
