Bridges are essential structures that facilitate transportation and connectivity across obstacles such as rivers, valleys, and roads. Among the various types of bridges, truss bridges and bowstring bridges are notable for their unique designs and engineering principles. This article delves into the characteristics of truss bridges and bowstring bridges, their similarities and differences, and whether a truss bridge can be classified as a bowstring bridge.

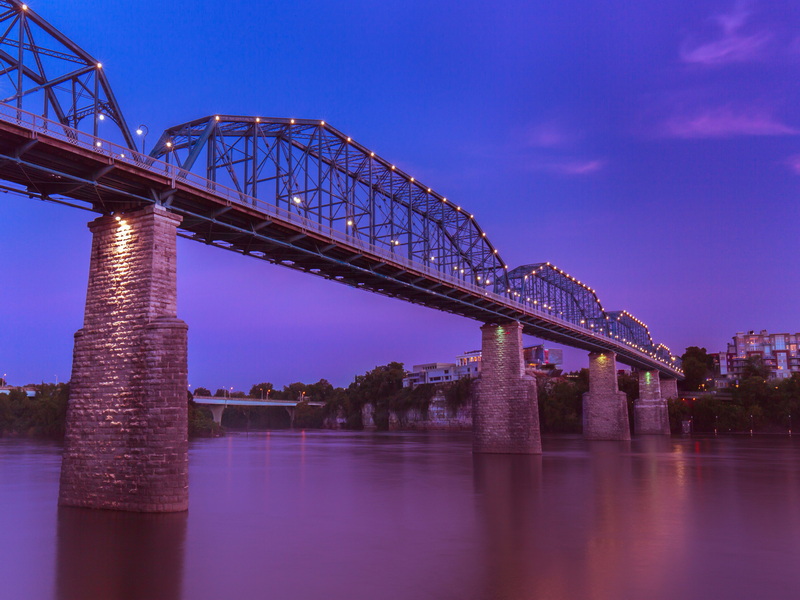

Truss bridges are constructed using a framework of interconnected triangular units. This design is primarily composed of straight members arranged in a triangular pattern, which provides exceptional strength and stability. The individual components of a truss bridge include:
- Top Chord: The upper horizontal member that experiences compression.
- Bottom Chord: The lower horizontal member that experiences tension.
- Web Members: The diagonal and vertical members connecting the top and bottom chords, which help distribute loads throughout the structure.
The triangular configuration is crucial because triangles are inherently stable shapes that do not deform under stress. This stability allows truss bridges to carry heavy loads while using less material compared to solid beams.
There are several types of truss bridges, each with distinct designs suited for different applications:
- Pratt Truss: Features diagonal members that slope towards the center. It is efficient for carrying loads.
- Howe Truss: Has diagonals sloping away from the center, making it suitable for heavy loads.
- Warren Truss: Characterized by equilateral triangles without vertical members, providing uniform load distribution.
- K Truss: Combines vertical and diagonal members in a unique arrangement to enhance strength.
Each type has specific advantages in terms of load capacity, material efficiency, and aesthetic appeal.
A bowstring bridge is a specific type of arch bridge that incorporates elements of both arch and truss designs. It features a curved top chord (the "bow") that supports the structure while being tied at both ends by a horizontal member (the "string"). The defining characteristics of bowstring bridges include:
- Curved Top Chord: This arch-like feature allows for effective load distribution by converting vertical loads into horizontal forces that are managed by the tie beam.
- Tension Ties: Vertical cables or rods connect the deck to the arch, allowing the structure to handle significant loads while maintaining stability.
Bowstring bridges are particularly advantageous because they can be built on less robust foundations due to their ability to minimize horizontal forces at the abutments. They can also be prefabricated offsite for easier transportation and installation.
While both truss bridges and bowstring bridges share some similarities, they are fundamentally different in design and function. Here's a comparison:
| Feature | Truss Bridge | Bowstring Bridge |
|---|---|---|
| Structure Type | Framework of interconnected triangles | Curved arch with horizontal ties |
| Load Distribution | Primarily through tension and compression | Through arch action combined with tension |
| Foundation Requirements | Requires robust foundations | Can use lighter foundations |
| Aesthetic Appeal | Functional but less visually appealing | Often more visually striking due to its curves |
| Common Uses | Railways, highways, pedestrian pathways | Scenic routes, parks, urban settings |
The question arises whether a truss bridge can be classified as a bowstring bridge. Technically speaking, while both types share structural principles such as load distribution through triangulation or tension/compression mechanisms, they cannot be considered the same due to their inherent design differences.
A bowstring bridge incorporates an arch structure that is not present in traditional truss designs. The curvature of the bowstring's top chord distinguishes it from standard trusses, which rely on straight members arranged in triangular configurations. Therefore, while there may be overlap in engineering concepts—such as tension and compression—the physical forms and load-bearing mechanisms differ significantly.
Truss bridges offer numerous advantages:
- Strength: Their triangular design distributes loads effectively across multiple members, enhancing overall strength.
- Material Efficiency: By using smaller components arranged in triangles, less material is required compared to solid beam structures.
- Versatility: Truss bridges can be designed for various spans and load capacities, making them suitable for different applications.
- Cost-Effectiveness: Due to efficient material use and simplified construction processes, truss bridges can be more economical than other designs.
Despite their advantages, truss bridges also have drawbacks:
- Complexity in Design: The intricate connections between members require careful engineering to ensure stability and safety.
- Maintenance Needs: The numerous joints can lead to wear over time, necessitating regular inspections and maintenance.
- Aesthetic Limitations: Some may find traditional truss designs less visually appealing compared to modern bridge designs like cable-stayed or arch bridges.
Bowstring bridges also present several benefits:
- Aesthetic Appeal: Their elegant curves make them visually appealing for scenic locations.
- Reduced Foundation Requirements: They exert less horizontal force on abutments, allowing construction on weaker soils or elevated piers.
- Efficient Load Handling: The combination of arch action with tension ties allows for effective load management across varying spans.
However, bowstring bridges come with challenges:
- Higher Construction Costs: The unique design may require specialized materials or construction techniques that can increase costs.
- Limited Span Capabilities: While effective for medium spans (50m - 150m), they may not be suitable for longer distances without additional support structures.
The development of both truss and bowstring bridges is deeply rooted in engineering history. The first significant advancements in truss bridge design occurred during the early 19th century when engineers began experimenting with metal materials instead of wood. This transition was crucial as it allowed for longer spans and greater load capacities.
Squire Whipple patented the bowstring truss design in 1841, marking a pivotal moment in bridge engineering. His design was one of the first to utilize metal components effectively while incorporating an arched shape that enhanced structural integrity. Whipple's work laid the foundation for future innovations in bridge construction by demonstrating how combining different structural elements could yield superior results compared to traditional methods[5][9].
Additionally, during the late 19th century, many variations of these bridge types emerged as engineers sought to optimize performance based on specific site conditions and material availability. For instance, the Pratt and Howe trusses became popular due to their efficiency in handling vertical loads while maintaining simplicity in construction[11][14].
Today, both truss and bowstring bridges continue to play essential roles in infrastructure development. Engineers utilize advanced materials such as high-strength steel and reinforced concrete to enhance performance while reducing weight.
Truss bridges are commonly used in railway systems due to their ability to span long distances without requiring intermediate supports. Their design allows for easy maintenance access, which is critical for ensuring safety on busy rail lines[4][10].
On the other hand, bowstring bridges have found favor in urban environments where aesthetics play a significant role. Their graceful curves complement modern architectural styles while providing functional crossings over rivers or highways[3][12].
Furthermore, advancements in computer-aided design (CAD) have revolutionized how engineers approach bridge design. Simulations allow for precise modeling of stress distributions within both types of structures, enabling more efficient designs that maximize material use while ensuring safety[2][6].
In conclusion, while both truss bridges and bowstring bridges are vital components of modern infrastructure with distinct advantages and applications, they represent different engineering approaches. A truss bridge cannot be classified as a bowstring bridge due to fundamental differences in design—specifically the presence of an arch structure in bowstring bridges versus the triangular framework characteristic of trusses. Understanding these distinctions is essential for engineers when selecting appropriate bridge designs based on specific project requirements.
The primary difference lies in their structural design; truss bridges consist of interconnected triangular units while bowstring bridges feature a curved top chord supported by horizontal ties.
Strength depends on specific design requirements; both types can handle significant loads but utilize different mechanisms for load distribution.
Yes, bowstring bridges require less robust foundations due to their reduced horizontal forces at abutments compared to traditional designs like trusses.
Truss bridges are commonly used for railways and highways, while bowstring bridges are often found in scenic areas or urban settings due to their aesthetic appeal.
Truss bridges may require more frequent inspections due to numerous joints susceptible to wear; bowstring bridges generally have fewer connections but still need regular maintenance for safety.
