Truss bridges are a common and effective solution for spanning distances while supporting significant loads. Their design utilizes a series of interconnected triangular units, which provide strength and stability. Understanding how a truss bridge is built to withstand forces is crucial for engineers and builders alike. This article will explore the components of truss bridges, the forces they encounter, design principles, construction methods, and maintenance practices that ensure their longevity and safety.

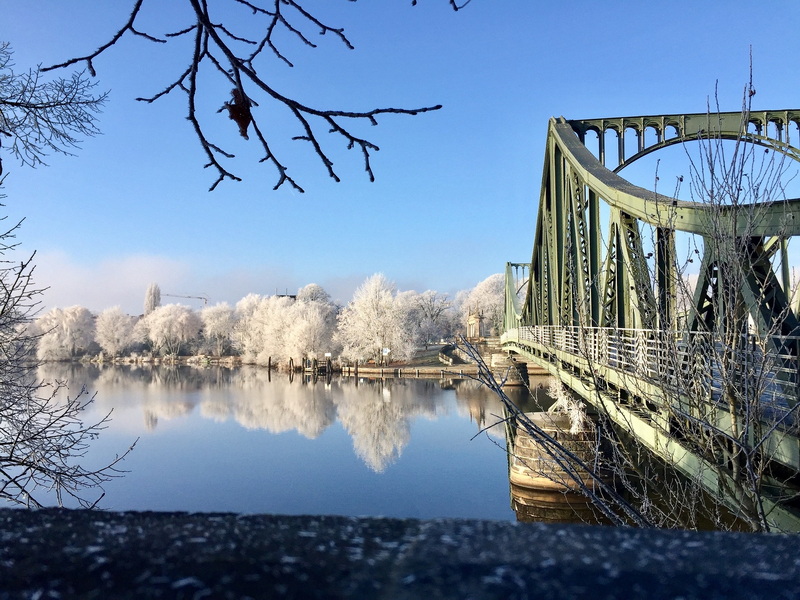

A truss bridge consists of several key components that work together to distribute loads effectively:
- Top Chord: The upper horizontal member of the truss that primarily experiences compressive forces. It supports the weight of the bridge deck and any loads applied to it.
- Bottom Chord: The lower horizontal member that typically experiences tensile forces. It helps maintain the shape of the truss and supports the weight from below.
- Diagonal Members: These members connect the top and bottom chords and are crucial for distributing forces throughout the structure. Depending on their orientation, they can be in tension or compression.
- Vertical Members: These members connect the top and bottom chords vertically. They primarily experience compressive forces and help transfer loads from the top chord to the bottom chord.
The points where truss members connect are known as joints or panel points. These connections are critical for maintaining structural integrity, as they allow for the transfer of forces between members.
The surface on which vehicles or pedestrians travel is called the decking. It is supported by the truss structure and must be designed to handle live loads (such as traffic) and dead loads (the weight of the decking itself).
The foundation supports the entire bridge structure, transferring loads to the ground. It must be designed to withstand vertical loads from above while providing stability against lateral forces such as wind.
Understanding the forces that act on a truss bridge is essential for designing a safe and effective structure. The primary forces include:
Compression occurs when materials are pushed together, leading to a reduction in length. In truss bridges, compression primarily affects:
- Top Chord: As it bears the load from above, it experiences compressive forces that can lead to buckling if not properly managed.
Tension is the force that stretches materials apart. In truss bridges, tension typically affects:
- Bottom Chord: This member is under tension as it supports loads from below.
- Diagonal Members: Depending on their orientation, some diagonal members may also experience tensile stress when loads are applied.
Shear forces act parallel to the surface of materials, causing them to slide past one another. In truss bridges, shear can occur at joints where members connect, requiring careful design to prevent structural failure.
Torsion refers to twisting forces that can occur when loads are unevenly distributed across the structure. While truss bridges are generally designed to minimize torsion, it can still be a concern in certain scenarios.
The design of a truss bridge involves careful consideration of various factors to ensure it can withstand applied forces effectively:
The triangular shape of trusses provides inherent strength because triangles cannot be distorted by stress in the same way that rectangles can. This configuration allows for efficient load distribution across all members.
Choosing appropriate materials is vital for ensuring structural integrity and durability:
- Steel: Commonly used due to its high tensile strength and ability to withstand significant loads.
- Wood: Used in smaller structures; while aesthetically pleasing, wood requires more maintenance than steel.
- Concrete: Often combined with steel in hybrid designs to enhance load-bearing capacity.
Engineers must calculate how different types of loads (live, dead, dynamic) will affect each member of the truss:
- Dead Loads: The weight of the bridge itself and any permanent fixtures.
- Live Loads: Temporary loads such as vehicles or pedestrians crossing the bridge.
- Dynamic Loads: Forces caused by environmental factors like wind or seismic activity.
Engineers use various methods to analyze internal forces within each member:
- Method of Joints: Analyzing forces at each joint by applying equilibrium equations to determine tension and compression in each member.
- Method of Sections: Cutting through the truss to analyze specific sections and calculate internal forces directly.
Building a truss bridge involves several steps that ensure its strength and stability:
Before construction begins, engineers assess the site conditions, including soil type, topography, and environmental factors that may affect stability.
The foundation must be built first to provide a stable base for the bridge structure:
- Excavation: Digging out areas where piers or abutments will be placed.
- Footings: Pouring concrete footings that will support vertical elements of the bridge.
Once foundations are complete, workers assemble the truss components:
- Fabrication: Trusses are often prefabricated off-site using precise measurements for accuracy.
- Erection: The assembled trusses are lifted into place using cranes or other heavy machinery.
After erecting the trusses, workers install decking materials on top:
- Decking Support: Beams or stringers may be placed between trusses to support decking materials.
- Decking Material: Concrete slabs or wooden planks are laid down as walking surfaces for pedestrians or vehicles.
Once construction is complete, engineers conduct thorough inspections before opening the bridge to traffic:
- Load Testing: Engineers may perform load tests to ensure structural integrity under expected traffic conditions.
- Regular Maintenance: Ongoing inspections should be scheduled throughout its lifespan to address any wear or damage promptly.
To ensure long-term performance and safety, regular maintenance is essential:
Routine visual inspections help identify any visible signs of wear or damage:
- Look for cracks in joints or members.
- Check for corrosion on steel components or rot in wooden elements.
Engineers should perform periodic structural integrity tests using non-destructive testing methods:
- Ultrasonic Testing: Used to detect internal flaws in metal components.
- Magnetic Particle Testing: Identifies surface cracks in ferromagnetic materials.
Regular cleaning helps prevent corrosion and deterioration:
- Remove debris from joints and surfaces.
- Repair any damaged components promptly before they compromise structural integrity.
Truss bridges are marvels of engineering that combine efficiency with strength through their unique design principles. By utilizing triangular configurations and understanding how different forces interact within their structure, engineers can create bridges capable of withstanding significant loads while minimizing material use.
Wood remains a preferred choice for many applications due to its aesthetic appeal, insulation properties, and environmental sustainability; however, modern materials like steel also play an essential role in creating durable structures designed for longevity.
Through careful planning during design phases followed by meticulous construction practices coupled with ongoing maintenance efforts—truss bridges continue serving communities safely across various landscapes worldwide.
Truss bridges typically support dead loads (the weight of the bridge itself), live loads (vehicles or pedestrians), dynamic loads (wind or seismic activity), and environmental factors like snow accumulation.
Engineers use methods such as the method of joints or method of sections by applying equilibrium equations at joints or cutting through sections of the bridge respectively to calculate internal forces within each member accurately.
Common materials include steel (for its high tensile strength), wood (for smaller structures), and concrete (often combined with steel).
If one member fails, other members may redistribute the load; however, excessive failure may lead to collapse if not designed with redundancy in mind.
Weather affects performance through temperature changes (causing expansion/contraction), wind loads (exerting lateral forces), and precipitation (adding live load). Regular inspections help mitigate these effects.
