Timber foot bridges are a timeless solution for crossing streams, small rivers, or ravines, blending functionality with natural aesthetics. Whether for private gardens, public parks, or rural pathways, a well-constructed timber foot bridge provides safe passage and enhances the landscape. Building such a bridge is a rewarding project, but it requires careful planning, appropriate materials, and precise execution.
This comprehensive guide will walk you through the entire process of building a timber foot bridge, from initial planning and design to construction and maintenance. By following these step-by-step instructions, you will gain the knowledge and confidence to construct a durable and attractive timber foot bridge that meets your needs.

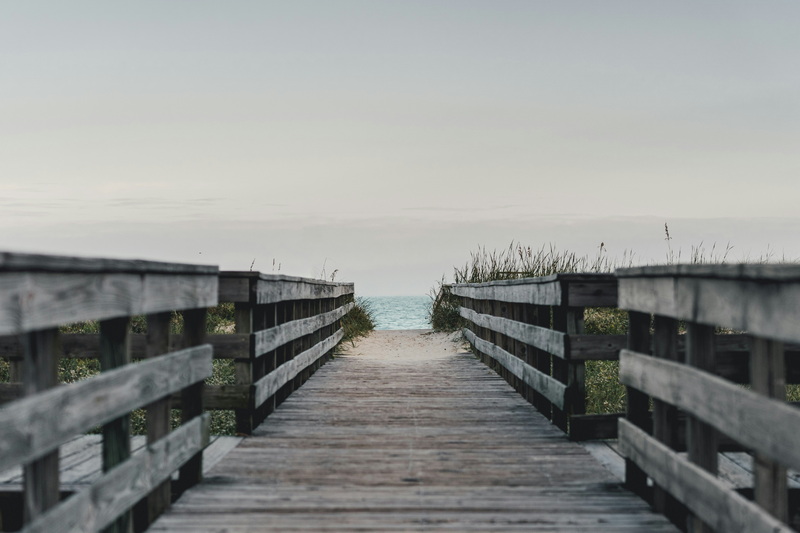

A timber foot bridge is a pedestrian bridge constructed primarily from wood, designed to span a gap such as a stream, ditch, or small ravine. These bridges are typically used in parks, gardens, hiking trails, and rural areas where vehicular access is unnecessary.
- Log Bridges: Made from whole logs, suitable for short spans and rustic settings.
- Beam Bridges: Utilize sawn timber beams as the primary support, ideal for longer spans and higher load capacities.
- Truss Bridges: Incorporate triangular frameworks for additional strength, used for longer or more demanding applications.
The first step is to carefully choose the bridge site. Consider the following factors:
- Span Length: Measure the distance to be crossed, including any banks or slopes.
- Soil and Foundation Conditions: Assess the ground on both sides for stability and load-bearing capacity.
- Water Flow and Flooding: Evaluate the potential for high water levels or flooding, especially after heavy rain.
- Environmental Impact: Minimize disturbance to local flora and fauna.
A detailed site survey is essential. Mark the exact points where the bridge will begin and end. Take note of elevation differences, obstacles, and any existing vegetation that may need to be cleared.
- Load Requirements: Determine the maximum expected load, including groups of pedestrians or maintenance equipment.
- Span and Width: For foot bridges, spans typically range from 2 to 20 meters, with widths from 0.9 to 1.5 meters.
- Safety Features: Plan for handrails, anti-slip decking, and adequate lighting if needed.
Select high-quality, durable timber species such as oak, cedar, or pressure-treated pine. Timber should be:
- Straight and Free of Major Defects: Avoid knots, splits, or warping.
- Properly Treated: Use pressure-treated wood or naturally rot-resistant species to extend lifespan.
- Certified: Ensure timber is sourced sustainably, ideally with FSC certification.
- Fasteners: Galvanized or stainless steel bolts, screws, and nails.
- Concrete: For abutments and footings.
- Protective Coatings: Sealants or stains to prevent moisture ingress.
- Decking Materials: Timber planks or anti-slip mesh.
Clear vegetation and debris from the bridge site. Level the ground at both ends to provide a stable working area.
Abutments are the supports at each end of the bridge. They can be made from:
- Concrete: Pour concrete footings or use precast blocks.
- Timber: Large treated timber beams set into the ground.
- Stone or Masonry: For a more traditional appearance.
Ensure abutments are:
- Level and Aligned: Use a spirit level and measuring tape.
- Securely Anchored: Foundations must resist movement from loads and environmental forces.
- Lifting and Positioning: Use proper lifting equipment for heavy beams. Align beams parallel and evenly spaced.
- Securing to Abutments: Drill holes and use anchor bolts to fix beams to the abutments. Do not fully tighten bolts until all beams are in place to allow for adjustments.
- Spacing: For most foot bridges, two or three main beams are sufficient, spaced evenly across the width.
- Transverse Beams: Install cross beams or tie beams between the main beams to provide lateral stability.
- Fastening: Use bolts and metal brackets for secure connections.
- Material: Use treated timber planks or anti-slip decking boards.
- Spacing: Leave small gaps (5-10 mm) between boards for drainage.
- Fastening: Secure planks to the beams with galvanized screws or bolts.
- Mesh or Strips: Attach anti-slip mesh or strips to the deck surface, especially in wet climates.
- Surface Treatment: Apply sanded paint or textured coatings if necessary.
- Height: Typically 900-1200 mm above the deck.
- Posts: Install vertical posts at regular intervals (1-1.5 meters).
- Rails: Attach top and mid rails using bolts or brackets.
- Infill Panels: Use timber slats, wire mesh, or balusters for additional safety.
Install barriers or ramps at each end to guide users safely onto and off the bridge.
- Check for Level: Ensure the bridge deck is even and stable.
- Adjust as Needed: Tighten all bolts and make final adjustments to alignment.
- Load Test: Gradually apply weight to confirm structural integrity.
- Visual Check: Inspect for protruding fasteners, splinters, or unstable components.
- Sealants: Apply water-repellent sealant or stain to all timber surfaces.
- Paint: Use exterior-grade paint for additional protection if desired.
- Approach Paths: Grade and stabilize paths leading to the bridge.
- Erosion Control: Plant grass or use geotextiles to prevent soil erosion around abutments.
- Annual Inspections: Check for rot, insect damage, or loose fasteners.
- Deck Cleaning: Remove debris and moss to prevent slipping.
- Reapply Treatments: Refresh sealants or stains every few years.
- Underestimating Load Requirements: Always design for maximum expected use.
- Poor Timber Selection: Use only high-quality, treated timber for structural components.
- Neglecting Foundations: Weak or unstable abutments can lead to bridge failure.
- Improper Fastening: Use corrosion-resistant fasteners and ensure all connections are secure.
- Ignoring Maintenance: Regular upkeep is essential for long-term durability.
Building a timber foot bridge is a complex but achievable project that combines engineering, carpentry, and environmental awareness. By following a systematic approach-careful planning, sound design, quality material selection, precise construction, and ongoing maintenance-you can create a bridge that is not only functional and safe but also a beautiful addition to the landscape. Whether for private use or public enjoyment, a well-built timber foot bridge stands as a testament to craftsmanship and thoughtful design.
The construction timeline depends on the bridge's size, complexity, and site conditions. For a simple garden bridge, it may take a few days. Larger or more complex foot bridges can require several weeks, including time for site preparation, foundation curing, and assembly.
Durable, rot-resistant species such as oak, cedar, or pressure-treated pine are ideal. Always use timber that is properly treated to withstand moisture, insects, and weathering.
Permit requirements vary by location and the bridge's size. In many areas, small private bridges do not require permits, but public or larger structures often do. Always check with local authorities before starting construction.
Follow recognized engineering standards for load capacity, use quality materials, and construct robust handrails and decking. Conduct regular inspections and maintenance to address any wear or damage.
Annual inspections, cleaning the deck, tightening fasteners, and reapplying protective treatments are essential. Address any signs of rot, insect damage, or structural movement promptly to ensure longevity.
