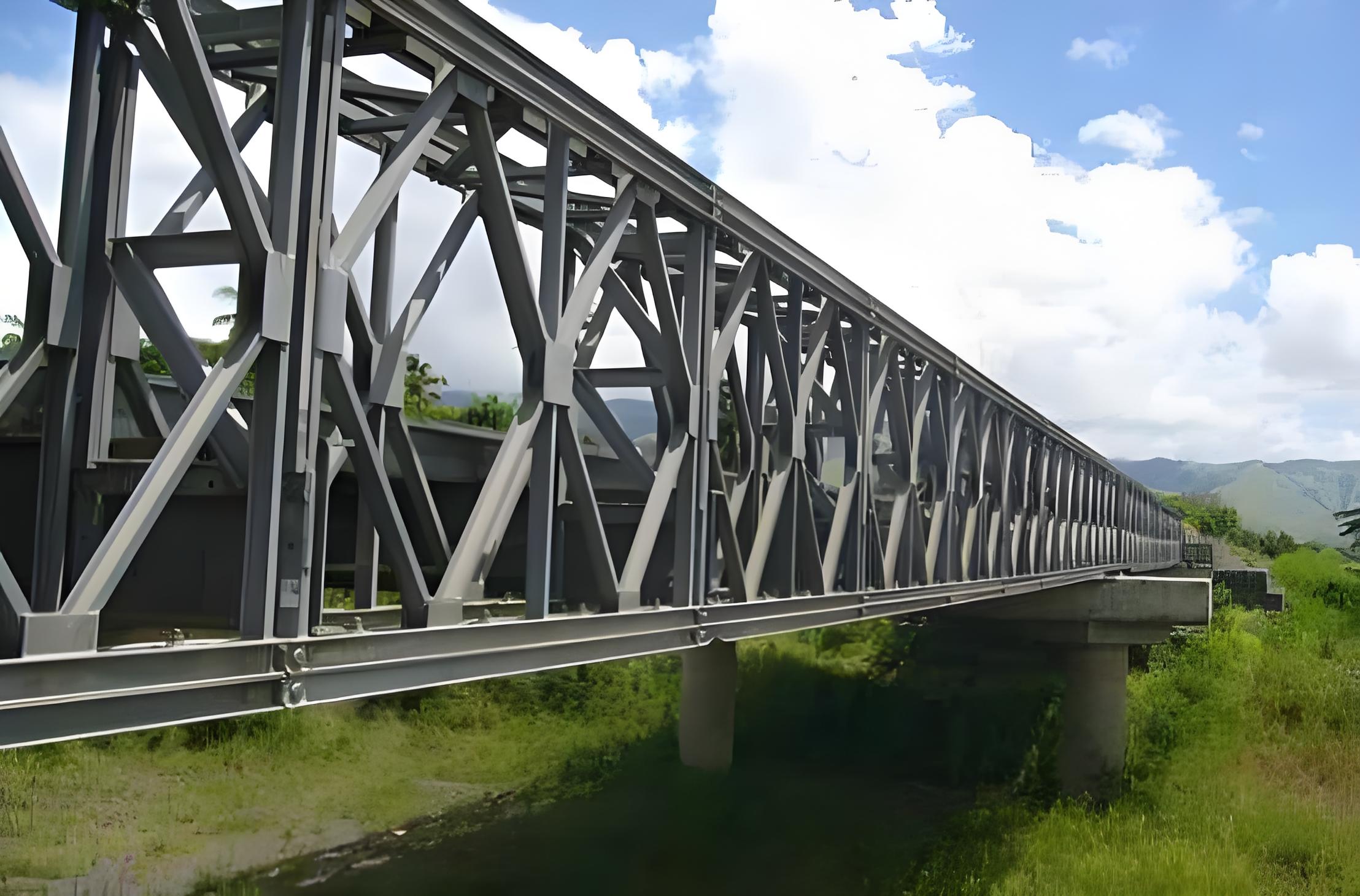

Bailey bridges are a type of prefabricated truss bridge that has been widely used since World War II for military and civilian applications. Their design allows for rapid assembly and disassembly, making them ideal for temporary and emergency situations. However, the materials used in their construction significantly influence their lifespan and maintenance requirements. This article explores the various materials used in Bailey bridges, their impact on durability, and the maintenance practices necessary to ensure their longevity.

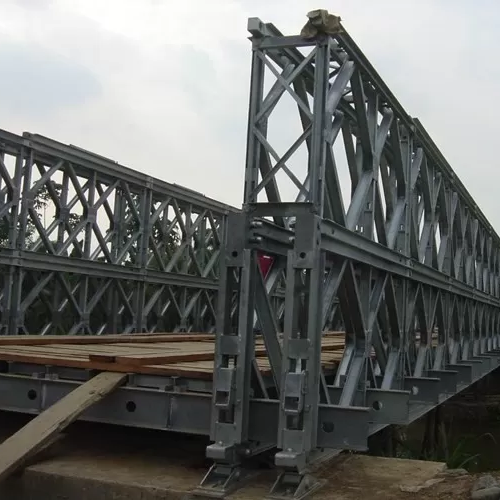

A Bailey bridge consists of a series of prefabricated steel panels that are assembled on-site to form a bridge structure. The design is modular, allowing for various configurations depending on the required span and load capacity. The primary components include panels, trusses, and decking, all of which are made from high-strength steel. This modularity not only facilitates quick assembly but also allows for easy transportation, making Bailey bridges particularly useful in remote or disaster-stricken areas where traditional construction methods may be impractical. The ability to adapt the bridge's design to specific needs further enhances its utility in diverse applications, from military operations to civilian infrastructure projects.
Developed in the 1940s, the Bailey bridge was designed to be easily transportable and quickly assembled by military engineers. Its robust design and ease of use have led to its adoption in various civil engineering projects, including temporary roadways and pedestrian crossings. The bridge's origins are rooted in the need for rapid deployment during wartime, where traditional construction methods were too slow to meet urgent logistical demands. Over the decades, the Bailey bridge has evolved, incorporating advancements in materials and engineering practices, yet it retains its fundamental design principles that prioritize efficiency and functionality.
The primary material used in Bailey bridges is steel, known for its high strength-to-weight ratio. The steel components are typically treated or coated to resist corrosion, which is crucial for maintaining the integrity of the bridge over time. Steel's inherent properties make it an ideal choice for structural applications, as it can withstand significant loads while remaining relatively lightweight. This characteristic is particularly important in bridge design, where minimizing weight can reduce the overall stress on supporting structures and foundations.
High-Strength Low-Alloy Steel: This type of steel is commonly used due to its excellent mechanical properties and resistance to corrosion. It is lightweight yet strong, making it ideal for bridge applications. The use of high-strength low-alloy steel allows for longer spans and reduced material usage, which can lead to cost savings in both construction and maintenance.
Galvanized Steel: Galvanization involves coating steel with a layer of zinc to protect it from rust. This treatment significantly extends the lifespan of the bridge, especially in harsh environments. The galvanization process not only enhances corrosion resistance but also provides a durable surface that can withstand the rigors of weather and traffic, making it a preferred choice for many bridge applications.
Stainless Steel: In some cases, stainless steel is used for components that require enhanced corrosion resistance, particularly in coastal or industrial areas where exposure to salt and chemicals is a concern. Stainless steel's ability to resist rust and staining makes it an excellent choice for environments that would otherwise degrade standard steel components, ensuring that the bridge remains safe and functional over time.
The decking of a Bailey bridge can be made from various materials, including:
Steel Grating: This is a common choice due to its strength and ability to allow water drainage, reducing the risk of corrosion. Steel grating provides a durable surface that can support heavy loads while facilitating drainage, which is essential for preventing water accumulation that could lead to rust and structural damage.
Wooden Planks: In some applications, wooden decking may be used, although it requires more maintenance and has a shorter lifespan compared to steel options. While wooden planks can provide a cost-effective solution for temporary bridges, they are more susceptible to rot, insect damage, and weathering, necessitating regular inspections and maintenance to ensure safety.
The longevity of a Bailey bridge is heavily influenced by the materials' resistance to corrosion. Steel components that are not adequately protected can suffer from rust, leading to structural weaknesses. Regular maintenance, including inspections and protective coatings, is essential to mitigate these risks. Corrosion can significantly reduce the load-bearing capacity of the bridge, leading to potential safety hazards. Therefore, selecting materials with inherent corrosion resistance or applying protective treatments is critical for extending the lifespan of the bridge.
The materials used also determine the load-bearing capacity of the bridge. High-strength steel allows for greater spans and heavier loads, which can extend the bridge's usability in various applications. However, overloading a bridge can lead to premature failure, regardless of the materials used. Understanding the specific load requirements and ensuring that the bridge is not subjected to excessive weight is vital for maintaining its structural integrity. Engineers must carefully calculate the expected loads and design the bridge accordingly to prevent overloading and ensure safety.
The environment in which a Bailey bridge is located plays a significant role in its lifespan. Bridges in coastal areas or regions with high humidity are more susceptible to corrosion. Therefore, selecting appropriate materials and protective measures is crucial for ensuring durability. Environmental factors such as temperature fluctuations, exposure to chemicals, and humidity levels can all impact the materials' performance. Engineers must consider these factors during the design phase to select materials that will withstand the specific conditions of the bridge's location.
Routine inspections are vital for identifying potential issues before they become serious problems. Inspectors should look for signs of corrosion, structural damage, and wear on the decking. Regular assessments help in planning maintenance activities effectively. Inspections should be conducted at predetermined intervals, and any findings should be documented to track the bridge's condition over time. This proactive approach allows for timely repairs and helps prevent costly failures.
Applying protective coatings to steel components can significantly enhance their lifespan. These coatings act as a barrier against moisture and corrosive elements, reducing the risk of rust and extending the time between maintenance cycles. Various types of coatings are available, including paint, epoxy, and specialized corrosion-resistant materials. The choice of coating depends on the specific environmental conditions and the expected lifespan of the bridge.
Over time, certain components may wear out or become damaged. Timely replacement of these parts is essential to maintain the overall integrity of the bridge. This includes replacing decking materials, truss components, and any other structural elements that show signs of deterioration. A well-planned replacement strategy can minimize downtime and ensure that the bridge remains safe for use.
Regular cleaning of the bridge, including the removal of debris and vegetation, helps prevent moisture retention and corrosion. Keeping the bridge clear of obstructions also ensures safe passage for vehicles and pedestrians. Accumulated debris can trap moisture against the bridge's surfaces, accelerating corrosion and leading to structural issues. Routine cleaning should be part of the maintenance schedule to promote the longevity of the bridge.
The materials used in Bailey bridges play a crucial role in determining their lifespan and maintenance needs. High-strength steel, when properly treated and maintained, can provide a durable and reliable structure for various applications. Regular inspections, protective coatings, and timely repairs are essential practices that help extend the life of these bridges. Understanding the relationship between materials and maintenance is key to ensuring that Bailey bridges continue to serve their purpose effectively for years to come. By prioritizing material selection and maintenance strategies, engineers and operators can maximize the utility and safety of Bailey bridges in diverse environments.
The primary materials used in Bailey bridges are high-strength low-alloy steel, galvanized steel, and sometimes stainless steel. These materials are chosen for their strength, durability, and resistance to corrosion, which are essential for the bridge's longevity.
Corrosion can significantly reduce the lifespan of a Bailey bridge by weakening its structural components. If steel parts are not adequately protected or maintained, rust can develop, leading to structural failures. Regular inspections and protective coatings are essential to mitigate these risks.
Essential maintenance practices include regular inspections to identify signs of wear or corrosion, applying protective coatings to prevent rust, timely replacement of damaged components, and routine cleaning to remove debris and moisture that can accelerate deterioration.
Yes, Bailey bridges can be used in harsh environmental conditions, but careful material selection and protective measures are necessary. For example, using galvanized or stainless steel can enhance corrosion resistance in coastal or industrial areas where exposure to salt and chemicals is a concern.
The typical lifespan of a Bailey bridge can vary widely based on factors such as material quality, environmental conditions, and maintenance practices. Generally, with proper maintenance, a Bailey bridge can last anywhere from 20 to 50 years or more. Regular upkeep is crucial to achieving the upper end of this range.
