In the wake of devastating seismic activity, infrastructure is often the deciding factor between isolation and survival. For governments and emergency management agencies in high-seismicity regions, critical infrastructure—particularly road networks—must act as a reliable lifeline for rescue operations, medical logistics, and post-disaster recovery.
As Evercross Bridge, a leading specialist in modular steel infrastructure, we have engineered and deployed Bailey Bridge systems globally. We understand that in earthquake-prone zones, design goes beyond simple load-bearing capacity; it demands seismic resilience—the ability of a structure to resist, endure, and recover from intense ground motion.
This guide provides an industry-expert perspective on the critical requirements for procuring and designing modular steel bridges to ensure they remain operational when they are needed most.
Seismic design in high-risk zones is not about absolute rigidity; it is about controlled behavior. The core principle is to design bridges that, under expected seismic loads, do not collapse, remain easily repairable, and—crucially—maintain functionality for emergency vehicles. [scribd] [jsbaileybridge]
We categorize these requirements into four vital dimensions:
High-intensity seismic loading induces cyclic stress, where steel undergoes repeated tension and compression. Material brittleness is the primary failure mode.
* Ductility over Hardness: Standards dictate high elongation and low-temperature impact energy. We specify Q355B low-alloy, high-strength steel for main truss components, which consistently achieves a 22% elongation (exceeding the 15% threshold) and 40J at -40℃, ensuring superior performance in freezing, seismic regions like the Himalayas or Hokkaido. [scribd]
* High-Stress Components: Critical components, such as connection pins, utilize 30CrMnTi alloy steel. Following precise heat treatment, these components reach an ultimate tensile strength of 1105MPa, verified by over 200,000 cycles of load testing—simulating 50 years of seismic activity with permanent deformation of less than 0.1mm.
* Environmental Durability: In coastal seismic zones (e.g., Chile, Indonesia), corrosion accelerates structural degradation. We employ a specialized coating system—Zinc-rich primer (80μm) + Epoxy intermediate (120μm) + Polyurethane finish (60μm)—achieving 3,000 hours of salt spray resistance (ASTM B117), effectively doubling the service life of standard coatings.

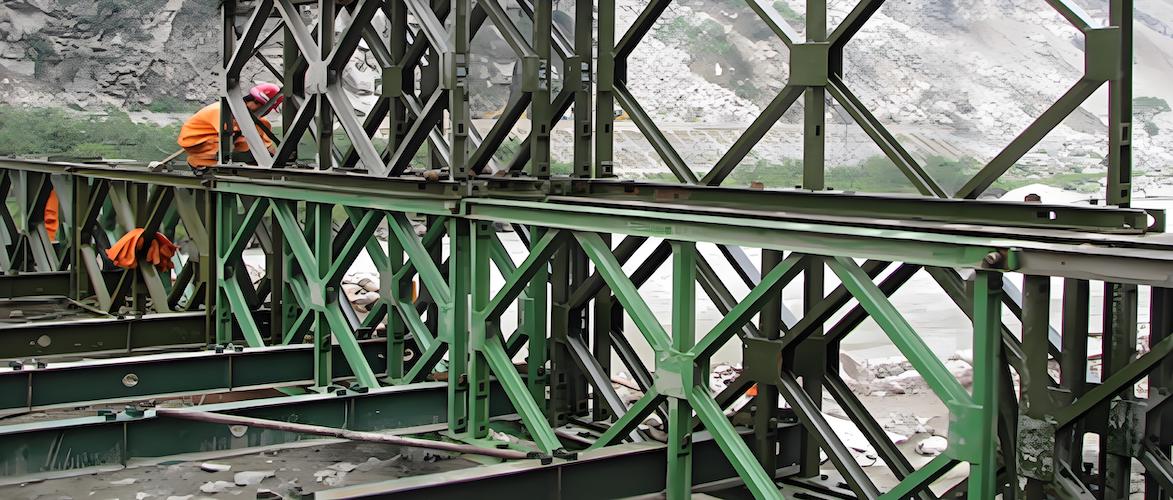

Seismic destruction is often driven by resonance and localized stress concentrations. Modular bridges leverage their architecture to mitigate these risks.
* Resonance Mitigation: Using Finite Element Analysis (FEA), we tune the natural frequency of our Bailey bridges to 2.5–4.0 Hz, safely avoiding the dominant disruptive frequencies of most major earthquakes (typically 0.5–2.0 Hz). This reduces resonance amplification by up to 70%.
* Controlled Energy Dissipation: We adhere to the "Strong Chord, Weak Web" principle. The diagonal braces are engineered to be the first members to yield. During an earthquake, they undergo controlled plastic deformation to dissipate energy, while the main chords remain elastic.
* Structural Redundancy: Each truss node utilizes a four-pin connection system. If one pin experiences localized failure, the remaining three maintain 70% of the load capacity, preventing the "single-point-of-failure" that causes catastrophic collapse. [jsbaileybridge]
Foundation failure—liquefaction, lateral spreading, or sliding—accounts for approximately 60% of bridge failures in major seismic events. [scribd] The design philosophy is to allow the foundation to move in harmony with the soil, not fight against it.
* Site-Specific Geotechnical Analysis: Every project requires mandatory Standard Penetration Tests (SPT) and Cone Penetration Tests (CPT). In high-liquefaction zones (e.g., river deltas), we implement stone columns to dissipate pore water pressure before installing H-pile foundations.
* Seismic Isolation: For permanent structures, we integrate Lead-Rubber Bearings (LRB), which elongate the bridge's natural period to 2.5 seconds, reducing transferred seismic force by up to 40%. [baileybridgesolution] For temporary emergency bridges, we utilize adjustable steel bearings to accommodate the uneven settlement of damaged bridge piers.
Connections are the most vulnerable points during seismic shaking. We ensure structural unity through three layers of protection:
* Welding: All critical welds undergo 100% ultrasonic testing (AWS D1.1 standard) to ensure zero hydrogen-induced cracking.
* Precision Pinning: Connecting pins are machined to 0.02mm tolerance and equipped with locking collars.
* Anti-Displacement: To prevent bridge deck detachment, we employ M24 Grade 8.8 anchor bolts with 1.2m spacing and install steel shear blocks at abutments to limit transverse displacement to ≤150mm.
Compliance ensures that your bridge meets the minimum performance benchmarks defined by local seismic hazards. Evercross Bridge systems are engineered to exceed these global standards:
Region / Standard | Core Seismic Requirement | Our Compliance Strategy |
Japan (JRA) | Dual-level design (50-year/elastic, 200-year/damage-controlled) | The main structure utilizes SM490YB steel (JIS G3106), while the bearings employ JRA-certified LRBs; a 1.0g PGA shake table test is conducted prior to shipment. |
USA (AASHTO) | Performance-based (no damage, repairable, non-collapse) | Ductility ratio μ ≥ 4; connecting pins undergo fatigue testing (2 million cycles); and an AASHTO-certified load calculation report is provided. |
Europe (EN 1998) | PGA-based performance; immediate post-quake access | Utilizing S355JR steel (EN 10025), the lateral stiffness of the Bailey bridge is increased by 35%, and an Eurocode 8 compliance report is provided. |
China (JTG/T) | Three-level performance (minor/no damage, major/no collapse) | The main trusses are fabricated from Q355B steel, and the connecting pins from 30CrMnTi steel; prior to shipment, the assembly undergoes a simulated seismic test at 0.4g PGA. |
SE Asia (Modified AASHTO) | High-speed deployment + anti-typhoon + seismic | The Bailey bridge features an 80% pre-assembly rate, allowing for on-site erection within 11 days; equipped with wind-resistant diagonal braces, it is designed to withstand the superimposed risks of typhoons and earthquakes. |
Industry Standard References: All our designs align with JT/T 728-2008 (manufacturing/installation), BS 5950-6 (temporary modular bridges), and the Mabey Compact 200 technical specifications.

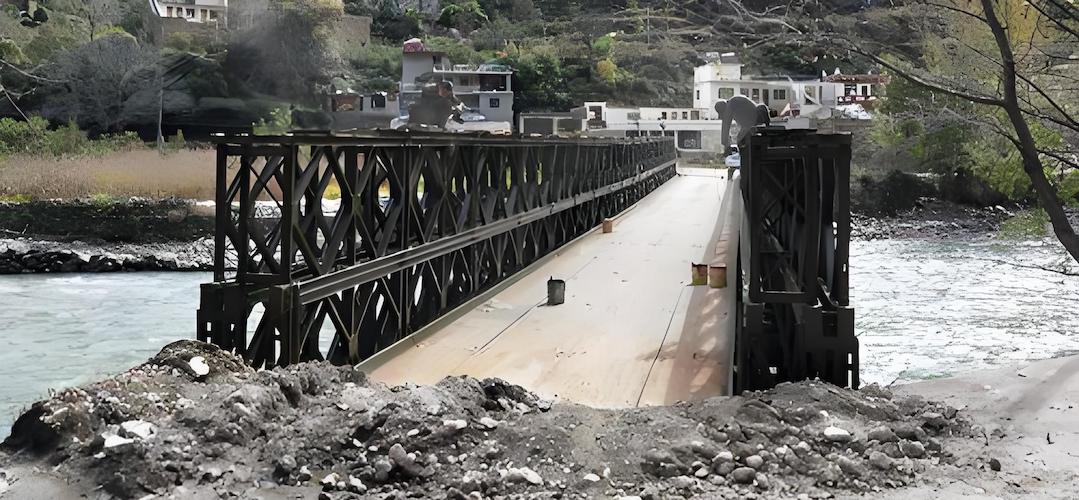

While regulatory compliance serves as the baseline, ensuring that Bailey bridges are truly "functional and durable" within seismic zones requires focused attention on three core stages:
Mandatory "Seismic Hazard Mapping Overlay": For instance, when designing a Bailey bridge for a client in Nepal, we integrated USGS fault distribution maps with local geological reports. This analysis prompted us to increase the design PGA (Peak Ground Acceleration) from 0.3g to 0.4g—due to the site's proximity to the main Himalayan fault line—thereby preventing the "underestimation of risk."
Adaptation to Local Construction Conditions: In the Andean mountain region of Peru—where heavy lifting equipment was unavailable—we engineered the Bailey bridge so that the weight of each individual truss panel was kept under 270 kg. This allowed for transport via helicopter followed by manual assembly, enabling the complete erection of a 20-meter bridge structure in just three days, effectively resolving the critical challenge of "inaccessible heavy machinery."
Material Traceability: Every batch of steel is accompanied by an MTC (Mill Test Certificate) and assigned a unique QR code. Customers can access real-time data—linking "Coil Number" to "Heat Treatment Records" and "Mechanical Properties"—at any time, thereby meeting the mandatory traceability requirements stipulated by Japanese and EU standards.
Simulated Testing: From every batch of Bailey bridges, one truss panel is randomly selected for a rigorous 1-million-cycle fatigue test (involving a displacement of ±30 mm). Strain contour maps are generated during this process to ensure that the structure remains "undistorted under minor seismic events" and "repairable after moderate seismic events." The comprehensive test report is provided alongside the shipment.
Provision of a "Post-Earthquake Inspection Guide": We train clients to utilize laser scanners (accurate to ±0.5 mm) to detect truss deformation, and to employ torque wrenches to verify the tightness of connection pins. Following the 2021 Nyingchi earthquake in Tibet, clients followed this guide to inspect our Bailey bridges; they discovered that the measured strain levels reached only 30% of the material's yield strength, allowing for the immediate resumption of traffic.
Support for "Standard Upgrades/Retrofits": When local engineering codes are updated—such as Turkey's 2023 revision to increase seismic load coefficients—we offer retrofit solutions (e.g., installing dampers or replacing bearings with high-ductility alternatives). These solutions enable existing bridges to meet the new regulatory standards, thereby extending their service life by an additional 15 years or more.
In earthquake-prone countries, a bridge is not just steel and concrete—it is a vital lifeline. By prioritizing ductility in materials, structural redundancy in design, and site-specific hazard mapping, governments can ensure their infrastructure remains standing and functional after a crisis.
At Evercross Bridge, we have successfully deployed these solutions in regions ranging from the high-altitude Himalayas to the active fault lines of Turkey and the Philippines. If you have an upcoming project, contact us to initiate a customized seismic assessment. We can deliver preliminary designs and compliance reports within 72 hours, ensuring your infrastructure is built to withstand the test of nature.
1. [What are the seismic design principles for bridge frames? - Blog (JS Bailey Bridge)]
2. [How to Build Resilience: AS5100 Modular Steel Bridges (Evercross Bridge News)]
3. [The Principle of Bailey Bridge Seismic Isolation (Bailey Bridge Solution)]
4. [How do modular bridge designs address seismic activity? (Bailey Bridge Solution)]
5. [Seismic Assessment and Retrofitting of Existing Road Bridges: State of the Art Review (PMC)]
1. Q: Why is modular steel (Bailey bridge) preferred over concrete for emergency seismic bridges?
A: Modular steel bridges offer superior weight-to-strength ratios, rapid deployment capabilities without heavy equipment, and higher ductility, allowing them to deform safely under seismic loads rather than shattering like concrete.
2. Q: How does the "diagonal bracing" in a Bailey bridge help in an earthquake?
A: The diagonal braces act as energy-dissipating elements. By designing them as "fuses" that yield plastically during a seismic event, they absorb the earthquake's kinetic energy, protecting the main structural chords from damage.
3. Q: Can a temporary Bailey bridge be upgraded to a permanent status later?
A: Yes. Many Bailey bridge components are designed for long-term use. With appropriate anti-corrosion coatings, permanent foundations, and the addition of seismic isolation bearings, they can be adapted into permanent, resilient infrastructure.
4. Q: How do you determine the seismic load for a bridge in a region with limited historical data?
A: We combine regional tectonic plate data, USGS seismic hazard maps, and local site-specific geotechnical tests (SPT/CPT) to model the most likely Peak Ground Acceleration (PGA) scenarios and ensure the design exceeds these estimates.
5. Q: What maintenance is required after a moderate earthquake?
A: Post-earthquake maintenance includes inspecting critical truss nodes for deformation, checking connection pins for tightness using calibrated torque wrenches, and assessing the condition of bridge bearings to ensure they haven't suffered displacement.
