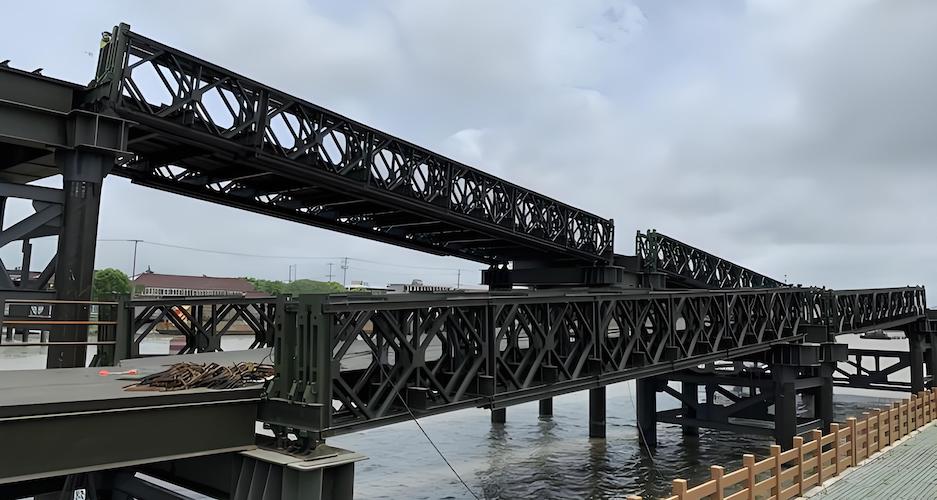

The steel structure bridge represents the pinnacle of modern transport infrastructure—offering an unmatched combination of lightweight design, structural resilience, and rapid installation. However, even the most advanced structural steel design is only as reliable as the foundation that supports it.
For industry leaders like Evercross Bridge, which provides comprehensive design, manufacturing, and installation services for global steel bridge projects, understanding the ground is the first step toward project success. The bridge between a safe, durable structure and costly failure is built upon precision geotechnical investigation.
This article explores how advanced geological survey techniques serve as the steel backbone for steel structure bridges, transforming complex geological data into actionable intelligence for every phase of construction.
Geotechnical investigation is not merely a preliminary requirement; it is the fundamental framework that dictates the bridge foundation type, structural load-bearing capacity, and long-term risk mitigation. When constructing bridges—particularly in challenging marine or mountainous environments—geotechnical surveys reveal key parameters:
- Soil/Rock Characteristics: Determines whether to use shallow foundations or deep, high-capacity piles.
- Hydrological Data: Assesses groundwater distribution and flood risk, essential for designing scour-resistant foundations.
- Geological Hazards: Identifies risks like liquefaction, fault zones, or slope instability, allowing for proactive design adaptations.
A robust survey methodology is essential to manage project risk. Modern engineering integrates four key modules:
1. Engineering Geologic Mapping & Remote Sensing: Utilizing total stations and GPS for precise mapping, combined with UAV (drone) photogrammetry to build 3D digital elevation models (DEM).
2. Advanced Drilling & Geophysical Techniques: Traditional drilling provides core samples for strength analysis, while geophysical methods—such as electrical resistivity imaging and seismic refraction—map subsurface anomalies, weak zones, and bedrock profiles without the need for excessive drilling.
3. In-Situ Testing and Laboratory Testing: Standard Penetration Tests (SPT) and Cone Penetration Tests (CPT) are utilized to obtain continuous resistance parameters for foundation soils. Through in-situ SPTs, the Hong Kong-Zhuhai-Macao Bridge project identified a potential for sand liquefaction in certain areas; consequently, a reinforcement layer consisting of gravel piles was installed during the construction phase, significantly enhancing the foundation's bearing capacity. Meanwhile, laboratory testing—specifically triaxial compression tests and direct shear tests—is employed to determine the shear strength parameters (cohesion *c* and internal friction angle *φ*) of the geomaterials, thereby providing critical parameters for calculating the rock-socketing depth of pile foundations.
4. Data Integration: All collected data is fed into a centralized database, forming the basis for reliable design simulations.
To remain competitive, firms must move beyond traditional methods. The integration of cutting-edge technology is setting a new standard for quality and safety.
Building Information Modeling (BIM) is transforming how engineers interact with geological data. By integrating borehole data, 3D geological models, and structural design into a single BIM platform, engineers can visualize the interaction between bridge piers and subsurface layers.
- Digital Twins: Going a step further, a digital twin creates an accurate virtual model of the physical bridge. When linked to real-time sensors, it allows operators to monitor ground settlement and structural health throughout the bridge's service life, providing early warnings for maintenance.
Modern projects must be environmentally conscious. Technologies like air-percussion drilling reduce muddy waste, while advanced geophysical sensing minimizes the need for site-disrupting boreholes, protecting the local ecosystem during the survey phase.
Geological investigation data permeates the entire lifecycle of steel structure bridges—encompassing design, construction, and operation and maintenance. Its technical value is manifested across the following dimensions:
Varying geological conditions dictate the choice of bridge foundation types. In areas characterized by soft soil foundations, the Hangzhou Bay Bridge employs a composite foundation system utilizing steel pipe piles; here, bearing capacity is enhanced by increasing both the pile diameter (φ2.5 m) and length (120 m). Conversely, in regions where bedrock is exposed, the Beipan River Bridge in Guizhou utilizes rock-socketed pile foundations, with the pile tips embedded to a depth of 15 meters within moderately weathered bedrock. The classification of geotechnical strata—revealed through geological investigation—directly impacts project costs. For instance, a viaduct project in a mountainous region optimized its original design—shifting from friction piles to end-bearing piles based on investigation findings—thereby achieving a 25% reduction in concrete consumption.
The assessment of seismic activity serves as the fundamental basis for the seismic design of steel structure bridges. A specific viaduct along the Sichuan-Tibet Railway traverses the Longmenshan Fault Zone; geological investigations classified the site as Category III, with a peak ground acceleration reaching 0.3g. Consequently, a hybrid system combining self-centering energy-dissipating bearings and seismic isolation rubber bearings was adopted to facilitate both the dissipation of seismic energy and the structural self-centering mechanism. Furthermore, monitoring data regarding landslides provides critical guidance for slope support design; for example, the slopes of the artificial islands for the Hong Kong-Zhuhai-Macau Bridge utilize a composite support system comprising anti-slide piles and prestressed anchor cables to ensure stability throughout the construction phase.
Geological investigation data provides the empirical basis for the real-time adjustment of construction parameters. During the construction of the Hangzhou Bay Bridge, continuous monitoring of pile driving resistance and pore water pressure fluctuations allowed for the dynamic adjustment of pile driving rates, thereby preventing the accumulation of pore water pressure that could lead to foundation liquefaction. During the steel structure hoisting phase, ground-penetrating radar (GPR) surveys are employed to identify underground utilities and subsurface voids, thereby preventing the overturning of hoisting equipment. For instance, prior to the over-water hoisting of the steel structure for the Shennan Road Bridge, GPR scans revealed the presence of a 3-meter-thick layer of soft soil within the riverbed; timely remedial measures—specifically, stone dumping to displace the soft sediment—were implemented to ensure the precise positioning of the steel box girders.
Geological survey data provide baseline values for the long-term performance assessment of bridges. The Akashi Kaikyō Bridge in Japan utilized 20 years of settlement monitoring data to validate the accuracy of its initial assessment of the seabed geology; with the settlement of its main towers successfully controlled within 25 cm, the project verified the precision of the predictions regarding the compression modulus of the soft soil layers made during the survey phase. For the Hong Kong-Zhuhai-Macao Bridge, a 3D geological model has been integrated with the Structural Health Monitoring System (SHMS) to enable the real-time back-analysis of changes in foundation bearing capacity, thereby providing a scientific basis for maintenance decision-making.
The Hong Kong-Zhuhai-Macao Bridge traverses the waters of the Pearl River Estuary, a region characterized by complex geological conditions presenting challenges such as thick layers of soft soil, significant undulations in the bedrock surface, and frequent seismic activity.
During the exploration phase, an integrated technical approach combining "drilling + geophysical exploration + remote sensing" was employed:
●Drilling: A total of 286 boreholes were positioned, reaching a maximum depth of 150 meters, thereby revealing the spatial distribution patterns of the soft seabed soil layers;
●Geophysical Exploration: The Multi-Channel Analysis of Surface Waves (MASW) method was applied to map the morphology of the bedrock surface, achieving an accuracy of ±0.5 meters;
●Remote Sensing: Interferometric Synthetic Aperture Radar (InSAR) was utilized to monitor surface subsidence surrounding the bridge's island and tunnel sections, thereby enabling effective control over the spatial extent of construction-induced impacts.
Based on the data acquired during exploration, the bridge adopted a composite foundation system comprising "steel pipe composite piles" and "immersed tube tunnels." Notably, the installation of the E15 tunnel segment necessitated two rounds of backfilling and re-excavation due to unforeseen geological anomalies; ultimately, the construction plan was successfully optimized through supplementary geological investigations, thereby validating the critical value of dynamic adjustments in geological exploration.
Spanning a total length of 36 kilometers, the Hangzhou Bay Bridge faces a challenging environment characterized by strong tidal currents, thick soft soil deposits, and highly corrosive seawater.
During the exploration phase, an innovative technical approach combining "offshore drilling platforms" and "automated in-situ testing" was pioneered:
●Offshore Drilling: A custom-built jack-up drilling platform was deployed to accommodate the construction environment—which featured tidal ranges of up to 6 meters—enabling the completion of 1,200 boreholes;
●In-Situ Testing: Cone Penetration Testing with Pore Pressure Measurement (CPTU) was applied to continuously acquire mechanical parameters of the soil layers, resulting in a threefold increase in testing efficiency;
●Numerical Simulation: By integrating the exploration data, a 3D fluid-structure interaction model was established to optimize the scour-resistance design of the pile foundations.
The bridge features a structural system comprising "large-diameter, ultra-long piles" and "prefabricated box girders spanning entire sections." Within this system, the pile foundations reach a maximum length of 120 meters, with a single-pile bearing capacity of 15,000 kN—a feat that set a new world record at the time.

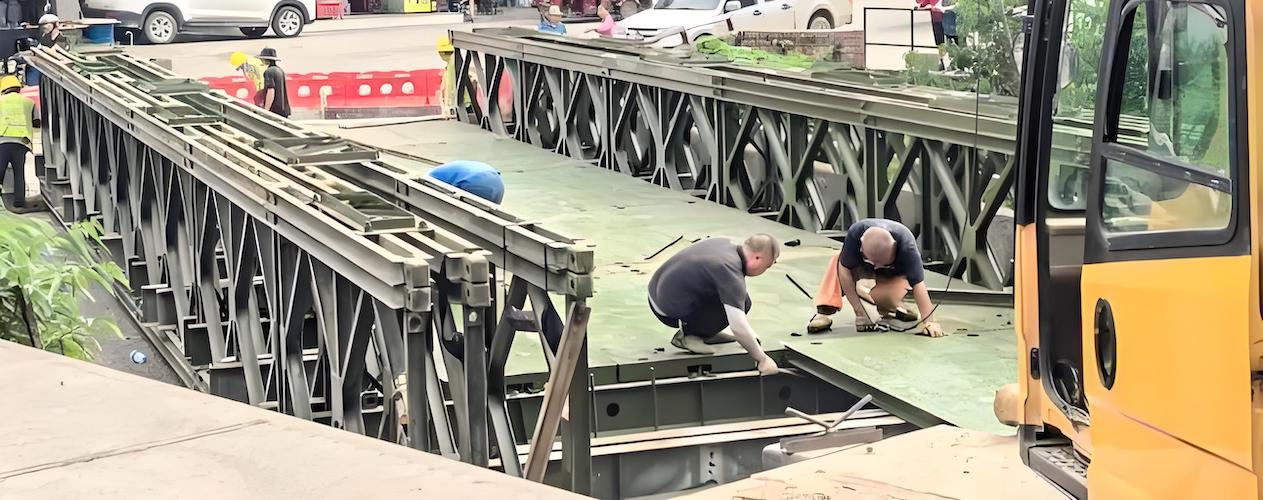

At Evercross Bridge, we recognize that precision begins at the ground level. Our expertise in steel structure bridges is complemented by our ability to integrate sophisticated geological data into our design and production processes.
- Custom Solutions: We design foundations tailored to your specific site, ensuring structural integrity and cost-efficiency.
- Integrated Service: From early-stage site analysis to the final installation of steel girders, we offer a complete, data-driven lifecycle service.
- Global Expertise: We bring best-in-class Chinese engineering experience to international infrastructure projects.
Are you planning a new bridge project? Don't leave your foundation to chance. Contact the expert team at Evercross Bridge today to discuss how our integrated design and production services can secure the future of your infrastructure.
- [1] "Geotechnical Investigation and Engineering Principles in Bridge Construction," *Engineering Standards Review* [https://example.com/geotech-standards]
- [2] FHWA, "Characterization of Bridge Foundations Workshop Report," *Federal Highway Administration* [https://www.fhwa.dot.gov/publications/research/infrastructure/structures/bridge/13101/003.cfm]
- [3] ScienceDirect, "Geotechnical Site Investigation," *Elsevier* [https://www.sciencedirect.com/topics/engineering/geotechnical-site-investigation]
- [4] PARSAN Geophysics, "Geophysical Investigation Techniques for New Bridges," *Engineering Blog* [https://www.parsan.biz/blog/geophysical-investigation-techniques-for-new-bridges/]
1. Why is a geotechnical survey essential for steel structure bridges?
It provides the necessary soil strength and rock data to ensure the bridge foundation can safely support the load, preventing settlement or catastrophic failure.
2. How does BIM improve bridge foundation design?
BIM allows engineers to visualize 3D subsurface models and integrate them with structural designs, reducing design errors and change orders.
3. What is a "Digital Twin" in bridge engineering?
It is a virtual, dynamic model that mimics the real-time performance and health of a physical bridge, helping in long-term maintenance and risk management.
4. Can geophysical methods replace drilling?
They are complementary. Geophysical methods cover large areas quickly to identify anomalies, while drilling provides specific, high-resolution physical samples.
