Bailey bridges are a type of portable, prefabricated truss bridge that have been widely used since their development during World War II. Their design allows for quick assembly and disassembly, making them ideal for military and emergency applications. This article explores the classification of Bailey bridges, detailing their types, structural components, and applications.
Bailey bridges were invented by the British engineer Donald Bailey in the early 1940s. The design was a response to the urgent need for efficient and effective bridging solutions during wartime, where traditional construction methods were often too slow and cumbersome. The primary advantage of Bailey bridges is their modular design, which allows for flexibility in construction and use. This modularity means that the bridges can be assembled using standard components, making them easy to transport and deploy in various environments, from rugged terrains to urban settings.
The need for rapid deployment of bridges during wartime led to the development of the Bailey bridge. They were extensively used by military forces for crossing rivers and ravines, providing essential logistical support. The design's simplicity and effectiveness allowed troops to maintain mobility and supply lines, which were critical for success in military operations. Over the years, their use has expanded to civilian applications, including temporary and permanent structures. Today, Bailey bridges are not only a testament to innovative engineering but also a symbol of resilience and adaptability in infrastructure development.
Bailey bridges can be classified based on several criteria, including their design, configuration, and intended use. Understanding these classifications helps in selecting the appropriate type for specific applications. This classification is essential for engineers and planners who need to ensure that the chosen bridge meets the specific requirements of the site and the expected load.
Bailey bridges can be categorized into different designs based on their structural configuration:
The most common design of Bailey bridges is the truss type, which consists of interconnected triangular units. This design provides strength and stability, allowing the bridge to support heavy loads. The triangular configuration is particularly effective in distributing weight and resisting bending forces, making it ideal for various applications. Truss designs can vary, including:
Through Truss: The roadway is located between the trusses, allowing for greater clearance underneath. This design is beneficial in areas where high clearance is necessary, such as over rivers or railways.
Deck Truss: The roadway is on top of the trusses, which can be beneficial for certain applications. This configuration is often used in situations where the bridge needs to be lower to the ground or where the aesthetic of the bridge is a consideration.
Bailey bridges are made up of panels that can be configured in various ways. The configuration affects the bridge's load capacity and span length. Common panel configurations include:
Single Panel: A basic configuration suitable for short spans and light loads. This type is often used in temporary applications where quick access is needed.
Multi-Panel: Multiple panels can be combined to create longer spans and support heavier loads. This flexibility allows for the construction of bridges that can accommodate a wide range of vehicles and traffic conditions.
The classification of Bailey bridges also involves understanding their structural components, which play a crucial role in their functionality.
The main structural elements of a Bailey bridge are the chords and panels. The chords are the top and bottom members of the truss, while the panels are the vertical and diagonal members that provide stability. The materials used for these components typically include steel, which offers high strength-to-weight ratios. The choice of materials is critical, as it affects the overall durability and performance of the bridge under various environmental conditions.
Transoms are horizontal beams that connect the trusses and support the decking. Stringers run parallel to the trusses and provide additional support for the bridge deck. The arrangement and number of transoms and stringers can vary based on the expected load and span. This structural arrangement ensures that the weight is evenly distributed across the bridge, enhancing its stability and safety.
Bailey bridges are also classified based on their load-carrying capacity. This classification is essential for ensuring that the bridge can safely support the intended traffic. Understanding load classifications helps engineers design bridges that meet safety standards and operational requirements.
In military applications, Bailey bridges are often classified according to their load-bearing capabilities. Common classifications include:
Class 30: Suitable for light vehicles and personnel. This classification is often used in situations where the bridge is expected to support foot traffic and light military vehicles.
Class 70: Designed to support heavy military vehicles, including tanks. This classification is crucial for operations where heavy equipment needs to cross, ensuring that the bridge can withstand significant stress.
For civilian use, Bailey bridges may be classified based on standard load ratings, which can include:
HS-20: A common classification for highway bridges, indicating the bridge can support a specific load. This classification is essential for ensuring that the bridge can accommodate standard vehicular traffic, including trucks and buses.
Bailey bridges are versatile structures used in various applications, from military operations to civilian infrastructure projects. Their adaptability makes them suitable for a wide range of environments and conditions.
The primary use of Bailey bridges has historically been in military operations. Their rapid deployment capabilities make them ideal for:
Field Operations: Providing immediate access across obstacles in combat zones. In these scenarios, the ability to quickly establish a crossing can be a decisive factor in military strategy.
Logistical Support: Facilitating the movement of troops and supplies. The use of Bailey bridges allows for the maintenance of supply lines, which are critical for sustaining military operations.
In civilian contexts, Bailey bridges are used for:
Temporary Crossings: Providing quick solutions for road closures or natural disasters. In the aftermath of events such as floods or earthquakes, Bailey bridges can be deployed rapidly to restore connectivity and access.

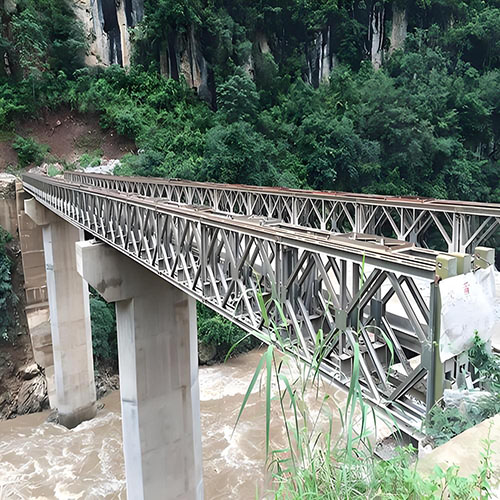

Permanent Structures: Serving as long-term solutions in remote areas where traditional bridge construction may be impractical. In rural or isolated regions, Bailey bridges can provide essential infrastructure that supports local communities.
Bailey bridges offer several advantages that contribute to their widespread use:

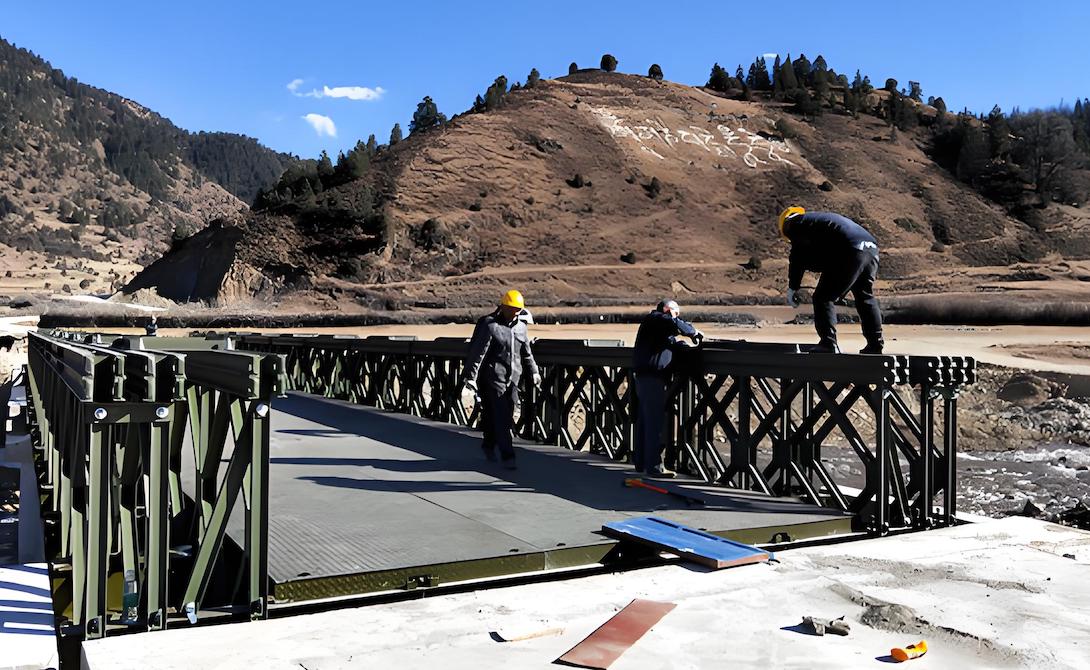

One of the most significant benefits of Bailey bridges is their ability to be assembled quickly. This feature is crucial in emergency situations where time is of the essence. The modular design allows for teams to set up the bridge in a matter of hours, significantly reducing downtime and restoring access.
The modular design of Bailey bridges allows for cost-effective construction. They can be manufactured off-site and transported to the location, reducing labor and material costs. This cost efficiency makes them an attractive option for both military and civilian projects, especially when budgets are tight.
Bailey bridges can be adapted to various configurations and load requirements, making them suitable for a wide range of applications. Their ability to be customized for specific needs ensures that they can meet the demands of different environments and traffic conditions.
Bailey bridges represent a remarkable engineering solution that combines portability, strength, and versatility. Their classification into different types based on design, structural components, and load capacity allows for tailored applications in both military and civilian contexts. As infrastructure needs continue to evolve, Bailey bridges will remain a vital option for rapid and effective bridging solutions. Their legacy as a practical and efficient solution to bridging challenges ensures that they will continue to play a significant role in engineering and construction for years to come.
Bailey bridges are primarily constructed from steel due to its high strength-to-weight ratio, which provides durability and the ability to support heavy loads. Some components may also use aluminum for lighter applications, especially in military contexts where weight is a critical factor.
The assembly time for a Bailey bridge can vary depending on the size and complexity of the bridge, but it generally takes a few hours to a couple of days. A well-trained team can set up a standard Bailey bridge in as little as four to six hours, making it an efficient solution for urgent needs.
Yes, Bailey bridges can be used for permanent installations, especially in remote or rural areas where traditional bridge construction may be impractical. They are designed to withstand various environmental conditions and can serve as long-term solutions for infrastructure needs.
Bailey bridges are classified into different load capacities, such as Class 30 for light vehicles and Class 70 for heavy military vehicles. Civilian applications often use classifications like HS-20, which indicates the bridge can support standard highway loads, including trucks and buses.
While Bailey bridges are versatile and efficient, they do have limitations. Their design may not be suitable for very long spans without additional support, and they may require regular maintenance to ensure safety and structural integrity over time. Additionally, aesthetic considerations may lead some projects to opt for more traditional bridge designs.
