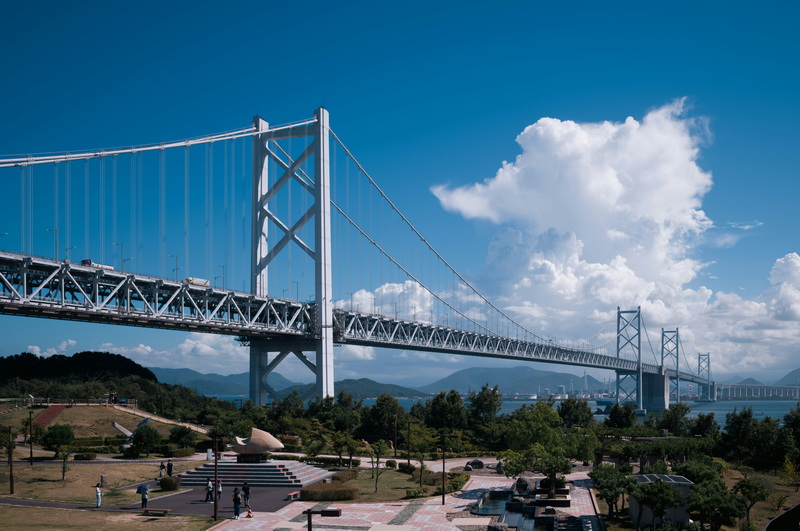

A truss bridge is a type of bridge whose load-bearing superstructure is composed of a truss, a structure of connected elements, typically arranged in triangular units. These elements, generally straight, experience stress from tension, compression, or sometimes both, in response to dynamic loads. Truss bridges come in various designs, some of which were among the first bridge designs in the 19th and early 20th centuries. They are cost-effective because they use materials efficiently.

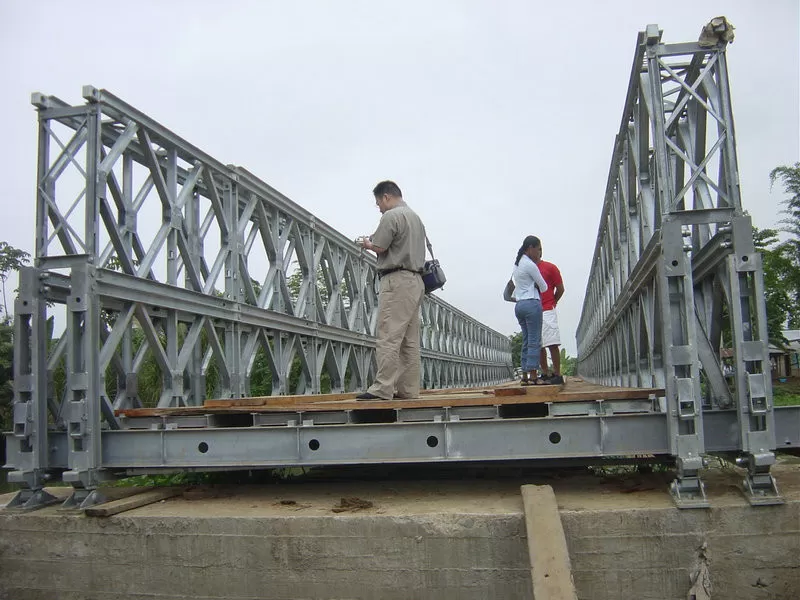

The individual components of a truss bridge meet at truss joints, also known as panel points. The connected pieces that form the top and bottom of the truss are called the top and bottom chords, respectively. The sloping and vertical pieces that connect the chords are collectively known as the web of the truss.
The component parts of a truss bridge are primarily stressed in axial tension or compression. A single-span truss bridge functions like a simply supported beam, carrying vertical loads through bending. Bending results in compression in the top chords (or horizontal members), tension in the bottom chords, and either tension or compression in the vertical and diagonal members, depending on their orientation.
A truss can be visualized as a beam where the web consists of a series of separate members instead of a continuous plate. In a truss, the bottom chord and the top chord carry tension and compression, performing the same function as the flanges of an I-beam. The chord that carries tension and the one that carries compression depend on the overall direction of bending. In a typical truss, the bottom chord is in tension, and the top chord is in compression.
The diagonal and vertical members form the truss web and carry the shear stress. Individually, they are also in tension and compression, with the exact arrangement of forces depending on the type of truss and the direction of bending. In a typical truss, the vertical members are in tension, and the diagonals are in compression.
In addition to carrying static forces, the members also stabilize each other, preventing buckling. The inclusion of these elements is an engineering decision based on economics, balancing the costs of raw materials, off-site fabrication, component transportation, on-site erection, the availability of machinery, and the cost of labor. The appearance of the structure may also influence design decisions. Modern materials like prestressed concrete and fabrication methods like automated welding have significantly influenced the design of modern bridges.
Bottom loading, in the context of a model truss bridge, refers to applying a load or weight to the bottom chord of the truss. This method of loading is crucial in understanding how the truss bridge distributes and withstands forces. The bottom chord, typically under tension, bears the direct impact of the applied load.
When a load is applied to the bottom of the truss, the bridge responds by converting the force into tension and compression within its members. The bottom chord experiences tension, while the top chord experiences compression. The diagonal and vertical members of the truss web then distribute the load, ensuring the bridge remains stable.
The choice of materials for a model truss bridge is vital in determining its strength and durability. Common materials include:
- Wood: Balsa wood and basswood are popular choices due to their lightweight nature and ease of cutting.
- Metal: Aluminum and steel can be used for stronger models, providing greater load-bearing capabilities.
- Plastics: Acrylic and PVC are also used for their durability and resistance to environmental factors.
The construction process involves precise cutting and joining of the truss members. Accurate measurements and strong connections are essential to ensure the truss can withstand the applied load. Joints can be strengthened using glue, welding, or fasteners, depending on the materials used.
Several types of truss bridges exist, each with unique design characteristics:
- King Post Truss: Simplest form, with a central vertical post supporting two diagonal members.
- Queen Post Truss: Similar to the king post but with two vertical posts and a horizontal beam between them.
- Warren Truss: Characterized by diagonal members forming a series of equilateral or isosceles triangles.
- Pratt Truss: Features vertical members in compression and diagonal members in tension.
- Howe Truss: Opposite of the Pratt truss, with vertical members in tension and diagonal members in compression.
Truss bridges offer several advantages:
- Strength: Efficient distribution of loads allows for high strength-to-weight ratios.
- Cost-Effectiveness: Optimal use of materials reduces construction costs.
- Adaptability: Suitable for various spans and load requirements.
- Aesthetics: Can be designed to be visually appealing.
Despite their advantages, truss bridges also present challenges:
- Complexity: Design and construction can be complex, requiring skilled engineers and builders.
- Maintenance: Regular inspection and maintenance are necessary to prevent deterioration and ensure safety.
- Vulnerability: Susceptible to damage from overheight loads and impacts.
In model design, bottom loading is a practical way to simulate real-world conditions. By applying weight to the bottom chord, designers can observe how the truss responds to stress and identify potential weak points. This method is used in educational settings and engineering projects to teach structural mechanics and bridge design principles.
To enhance the load capacity of a model truss bridge, several strategies can be employed:
- Material Selection: Use stronger materials with higher tensile and compressive strength.
- Joint Reinforcement: Strengthen joints with gusset plates or adhesives.
- Triangulation: Ensure the truss design maximizes triangulation for efficient load distribution.
- Member Optimization: Optimize the size and placement of truss members to balance weight and strength.

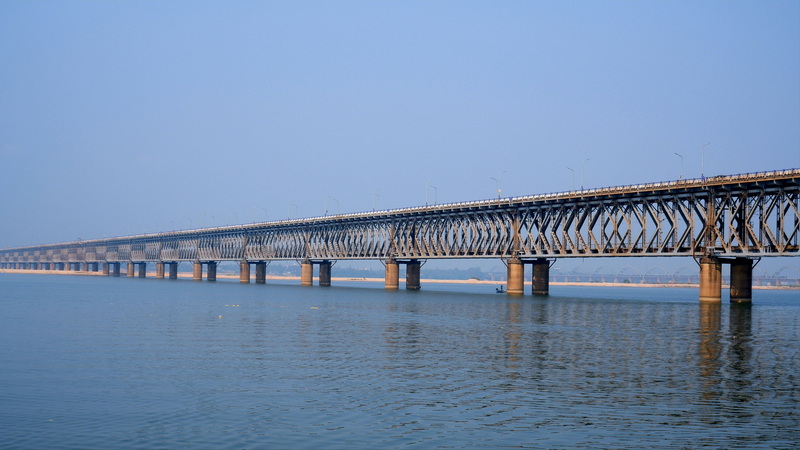

Truss bridges are widely used in various applications:
- Highway Bridges: Span rivers, valleys, and other obstacles on roadways.
- Railway Bridges: Support heavy train loads over long distances.
- Pedestrian Bridges: Provide safe passage for pedestrians and cyclists.
- Industrial Structures: Support heavy equipment and machinery in factories and warehouses.
Bottom loading a model truss bridge is a fundamental concept in structural engineering. It allows designers and engineers to understand how forces are distributed within the truss and how to optimize the design for maximum strength and efficiency. By carefully selecting materials, employing effective construction techniques, and understanding the principles of load distribution, it is possible to build model truss bridges that can withstand significant weight and provide valuable insights into the world of structural mechanics.
The primary force experienced by the bottom chord in a bottom-loaded truss bridge is tension. This tension results from the load applied to the bottom of the truss, which pulls outward on the chord members.
The Warren truss distributes load through diagonal members that alternate in direction, forming a series of triangles. This design allows for efficient distribution of both tension and compression forces. In contrast, the Pratt truss uses vertical members to handle compression and diagonal members to handle tension, which is more suitable for specific load conditions.
Vertical members in a truss bridge help to transfer loads from the top chord to the bottom chord and vice versa. They also provide stability to the truss and prevent buckling of the horizontal chords.
The choice of material significantly impacts the load-bearing capacity of a truss bridge. Materials with higher tensile and compressive strengths, such as steel or reinforced composites, can withstand greater loads compared to weaker materials like wood or plastic.
Regular inspection and maintenance are crucial for ensuring the longevity and safety of a truss bridge. This includes checking for signs of corrosion, fatigue, and damage to the truss members and joints. Maintenance may involve repairing or replacing damaged components, applying protective coatings, and reinforcing weak points.
