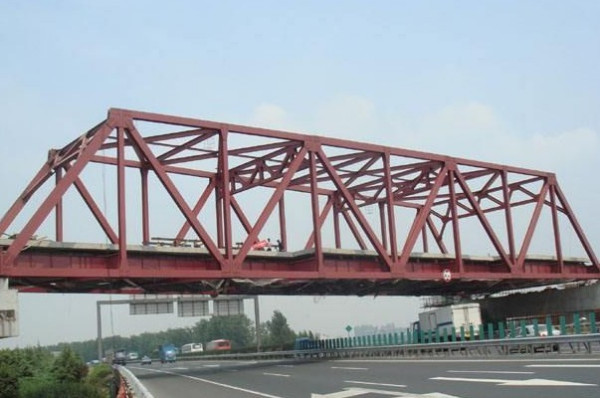

Steel truss bridges use a triangulated network of chords and diagonals to distribute loads efficiently across spans of 30 metres or more. This structural form minimises dead weight, which reduces foundation requirements and allows erection on weaker soils. Because the members are prefabricated in workshop conditions, they can be bolted together on site without extensive welding. This makes truss bridges suitable not only for permanent rural highways and railway crossings, but also for temporary military and disaster‑relief applications. The open framework also simplifies inspection and maintenance, as all members remain accessible.
Urban overpasses operate under tight geometric constraints – limited right‑of‑way, strict vertical clearances, and often curved or skewed alignments. Steel bridges address these challenges through slender superstructures and off‑site fabrication. For curved sections, steel box girders deliver high torsional stiffness; for straight spans, multi‑girder or truss systems provide cost‑effective alternatives. Prefabricated segments are transported to site and assembled rapidly, reducing lane closures and disruption to surrounding businesses and residents. With appropriate protective coatings or weathering steel, these bridges require less frequent repainting, which is a practical advantage in densely built areas where access for maintenance is difficult.
Green steel bridges focus on environmental performance throughout the project life cycle. This begins with optimised structural designs that use high‑strength steels to reduce the total tonnage required. The steel itself typically contains a significant proportion of recycled scrap, and at the end of its service life it can be recovered and remelted without loss of quality. For corrosion protection, weathering steel forms a stable patina that eliminates the need for paint, while hot‑dip galvanising provides long‑term barrier protection with low lifecycle impacts. When compared with concrete alternatives over a 50‑year period, steel bridges often show lower embodied carbon, especially when considering the avoided emissions from cement production and material transport.
Each bridge type can be tailored to project‑specific requirements. Spans, roadway widths, and load classes are selected based on traffic volumes and site conditions. For heavier loads, additional truss panels or thicker girder flanges are specified. The modular nature of prefabricated steel systems also allows for future widening or strengthening if traffic demands increase. Our engineering team uses validated software to analyse each structure, ensuring that deflections and stresses remain within code‑permitted limits.
All steel components conform to recognised international grades – Q355B (GB/T 1591), S355JR (EN 10025‑2), or ASTM A709 Grade 50, depending on the project location and specification. Fabrication is carried out in ISO 9001:2015‑certified workshops, with full traceability from mill certificates to final inspection. Non‑destructive testing – including ultrasonic and magnetic particle methods – is applied to critical welds and connections. Upon request, we provide CE marking under EN 1090 (Execution Class 2 or 3) and AWS D1.5 certification, with third‑party surveillance by SGS or Bureau Veritas available.
We offer turnkey and EPC (Engineering, Procurement, Construction) services for bridge projects of any scale. Our in‑house engineers handle preliminary design, detailed shop drawings, and erection sequence planning. Procurement covers all steel sections, fasteners, bearings, and protective coatings from qualified suppliers. Construction includes workshop fabrication, quality assurance, packaging for sea or land transport, and on‑site assembly supervision. Bolted connections are used throughout to simplify field work and reduce the need for specialised welding equipment. This integrated approach reduces overall project duration, lowers coordination risks, and provides a single point of accountability.
Properly protected steel bridges can provide reliable service for more than 50 years with routine inspections and minor maintenance. The choice of corrosion protection – galvanising, weathering steel, or multi‑layer paint systems – is made according to the local climate, exposure to de‑icing salts, and the owner’s maintenance strategy. Regular visual inspections and thickness measurements of protective coatings help plan timely touch‑ups, extending the structure’s useful life and avoiding costly rehabilitation.
Steel truss bridges deliver economical long‑span solutions for rural and emergency contexts; urban overpass steel bridges enable rapid, low‑disruption crossings in city environments; and green steel bridges offer demonstrable environmental benefits over their full life cycle. All three types share the inherent advantages of steel: high strength per unit weight, factory‑controlled quality, and ease of transport and erection. Our team is ready to provide a project‑specific proposal, including span recommendations, section sizing, and a budgetary estimate.
