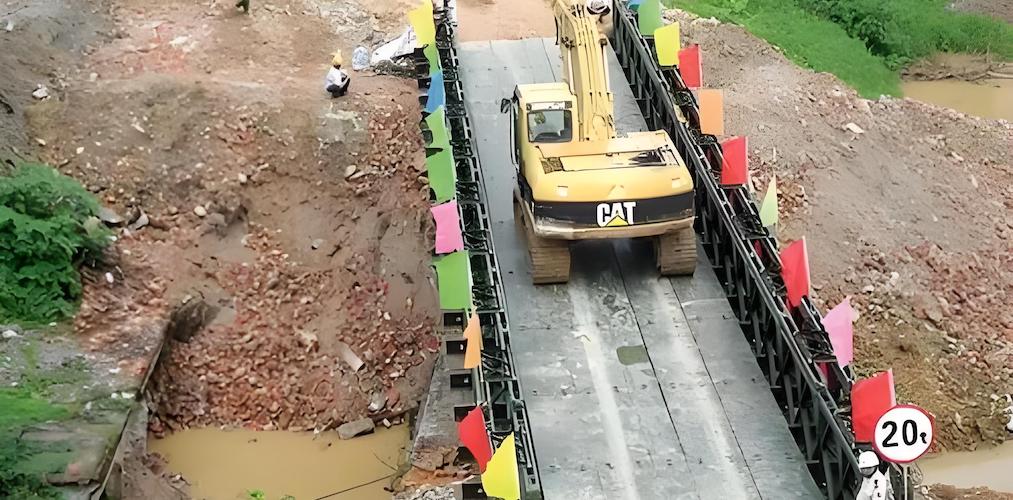

In emergency engineering practice, a portable bridge is a prefabricated, modular structure that can be transported in standard trucks and assembled rapidly on site using panels, transoms, decks and pins. Classic Bailey bridges and their modern HD200‑type upgrades are the best‑known examples in road and temporary bridge engineering. [www3.nd]
Engineers favor these systems in flood relief because they:
- Use standardized modular steel components that can be combined for different spans and loads. [dutch.steelbailey-bridge]
- Can be launched from one bank using a nose truss, avoiding temporary piers in a still‑flooded channel. [www3.nd]
- Require minimal heavy equipment; many field configurations can be installed with small cranes, winches and trained crews. [dutch.steelbailey-bridge]
Evercross Bridge's HD200 Bailey series in Tanzania is a typical example, where multiple spans from about 30 m to 61 m were configured, shipped and erected as modular units to restore and upgrade rural connectivity under tight schedules. [dutch.steelbailey-bridge]
A rigid frame bridge is a cast‑in‑place or precast reinforced concrete or steel‑concrete composite structure where the superstructure and substructure are monolithically connected, forming a continuous frame that transfers bending and shear without expansion bearings at the supports. This integral behavior improves structural continuity and can reduce maintenance compared with simply supported beam bridges, so it is common in permanent highway and urban flood‑resilient corridors. [iitk.ac]
However, rigid frame bridges typically require:
- On‑site concrete works, falsework or staging, and longer curing times.
- Stable foundations and cofferdams, which are difficult during or right after a major flood.
- More complex design cycles, approvals and environmental coordination.
Dimension | Portable Bridge (Bailey‑type) | Rigid Frame Bridge |
Primary role in floods | Rapid temporary or semi‑permanent access restoration | Long‑term permanent replacement or corridor upgrade |
Deployment speed | Hours to a few days for typical spans with trained cre | Months to years including design, permits and construction |
Site access requirements | Can be launched from one bank, limited equipment | Needs full access to both banks, stable foundations and cofferdams |
Design adaptability | Highly modular; span and capacity can be re‑configured | Custom‑designed to fixed geometry and long‑term traffic forecast |
Typical service life in emergency use | From several months to many years with proper corrosion protection | 50–100 years design life in highway standards |
Cost profile | Lower initial cost, high value per unit time restored | Higher upfront capex but optimized life‑cycle cost |
Ownership and reuse | Bridge can be dismantled and redeployed at other sites | Fixed asset; not reusable elsewhere |
From a flood‑operations standpoint, portable bridges win decisively on time‑to‑service, while rigid frames win on long‑term performance, durability and ride quality. [iitk.ac]
Disaster‑relief research highlights that restoring physical access in the first 72 hours after a major event is critical for casualty reduction and supply chain continuity. Portable pedestrian and vehicular bridges have been designed specifically to be "convenient to store, carry, assemble, install, dismantle and reuse," with field tests verifying that they meet structural and safety requirements even under simplified construction conditions. [icevirtuallibrary]
Rigid frame bridges, by contrast, cannot meet this time window because they require:
- Detailed structural and hydraulic design.
- Foundation excavation, piling or footings.
- Formwork, reinforcement, casting and curing processes.
Modern Bailey‑type systems such as Evercross's HD200 modular steel bridges are designed for exactly these constraints. In East Africa, Evercross delivered six customized HD200 bridges with spans from roughly 30 m to over 60 m, engineered to adapt to local terrain and traffic loads, and to be erected efficiently on challenging sites. For flood‑damaged corridors, the same modularity allows: [dutch.steelbailey-bridge]
- Pre‑stocking standard panels and connection hardware in regional depots.
- Shipping by container or flatbed to the disaster zone.

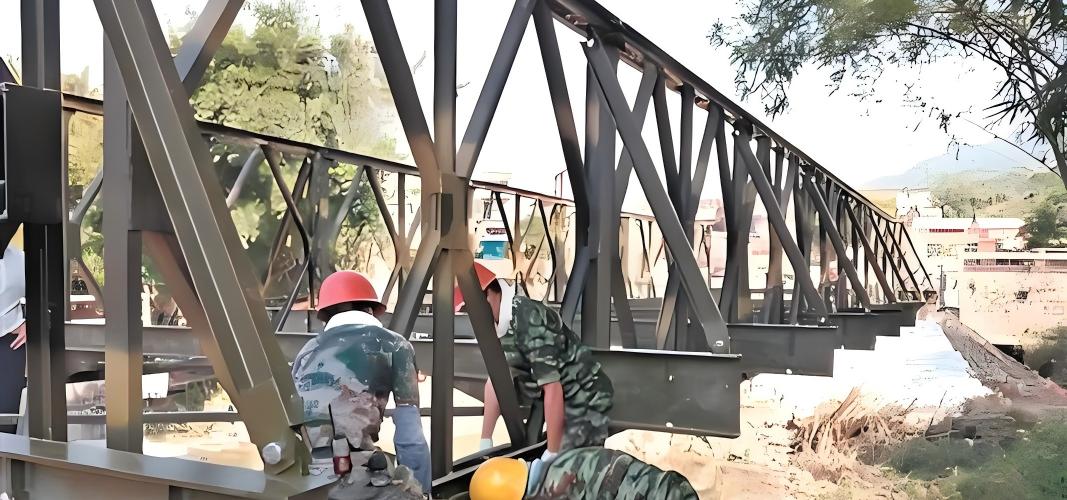

- On‑site assembly with trained local or military engineering units.
Rigid frame bridges rarely offer such logistical flexibility during the emergency window.
Bailey‑type portable bridges have evolved significantly from their World War II origins. Modern systems designed to European or international standards use graded high‑strength steels such as S450J0 for main chords and Q355B/Q460C for bracing and crossbeams, hot‑dip galvanized to ISO 1461 for corrosion resistance, enabling them to handle heavy truck, construction and humanitarian traffic safely. [www3.nd]
Rigid frame bridges, especially in concrete or composite forms, provide:
- Excellent stiffness and riding comfort for long‑term heavy traffic.
- Robust performance under repeated flooding when properly detailed.
- Opportunities to integrate hydraulic and scour‑resistant design features (e.g., fewer piers, smoother abutments).
In the immediate relief phase, portable bridges provide adequate safety factors and performance for the urgent traffic mix, while rigid frames are optimized later for full‑design‑life demands. [iitk.ac]
For rapid relief, well‑designed modular steel bridges use:
- Hot‑dip galvanizing to resist tropical humidity and splash‑zone corrosion. [dutch.steelbailey-bridge]
- Replaceable deck plates and standardized connectors that simplify inspections and maintenance. [www3.nd]
Evercross's Tanzania project, for example, applied high‑performance steels and full galvanizing specifically to manage high temperature and humid climate, reducing long‑term maintenance even when bridges serve beyond the "temporary" stage. [dutch.steelbailey-bridge]
Rigid frame bridges, once completed, can offer lower routine maintenance in terms of bearings and joints (thanks to their integral nature), but they still require inspection of concrete, reinforcement cover and scour‑critical foundations over decades. [iitk.ac]
Immediately after a major flood, engineers often lack reliable data on:
- Actual scour depth and bed degradation.
- Future flood magnitudes under changing climate patterns.
- Stability of embankments and approach roads.
In these conditions, deploying a portable bridge with minimal or no in‑channel supports reduces hydraulic risk compared with building new piers or foundations in a still‑unstable river bed. Launching from one bank using a cantilever nose or "rolling launch" technique further reduces exposure of crews to fast currents. [icevirtuallibrary]
Rigid frame bridges can be designed later, once full geotechnical and hydrological investigations have been completed, allowing optimized pier placement, deck elevation and spill‑through abutment geometry for the updated design flood.
From a network‑level resilience view, agencies increasingly plan portable bridge stocks as strategic assets that can be deployed repeatedly at different points of failure. Rigid frame bridges, in contrast, are fixed investments at specific locations; they improve that link's resilience but do not help when another bridge 200 km away fails. [icevirtuallibrary]
When comparing "Portable Bridge vs. Rigid Frame Bridge in Sudden Flood Relief Operations," cost should be evaluated on two different time axes:
- Emergency axis (0–12 months):
- Portable systems minimize economic loss per day of outage, making them very cost‑effective even if their unit cost per ton of steel appears higher. [icevirtuallibrary]
- Procurement can leverage framework agreements or pre‑positioned stock, avoiding lengthy tendering.
- Life‑cycle axis (10–100 years):
- Rigid frame bridges distribute higher initial capex over long service life, often lowering cost per vehicle‑kilometre in the long run. [iitk.ac]
- They can be tuned to specific traffic growth, seismic and hydraulic demands, and corridor upgrade plans.
The most economically rational strategy for many governments is to see portable bridges as reusable fleet assets managed at the national or regional level, while rigid frame bridges are project‑specific capital works.
Based on global practice and Evercross's international project portfolio in Southeast Asia, Africa and Latin America, a pragmatic sequence for a washed‑out river crossing is: [baileybridgesolution]
1. Phase 1 – Emergency access (days to weeks)
- Deploy a portable modular Bailey‑type bridge from one bank using existing approaches or quickly stabilized embankments.
- Prioritize emergency vehicles, supply trucks and essential commuter traffic.
- Use standardized HD200‑type configurations to match span and loading while simplifying logistics.
2. Phase 2 – Transitional improvement (months)
- If permanent funding is delayed, enhance the portable bridge with improved decking, guardrails and approach works so that it can carry a broader traffic mix safely for several seasons.
- Conduct full hydrological, geotechnical and traffic studies while the route remains open.
3. Phase 3 – Permanent rigid frame replacement (years)
- Design and construct a rigid frame bridge at the optimized alignment and elevation.
- Once commissioned, relocate the portable bridge to another vulnerable site or stockyard for future flood events.
From an owner's perspective, this integrated approach converts each portable span into a multi‑event resilience tool, while rigid frames secure the corridor's long‑term performance and development potential.
For decision makers and consulting engineers, a structured question set can speed up the choice between portable and rigid frame solutions in sudden floods:
1. What is the maximum acceptable downtime for this corridor?
- If the answer is measured in days, a portable bridge is mandatory for the first phase.
2. Is the river bed and bank stability well understood right now?
- If not, avoid new in‑channel foundations and favor modular spans launched from one bank.
3. Does the agency already operate a portable bridge fleet or partnership?
- Existing Bailey‑type stock dramatically reduces emergency costs and timelines.
4. What is the planned design life and traffic category of the rebuilt route?
- For primary highways and long‑term urban corridors, a rigid frame or comparable permanent structure should be programmed as soon as funding allows.
5. Are there other vulnerable crossings in the same region?
- Fleet‑style portable bridges like Evercross HD200 units can be rotated between multiple sites, maximizing resilience ROI. [dutch.steelbailey-bridge]
As a global prefabricated emergency steel bridge manufacturer with over 30 years in Bailey bridge and modular steel bridge engineering, Evercross Bridge has positioned its solutions as a strategic layer on top of traditional civil infrastructure programs. With an annual capacity of about 100,000 tons and deliveries to more than 50 countries, the company supports governments and contractors across Southeast Asia, Africa and Latin America with end‑to‑end design, fabrication, logistics and field guidance for emergency and semi‑permanent steel bridges. [evercrossbridge]
In flood‑prone regions, this means:
- Pre‑engineered Bailey‑type modules that can be configured quickly for different spans, road classes and loading standards.
- Project‑proven corrosion protection and steel grades that remain reliable even under tropical humidity and repeated wet–dry cycles. [dutch.steelbailey-bridge]
- Integration into broader infrastructure roadmaps where rigid frame bridges represent the permanent stage, and Evercross portable systems keep communities and economies connected during the vulnerable years in between. [baileybridgesolution]
A practical example is the Tanzania HD200 project, where modular spans with different lengths and configurations were tailored to local traffic and construction constraints, showcasing how standardized components can still address site‑specific engineering requirements. [dutch.steelbailey-bridge]
If your agency or engineering team is responsible for keeping roads open under extreme floods, relying on rigid frame bridges alone leaves a dangerous response gap. By adding Evercross portable Bailey‑type bridges to your toolkit, you can transform your flood strategy from reactive rebuilding to proactive, reusable resilience.
To explore span options, loading classes and stocking strategies for your region, contact Evercross Bridge's engineering team for a tailored portable‑plus‑rigid flood corridor plan.
1. Are portable Bailey‑type bridges safe enough for heavy trucks in flood relief operations?
Modern modular steel bridges are engineered to international standards using high‑strength steels and verified load models, allowing them to safely carry heavy road vehicles and construction traffic when correctly configured and erected. [www3.nd]
2. How long can a "temporary" portable bridge realistically stay in service?
With proper design, galvanizing and maintenance, many portable steel bridges can remain operational for years, serving as semi‑permanent solutions until funding and designs for rigid frame or other permanent structures are complete. [www3.nd]
3. Can a portable bridge be reused after the permanent rigid frame bridge is opened?
Yes. One of the main advantages of portable systems is that they can be dismantled, inspected and redeployed at other vulnerable crossings, creating a reusable national or regional emergency bridge fleet. [icevirtuallibrary]
4. When does it make sense to build a rigid frame bridge first without using a portable bridge?
If the washed‑out crossing is not on a critical emergency corridor, or if an alternative route can sustain traffic during the entire reconstruction period, owners may choose to proceed directly with a rigid frame or similar permanent solution. [iitk.ac]
5. How early should we engage a portable bridge supplier like Evercross in our disaster‑risk program?
Ideally, engagement happens before the next flood season so that design standards, stocking levels, training programs and logistics routes can be defined in advance and portable bridges can be deployed within days, not months, after an event. [evercrossbridge]
1. Athrall, A. et al. "Portable and Rapidly Deployable Bridges: Historical Perspective and Recent Developments." University of Notre Dame. [www3.nd]
2. NICEE / WCEE. "A Novel Composite Emergency Bridge for Disaster Rescue." [iitk.ac]
3. Proceedings of the ICE – Bridge Engineering. "Development of portable footbridges for disaster relief." [icevirtuallibrary]
4. Evercross Bridge. "About Us – Evercross Bridge Technology (Shanghai) Co., Ltd." [evercrossbridge]
5. Evercross Bridge. "Global Prefabricated Emergency Steel Bridge Solutions: How Evercross Delivers Rapid, Resilient Connectivity." [baileybridgesolution]
6. Evercross Bridge. "Evercross Bridge Consolidates Tanzania Market with Successful Delivery of 6 Custom HD200 Bailey Bridges." [dutch.steelbailey-bridge]
7. Evercross Bridge. "Steel Truss Bridges for Resilient Infrastructure: An Engineer's Perspective from Evercross Bridge." [baileybridgesolution]
