● Understanding the Warren Truss Bridge
>> Advantages of Warren Truss Bridges
● Precision Engineering: Manufacturing Process and Material Requirements
● Understanding American Bridge Design Standards (AASHTO)
● Local Adaptation: Meeting Indonesian Import and Market Requirements
● Future Outlook: Opportunities for Mutual Growth
● Frequently Asked and Questions regarding Warren Truss Bridge
>> 1. What are the specific AASHTO requirements for welding on Warren truss bridges?
As a leading manufacturer in the steel bridge industry, EVERCROSS BRIDGE understands the unique challenges of executing projects that integrate high American design standards with complex local requirements in Southeast Asia. Recently, there has been a significant increase in demand for Warren truss bridges that comply with American standards (such as AASHTO) in Indonesia's infrastructure development, particularly in sectors like mining, power, ports, and regional roads.
This raises a critical question: How can we, as manufacturers, produce Warren truss bridges in our Chinese factories that fully meet American design standards for Indonesian projects? This challenge tests our technical capabilities and our ability to manage global supply chains, cross-cultural communication, and localized services.
The Warren truss bridge is a classic and widely used bridge type in steel structures. Its most notable feature is the series of equilateral triangles that form the truss body. Unlike Pratt or Howe trusses, the Warren truss consists only of top and bottom chords and diagonal members, without vertical members. This simple geometric configuration provides unique advantages.
● Material Efficiency and Lightweight Structure: The triangular configuration ensures even distribution of internal forces, allowing for larger spans with relatively low weight, making it ideal for sites requiring reduced foundation loads.
● Cost-Effectiveness: The uniformity of member types reduces the variety of molds and processing required, lowering manufacturing costs. The simplified structure also means fewer connection nodes, enhancing production and installation efficiency.
● Aesthetic Appeal: The repetitive triangular pattern creates a strong sense of rhythm and modernity, providing high aesthetic value while meeting functional requirements.
● Ease of Maintenance and Inspection: The open structure offers clear visibility for inspectors, facilitating regular checks on members, welds, and coatings.
● Versatile Applications: Particularly suitable for medium to small spans (typically 30 to 150 meters), Warren truss bridges are ideal for road, rail, industrial park, and pedestrian bridges, which are essential for connecting Indonesia's many islands and inland areas.
Producing a high-quality Warren truss bridge begins with an unwavering commitment to detail. Our manufacturing process strictly adheres to quality control systems, optimized for the characteristics of truss bridges.
● Design and Simulation Analysis: Utilizing advanced BIM technology for 3D modeling, we accurately simulate every joint, particularly focusing on the dimensions and weld layouts of joint plates to ensure smooth force transfer. Virtual pre-assembly helps identify and resolve potential interference issues early.
● Material Standards: Adhering to American ASTM standards is crucial. We typically use ASTM A709 series steel, such as Grade 50 or Grade 50W (the "W" indicates weathering steel). Given Indonesia's high humidity and saline marine environment, weathering steel or high-performance corrosion protection systems are essential. All steel must come with mill certificates and undergo third-party inspections.
● Cutting and Processing of Members: Chords and web members are usually made from wide-flange H-beams, channel steel, or steel pipes. We employ CNC saws or band saws for precise cutting, ensuring verticality at the ends, which is critical for subsequent joint alignment. Joint plates are cut using CNC plasma/oxy-fuel cutting to ensure accuracy in hole patterns and dimensions.
● Assembly and Welding: Assembly occurs on specialized heavy-duty welding jigs. Welding is the lifeline of the structure. All welders involved in American standard projects must hold AWS D1.5 (Bridge Welding Code) certification. For critical joints, high-penetration groove welds are used, and all major welds undergo 100% non-destructive testing (UT or RT).

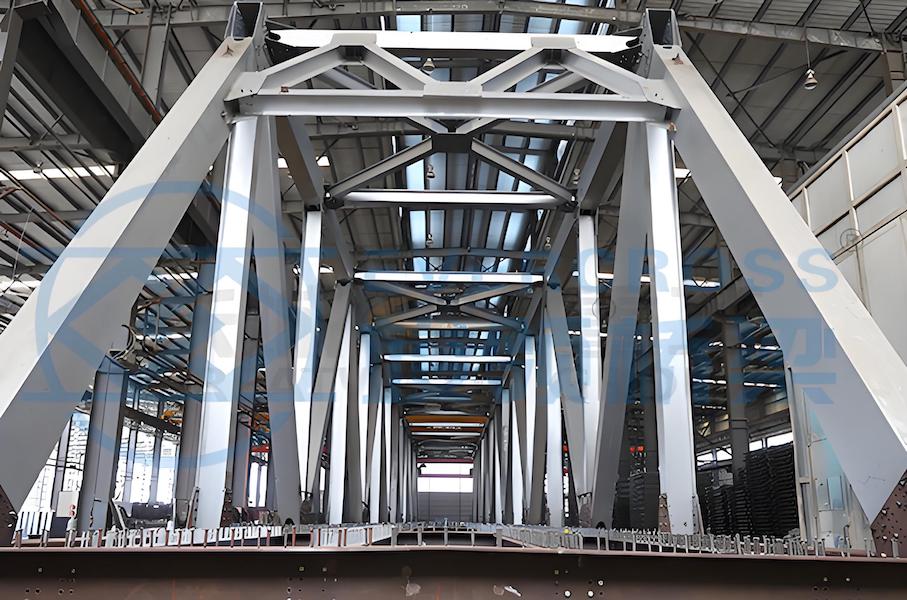

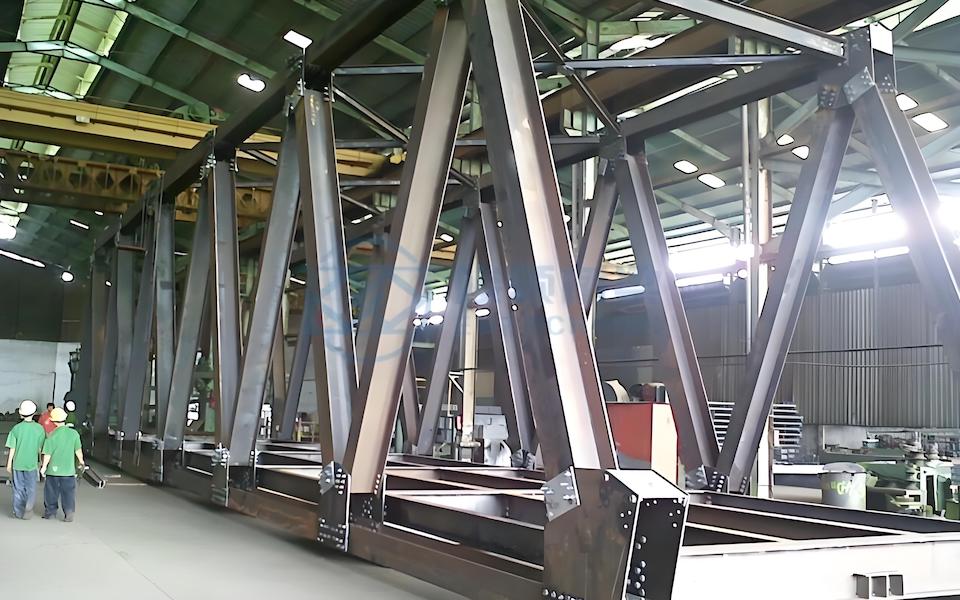

● Drilling and Pre-Assembly: For bolted connections, joint plates are drilled in one operation using CNC drilling machines to ensure hole position accuracy. Before shipping, we conduct rigorous factory pre-assembly to verify the compatibility of all members, which is key to minimizing on-site installation issues and delays.
● Surface Treatment and Coating: Given Indonesia's harsh environment, surface treatment must achieve SSPC-SP 10 (Sa 2.5) near-white cleanliness. The coating system is designed per specifications, potentially including epoxy zinc-rich primer, epoxy intermediate paint, and polyurethane topcoat, with a total dry film thickness typically required to reach 250-400 microns for corrosion protection lasting over 25 years.
To participate in projects governed by American standards, a deep understanding of the regulatory framework is essential. The core of this framework is the AASHTO LRFD Bridge Design Specifications.
● LRFD Method: This method employs load and resistance factor design, which is more scientific and economical than traditional allowable stress methods, providing a more precise grasp of structural reliability.
● Fatigue and Fracture Design: This is a core requirement for truss bridges under American standards. AASHTO classifies structural details into strict fatigue categories. The details of welds at Warren truss joints and the treatment of bolt holes must meet specific fatigue strength requirements. Any manufacturing defects (such as burn-through or crater cracks) are strictly prohibited.
● Seismic Design: Given Indonesia's location in a seismically active region, seismic considerations are paramount. AASHTO provides specific guidelines based on seismic zoning maps, detailing requirements for structural ductility and joint strength.
● Application Areas: Although these standards originate from the U.S., their scientific basis and high safety levels have led to their adoption in numerous large-scale projects worldwide, especially those financed by international financial institutions (e.g., World Bank, Asian Development Bank). In Indonesia, many infrastructure projects funded by foreign investments or requiring international standards specify AASHTO compliance.
Successfully exporting a bridge that meets American standards to Indonesia involves navigating additional local requirements.
● SNI Certification (Indonesian National Standards): While the bridge structure is designed to American standards, the Indonesian government may require certain materials (like some auxiliary materials) or safety aspects to comply with SNI standards. Early communication with owners and relevant Indonesian authorities is essential to clarify which aspects need SNI compliance and to prepare for necessary certifications.
● Import Permits and Customs Clearance: Steel structures are classified as critical materials requiring specialized customs agents. Documentation must be complete, including pro forma invoices, packing lists, certificates of origin, material certificates, and third-party inspection certificates. All descriptions and HS codes on documents must be accurate.
● Local Content Requirements (TKDN): This important policy aims to promote domestic industrial development, requiring a certain percentage of local content (such as local procurement, labor, or manufacturing) in projects. As manufacturers, we can strategically collaborate with local steel structure factories (e.g., subcontracting non-critical components to capable local manufacturers) or procure some auxiliary materials locally to help general contractors meet TKDN requirements.
● Logistics and Transportation Solutions: Indonesia, as an archipelagic nation, presents significant challenges for transporting large components. We must consider segmentation plans and transport size and weight restrictions during the design phase. Collaborating with experienced logistics companies to plan the best routes from Chinese ports to Indonesian project sites (potentially involving sea, river, and land transport) and designing specialized reinforcement and packaging solutions is crucial to ensure component integrity.
● Technical Standards Recognition: It is vital to communicate with Indonesian public works departments and other relevant approval agencies early on, clarifying that the international standards we follow (AASHTO, AWS) are equivalent to or exceed local standards in safety and providing complete calculations and third-party certifications for their recognition.
As a proponent of the "Global Maritime Fulcrum" strategy, Indonesia's demand for infrastructure development is long-term and substantial. Particularly in resource development on remote islands, the construction of the new capital Nusantara, and the nationwide road network upgrade, Warren truss bridges offer an economical, efficient, and rapid solution with immense potential.
For international manufacturers like us, the opportunity lies in providing a "U.S. Standard Quality + Indonesian Compliance" one-stop solution. Future competition will not only be about price but also about comprehensive service capabilities—including pre-project technical consulting, precision manufacturing that meets multiple standards, flexible solutions for TKDN requirements, and reliable logistics and on-site technical support.
Producing a Warren truss bridge that meets American standards and is successfully exported to Indonesia is a complex system engineering task. It requires us to be not only skilled "craftsmen" but also strategic thinkers who understand international rules and local policies. We have established an integrated solution platform encompassing American quality systems, Indonesian import regulations, and complex project management.
We firmly believe that with our professional strength, attention to detail, and deep understanding of the Indonesian market, we can become your most reliable partner in transforming Indonesia's infrastructure challenges into opportunities.
— EVERCROSS BRIDGE, your strategic partner for accessing the Indonesian and global high-end bridge market.
AASHTO (American Association of State Highway and Transportation Officials) specifies that all welding on Warren truss bridges must adhere to the AWS D1.5 Bridge Welding Code. This includes requirements for weld quality, types of welds, and inspection methods. Critical joints must undergo 100% non-destructive testing (NDT) to ensure structural integrity, and any defects such as undercutting or cracks must be addressed before the bridge can be deemed compliant.
EVERCROSS BRIDGE ensures compliance with Indonesian TKDN (Local Content Requirements) by strategically collaborating with local manufacturers for non-critical components and sourcing some auxiliary materials locally. This approach helps meet the required local content percentage while maintaining the quality and standards of the bridge. Additionally, we engage in early communication with project owners and local authorities to clarify specific TKDN requirements for each project.
Long-term maintenance considerations for Warren truss bridges in Indonesia's humid and saline environment include regular inspections for corrosion, particularly at welds and joints. Implementing a robust surface treatment and coating system is crucial to protect against environmental degradation. Additionally, routine checks for structural integrity, including the condition of the truss members and connections, should be conducted to ensure safety and longevity.
To meet American standards, Warren truss bridges are typically constructed using ASTM A709 series steel, such as Grade 50 or Grade 50W (weathering steel). These materials are chosen for their strength, durability, and resistance to corrosion, which is particularly important in environments like Indonesia that experience high humidity and salt exposure.
The design of Warren truss bridges, characterized by their triangular configurations, allows for efficient material use and weight distribution. This structural efficiency results in lighter bridges that require less material, reducing overall construction costs. Additionally, the uniformity of member types simplifies manufacturing and installation processes, further enhancing cost-effectiveness while maintaining structural integrity.
