Bridges are essential structures that facilitate transportation across obstacles such as rivers, valleys, and roads. Among the various types of bridges, truss bridges and suspension bridges are two popular designs, each with distinct characteristics and engineering principles. This article will explore the differences and similarities between truss bridges and suspension bridges, addressing whether a truss bridge can be classified as a suspension bridge.
A truss bridge is a type of bridge that utilizes a framework of triangular units to support the load. The design of a truss bridge allows it to efficiently distribute weight and withstand forces through its interconnected members. The primary components of a truss bridge include:
- Chords: The top and bottom horizontal members that form the main structure.
- Web Members: The diagonal and vertical members that connect the chords and create triangular shapes.
The triangular configuration is crucial because triangles are inherently stable shapes that do not deform under stress. As loads are applied to the bridge, the truss system effectively transfers these forces throughout the structure, allowing for greater strength with less material compared to solid beams.
Truss bridges can span significant distances and are often used in various applications, including roadways and railways. They are economical to construct due to their efficient use of materials and can be made from wood, steel, or a combination of both.
There are several types of truss bridges, each designed for specific applications:
- Pratt Truss: Characterized by diagonal members slanting towards the center, this design is effective in tension and is commonly used in railroad bridges.
- Howe Truss: This design features diagonal members slanting towards the ends of the bridge, making it efficient in compression. It is often used for highway bridges.
- Warren Truss: This type uses equilateral triangles throughout the structure, providing uniform distribution of loads. It is suitable for both short and long spans.
- K Truss: This design combines elements of both Pratt and Warren trusses, offering enhanced strength and stability.
Each type has its advantages depending on factors such as span length, load requirements, and material costs.

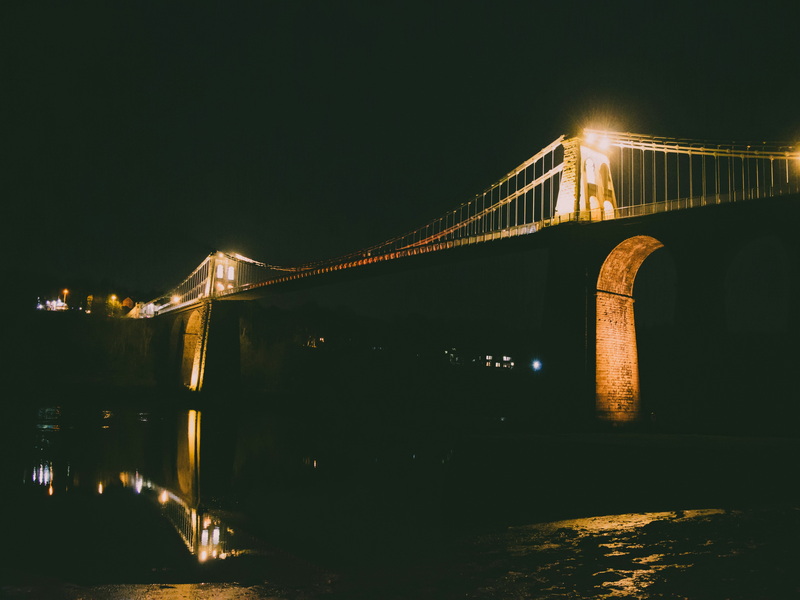

In contrast, a suspension bridge is characterized by its unique design where the roadway (deck) is suspended from cables that run between tall towers. The main components of a suspension bridge include:
- Main Cables: Large cables that stretch between the towers and support the weight of the deck.
- Towers: Vertical structures that bear the load from the cables and transfer it to the ground.
- Hangers: Vertical cables or rods that connect the deck to the main cables.
The design allows suspension bridges to span long distances without requiring numerous supports beneath them. The tension in the main cables counteracts the weight of the deck and any additional loads (such as vehicles), while the towers handle vertical compression forces.
Several iconic suspension bridges around the world showcase their engineering prowess:
- Golden Gate Bridge (San Francisco, USA): Completed in 1937, this bridge spans approximately 1.7 miles (2.7 km) across the Golden Gate Strait. It features striking Art Deco design elements and has become a symbol of San Francisco.
- Brooklyn Bridge (New York City, USA): Finished in 1883, this historic bridge connects Manhattan and Brooklyn over the East River. It was one of the first suspension bridges to use steel wire for its cables.
- Akashi Kaikyō Bridge (Japan): Known as the world's longest suspension bridge with a central span of 6,532 feet (1,991 meters), it connects Awaji Island with mainland Honshu. Completed in 1995, it showcases advanced engineering techniques.
While both truss bridges and suspension bridges serve similar purposes in supporting loads and facilitating transportation, they differ significantly in their structural design and engineering principles:
- Load Distribution:
- Truss bridges distribute loads through triangular configurations, transferring forces through tension and compression within their members.
- Suspension bridges rely on tension in cables to support their decks, with loads transferred from the deck to the hangers and then to the main cables.
- Structural Components:
- Truss bridges consist of interconnected triangles made from various materials.
- Suspension bridges feature large main cables supported by towers, with hangers connecting these cables to the deck.
- Span Length:
- Truss bridges are suitable for medium spans but can be designed for longer distances with more complex configurations.
- Suspension bridges excel in spanning long distances due to their cable system, making them ideal for crossing wide bodies of water or deep valleys.
- Construction Complexity:
- Truss bridges are generally simpler to construct compared to suspension bridges, which require precise engineering for cable tensioning and tower stability.
Given the fundamental differences in design, it is clear that a truss bridge cannot be classified as a suspension bridge. While both types of bridges utilize principles of tension and compression to support loads, their structural configurations are distinctly different.
A truss bridge relies on a rigid framework of interconnected members to support its deck, while a suspension bridge uses flexible cables suspended from towers. Therefore, despite some overlapping functionalities in terms of load-bearing capabilities, they represent different engineering solutions tailored for specific applications.
Both truss bridges and suspension bridges come with their own sets of advantages and disadvantages:
Advantages:
- Efficient use of materials due to triangular design.
- Suitable for various applications including pedestrian walkways and railway crossings.
- Generally easier and less expensive to construct than suspension bridges.
Disadvantages:
- Limited span lengths compared to suspension designs.
- May require more supports or piers for longer spans.
Advantages:
- Capable of spanning long distances without many supports.
- Aesthetically pleasing designs often make them iconic landmarks.
- Flexibility allows them to withstand dynamic loads better than rigid structures.
Disadvantages:
- More complex construction process requiring advanced engineering.
- Higher maintenance costs due to susceptibility to wear on cables.
Both truss bridges and suspension bridges have found extensive use in modern infrastructure projects. Engineers select one over the other based on factors such as:
- Required span length
- Load capacity
- Environmental conditions
- Budget constraints
For example, iconic structures like the Golden Gate Bridge exemplify suspension bridge design due to their ability to span vast distances over water. In contrast, many highway overpasses utilize truss bridge designs for their efficiency in shorter spans.
The field of bridge engineering has seen significant advancements over recent years. Innovations include:
The development of high-strength materials such as carbon fiber-reinforced polymers has allowed engineers to create lighter yet stronger components for both truss and suspension bridges. These materials enhance durability while reducing maintenance costs over time.
Modern engineering employs sophisticated CAD software that enables precise modeling of complex structures before construction begins. This technology allows engineers to simulate various load scenarios ensuring safety standards are met effectively.
Incorporating sensors into bridge designs allows for real-time monitoring of structural integrity. These sensors can detect changes in stress levels or vibrations caused by traffic or environmental factors like earthquakes or high winds. Such data helps maintain safety standards throughout a bridge's lifespan.
As society becomes increasingly aware of environmental issues related to construction projects, engineers must consider sustainability when designing new bridges:
Using recycled materials or sustainably sourced timber can minimize environmental impact during construction while still meeting structural requirements.
When planning new projects near sensitive ecosystems or habitats, engineers often conduct thorough environmental impact assessments (EIAs) to ensure minimal disruption occurs during construction phases.
In summary, while both truss bridges and suspension bridges serve similar functions in supporting loads across obstacles, they are fundamentally different structures. A truss bridge cannot be classified as a suspension bridge due to its distinct design principles involving rigid frameworks versus flexible cable systems. Understanding these differences is crucial for engineers when designing safe and efficient transportation infrastructures that meet modern demands while considering sustainability practices.
The main difference lies in their structural design; truss bridges use triangular frameworks for load distribution, while suspension bridges rely on cables suspended from towers.
Truss bridges can span significant distances but generally do not match the long-span capabilities of suspension bridges.
Truss bridges are typically constructed using steel or wood due to their strength-to-weight ratio.
Yes, truss bridges are usually less expensive and easier to construct compared to suspension designs.
Suspension bridges have elegant designs characterized by tall towers and sweeping curves made by their main cables, making them visually striking landmarks.
