The Bailey bridge, a modular and prefabricated structure, has been a significant innovation in temporary bridge design since its inception during World War II. Its unique characteristics and advantages make it a popular choice for various applications, particularly in emergency situations. This article explores the Bailey bridge in detail, comparing it with other temporary bridge designs, highlighting its construction, applications, advantages, and limitations.
The Bailey bridge was developed by British engineer Sir Donald Bailey during World War II, a time when rapid military mobilization was crucial. The need for quick and reliable bridge solutions arose as armies advanced through various terrains, often encountering rivers and ravines that hindered movement. The design allowed for rapid assembly and disassembly, making it ideal for temporary use in various terrains and conditions. Its successful deployment during the war not only facilitated troop movements but also inspired post-war applications in civilian infrastructure, leading to its widespread adoption in various fields.

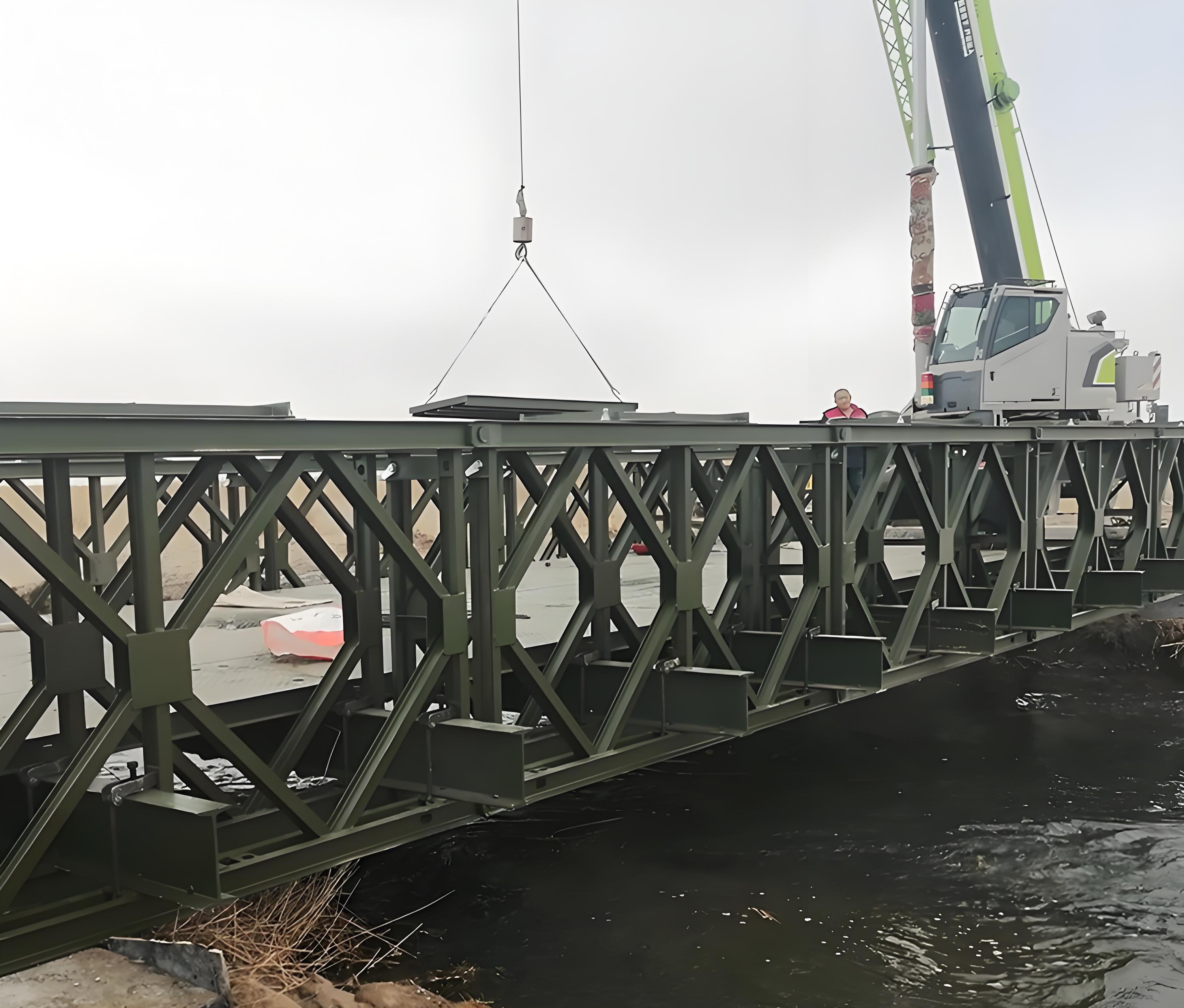

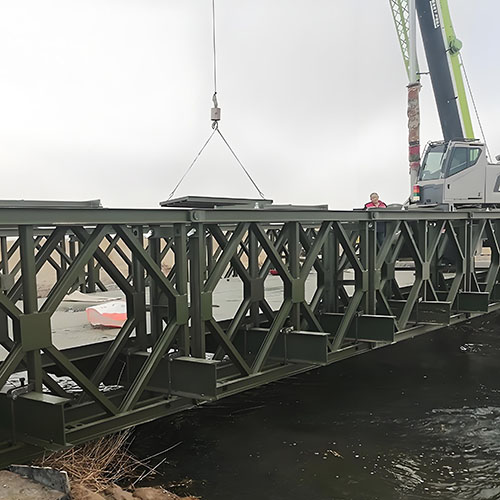

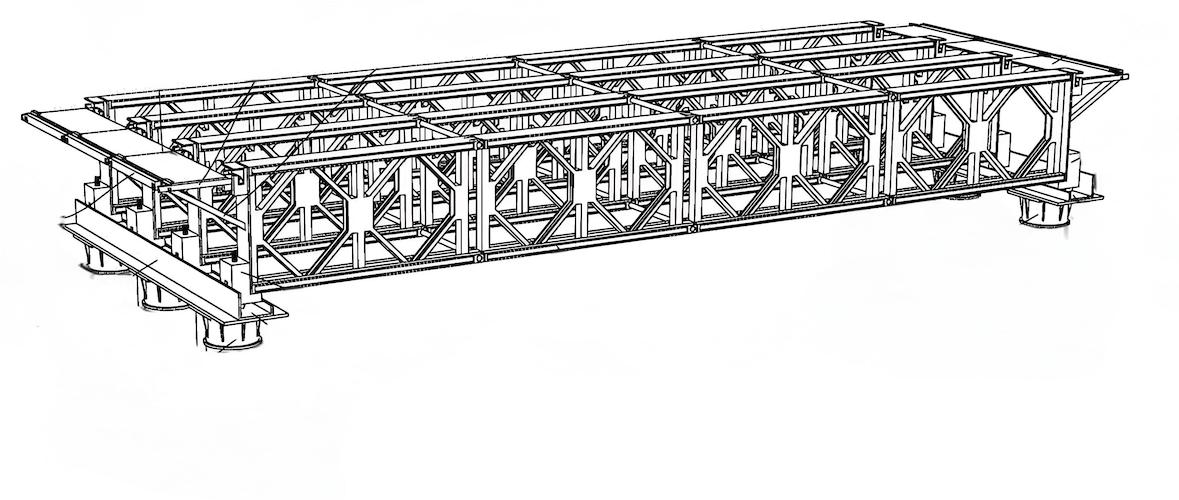

The Bailey bridge is characterized by its modular design, which consists of prefabricated steel components. These components can be easily transported and assembled on-site, requiring minimal tools and labor. The bridge typically features a truss design, which provides strength and stability while allowing for significant load-bearing capacity. The modular nature means that different configurations can be created depending on the specific requirements of the site, such as span length and load capacity. This flexibility is a key feature that distinguishes the Bailey bridge from more traditional bridge designs, which often require custom engineering for each project.
One of the key advantages of the Bailey bridge is its ability to support substantial loads. Depending on the configuration and materials used, Bailey bridges can accommodate various vehicles, including military trucks and heavy equipment. This load capacity makes them suitable for both temporary and permanent applications. The design allows for the addition of extra panels to increase the load-bearing capacity, making it adaptable to changing needs. This feature is particularly beneficial in emergency situations where the types of vehicles needing access may vary significantly.
Temporary bridges can be categorized into several types, including truss bridges, arch bridges, and modular bridges. Each type has its unique characteristics, advantages, and limitations. Understanding these differences is crucial for selecting the appropriate bridge design for specific applications.
Truss bridges, like the Bailey bridge, use a framework of triangular units to distribute loads. They are known for their strength and efficiency in material use. However, traditional truss bridges may require more time and labor for assembly compared to the modular design of the Bailey bridge. The complexity of the truss design can lead to longer construction times, which may not be suitable for urgent needs. Additionally, truss bridges often require more extensive foundations, which can complicate installation in challenging terrains.
Arch bridges utilize a curved structure to transfer loads to supports. While they can be aesthetically pleasing and efficient in load distribution, their construction often requires more complex engineering and materials, making them less suitable for rapid deployment in emergency situations. The need for specialized equipment and skilled labor can delay the construction process, which is a significant drawback when immediate access is required. Furthermore, arch bridges may not be as easily transportable as modular designs, limiting their use in remote or disaster-stricken areas.
Modular bridges share similarities with Bailey bridges in that they are prefabricated and designed for quick assembly. However, the Bailey bridge's specific design and historical context give it unique advantages in military and emergency applications. Modular bridges can vary widely in design and materials, which may affect their load capacity and durability. While some modular designs may offer quick assembly, they may not match the Bailey bridge's proven track record in diverse environments and conditions.
The construction process for Bailey bridges is notably faster than that of many other temporary bridge designs. The modular components can be assembled in a matter of hours, making them ideal for situations where time is of the essence. In contrast, traditional bridge designs may take days or even weeks to complete, depending on the complexity of the structure. The ease of assembly is further enhanced by the fact that the components are designed to fit together without the need for specialized tools, allowing even untrained personnel to erect the bridge quickly. This rapid deployment capability is critical in emergency scenarios, where every minute counts.
Bailey bridges are generally more cost-effective than many other temporary bridge options. Their prefabricated design reduces material and labor costs, making them an attractive choice for short-term projects, especially in emergency situations. The ability to reuse components in different configurations also contributes to their cost-effectiveness, as the same materials can be employed in multiple projects over time. In contrast, other temporary bridge designs may involve higher costs due to longer assembly times and more complex engineering requirements, which can strain budgets, particularly in disaster recovery efforts.
The original purpose of the Bailey bridge was for military applications. Its ability to be quickly deployed in various terrains made it invaluable during wartime operations. Today, it continues to serve military needs, providing temporary access in conflict zones and disaster relief efforts. The bridge's design allows for easy transport by truck or helicopter, enabling rapid deployment to remote locations. Additionally, its robust construction ensures that it can withstand the rigors of military use, including heavy vehicle traffic and adverse weather conditions.
Bailey bridges are frequently used in emergency situations, such as natural disasters. When existing infrastructure is damaged, these bridges can be rapidly deployed to restore access to affected areas. Their modular nature allows for flexibility in design, accommodating different spans and load requirements. In the aftermath of events like floods, earthquakes, or hurricanes, Bailey bridges can be set up quickly to facilitate rescue operations and the delivery of essential supplies. This capability is crucial for restoring normalcy in affected communities and ensuring that emergency services can reach those in need.
In civil engineering, Bailey bridges are often employed for temporary access during construction projects. They provide essential connectivity while permanent structures are being built or repaired. Their ease of installation and removal makes them a practical choice for contractors. For instance, during road or rail construction, Bailey bridges can maintain traffic flow, minimizing disruptions. This temporary solution allows for efficient project management and can significantly reduce the overall timeline for infrastructure development.
One of the most significant advantages of Bailey bridges is their speed of deployment. In situations where time is critical, such as disaster response or military operations, the ability to quickly assemble a bridge can save lives and restore access to vital services. The rapid setup not only facilitates immediate transportation needs but also helps in the psychological recovery of affected communities, as it signals a return to normalcy. The speed of deployment is a defining feature that has cemented the Bailey bridge's reputation as a reliable solution in urgent scenarios.
Bailey bridges are highly versatile and can be adapted to various applications. They can be configured for different spans and load capacities, making them suitable for a wide range of vehicles and uses. This adaptability is a key factor in their continued popularity. Whether used in military operations, emergency response, or civil engineering projects, the Bailey bridge can be tailored to meet specific requirements. This versatility extends to their ability to be used in diverse environments, from urban settings to remote wilderness areas, further enhancing their utility.
Constructed from high-strength steel, Bailey bridges are designed to withstand harsh environmental conditions. Their durability ensures that they can remain in service for extended periods, even in challenging climates. The materials used in their construction are resistant to corrosion and wear, which is particularly important in areas with extreme weather conditions. Regular maintenance can extend their lifespan even further, making them a sustainable choice for temporary infrastructure needs. This durability not only reduces the frequency of replacements but also contributes to long-term cost savings.
While Bailey bridges can support substantial loads, there are limits to their weight capacity. In situations where extremely heavy loads are expected, alternative bridge designs may be more appropriate. Engineers must carefully assess the specific requirements of each project to determine the best solution. The weight restrictions can be a limiting factor in certain applications, particularly in industrial settings where heavy machinery needs to cross. Understanding these limitations is crucial for ensuring safety and functionality in bridge design.
The utilitarian design of Bailey bridges may not always meet aesthetic preferences for certain projects. In urban or scenic areas, more visually appealing bridge designs may be preferred, even if they require longer construction times. The focus on functionality over form can lead to criticism in contexts where the visual impact of infrastructure is a significant concern. As communities increasingly prioritize aesthetics in public works, the Bailey bridge may face challenges in gaining acceptance in certain environments.
Like all structures, Bailey bridges require regular maintenance to ensure their longevity and safety. While they are designed for durability, neglecting maintenance can lead to deterioration over time, necessitating repairs or replacements. Regular inspections and upkeep are essential to address any wear and tear, particularly in high-traffic areas. The need for maintenance can be a drawback in situations where resources are limited, as it requires ongoing investment to keep the bridge in optimal condition.
The Bailey bridge stands out as a remarkable solution in the realm of temporary bridge designs. Its modular construction, rapid deployment capabilities, and cost-effectiveness make it an invaluable asset in military, emergency, and civil engineering applications. While it has its limitations, the advantages of the Bailey bridge often outweigh the drawbacks, particularly in situations where time and flexibility are critical. As infrastructure needs continue to evolve, the Bailey bridge remains a relevant and effective choice for temporary bridging solutions, demonstrating its enduring legacy in the field of engineering. Its ability to adapt to changing circumstances and requirements ensures that it will continue to play a vital role in addressing the challenges of modern infrastructure development.
Bailey bridges are primarily constructed from high-strength steel, which provides durability and load-bearing capacity. The use of steel allows for a lightweight yet strong structure that can be easily transported and assembled.
The assembly of a Bailey bridge can typically be completed in a matter of hours, depending on the size and configuration. This rapid deployment is one of the key advantages of the Bailey bridge, especially in emergency situations.
While Bailey bridges are designed primarily for temporary use, they can be adapted for permanent applications in certain situations. With proper maintenance and reinforcement, they can serve as long-term solutions in areas where traditional bridge construction is not feasible.
The weight limits for a Bailey bridge vary based on its configuration and the specific components used. Generally, they can support substantial loads, including military vehicles and heavy equipment, but engineers must assess the specific requirements to ensure safety and functionality.
Bailey bridges are generally more cost-effective than many other temporary bridge options due to their prefabricated design, which reduces material and labor costs. Their quick assembly also minimizes labor expenses, making them an attractive choice for short-term projects, especially in emergency situations.
